FloorCrafter Handle Assembly

Reference the part needed from the parts diagram and refer to the parts list below.
Copy the Part Number and paste it into the search window above to see availability and pricing.
Confirm your parts selection and "Add To Cart".

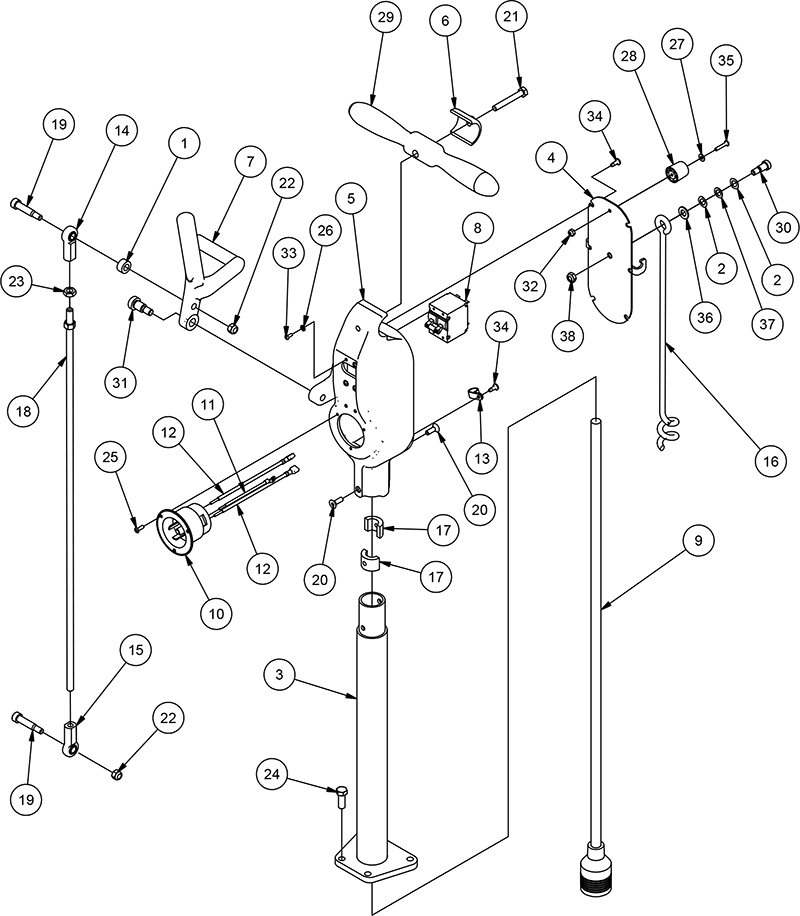

FloorCrafter-Handle-Assembly

Item	Ref. No.	Qty	Description	Item	Ref. No.	Qty	Description
1	898203	1	Spacer Rod End Hk-8	21	85818A	1	Screw5/16-18 X 2 1/2 Hx Hd
2	980022	2	Washer Wave	22	920110	2	Nut, 5/16-18 Hex Lock
3	10145A	1	Mount Handle Control	23	920204	1	Nut, 3/8-24 Hex Jam
4	10155A	1	Assy Cordholder	24	962288	4	Bolt, 3/8-16 X 1.00 Hex Hd.
5	20016A	1	Switchbox Sander	25	962727	3	Screw, 8-32 X 1/2
6	21904C	1	Clamp Steering Handle - Black	26	980607	4	Washer, #6 Lock External Tooth
7	25601A	1	Lever Control Classic 8	27	980982	1	Washer 10 Sae Flat Pltd
8	41411A	1	Circuit Breaker 30 Amp	28	51220A	1	Bumper, Plastic Non-Marking
9	41917A	1	Cord-Interconnecting	29	64405A	1	Handle, Steering
10	43501A	1	Inletflanged Nema L6-20p	30	80026A	1	Bolt Shoulder 3/8x1/2
11	48900A	1	Wire Assy	31	NB071200	1	Screw, Shoulder, 1/2" x 5/8" x 3/8-16
12	49023A	2	Wire Assembly	32	81109A	1	Nut, 8-32 Esna S.S.
13	51074A	2	Clamp Cable	33	85313C	4	Screw Phms 6-32x3/8 Cross Recessed
14	53537A	1	Rod End 3/8-24 R.H. Female	34	85517A	10	Screw #10-24 X 1/2 PHCR TYPE 23
15	53538A	1	Rod End 3/8-24 L.H. Female	35	85613A	1	Screw, 8-32 X 7/8 P.H. S.S.
16	60372A	1	Arm Cord	36	87618A	1	Washer, Flat .39 I.D. X .75 X .062
17	60374A	2	Clamp Retainer	37	87619A	1	Washer, Flat .375 I.D. X .625 O.D.
18	60387A	1	Rod Control	38	81112A	1	Nut, 5/16-18 Thin ESNA S.S.
19	80035B	2	Bolt Shoulder 3/8 X 1 1/4	39	42200A	1	Cord Set-Hard Service (Not Shown)
20	80132A	2	Screw 1/4-20x3/4 Fh Socket Hd		AS016800	1	Cord, Power, 100', 230V (Model 56380917)
							(Not Shown)
