To purchase parts for the FloorCrafter (Dolly Assembly):

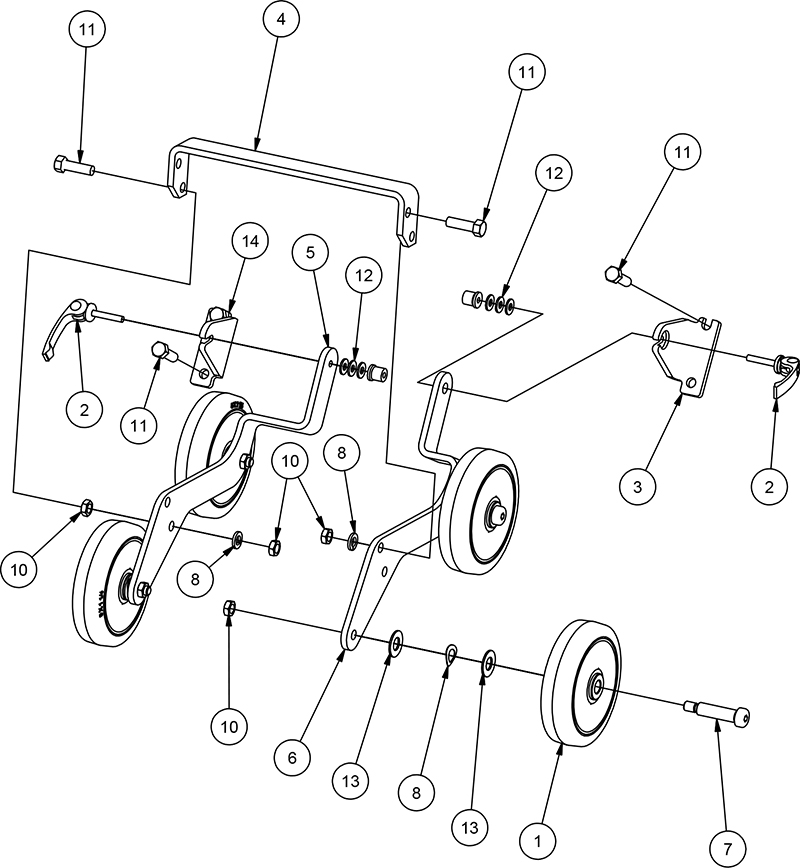

  1. Reference the part needed from the parts diagram and refer to the parts list below.
  2. Copy the Part Number and paste it into the search window above to see availability and pricing.
  3. Confirm your parts selection and "Add To Cart".


ItemPart NumberQtyDescriptionItemPart NumberQtyDescription
610392A1Dolly Assembly Floorcrafter780047A4Boltshoulder 1/2dia X 1-3/4
(all items except 3 & 14)887627A4Washer.875 O.D. Bowed
139857A4Wheel 5 X 1.50 X .5009708834Washer, Lock 3/8”
251372A2Skewer, Quick Release1092026010Nut, 3/8-16 Hex
360346A1Bracket Right Mounting119622168Screw, 3/8-16 X 1 1/4 Hex.
460347A1Brace Dolly129806466Washer 1/4 Sae Flat Pltd
560348A1Bracket Right1460345A1Bracket, Dolly Left
660349A1Bracket Left
