To purchase parts for the FloorCrafter (Base Assembly):

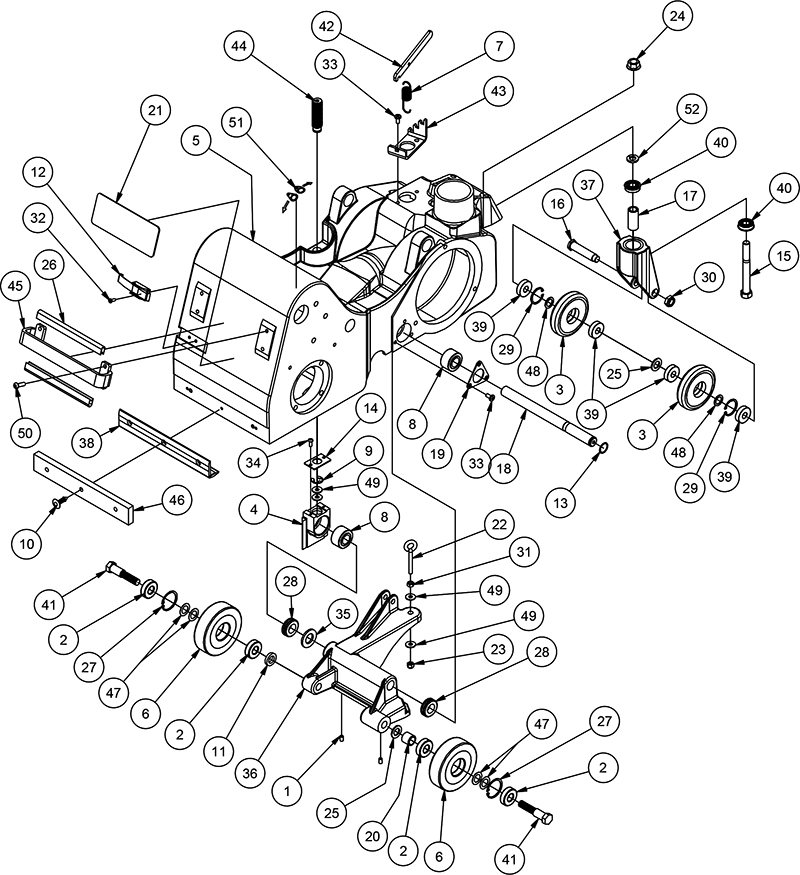

  1. Reference the part needed from the parts diagram and refer to the parts list below.
  2. Copy the Part Number and paste it into the search window above to see availability and pricing.
  3. Confirm your parts selection and "Add To Cart".


ItemPart NumberQtyDescriptionItemPart NumberQtyDescription
19621842Scr 1/4 -20x 3/8 St St Knurl329627272Screw, 8-32 X 1/2
2561060704Bearing, Ball339628235Screw, 1/4-20 X 1/2 P.H.
319611A2Wheel Asm Caster 80 A349629112Scr 10-24 X 1/2 Bt Ss
420019A1Bracket Leveling359806791Washer, 3/4” S.A.E. Flat
520022A1Mainframe Floorcrafter 8 (07014A, 07202A, 56380917)3620017A1Control Carriage
20022B1Mainframe FloorCrafter 8, Blk (07014B)3720024A1Yoke, Caster
650992A2Wheel Asm Truck38AS0172001Bumper, Corner
751096A1Spring Pressure Adjust3951226A4Bearing, 6202 Sealed
851190A2 Bearing Self-Aligning4051279A2Flange Bearing
951203A1E-Ring Bowed .625 Dia4151340A2Shaft, Truck Wheel
1051219A3Rivet Nylon4260356A1Lever Pressure Adjust
1151339A1Spacer Truck Wheel4360357A1Bracket Pressure Adjust
1252338A1Latch Draw Over-Center4460380A1Screw Leveling
1357714A1Ring Retaining 3/4 Shaft Di4560386A1Handle, Mainframe
1460351A1Plate Retaining4660392A1Bumper, Front
15NB0734001Bolt, Hex, 1/2-13 x 4.5, GD 847NB0751004Washer .625 ID X 1.0
1660353A1Axle Wheel4861355A2OD X.025 THK Spacer, Caster Wheel
1760355A1Spacer Caster Bearing4987007A4Washer Control Shaft
1860375A1Axle Truck5080139A4Screw 1/4-20 X 7/8 BH
1966972A1Retainer Bearing Hk-851AS0151001Decal, Direction, Belt Tension
2067817A1Spacer52MX11051Washer, Lock, 1/2"
21AS0148001Nameplate, FloorCrafterAccessories
2280119A1Bolt Eye-1/2 Id 1/4-20x3 Oal*53560A1Leather Operators Belt
2381102A1Nut Stop Elastic 1/4-20 Hex*50954A1Bag Dust Sanders
2481209A1Nut Large Flange 1/2-13*53718A1Adaptor 2 Hose Fitting
2587003A2Washer .59x1.00x.09 Flat St*30088A1Skid Transport
2697100A1.25’Trimvinylblack400 Ft. Spool*19611AA/RWheel Asm Caster 80 A
271673122Ring, Retainer Internal*19610AA/RWheel Asm Truck 80 A
281939442Grommet*0992AA/RWheel Asm Truck
297473042Retaining Ring 1.250 Internal*42200A1Cord Set-Hard Service
30NB0031001Nut, Hex, 1/2"-13, Jam*42201A1Cordset- Hard Service 100FT
319202081Nut, 1/4-20 Hex
* = Optional, Not Included
