To purchase parts for the Clarke FloorCrafter (Dolly Assembly):

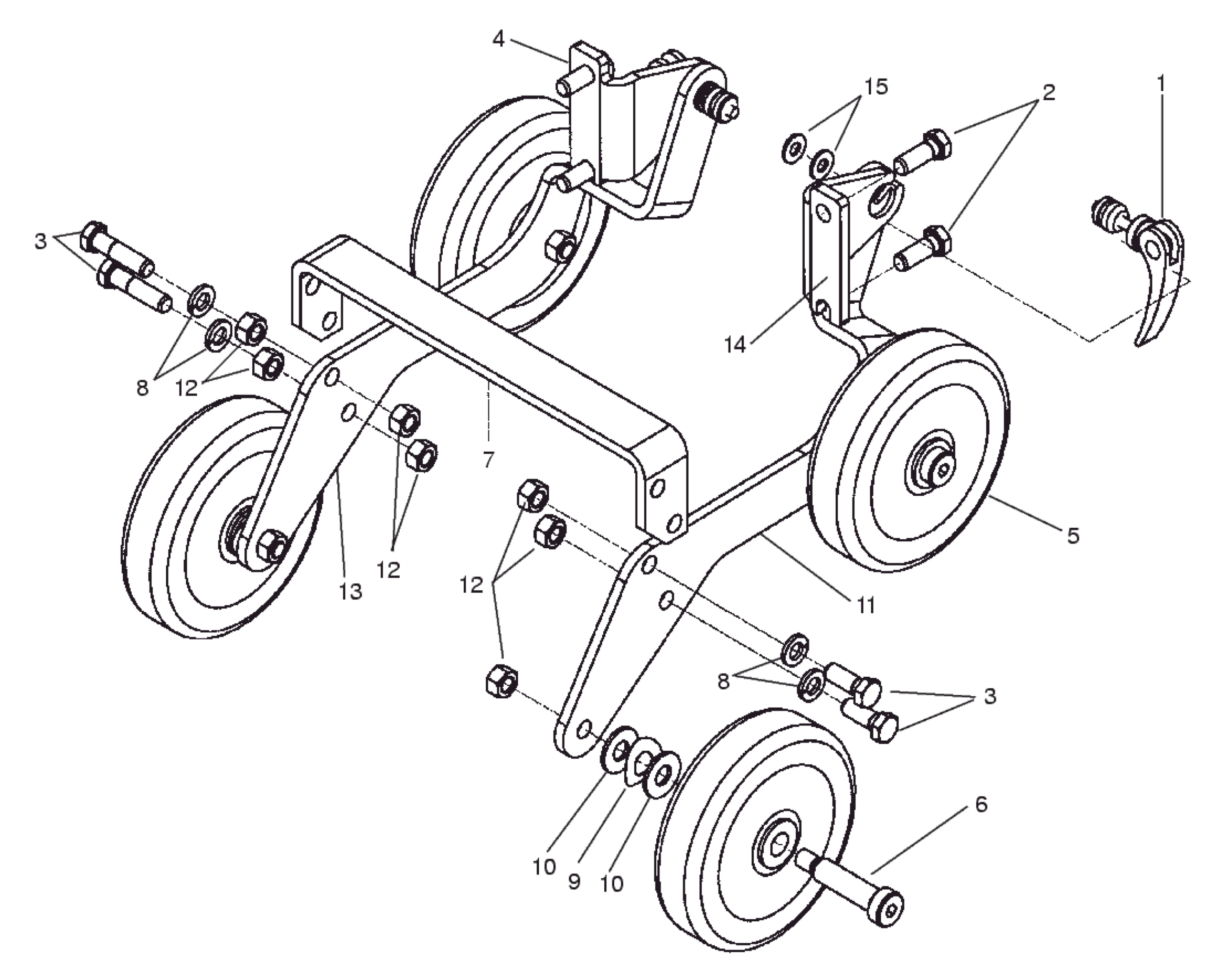

- Reference the part needed from the parts diagram and refer to the parts list below.
- Copy the Part Number and paste it into the search window above to see availability and pricing.
- Confirm your parts selection and "Add To Cart".
| Item | Part Number | QTY | Description | Item | Part Number | QTY | Description | |
| 1 | 51372A | 2 | SKEWER QUICK RELEASE | 9 | 87627A | 4 | WASHER.875 O.D. BOWED | |
| 2 | 962216 | 4 | SCREW 3/8-16 X 1-1/4 HX HD | 10 | 980648 | 8 | WASH-17/32 ID X 1&1/16 OD PLN | |
| 3 | 962288 | 4 | SCREW 3/8-16 X 1.0 HX ST CAP | 11 | 60349A | 1 | BRACKET LEFT | |
| 4 | 60345A | 1 | BRACKET LEFT MOUNTING | 12 | 920260 | 8 | NUT 3/8 -16 HEX | |
| 5 | 39857A | 4 | WHEEL 5 POLISHER | 13 | 60348A | 1 | BRACKET RIGHT | |
| 6 | 80047A | 4 | BOLTSHOULDER 1/2DIA X 1-3/4 | 14 | 60346A | 1 | BRACKET RIGHT MOUNTING | |
| 7 | 60347A | 1 | BRACE DOLLY | 15 | 980646 | 4 | WASHER 1/4 SAE FLAT PLTD | |
| 8 | 170883 | 4 | WASHER LK 3/8 REGPLTD |
