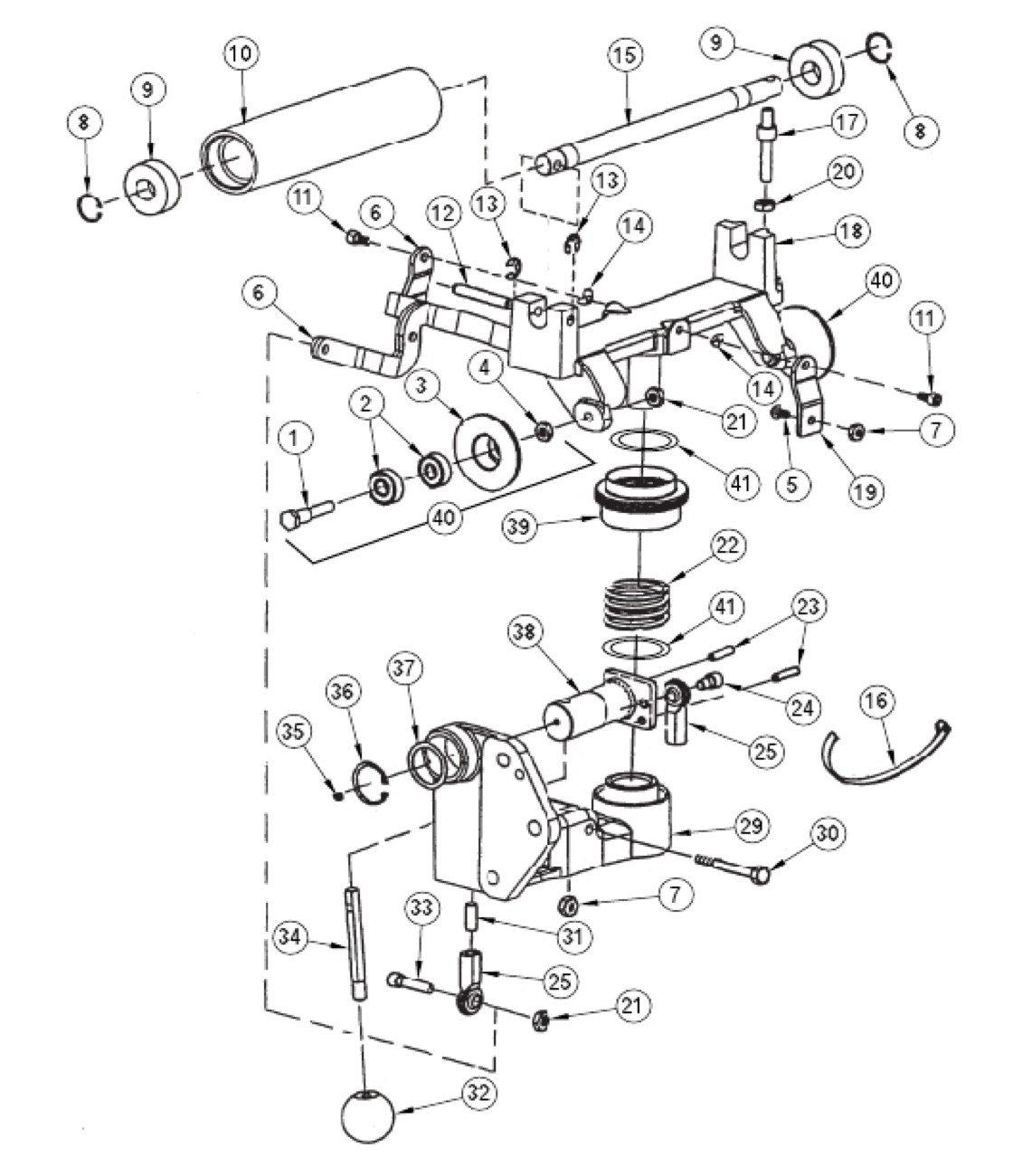

| Item | Part Number | QTY | Description | | Item | Part Number | QTY | Description |
| 1 | | 2 | SHAFT, GUIDE ROLLER | | 20 | 81303A | 1 | NUT HEX JAM 1/4-28 |
| 2 | | 4 | BEARING | | 21 | 81217A | 3 | NUT 1/4-20 X .218H NYLOCK |
| 3 | | 2 | ROLLER GUIDE | | 22 | 60379A | 1 | SPRING ABRASIVE TENSION |
| 4 | 920208 | 3 | NUT HEX 1/4-20PLTD | | 23 | 925546 | 2 | PIN-3/16X1/2 ROLL |
| 5 | 60391A | 2 | SCREW LINK RETAINING | | 24 | 962822 | 1 | SCR 1/4-20 X 5/8 BT ST SOC |
| 6 | 60393A | 1 | LEVER DRAW | | 25 | 51216A | 2 | ROD END FEMALE |
| 7 | 920296 | 3 | NUT 10-24 ELASTIC STOP | | 29 | 20020A | 1 | SUPPORT TENSIONER |
| 8 | 747380 | 2 | RING ROLLER RETAINING | | 30 | 80020A | 1 | BOLT SHOULDER 1/4 X 1 |
| 9 | 902567 | 3 | BEARING BALLDOUBLE SEALED | | 31 | 51221A | 1 | LINK CONNECTING |
| 10 | 67201B | 1 | ROLLERTENSION8BELT SANDERS | | 32 | 51099A | 1 | KNOB RELEASE |
| 11 | 60395A | 2 | SCREW LINK RETAINING | | 33 | 80139A | 1 | SCREW 1/4-20 X 7/8 BT |
| 12 | 60396A | 1 | PIN ROLLER SHAFT | | 34 | 60364A | 1 | LEVER TENSION RELEASE |
| 13 | 51211A | 4 | E-RING .25 DIA | | 35 | 962165 | 1 | SCR 10-24X 3/16 ST ST CUPPT |
| 14 | 80140A | 2 | WASHER 5MM BOWED | | 36 | 51277A | 1 | RING RETAINING - 1.0 EXT. |
| 15 | 60383A | 1 | SHAFT TENSION ROLLER | | 37 | 87052A | 2 | WASHER FLT 1.25X1.00X.020NYLON |
| 16 | 699202 | 1 | TIE-WIRE 935A | | 38 | 10247A | 1 | CAM RELEASE WELDMENT |
| 17 | 60381A | 1 | ADJUSTER TRACKING | | 39 | 30087A | 1 | BOOT BELT TENSIONING |
| 18 | 20018A | 1 | CARRIAGE TENSION ROLLER | | 40 | 14704A | 2 | GUIDE ROLLER ASMC-12 (SET OF 2) |
| 19 | 60382A | 2 | LINK DRAW | | 41 | 80422A | 2 | WEAR WASHER |
