To purchase parts for the HydraSand 20" Assembly:

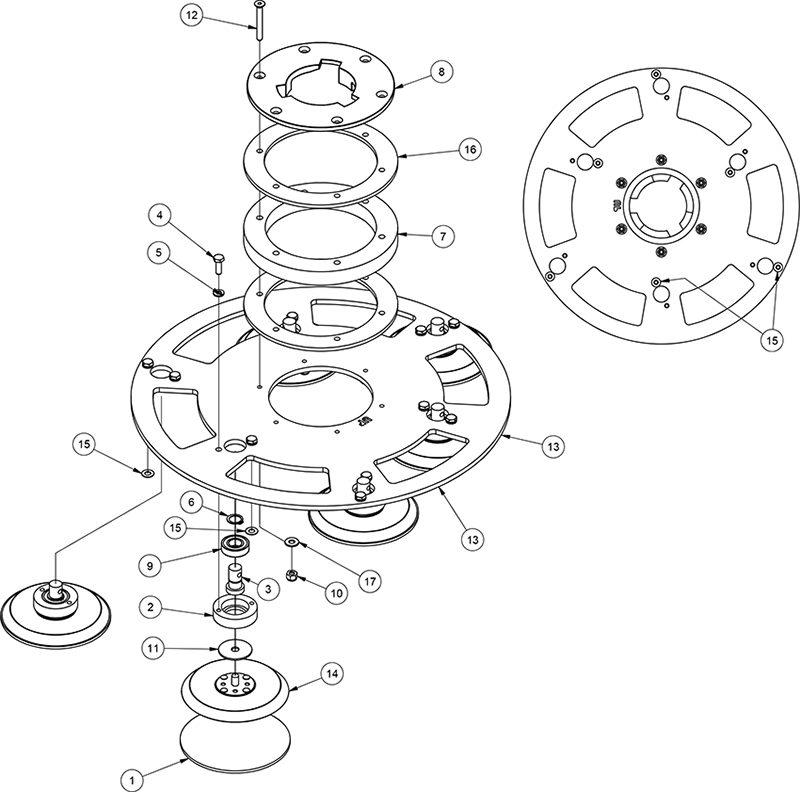

- Reference the part needed from the parts diagram and refer to the parts list below.
- Copy the Part Number and paste it into the search window above to see availability and pricing.
- Confirm your parts selection and "Add To Cart".
Item | Part Number | QTY | Description | Item | Part Number | QTY | Description | |
| 1 | AS003500 | 6 | PAD, FOAM, 5” | 10 | NB3275 | 6 | NUT, LOCK, 1/4” | |
| 2 | AS003700 | 6 | HOUSE, BEARING, DRIVER | 11 | NB080100 | 6 | WASHER, .312X 1X 0.840-.0960 | |
| 3 | AS003800 | 6 | SHAFT, DRIVER | 12 | NB055400 | 6 | SCREW, SOCKET, FLAT, CS, 1/4-20 x 2", SS | |
| 4 | NB019100 | 12 | BOLT, HEX, 1/4-20 X 3/4,GD 5 | 13 | AS036800 | 1 | PLATE, DRIVE, 20" HYDRA SAND | |
| 5 | NB6110 | 12 | WASHER, LOCK, 1/4” | 14 | AS003400 | 6 | PAD, DRIVER, 5”, ASM. | |
| 6 | NB070200 | 6 | RING, RETAINING, EXT | 15 | NB071400 | 6 | WASHER, GROUND, 1/4” | |
| 7 | AS004800 | 1 | RING, ISOLATOR | 16 | AS004700 | 2 | RING, SPACER | |
| 8 | AS004600 | 1 | PLATE, CLUTCH, DRIVER | 17 | NB3350 | 6 | WASHER, FLAT, 1/4", CZ | |
| 9 | 56380282 | 6 | BEARING-BALL, 6002 CUSTOM |
