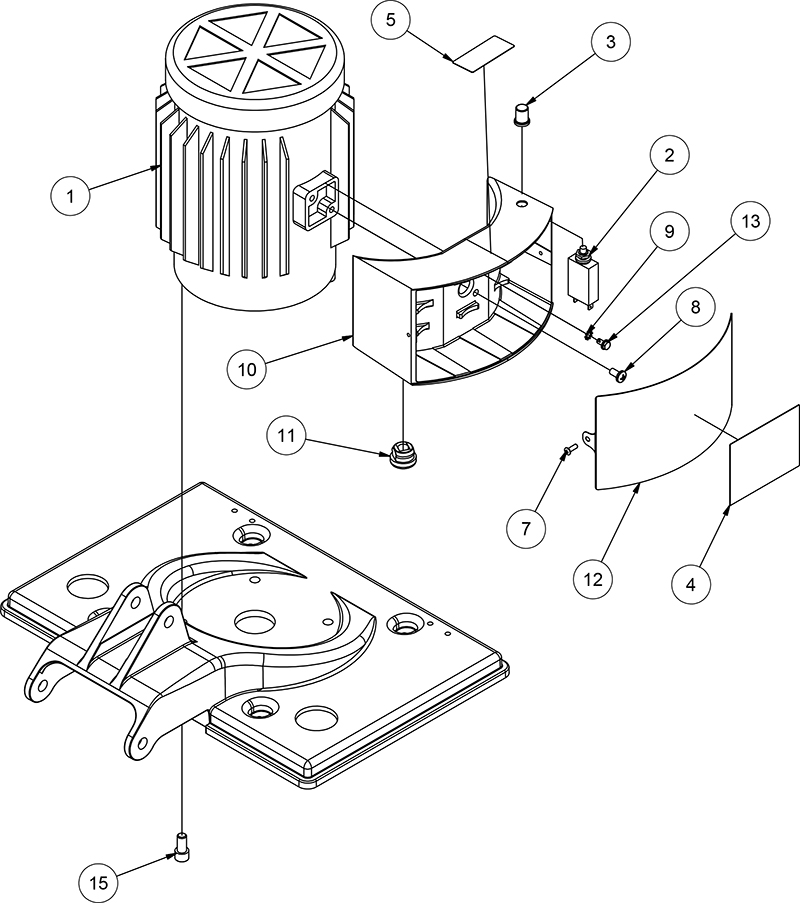

To purchase parts for the OBS-18 Orbital Sander (Motor Assembly - Standard):
- Reference the part needed from the parts diagram and refer to the parts list below.
- Copy the Part Number and paste it into the search window above to see availability and pricing.
- Confirm your parts selection and "Add To Cart".
| Item | Part Number | Qty | Description | Item | Part Number | Qty | Description | |
| 1A | 56382831 | 1 | MOTOR, 1HP, 115V / 60HZ | 5 | 77234A | 1 | PLATE, WARNING | |
| A1 | AS018100 | 1 | STARTER, SWITCH** | 6 | 170667 | 1 | CONNECTOR, TWIST, WIRE | |
| A2 | 41311A | 1 | CAPACITOR, RUN** | 7 | 962727 | 2 | SCREW, #8 X 1/2” | |
| A3 | 41312A | 1 | CAPACITOR, START** | 8 | 962823 | 2 | SCREW, 1/4” x 1/2”, BH | |
| A4 | 40545A | 1 | FAN, MOTOR** | 9 | 980603 | 1 | WASHER, #10, LOCK, EXT | |
| 1B | MP486700 | 1 | MOTOR, 1HP, 230V, 50HZ | 10 | 22906A | 1 | ENCLOSURE, MOTOR, START | |
| B1 | 47378A | 1 | SWITCH, STARTER, 230V** | 11 | 51523A | 1 | BUSHING, STRAIN RELIEF, 7/8” | |
| B2 | 41313A | 1 | CAPACITOR, RUN, 230V** | 12 | 62667A | 1 | COVER, ENCLOSURE | |
| B3 | 41314A | 1 | CAPACITOR, START, 230V** | 13 | 85833A | 1 | SCREW, #10 X 3/8” | |
| B4 | 40545A | 1 | FAN, MOTOR** | 14 | 47709A | 1 | TERMINAL, 1/4, 10-12 Ga** | |
| 2A | 56454538 | 1 | BREAKER, CIRCUIT, 15A | 15 | 86112A | 4 | SCREW, 3/8” X 3/4”, SH | |
| 2B | 41419A | 1 | BREAKER, CIRCUIT, 15A (OLD) | 16 | AS017502 | 1 | BRACKET, MOUNTING, START, SWITCH** | |
| 2C | 41418C | 1 | CIRCUIT BREAKER, 10A, 230V | 17 | 85313C | 2 | SCREW 6-32 X 3/8 PAN HD** | |
| 3 | 56459367 | 1 | BOOT, RESET BUTTON | 18 | 9200056 | 2 | NUT-6X32 ELASTIC STOP** | |
| 4 | 77195A | 1 | LABEL, UI FIRE & SAND | |||||
| (**) = Not Shown |
