Clarke OBS-18 Handle Assembly

Call Us: 800-367-3550
International +1 (336) 372-8080
Find a Dealer

To purchase parts for the Clarke OBS-18 (Handle Assembly):

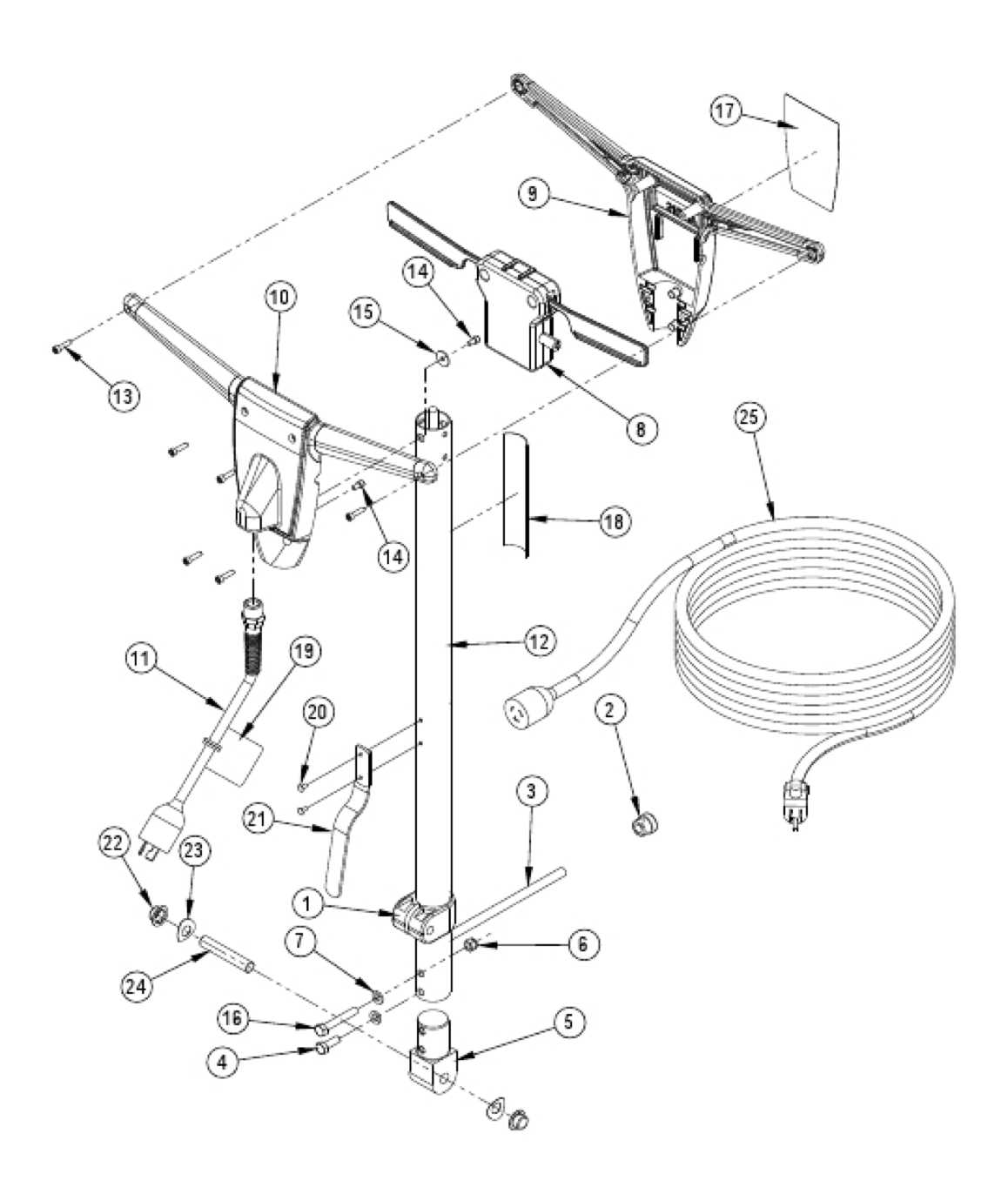

Reference the part needed from the parts diagram and refer to the parts list below.
Copy the Part Number and paste it into the search window above to see availability and pricing.
Confirm your parts selection and "Add To Cart".

clarke-obs-18-handle-assembl

Item	Part Number	QTY	Description		Item	Part Number	QTY	Description
1	442001	1	CLAMP HANDLE TUBE VP/C/DS/SS		14	80290A	2	SCREW 10-32 X 3/8 HRCS
2	627561	1	STRAIN-RELIEF		15	80291A	1	WASHER FLAT 10 TYPE B WIDE
3	40522A	1	CORD INTERCONNECT		16	85817A	1	SCREW5/16-18 X 2.0 HEX HD GR5
4	85812A	1	SCREW5/16-18 X 7/8 HEX HD GR5		17	71126A	1	LABEL HANDLE OBS-18
5	509240	1	TONGUE HANDLE TUBE		18	71347A	1	LABEL CCA WARNING
6	920110	1	NUT LK 5/16-18 REGPLTD		19	70175A	1	TAG WARNING ENG-SPN
7	980652	2	WASHER LK 5/16 REGPLTD		20	930005	2	RIVET-5/32X3/8 POP
8	10687A	1	MODULE INTERLOCK ASM		21	64325A	1	HOOK CORD 20-BURNISHER
9	21074A	1	HANDLE FRONT CFP		22	920346	2	PALNUT PW500015 TYPE W
10	21075A	1	HANDLE BACK CFP		23	80295A	2	WASHER BOWED .516ID X 1.06OD
11	40931A	1	CORD ADAPTER		24	67474A	1	SHAFTHANDLE PIVOT OBS-18
12	61825A	1	TUBE HANDLE OBS-18		25	40540A	1	CORDSET 12-3X40FT 5-15P
13	80284A	6	SCREW 10-32UNF X .75 HRCS
