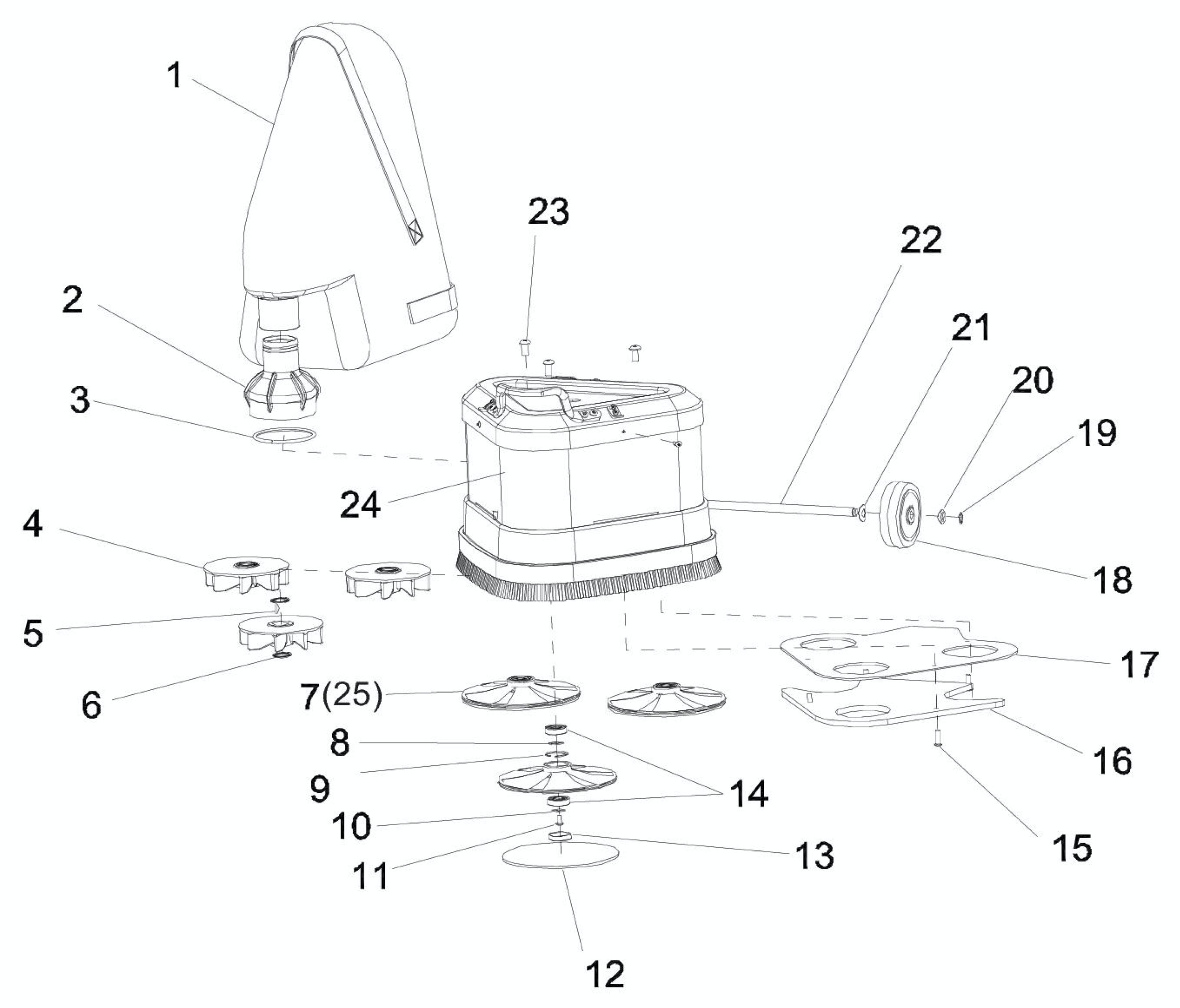

To purchase parts for the Clarke EZ-Sand (Base Assembly):
- Reference the part needed from the parts diagram and refer to the parts list below.
- Copy the Part Number and paste it into the search window above to see availability and pricing.
- Confirm your parts selection and "Add To Cart".
Item | Part Number | QTY | Description | Item | Part Number | QTY | Description | |
1 | 53544C | 1 | BAG DUST CE7/SE7 | 14 | 902606 | 6 | BEARING BALL 6002 | |
2 | 53676A | 1 | ADAPTER VACUUM EZ-SAND | 15 | 80139A | 4 | SCREW 1/4-20 X 7/8 BT | |
3 | 61795A | 1 | RING LOCKING ADAPTER | 16 | 61873A | 1 | WEIGHT BOTTOM | |
4 | 29893A | 3 | FAN DUST EZ-SAND | 17 | 61841A | 1 | PLATE COVER LOWER HOUSING | |
5 | 915028 | 3 | KEY 1/8 X 5/8 WDRF 5 | 18 | 59940A | 2 | WHEEL4X1 1/4 W/ 1/2X1 3/8 HUB | |
6 | 807305 | 6 | RING SNAP EZ-SAND | 19 | 507342 | 2 | RING-RETAINING | |
7 | 38734A | 3 | DRIVER SANDING W/HOOK | 20 | 980215 | 2 | WASHER WHEEL THRUST FM | |
8 | 61355A | 3 | SPACERCASTER WHEEL AM 8&12 | 21 | 80295A | 2 | WASHER BOWED .516ID X 1.06OD | |
9 | 747304 | 3 | RING RETAIN ARM BRG 37 | 22 | 61744B | 1 | AXLE WHEEL OBS-18 | |
10 | 87007A | 3 | WASHER-CONTROL SHAFT ECCENTRIC | 23 | 962565 | 3 | SCR 3/8 -16X 3/4 BT ST NC3 | |
11 | 87700A | 3 | SCREW1/4-20 X 1/2 BUTTON HEAD | 24 | 70499A | 1 | LABEL CAS | |
12 | 11139A | 1 | KIT DRIVER PADS 3 EZ-SAND | 25 | 11148A | 1 | HOOK REPAIR KIT EZ SAND | |
13 | 30771A | 3 | PLUG SANDING PAD | 11154A | 3 | PAD COMPLETE KIT EZ SAND |
