To purchase parts for the 3DS Orbital Sander (Head Assembly):

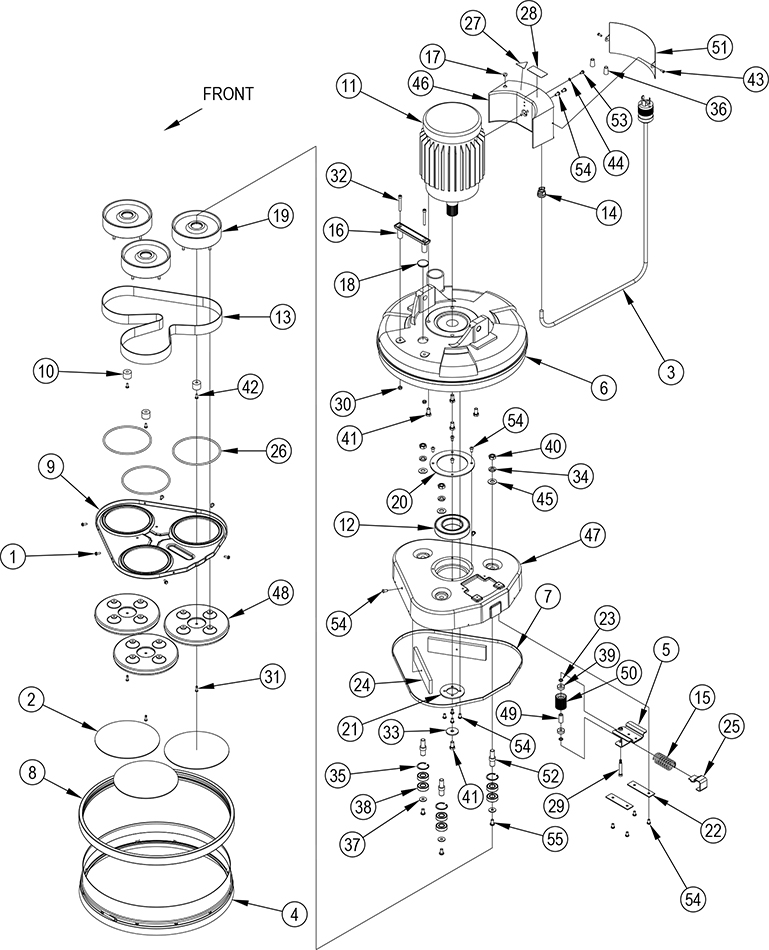

  1. Reference the part needed from the parts diagram and refer to the parts list below.
  2. Copy the Part Number and paste it into the search window above to see availability and pricing.
  3. Confirm your parts selection and "Add To Cart".


ItemPart NumberQtyDescriptionItemPart NumberQtyDescription
11709066Screw10 X 1/Hw S/D2980045A1Bolt Shoulder 5/16X 1-3/4
2563827563Disc 100hookit 3m 8 Cs=25ea3081217A2Nut1/4-20 Hex Esna
311676A1Cord Asm Set 3DS (07082C)3183011A3Rivet Removable .180 Hole
10029A1Cord Assembly 230V 50 Hz (07085C, 07112A)3285743A2Screw1/4-20x2SC HD SZ
418446A1SkirtAsm 3ds3387038A1Washer Flat 25/64 Id 1.5 Id
519022A1Tensioner Wldmtbelt 3ds3487101A3Washer Lock 1/Norn
620027A1Mainframe Gray351673123Ring, Retainer Internal
730171A1Gasket 3ds Cover361706672Wire Connector Twist On 74b
831225B1Bumperframe 20371708603WasherFlat 5/16
932414A1Cover 3ds389025676Bearing Balldouble Sealed
1034403A3Gimbalrubber 1 Sander 3ds399026482BearingBall Radial 608
1144672A1Motor3hp 230v/60hz 3DS (07082C)409201963Nut 1/2-13 Hex Jam
44311A1Motor2.2 KW 230V/50Hz (07085C, 07112A)419622445Screw3/8-16 X .75 Hex
1250758A1Bearing Ball 6212 3ds429623503Screw 10-32 .500
1350927A1Beltdrive 3ds Sander439627272Screw8-32 X 1/2
1451523A1Bushing Strain Relief449806031Washer#10 Lock External Tooth
1553410A1Springabrasivetension C-12459806483Washer 17/32 X 1 1/16 Plain
1654931A1Handle4-1/1-3/44622906A1EnclosureMotor Start
1757165A1Plug Nylon Hole 3ds4724536A1HousingDisc
1857166A1Plug1 1/4 Finishing4856942A3Pad3DS
1966245A3Pulley 3ds[]54608A12Grommet3DS
2066990A1Retainerouter Ring 3ds[]30369A3Pad Sponge 3DS Sander NOTE 1
2166991A1Retainerinner Ring 3ds[]37018A3Pad Foam 3DS NOTE 2
2266992A2Retainerbelt Tensioner 3ds4958543A1SpacerSprocket
2367863A2Spacerrelease LeverB Belt S5061914A1SprocketIdler
2468793A2Weightdisc Housing 3ds5162667A1CoverEnclosure
2569191A1Tensionerbelt 3ds5267477A3Shaft
2669662A3Sealpully 3ds Sander5385833A110-32x3/Hw Type 23
2770044A1Label Electrical Shock 3ds5487700A16Screw 1/4-20 X 1/B.H.
2877234A1Plate-Warning5587701A3Screw5/16-1Bx5/8 Button Head
NOTE 1: Only used after May 2003.
NOTE 2: Only used before June 2003.
Part NumberDescription
674114HoseVacuum 10
682408Vacuum Hose Adaptor 1½"
639804Wand Assemb lyCurved 1½"
638820ToolFeltShod 14"
658821Tool-Bristle Shod
945630BX (25) 3M 8Hookit Disc #36
945585DISC 3M 19X2 36-2 CS=50EA
945633BX (25) 3M 8Hookit Disc #60
945634BX (25) 3M 8Hookit Disc #80
56382756BX (25) 3M 8Hookit Disc #100
945625CS(40)7 7/B"x3/16Mesh Disc #80
945626CS(40)7 7/B"x3/16Mesh Disc #100
945610Bx(40)8"x2 ¾" Edger Disc Pad
