To purchase parts for the 3DS Orbital Sander (Electrical Box):

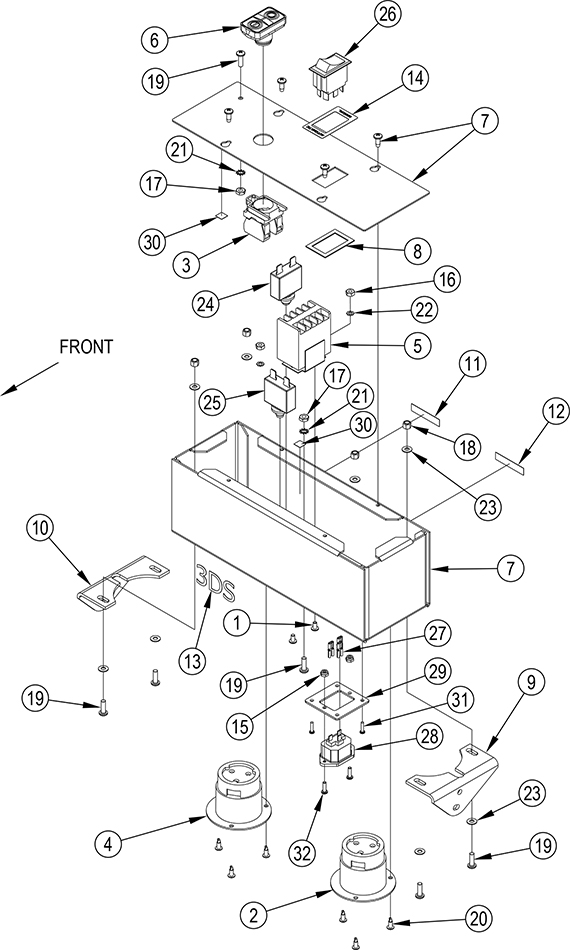

  1. Reference the part needed from the parts diagram and refer to the parts list below.
  2. Copy the Part Number and paste it into the search window above to see availability and pricing.
  3. Confirm your parts selection and "Add To Cart".


ItemPart NumberQtyDescriptionItemPart NumberQtyDescription
10774A1Box Asm Electric 3DS (07082C)169201082Nut8-32
10030A1BoxAsm230V 50Hz (07085C, 07112A)179202002Nut10-24 Hex
19620652Screw 8-32 X 1/4 Pn St Ph189202964Nut 10-24 Elastic Stop
236800A1Outletnema Flanged 3DS (07082C)199621096Screw10-24 X 5/8 Phcr Ss
[]40054A1Outletflanged L6-30R (07085C, 07112A)209627276SCREW8-32 X 1/2 W/DRILL PT
340415B1Block Contact219806032Washer#10 Lock External Tooth
443501A1lnletflanged Nema L6-20P (07082C)229806212Washer External Tooth Lock
[]40040A1lnletiec 309 Male Pin (07085C, 07112A)239809828Washer  10 Sae Flat Pltd
546326A1Relaywire 230v2441419A1Circuit Breaker15a
650205B1Actuator Start Stop2541423B1Breaker5a CircuitCntrl./Act.
751091A1Box Electrical2647381B1SwitchRockerDpdt
861665A1Clip Switch MtgDayton 20ds2747711A3Terminal1/4Fifqd (07082C)
969917A1BracketelecBox Left Pntd2851375A1Outlet lee  10a 250v (07082C)
1069918A1Brkt Elec Box Right Pntd[]43503A1Outletschuko 230V 3DS (07085C, 07112A)
1170157A1Label Main Power2960708A1Plate Outlet Mounting (07082C)
1270179A1Labeld.T.V. 7 Only3077094A2Label Ground Symbol
1377370A1Label 3ds 13180056A2Screw4-40 X 1/2 P.H.
1477372A1Label Switch AIM 3ds3280310A2Screw6-32 X 1/2 Pan Hd.
159200562Nut6-32 E.S.N.A. Nylock
