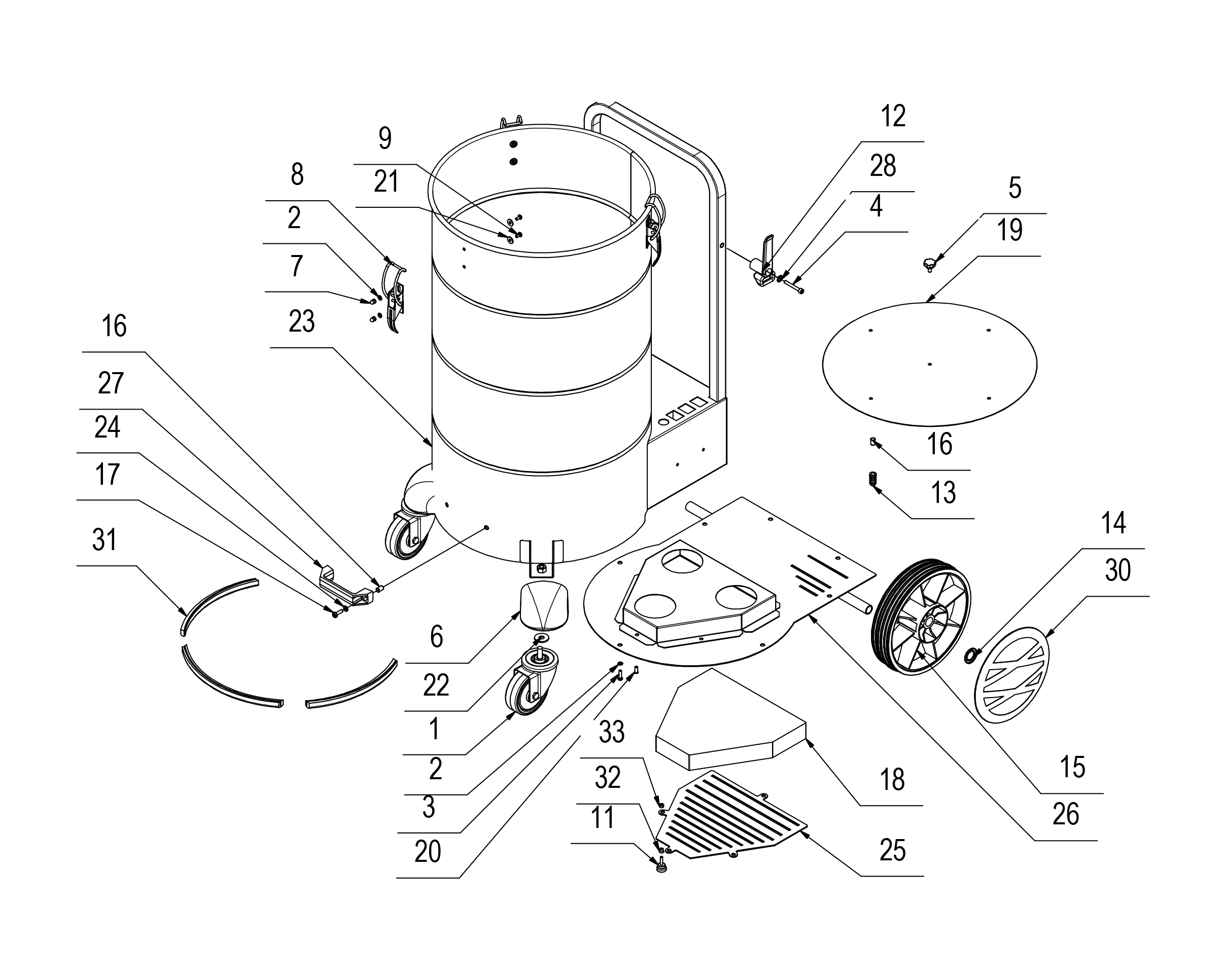

AVAC 26 Tank Assembly

Note: Click on the item number that you need to confirm the part number, price, availability and to place your order. If you already know the part number, you can also enter it in the search box above.

part 33

part 32

part 31

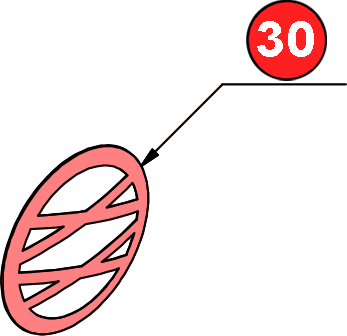

part 30

part 28

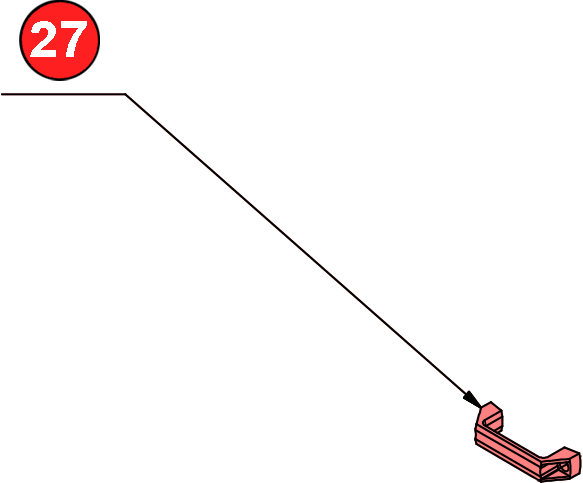

part 27

part 26

part 25

part 24

part 23

part 22

part 21

part 20

part 19

part 18

part 17

part 16

part 16

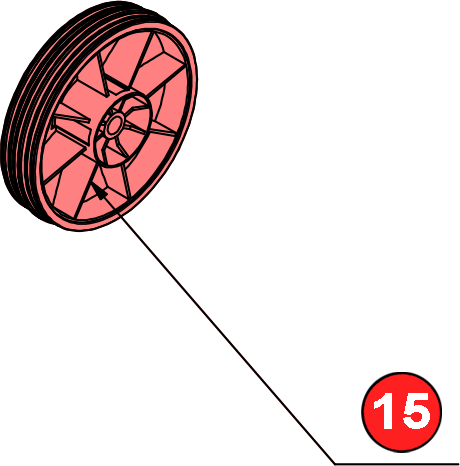

part 15

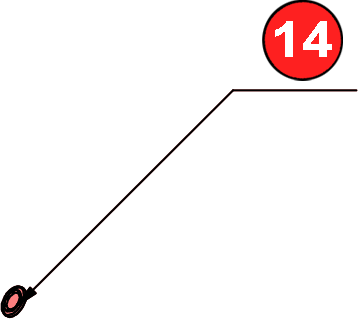

part 14

part 13

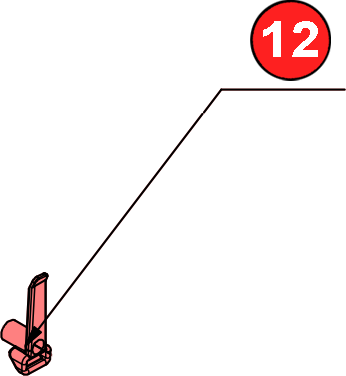

part 12

part 11

part 9

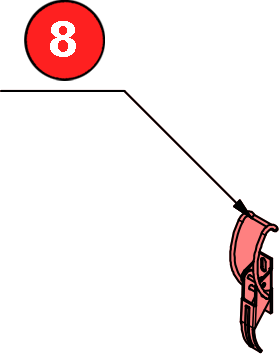

part 8

part 7

part 6

part 5

part 4

part 3

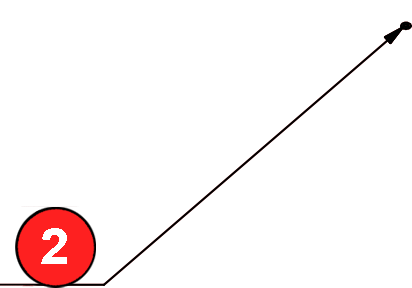

part 2

part 2

part 1

Item	Part Number	Qty	Description		Item	Part Number	Qty	Description

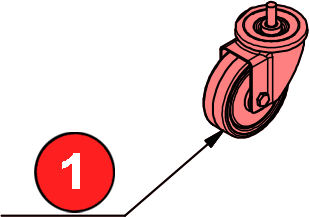

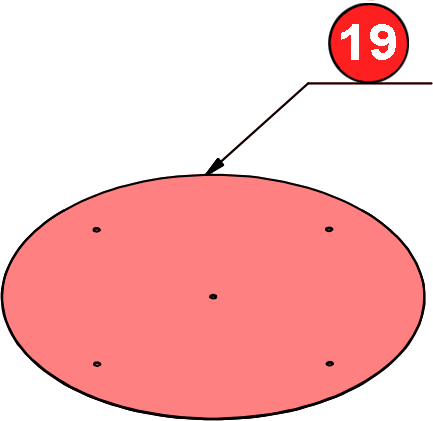

1	TMB442309	2	PIVOTING WHEEL D.100 TBF/7 M10X25 RIV.		19	TMB442311	1	GRID, SPACER D.450

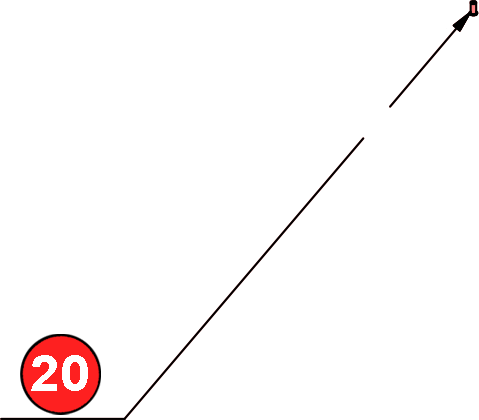

2	TMB417987	13	WASHER		20	TMB417609	11	INSERT

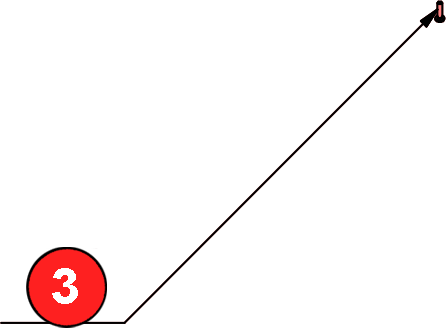

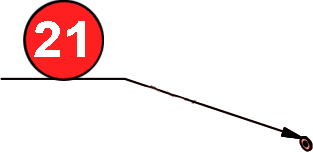

3	TMB408855	7	SCREW		21	TMB417986	6	WASHER
4	TMB408807	1	SCREW		22	TMB409194	2	WASHER

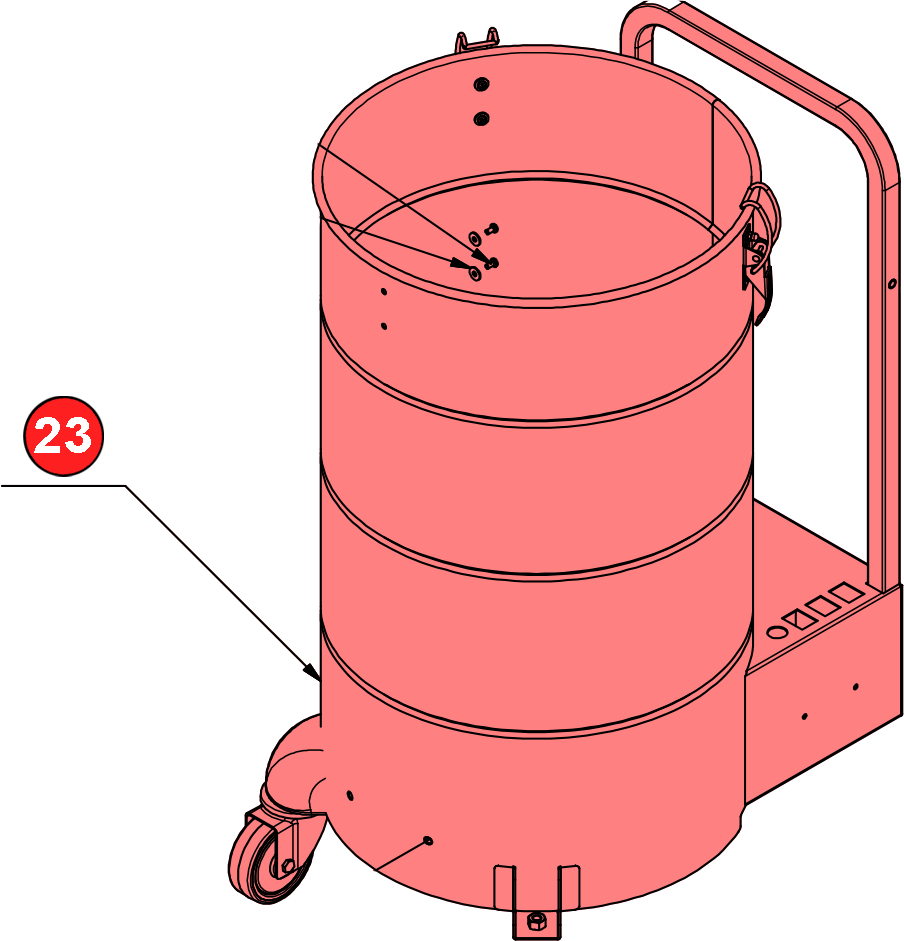

5	TMB442375	1	KNOB		23	TMB225120	1	TANK

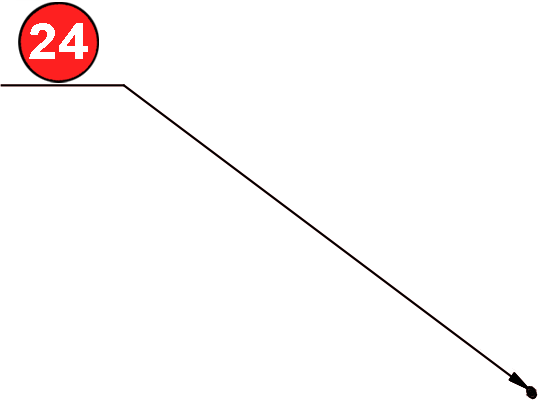

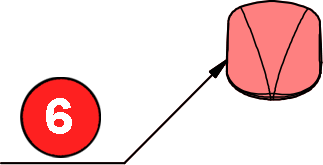

6	TMB417215	2	PROTECTION CAP		24	TMB417993	2	LOCK WASHER

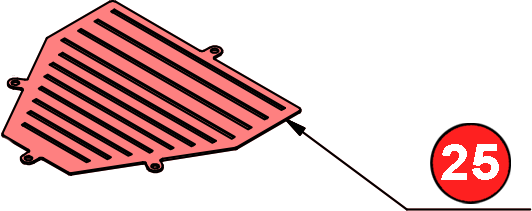

7	TMB417262	6	NUT		25	TMB225315	1	GRID

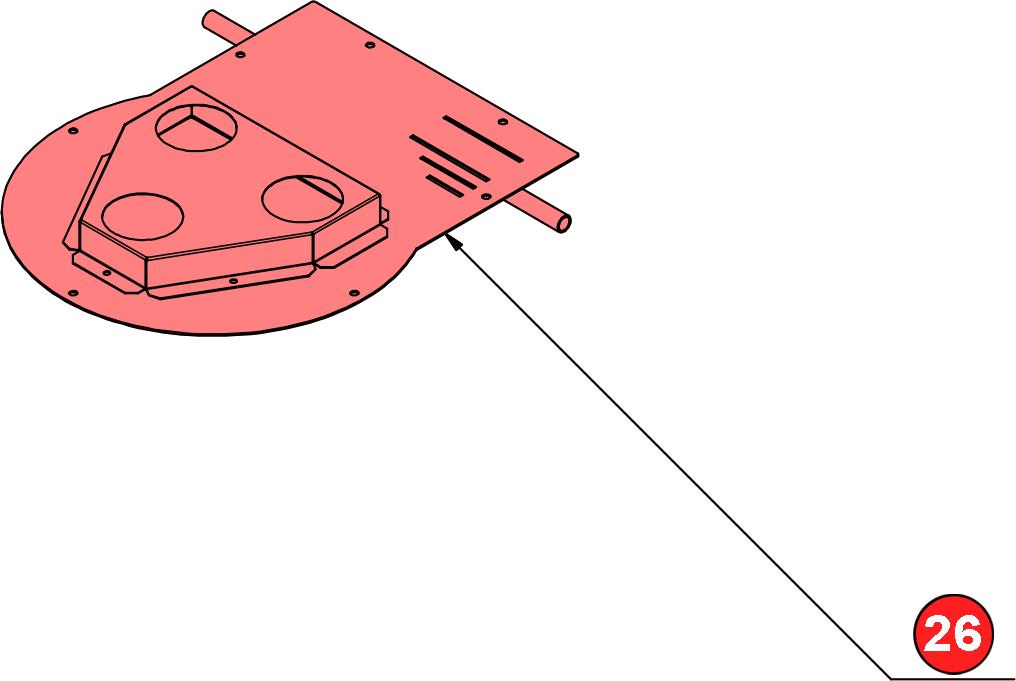

8	TMB417505	3	HOOK		26	TMB225314	1	BOTTOM COVER

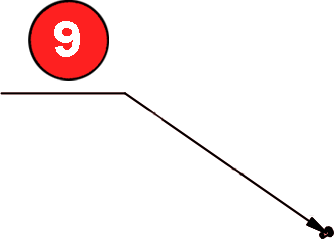

9	TMB408848	6	SCREW		27	TMB225164	1	BLACK HANDLE HOLES D.8.5
10	TMB417486	1	INSULATION, SOUND		28	TMB417998	1	LOCK WASHER
11	TMB445520	4	KNOB		29	TMB410542	1	INSERT
12	TMB416543	1	SUPPORT		30	TMB417186	2	COVER

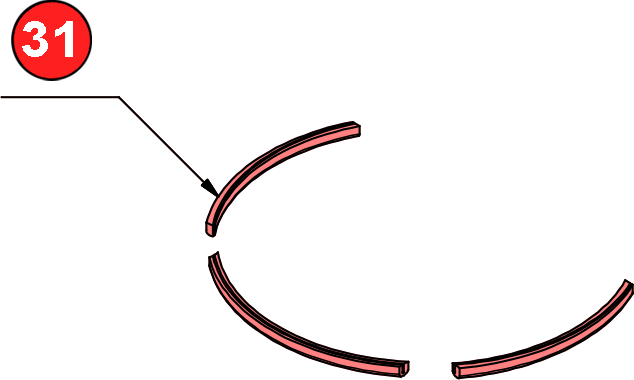

13	TMB437787	5	CAP		31	TMB417909	1	GASKET
14	TMB418140	2	STARLOCK D. 20MM		32	TMB417286	4	BRASS KNOB BLOCK
15	TMB418014	2	WHEEL		33	TMB409037	4	NUT

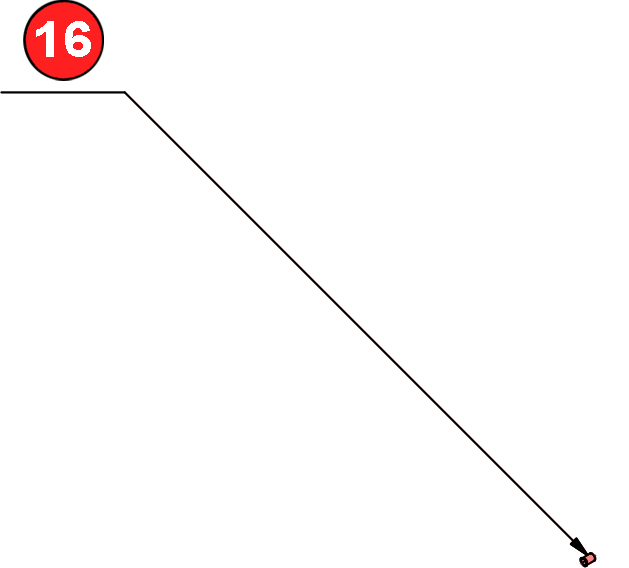

16	TMB410545	7	INSERT		*	TMB445522	1	LABEL FILTER CLEANING INSTRUCTION

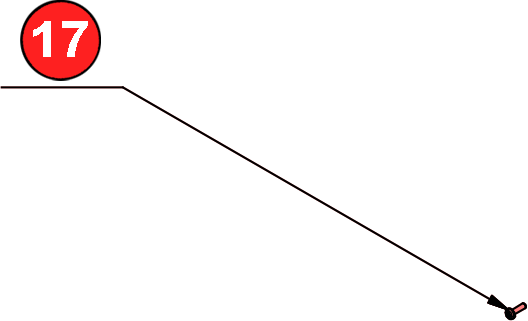

17	TMB408862	2	SCREW		* = not shown

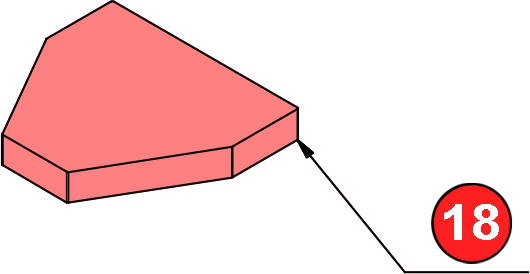

18	TMB445510	1	SPONGE FILTER Sp.17
