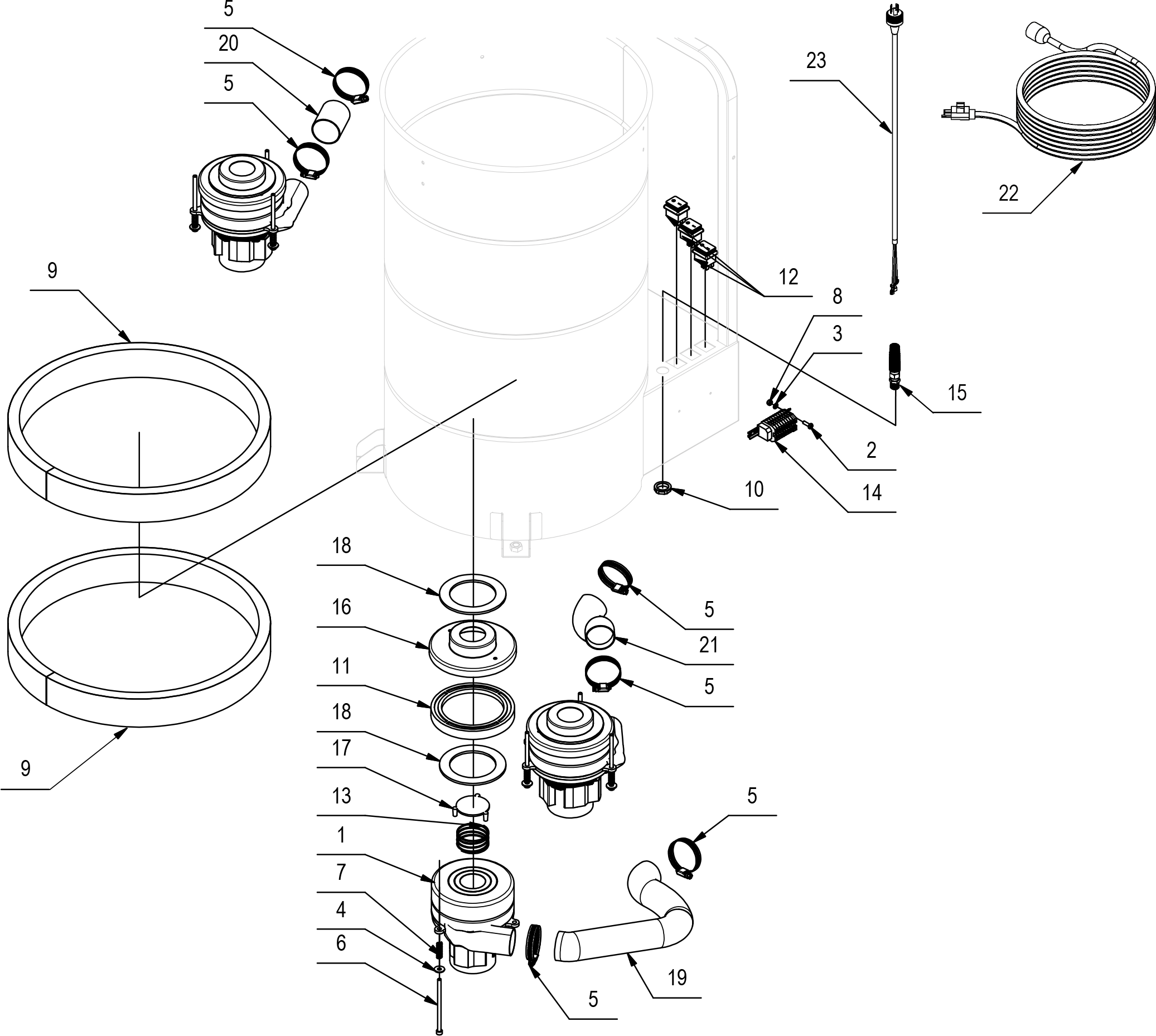

AVAC 26 Motor Assembly

Note: Click on the item number that you need to confirm the part number, price, availability and to place your order. If you already know the part number, you can also enter it in the search box above.

part 23

part 22

part 21

part 20

part 19

part 18

part 18

part 17

part 16

part 15

part 14

part 13

part 12

part 11

part 10

part 9

part 9

part 8

part 7

part 6

part 5

part 5

part 5

part 5

part 5

part 5

part 4

part 3

part 2

part 2

Item	Part Number	Qty	Description		Item	Part Number	Qty	Description

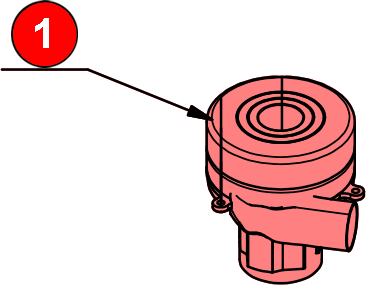

1	TMB448334	3	MOTOR, VAC, 120V, 800W		13	TMB417787	3	SPRING, VALVE
1a	TMB417810		MOTOR, VAC, 230V, 1000W		14	TMB417788	1	BLOCK, TERMINAL
2	TMB408854	2	SCREW, M5 X 16MM		15	TMB417826	1	RELIEF, STRAIN, CABLE

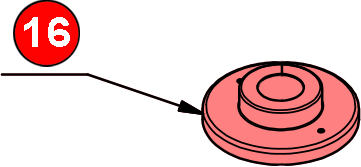

3	TMB409150	2	WASHER, M5 X 11MM X 1MM		16	TMB417893	3	PORT, VALVE, VACUUM

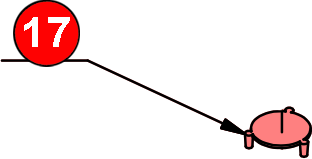

4	TMB409160	10	WASHER, M6 X 18MM X 1.5MM		17	TMB418253	3	VALVE, MOTOR, VAC

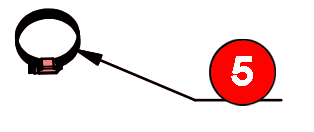

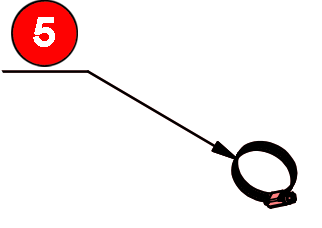

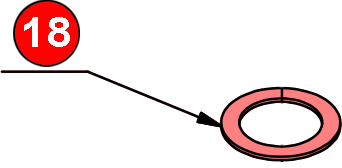

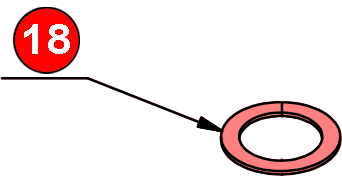

5	TMB410287	6	CLAMP, 40-60MM		18	TMB421868	6	SEAL, PORT, VALVE
6	TMB416696	9	SCREW, M6 X 110MM		19	TMB422492	1	TUBING, 50MM
7	TMB416725	9	SPRING, COMPRESSION		20	TMB422492	1	TUBING, 50MM
8	TMB416781	2	NUT, LOCK, M5		21	TMB422492	1	TUBING, 50MM

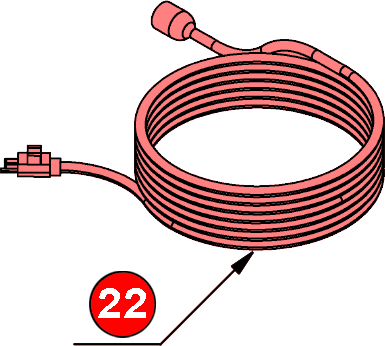

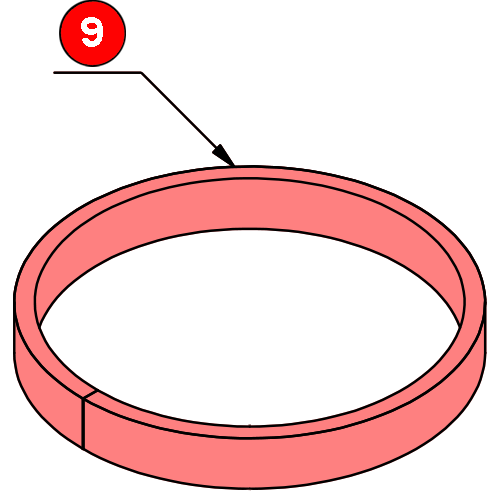

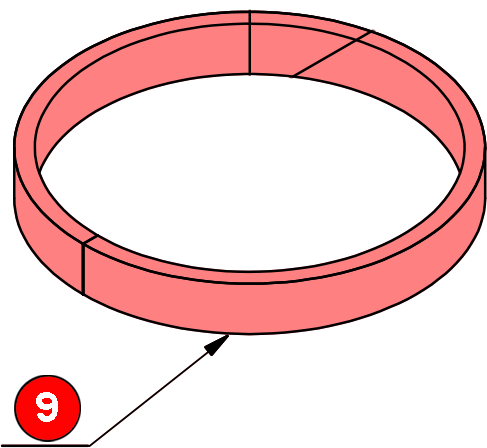

9	TMB417489	2	INSULATION, SOUND		22	TMB225261	1	CORD, POWER, 14/3, 50FT, 120V
10	TMB417523	1	NUT, RELIEF, CABLE		22a	TMB446022		CORD, 3X1.5X15M, AUSTRALIAN PLUG

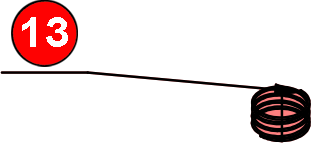

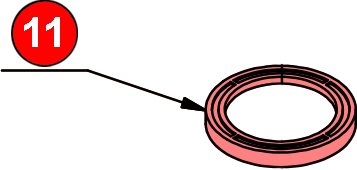

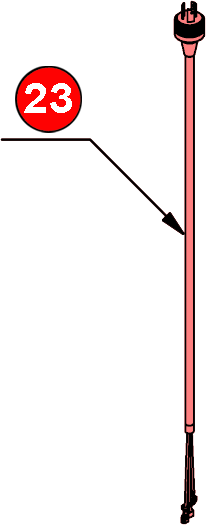

11	TMB417564	3	SEAL, MOTOR, VAC		23	TMB442332	1	CORD, PIGTAIL, INTERCONNECT
12	TMB417622	3	SWITCH, DBL POLE		23a	TMB446021		CORD, PIGTAIL INTERCONNECT, AUTRALIAN PLUG
