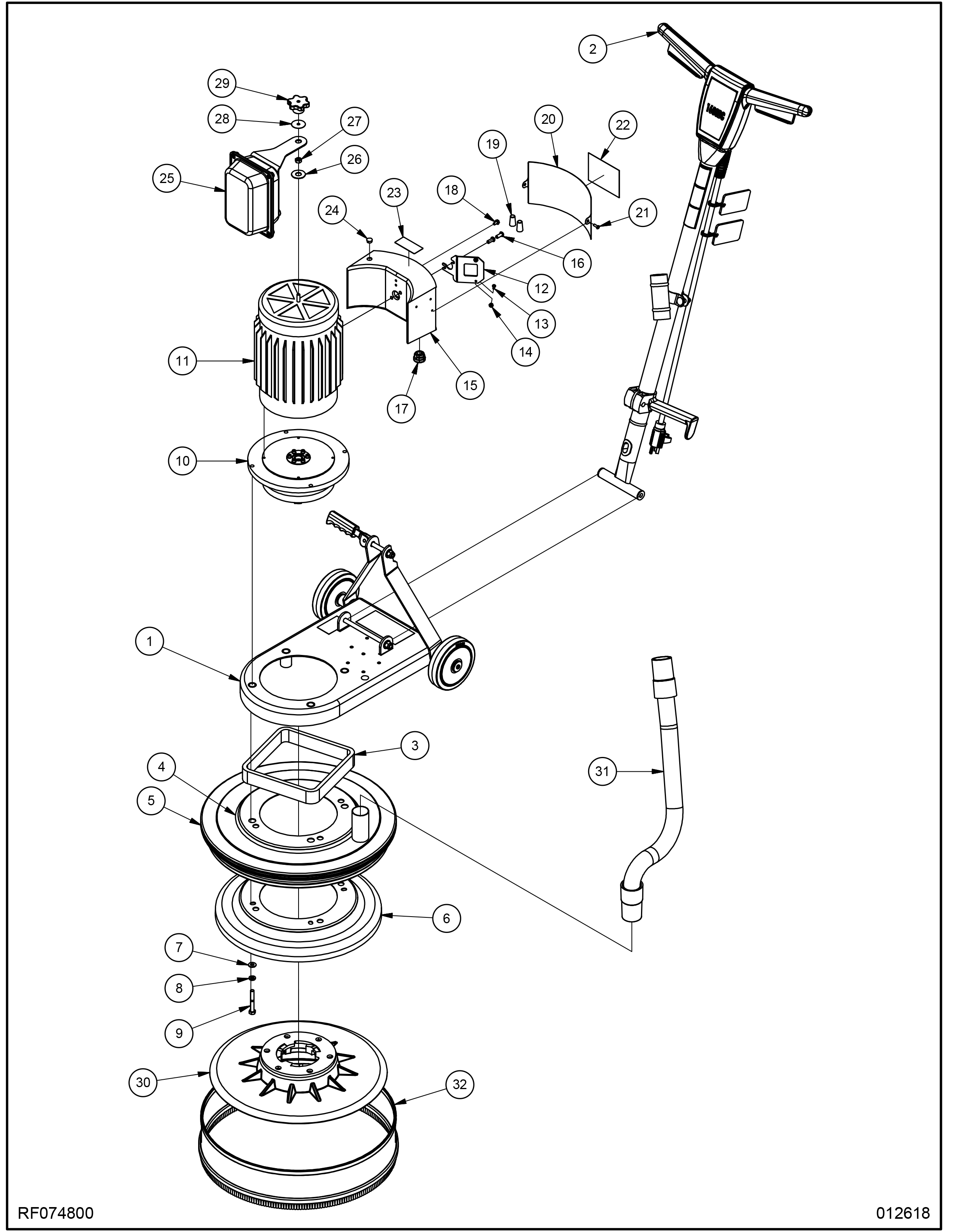

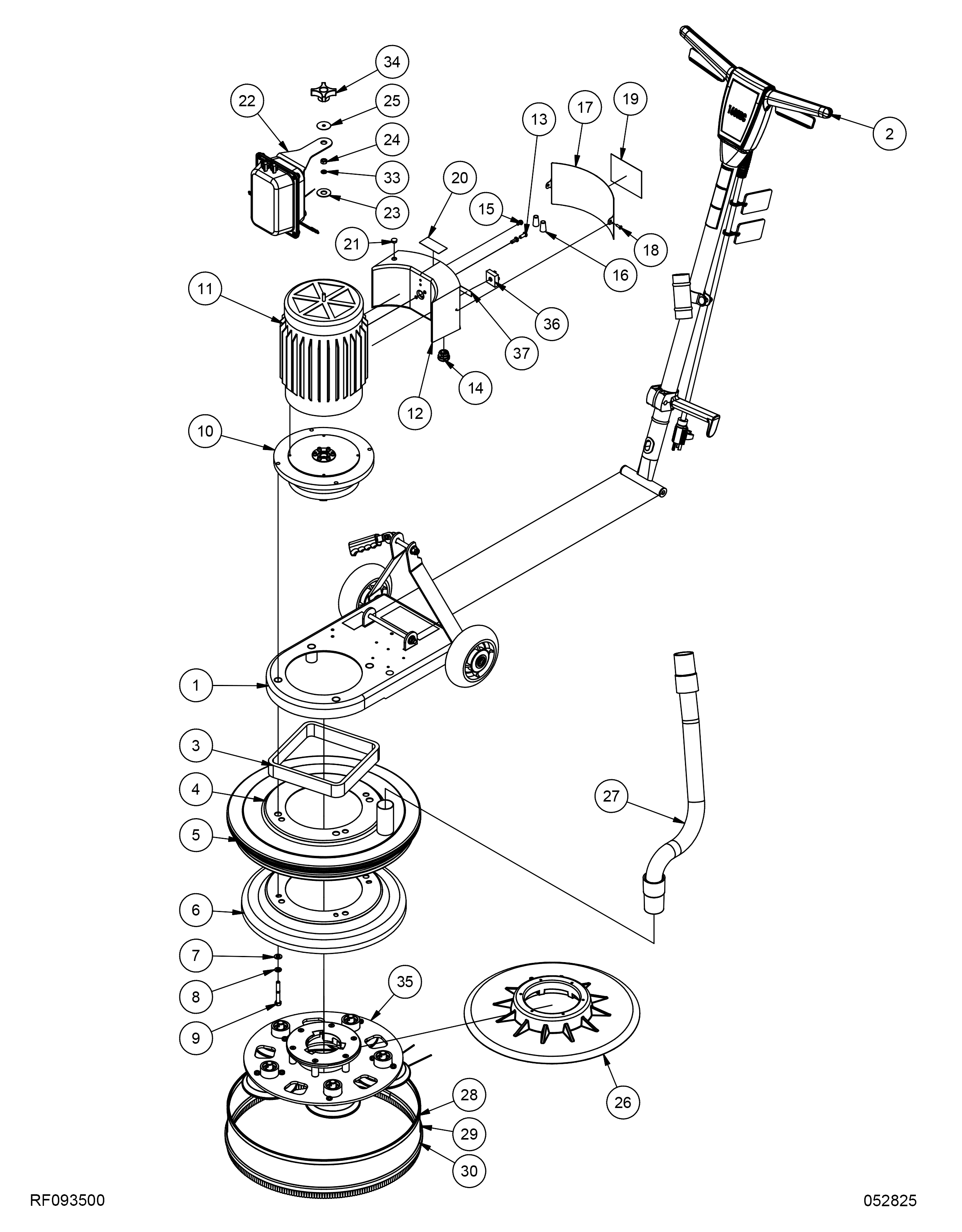

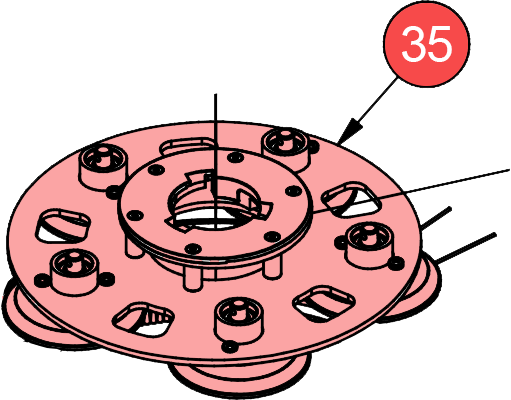

Sander 1600 Main Assembly
| ITEM | PART NUMBER | QTY | DESCRIPTION | ITEM | PART NUMBER | QTY | DESCRIPTION | |

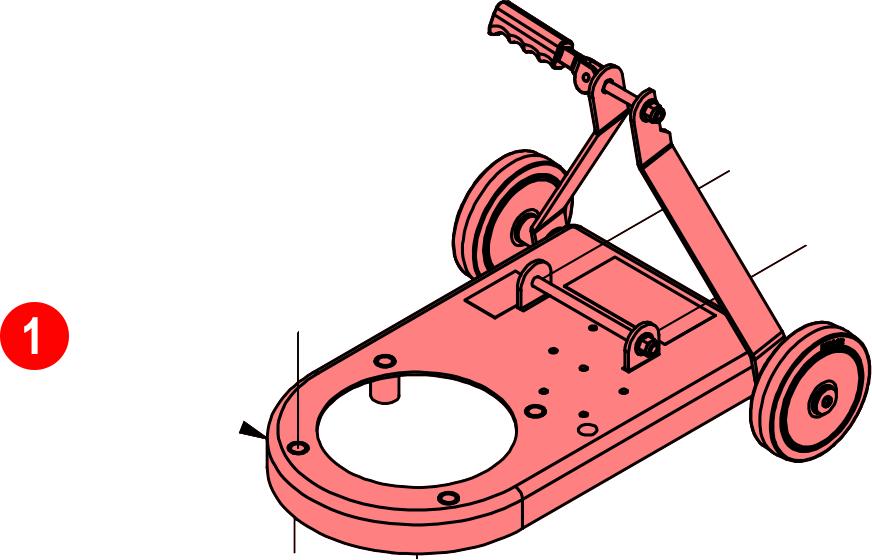

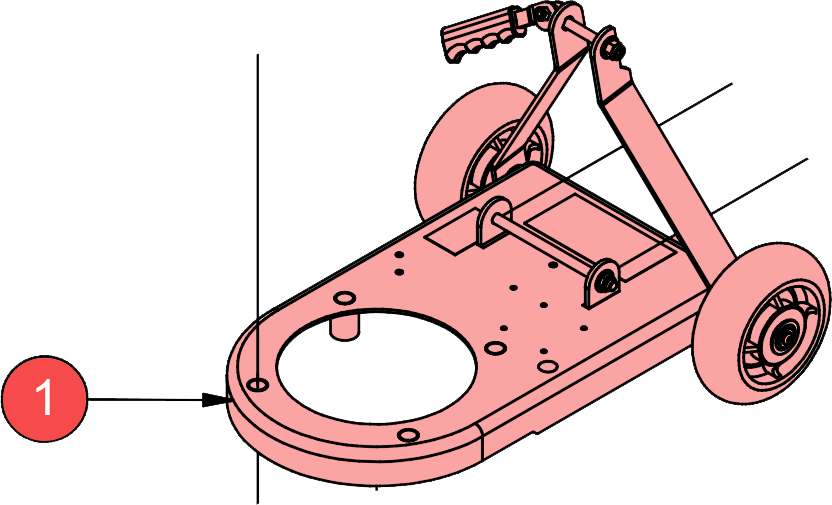

| 1 | AS029700 | 1 | FRAME, SANDER 1600, ASM. | 16 | 962822 | 2 | SCR 1/4-20 X 5/8 BT ST SOC | |

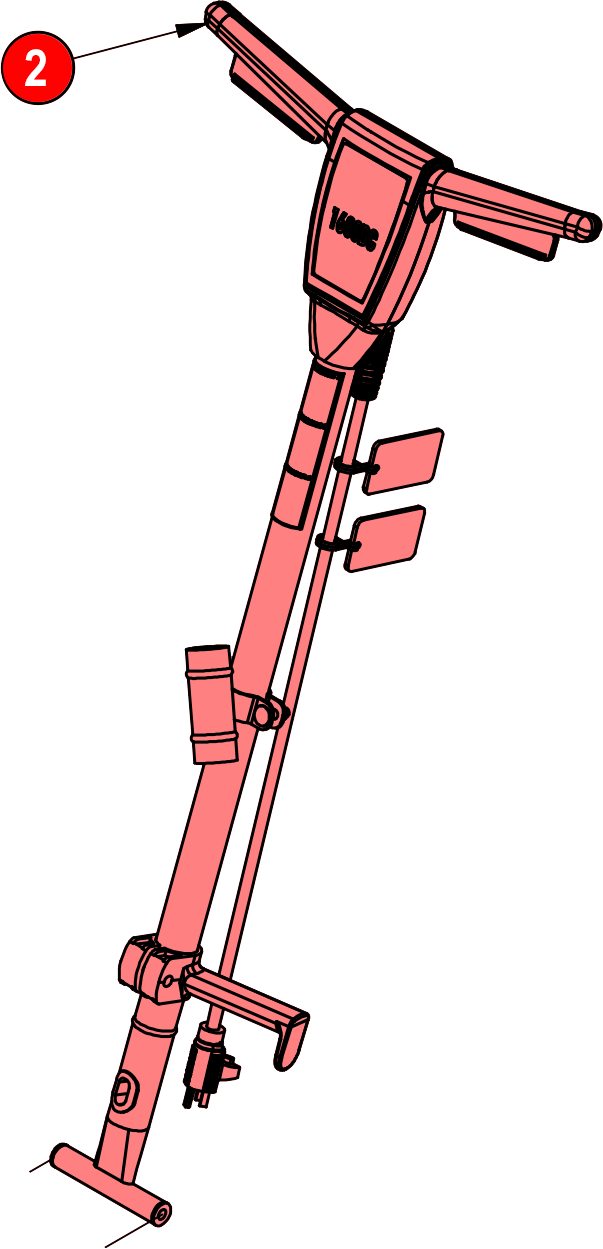

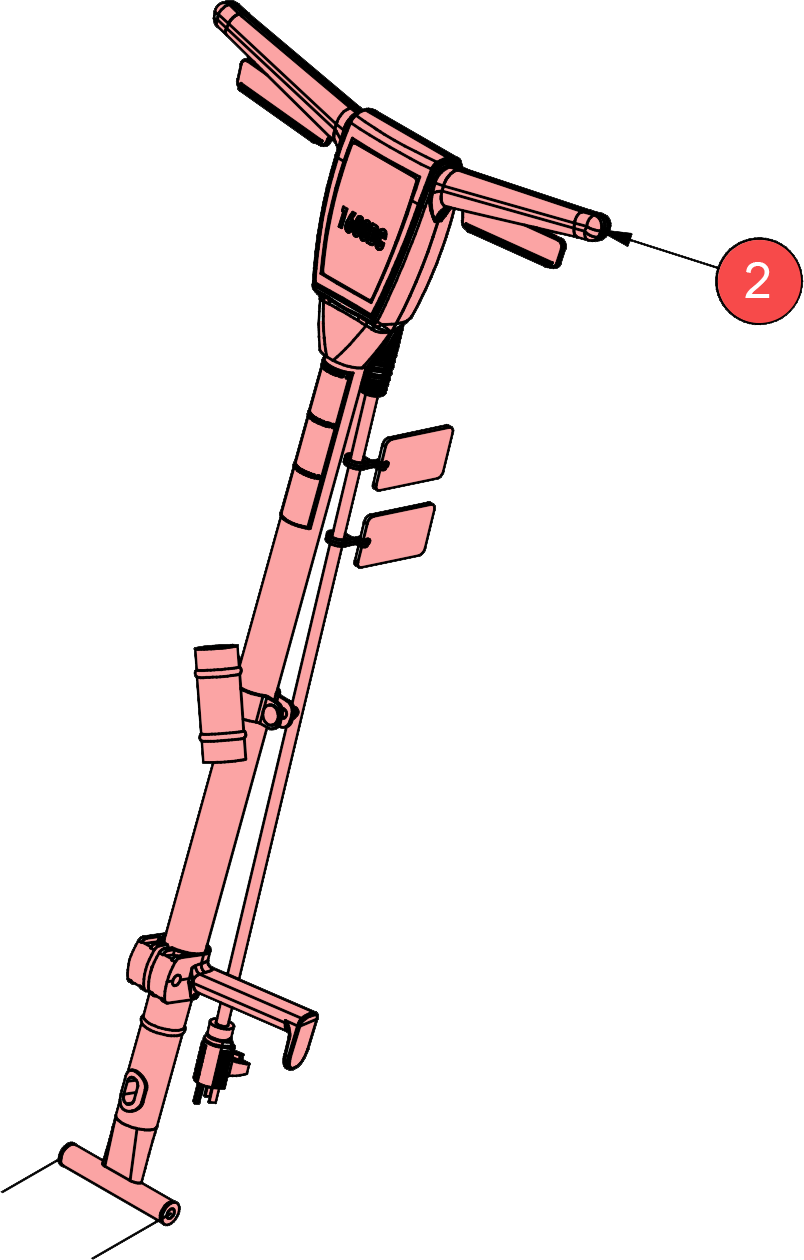

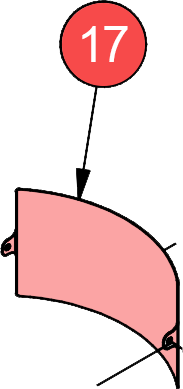

| 2 | AS029600 | 1 | HANDLE, SANDER 1600, ASM. | 17 | 51523A | 1 | BUSHING, STRAIN RELIEF | |

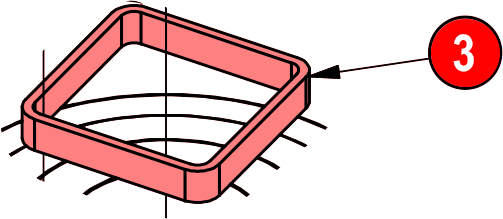

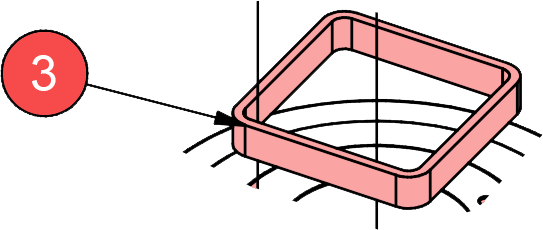

| 3 | 52368A | 1 | SEAL FOAM | 18 | 85833A | 1 | SCREW, MACHINE, 10-32 TYPE 23 | |

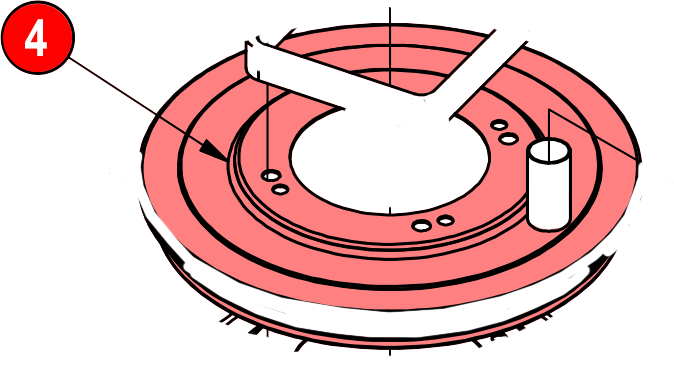

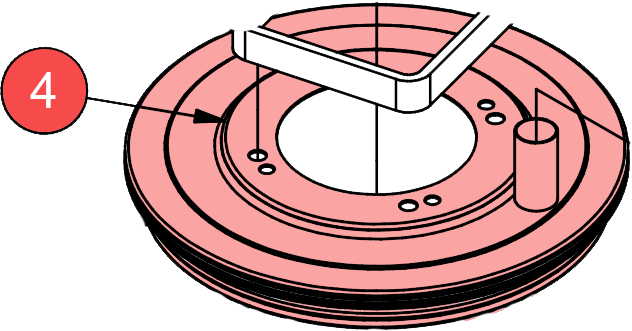

| 4 | 10241A | 1 | WLDMNT DUST SHIELD | 19 | 170667 | 2 | CONNECTOR, WIRE NUT, 74B, YELLOW | |

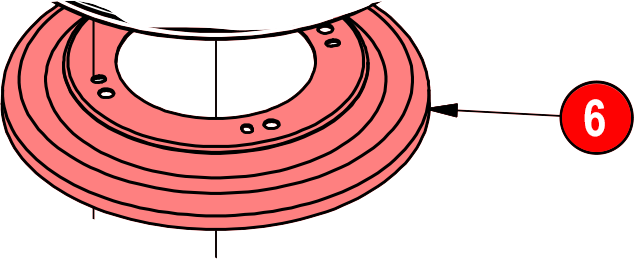

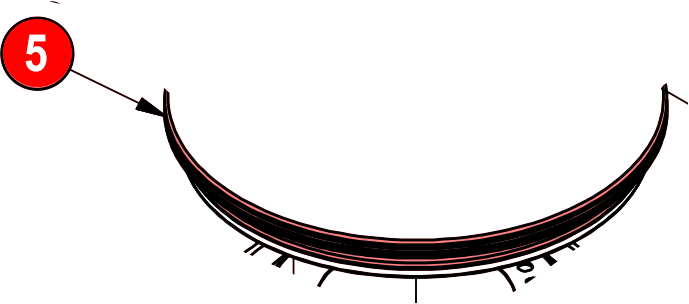

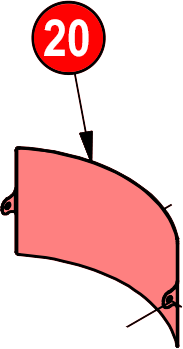

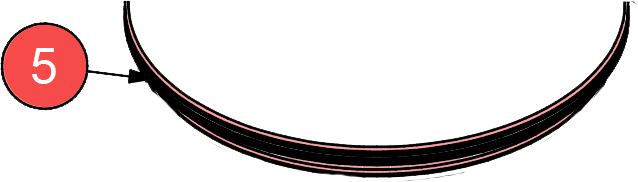

| 5 | 52359A | 1 | BUMPER OUTER SHIELD | 20 | 62667A | 1 | COVER, ENCLOSURE | |

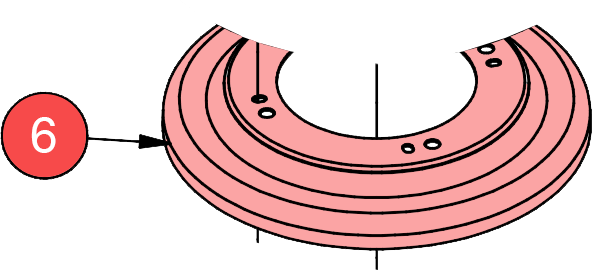

| 6 | 61832A | 1 | SHIELD INNER RS 16DC | 21 | 962727 | 2 | SCREW, 8-32 X 1/2 PN ST TP23 PH | |

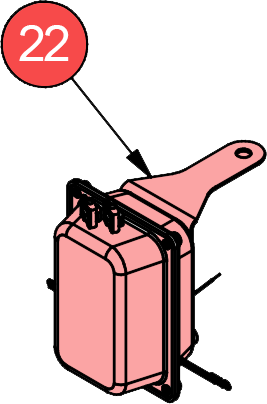

| 7 | 980651 | 4 | WASHER 5/16 SAE FLAT | 22 | 77195A | 1 | DECAL, UL WARNING | |
| 8 | 980652 | 4 | WASHER, LOCK, 5/16 | 23 | 77234A | 1 | LABEL, WARNING, HEAVY OBJECT | |
| 9 | 962308 | 4 | SCR 5/16-18X2&1/4 HX ST | 24 | 57165A | 1 | PLUG NYLON HOLE 3DS | |

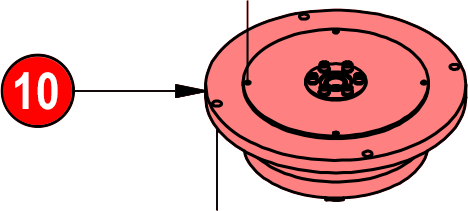

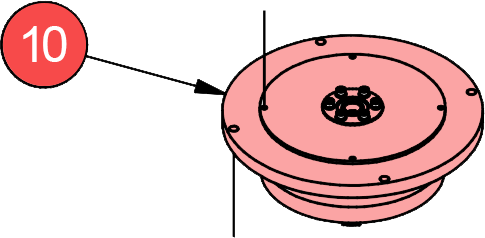

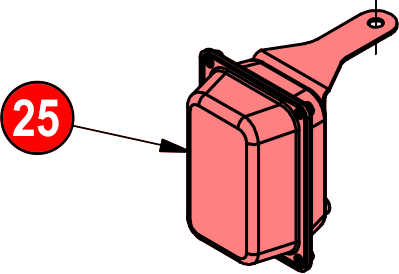

| 10 | 50979A | 1 | GEARBOX 10 TO 1 SANDER | 25 | 10252A | 1 | LAMP ASSY | |

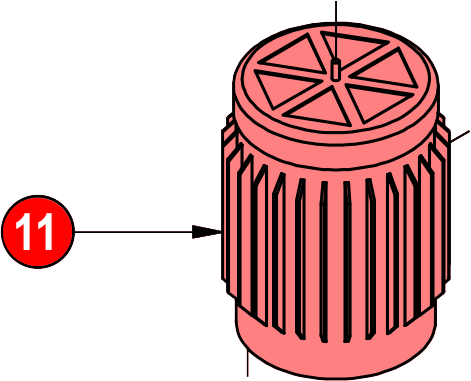

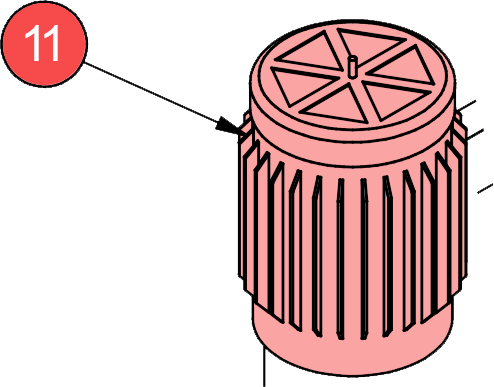

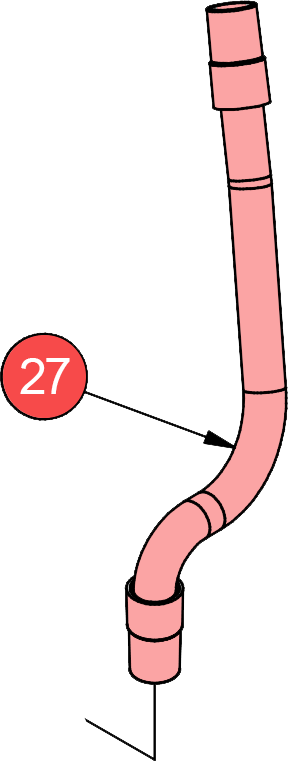

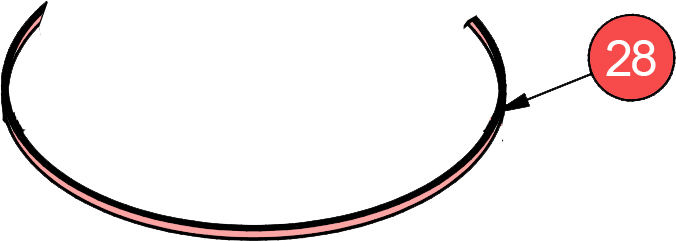

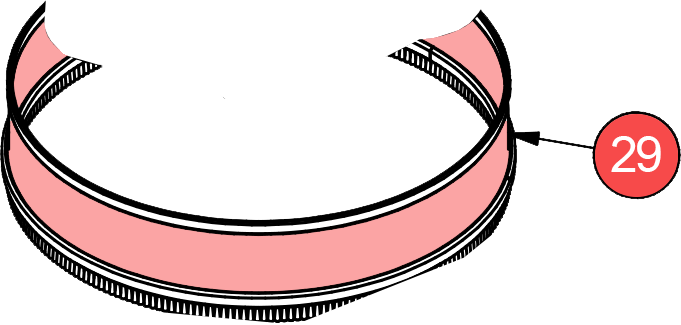

| 11 | 40533A | 1 | MOTOR 1.5 HP | 26 | 87607A | 1 | WASHER FLT 1.25X .52 X .06 NYLON | |
| - | 502402 | 1 | FM17 CAPACITOR 115V (NOT SHOWN) | 27 | 81302A | 1 | NUT, JAM, HEX, 1/4-20, ZINC | |
| - | 41311A | 1 | CAPACITOR, RUN, 25MFD, 370V (NOT SHOWN) | 28 | 87625A | 1 | WASHER FLT 1.25X.26X.03 NYLON | |
| - | AS007400 | 1 | SWITCH, ELECTRONIC, 125V, SANDER 1600 (NOT SHOWN) | 29 | 20028A | 1 | KNOB LAMP | |

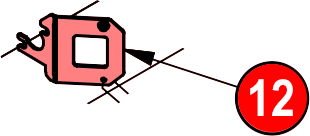

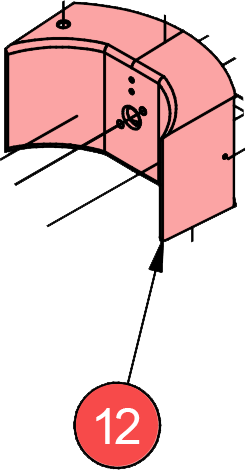

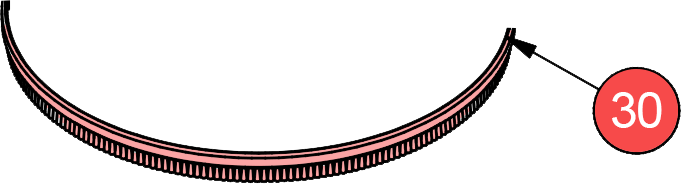

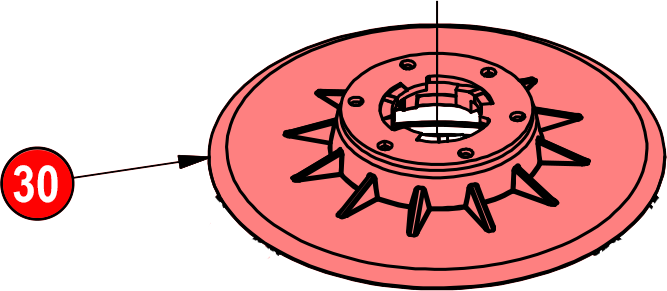

| 12 | AS017502 | 1 | BRACKET, MOUNTING, START, SWITCH, PLATED | 30 | 10242A | 1 | ASSY PAD DRIVER | |

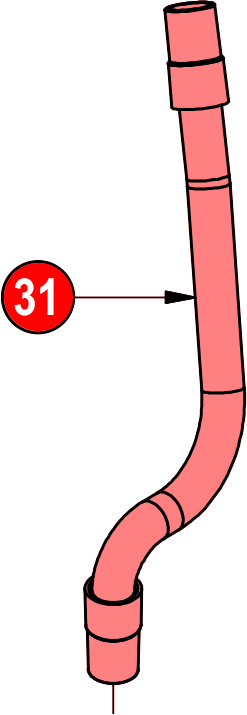

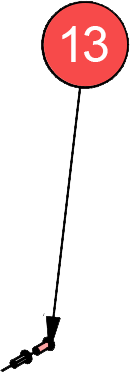

| 13 | 85313C | 2 | SCREW 6-32 X 3/8 PAN HD | 31 | 30408B | 1 | 1.5" X 30" CUFFS BE BLACK | |

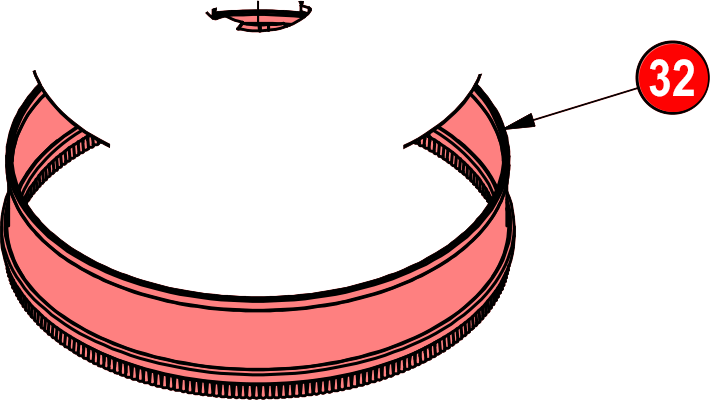

| 14 | 920056 | 2 | NUT-6X32 ELASTIC STOP | 32 | 10240A | 1 | SKIRT ASSY DUST CONTROL | |

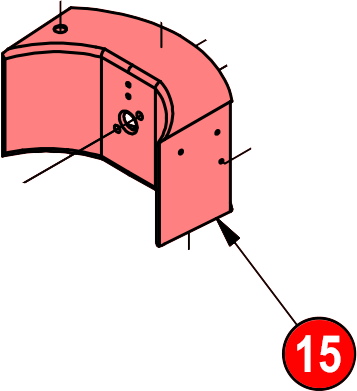

| 15 | 22906A | 1 | ENCLOSURE | 33 | SA31600 | 1 | PLATE, DRIVE, HYDRA SAND, KIT |
