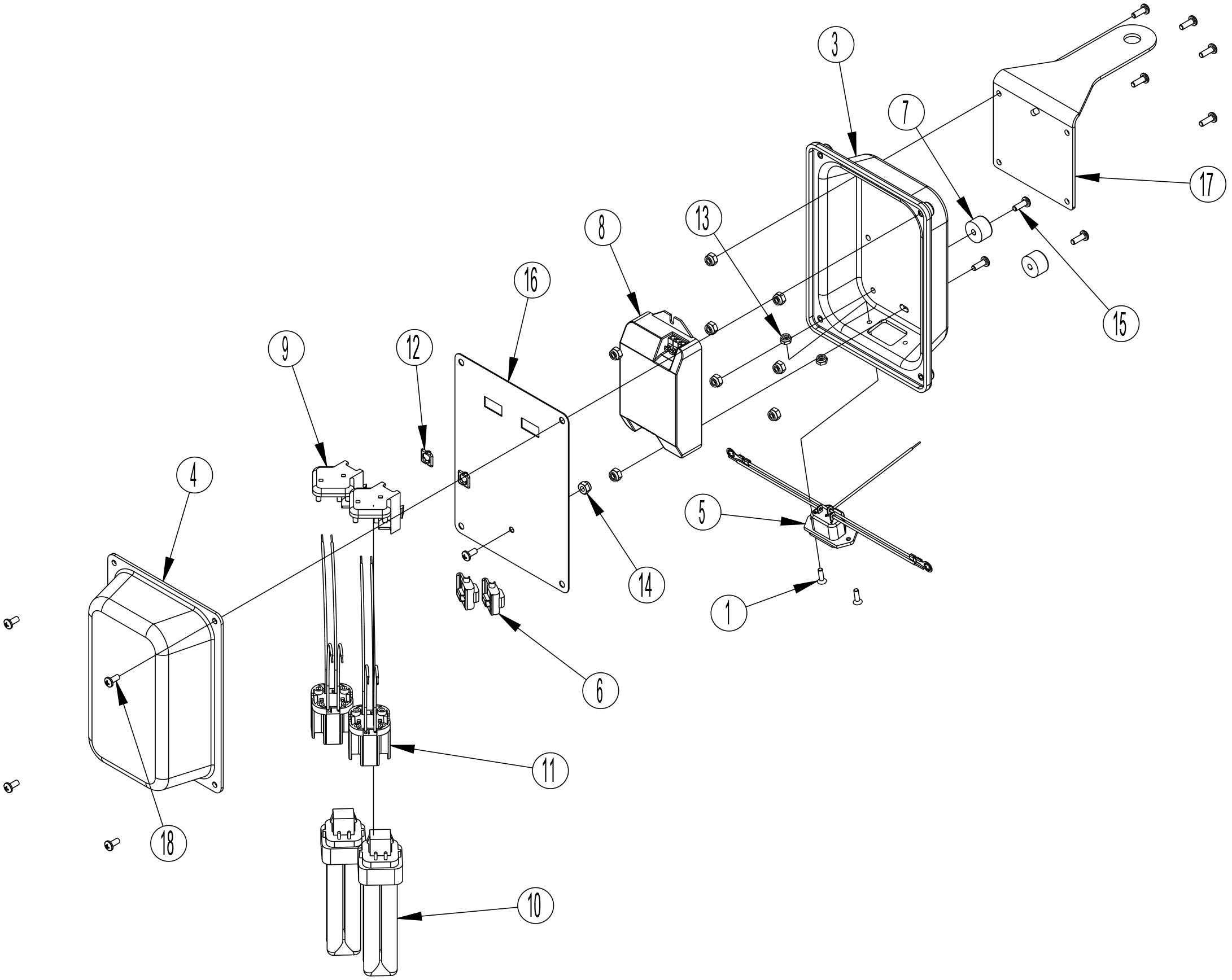

Sander 1600

Lamp Assembly

Note: Click on the item number that you need to confirm the part number, price, availability and to place your order. If you already know the part number, you can also enter it in the search box above.

part 18

part 17

part 16

part 15

part 14

part 13

part 12

part 11

part 10

part 9

part 8

part 7

part 6

part 5

part 4

part 3

part 1

Item

Part Number

Qty

Description

Item

Part Number

Qty

Description

10252A

1

Lamp Assy

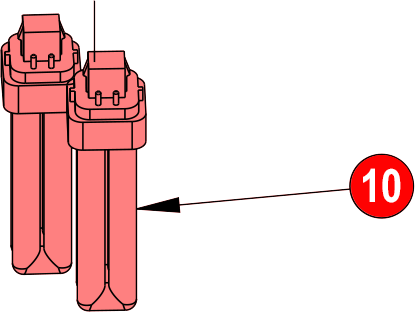

10

52357A

2

Lamp 13w Fluorescent

1

962974

2

Screw 6-32x1/2 Fh Ph

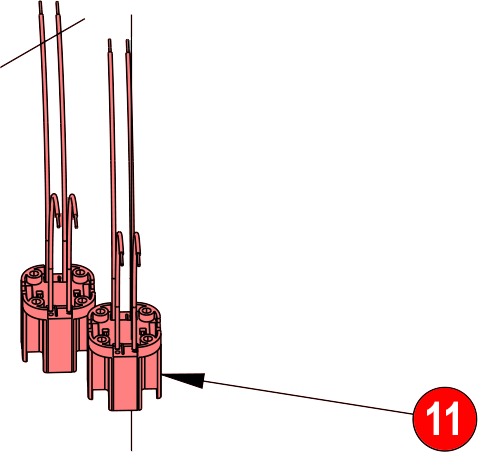

11

52358A

2

Socket Assy

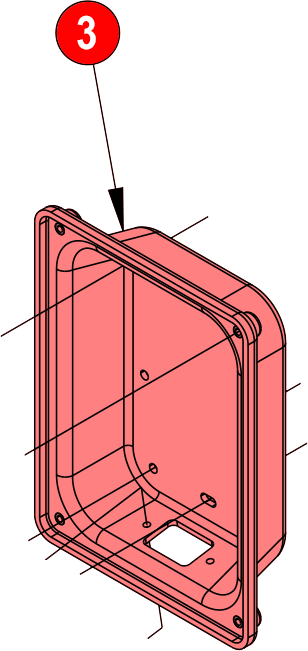

3

39862A

1

Enclosure Lamp

12

52367A

2

Grommet

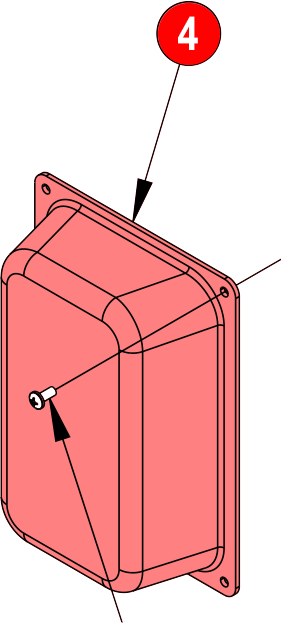

4

39863A

1

Cover Lamp

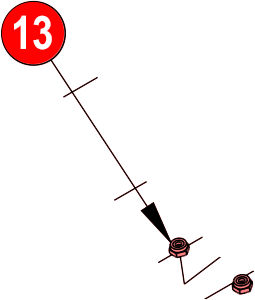

13

920056

2

Nut, 6-32 E.S.N.A. Nylock

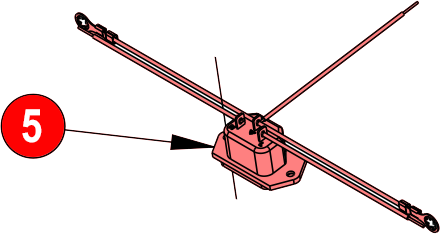

5

40528A

1

C14 Inlet Asm

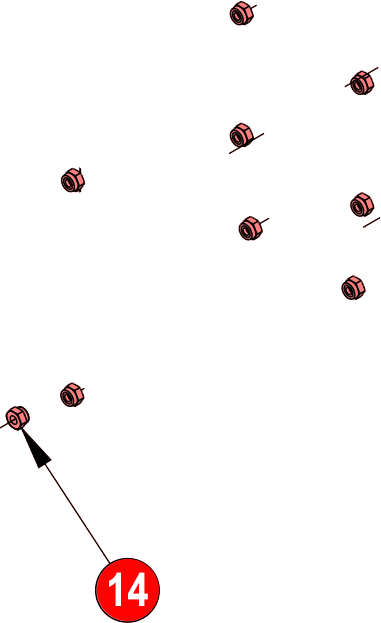

14

920065

9

Nut, 8-32 E.S.N.A

6

40783A

2

Tap Splice 22-16 Awg

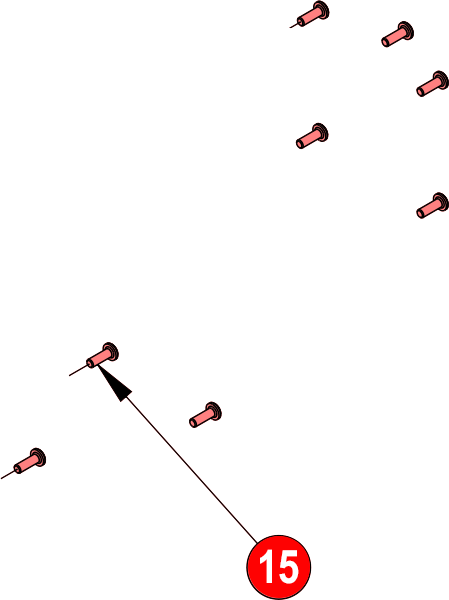

15

962027

8

Screw, 8-32 X 1/2 P.H.

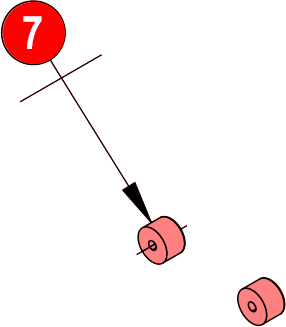

7

51612A

2

Bumper Reccessed Nap Sac

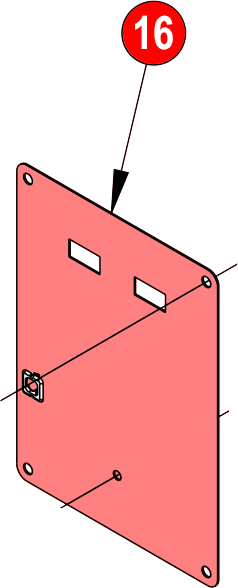

16

60550A

1

Reflector Lamp

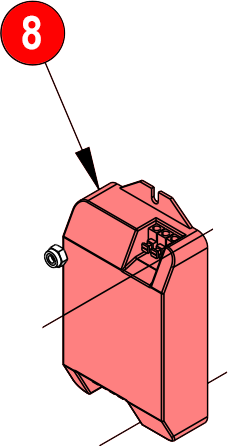

8

52350B

1

Ballast 120-277v 13w

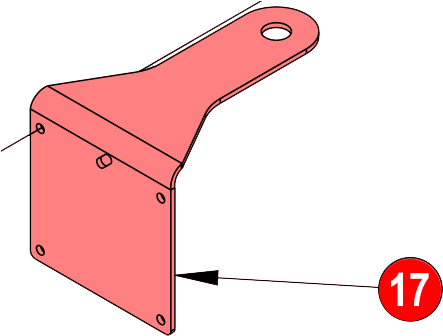

17

60551A

1

Bracket, Lamp

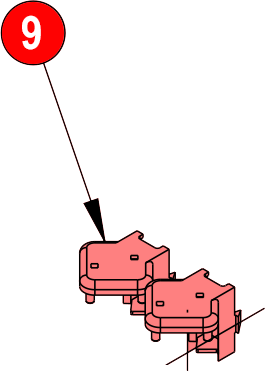

9

52356A

2

Adaptor Lamp

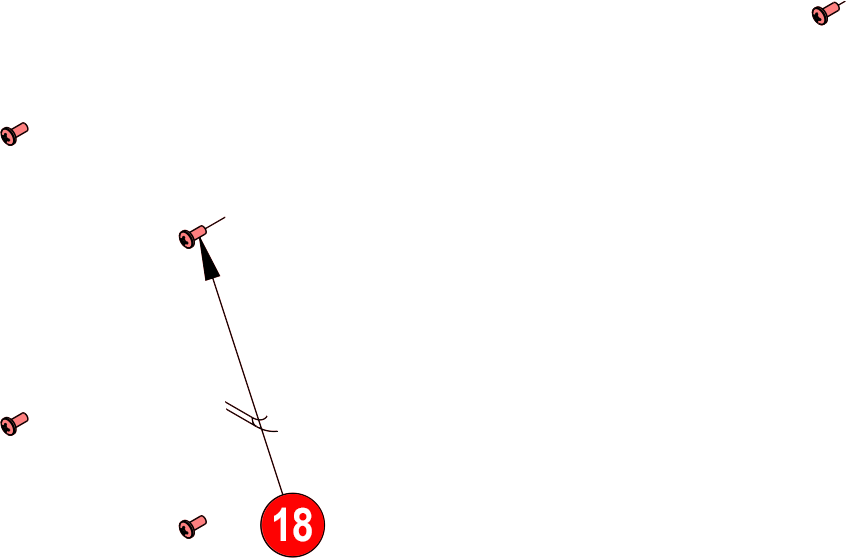

18

85303A

5

Screw 8-32 X.375
