Sander 1600

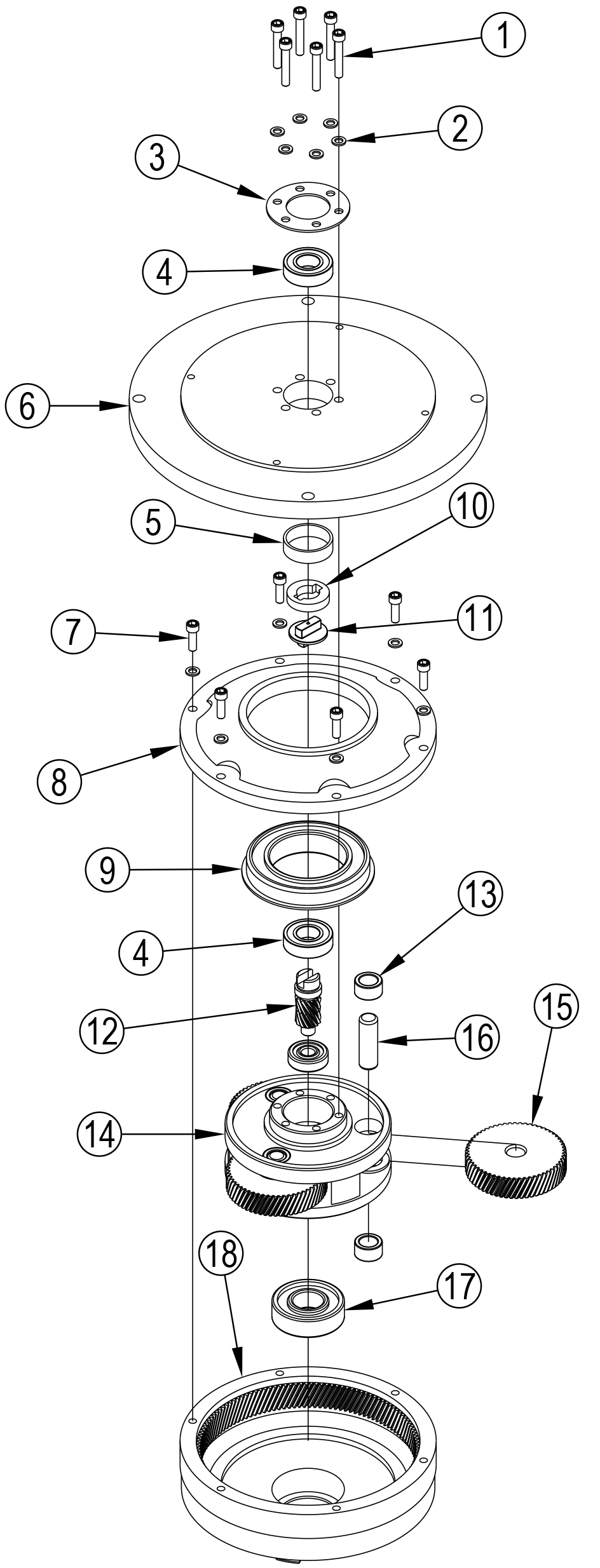

Gearbox Assembly
Item | Part Number | Description | Qty |
50979A | Gearbox 10 to 1 Sander | 1 | |

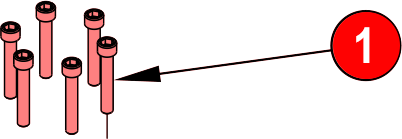

1 | 962966 | Screw, Socket Hd. Cap | 6 |

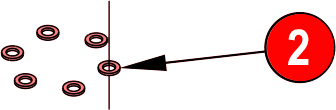

2 | 980650 | Washer, Lock | 6 |

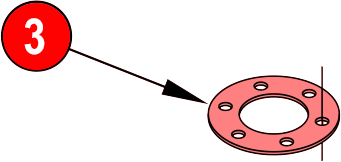

3 | 56922A | Retainer, Bearing | 1 |
4 | 902606 | Bearing, Ball | 3 |

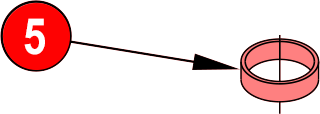

5 | 58520A | Spacer, Sleeve | 1 |

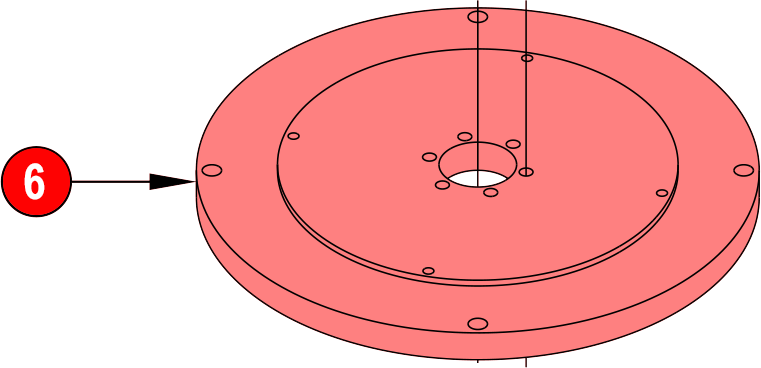

6 | N/A | Endshield | 1 |

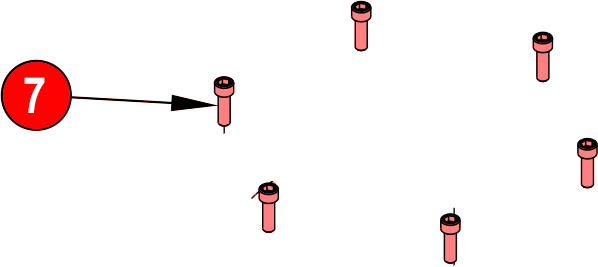

7 | 962794 | Screw 10-24" x 1" | 6 |

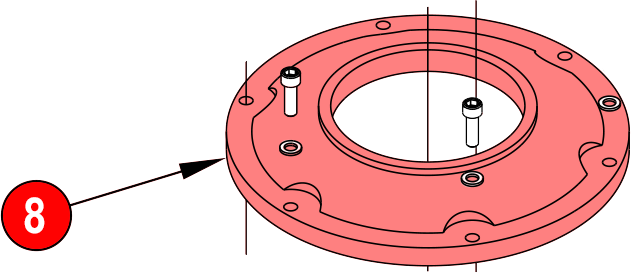

8 | N/A | Cover, Housing | 1 |

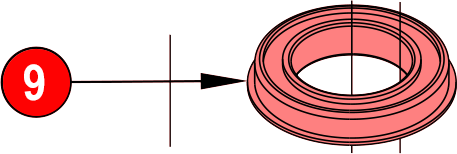

9 | 902736 | Bearing | 1 |

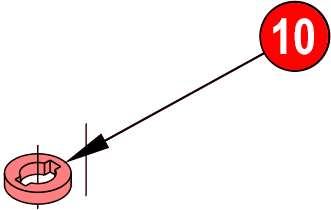

10 | 58314A | Retainer | 1 |
11 | 69195A | Coupling | 1 |

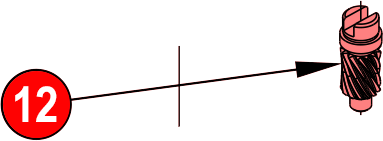

12 | 58313A | Gear, Pinion | 1 |

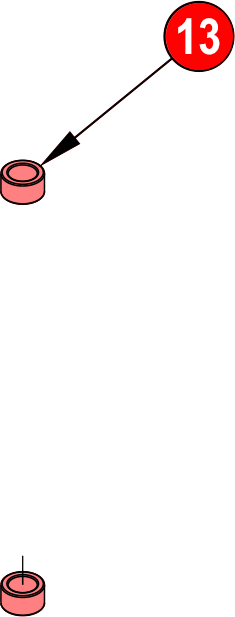

13 | 902737 | Bearing, Needle | 6 |

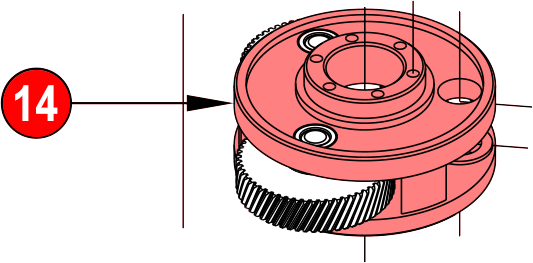

14 | N/A | Cage | 1 |

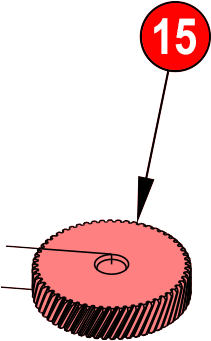

15 | 54408A | Gear, Idler | 3 |
16 | 58312A | Shaft | 3 |

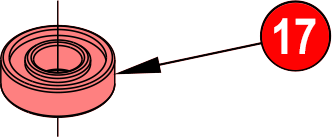

17 | 902654 | Bearing, Ball | 1 |

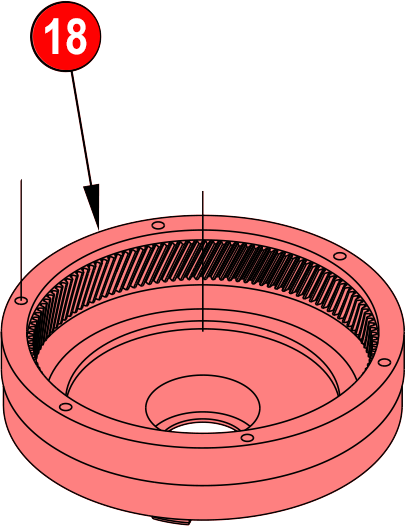

18 | 54856A | Housing, Drive | 1 |
