To purchase parts for the RS-16 HDTR (Main Assembly):

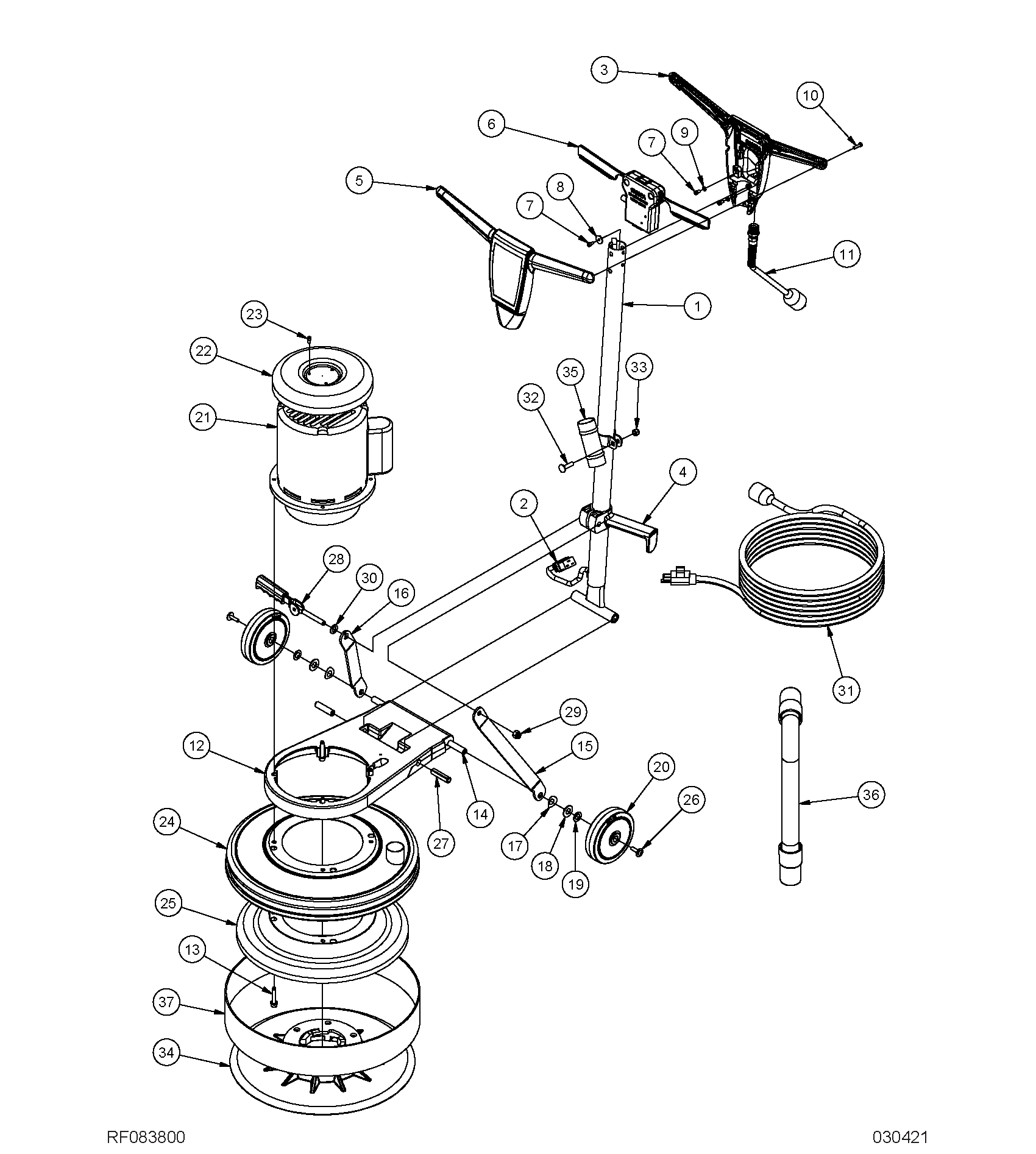

- Reference the part needed from the parts diagram and refer to the parts list below.
- Copy the Part Number and paste it into the search window above to see availability and pricing.
- Confirm your parts selection and "Add To Cart".
| Item | Part Number | Description | Qty |
| 1 | 61373A | HANDLE TUBE | 1 |
| 2 | 40789A | CORD INTERCONNECT | 1 |
| 3 | 21075A | HANDLE BACK CFP | 1 |
| 4 | 50781A | CLAMP HANDLE C2K | 1 |
| 5 | 21074A | HANDLE FRONT CFP | 1 |
| 6 | 10687A | MODULE INTERLOCK ASM | 1 |
| 7 | 80290A | SCREW 10-32 X 3/8 HRCS | 3 |
| 8 | 80291A | WASHER FLAT 10 TYPE B WIDE | 1 |
| 9 | 980603 | WASHER, LK 10 EXT TOOTH | 2 |
| 10 | 80284A | SCREW 10-32UNF X .75 HRCS | 6 |
| 11 | 40931A | CORD ADAPTER | 1 |
| 12 | 21088A | MAIN FRAME | 1 |
| 13 | 80294A | SCREW 5/16-18X1.63 HRCS SEMS | 4 |
| 14 | 61725A | AXLE .50 X 11.34 | 1 |
| 15 | 61740A | LINK ARM LEFT | 1 |
| 16 | 61741A | LINK ARM RIGHT | 1 |
| 17 | 80295A | WASHER BOWED . 516ID X 1.06OD | 2 |
| 18 | 980648 | WASH-17/32 ID X 1&1/16 OD PLN | 2 |
| 19 | 980673 | WASHER FLT 1/2 ID X 7/8 OD | 2 |
| 20 | 39857A | WHEEL 5 POLISHER | 2 |
| 21 | 53653A | MOTOR/GEARBOX ASM. | 1 |
| 22 | 61716A | COVER DRIP STD (INCLUDED W/ 53653A) | 1 |
| 23 | 80290A | SCREW 10-32 X 3/8 HRCS (INCLUDED W/ 53653A) | 3 |
| 24 | 56381944 | HSG BRUSH ASM 17 DC | 1 |
| 25 | 61915A | COVER AIR CHANNEL RS-16DC | 1 |
| 26 | 80292A | SCREW .25-20 X 1.00 BHHR SEMS | 2 |
| 27 | 53833A | PIN SPLIT 1/2 X 2.00 ZINC | 2 |
| 28 | 56109699 | CAM ASSY WITH GRIP | 1 |
| 29 | 920342 | NUT LK 3/8 -16 REG | 1 |
| 30 | 980349 | WASHER WEAR CAM | 1 |
| 31 | 40540A | CORDSET, 12-3 X 40FT 5-15P | 1 |
| 32 | 88643A | BOLT, CARRIAGE, 5/16-18 X 1 1/2 | 1 |
| 33 | 920110 | NUT, 5/16-18 HEX LOCK | 1 |
| 34 | 10242A | ASSY PAD DRIVER | 1 |
| 35 | 10304A | ADAPTER, HOSE, SANDER, WELD. | 1 |
| 36 | 30407B | HOSE, SQUEEGEE, 1.5" X 24", W/CUFFS | 1 |
| 37 | 30725A | SKIRT, RS-16DC | 1 |
