To purchase parts for the RS-16 (Gearbox Assembly):

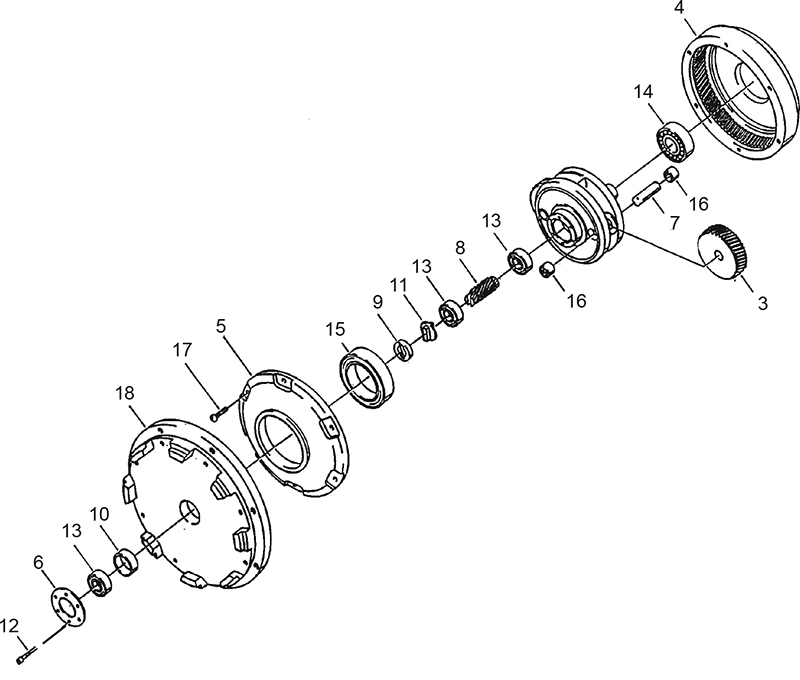

- Reference the part needed from the parts diagram and refer to the parts list below.
- Copy the Part Number and paste it into the search window above to see availability and pricing.
- Confirm your parts selection and "Add To Cart".
Item | Part Number | Qty | Description | Item | Part Number | Qty | Description | |
NI | 503802 | (1) | Grease -14 Ounce Tube | 11 | 69195A | 1 | Coupling, Shaft | |
3 | 54408A | 3 | Gear, Planet | 12 | 80141A | 6 | Screw, 10-32 x 1 | |
4 | 54856A | 1 | Gear, Ring | 13 | 902606 | 3 | Bearing, Ball- 6002 | |
5 | 54858A | 1 | Cover, Gearbox | 14 | 902654 | 1 | Bearing, Ball- 6204 | |
6 | 56922A | 1 | Retainer, Bearing | 15 | 902736 | 1 | Bearing, Ball- 6010 | |
7 | 58312A | 3 | Shaft, Planet | 16 | 902737 | 6 | Bearing, Needle | |
8 | 58313A | 1 | Gear, Pinion | 17 | 84808A | 6 | Screw, 10-24 x 3/4 | |
9 | 58314A | 1 | Retainer, Shaft | 18 | 53848A | 1 | Plate, Mounting | |
10 | 58520A | 1 | Spacer, Sleeve | |||||
NOTE: Use 9 ounces of grease in Gearbox 53645A and 8 ounces of grease in Gearbox 53646A |
