FM-Rotary

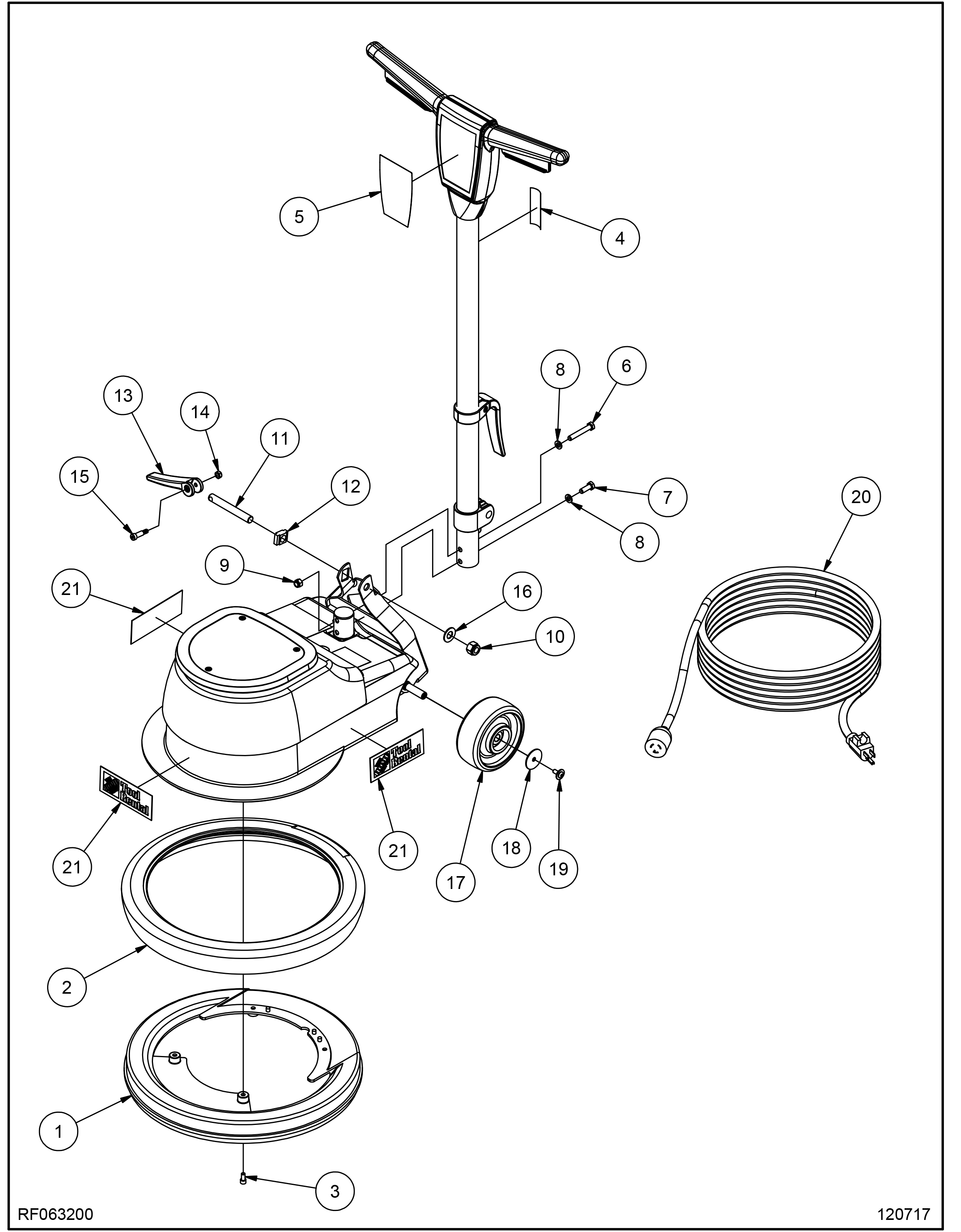

HDTR Main Assembly RF063200
| Item | Part Number | Qty | Description | Item | Part Number | Qty | Description | |

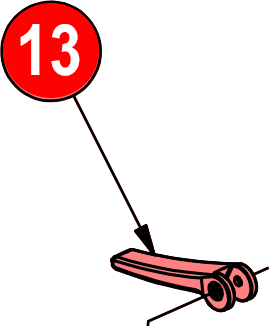

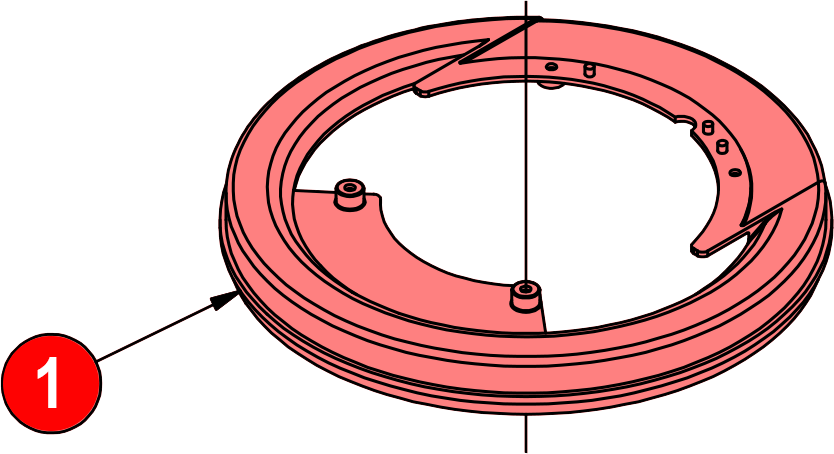

| 1 | 507851 | 1 | SHIELD BRUSH FM1700/1700HS | 13 | 61912A | 1 | HANDLE CAM LOCK | |

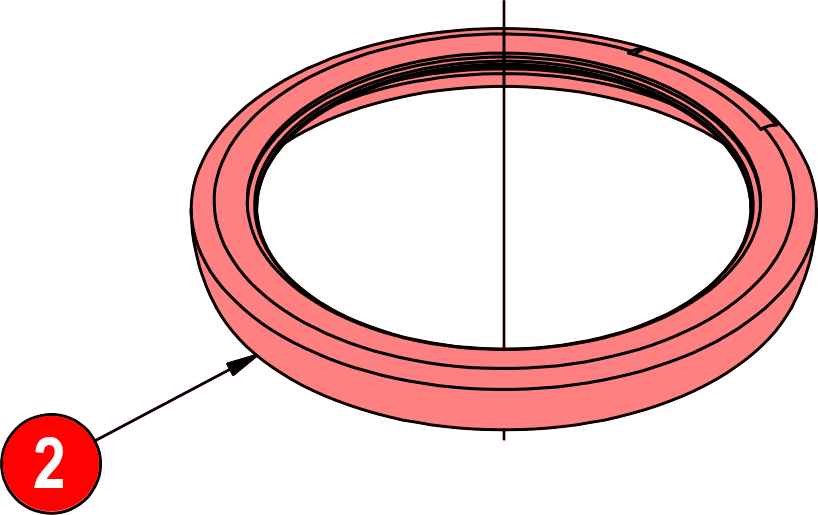

| 2 | 31234B | 1 | BUMPER BRUSH FM POLISHERS | 14 | 920349 | 1 | NUTSTOPELASTIC 1/4-20 HVYTNH | |
| 3 | 962337 | 4 | SCREW 1/4-20 X 1/2 SC ST CAP | 15 | 960969 | 1 | BOLT SHOULDER 5/16 X 3/4 | |

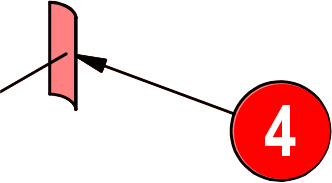

| 4 | 56380639 | 1 | DECAL-PROP 65 | 16 | 980648 | 1 | WASH-17/32 ID X 1&1/16 OD PLN | |

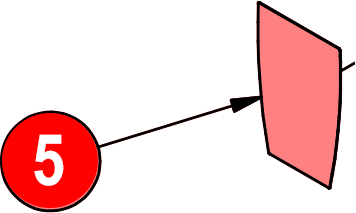

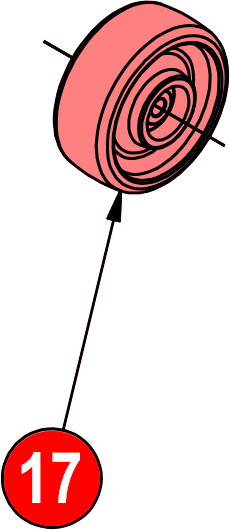

| 5 | MP500700 | 1 | DECAL, HANDLE, FM | 17 | 56384052 | 2 | WHEEL-5.00 X 2.00 | |

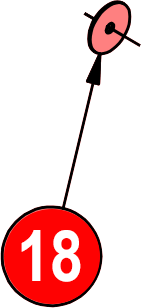

| 6 | 85817A | 1 | SCREW, HEX, 5/16-18 X 7/8, GD 5 | 18 | 87058A | 2 | WASHER RETAINER | |

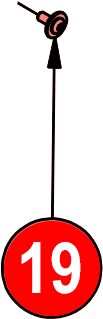

| 7 | 85812A | 1 | SCREW 5/16-18 X 7/8 HEX HD GR5 | 19 | 56109766 | 2 | SCREW BUTTON HEAD 1/4-20 X .63 | |

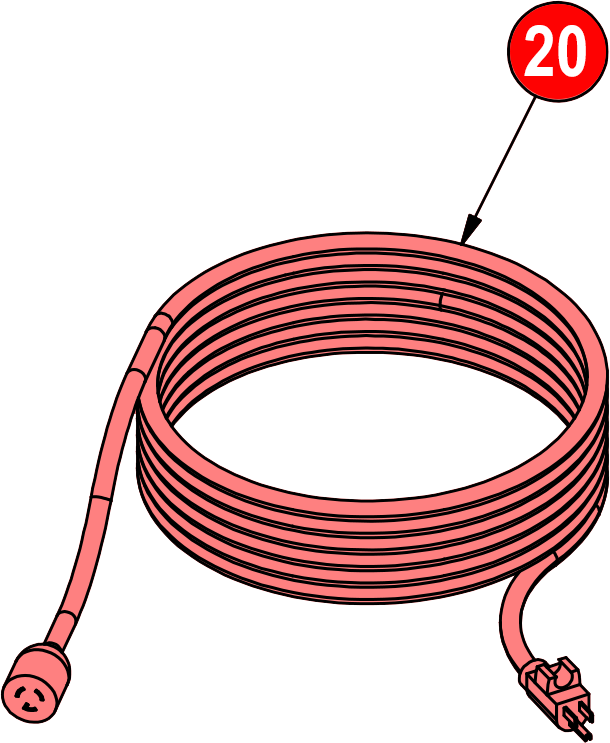

| 8 | 980652 | 2 | WASHER, LOCK, 5/16 | 20 | 40722A | 1 | CORDSET, 12-3 X 40FT 5-15P | |

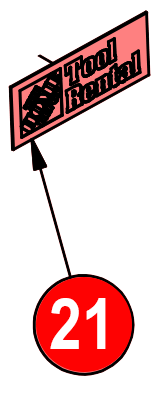

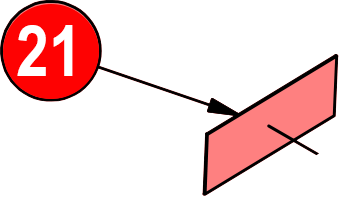

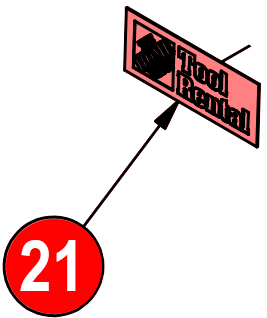

| 9 | 920110 | 1 | NUT, 5/16-18 HEX LOCK | 21 | 70825A | 3 | LABEL HDTR 1.42 X 5 FOR BEXT | |
| 10 | 920365 | 1 | NUT 1/2-13 NYLOCK | 22 | AS023300 | 1 | DECAL, SERVICE PARTS, PE, RED | |
| 11 | 501346 | 1 | BOLT-LOCKING CAM FM | 23 | 77195A | 1 | DECAL, UL WARNING | |
| 12 | 743850 | 1 | GUIDE HANDLE LOCK CM-20 |
