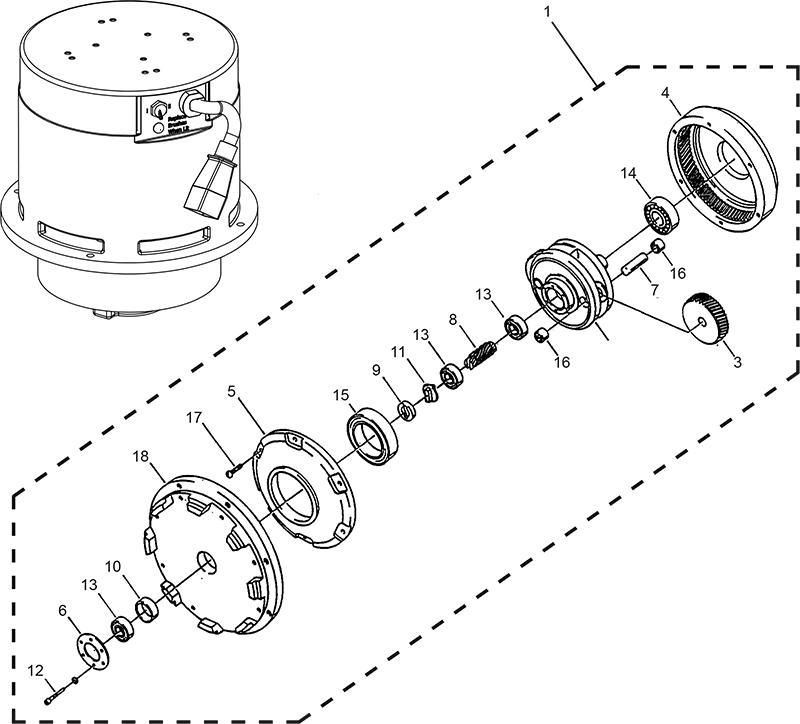

| ITEM | QTY | PART NO. | DESCRIPTION | ITEM | QTY | PART NO. | DESCRIPTION |
| 1 | 1 | 53646A | GEARBOX | 15 | 1 | 902736 | BEARING, BALL 6010 |
| 2 | 1 | 503802 | GREASE, 14oz TUBE (NOT SHOWN) | 16 | 6 | 902737 | BEARING, NEEDLE |
| 3 | 3 | 54408A | GEAR, PLANET | 17 | 6 | 84808A | SCREW, #10 X 3/4” |
| 4 | 1 | 54856A | GEAR, RING | 18 | 1 | MP487800 | FLANGE, MOUNTING, GEARBOX |
| 5 | 1 | 54858A | COVER, GEARBOX | | | | Replacement Motor Parts |
| 6 | 1 | 56922A | RETAINER, BEARING | 19 | 4 | MP487900 | BRUSH, CARBON, ASM. (NOT SHOWN) |
| 7 | 1 | 58312A | SHAFT, PLANET | 20 | 1 | AS026200 | RECTIFIER, MOTOR (NOT SHOWN) |
| 8 | 1 | 58313A | GEAR, PINION | | 1 | AS028400 | RECTIFIER, MOTOR (230V) (NOT SHOWN) |
| 9 | 1 | 58314A | RETAINER, SHAFT | 21 | 1 | MP488100 | CONTROL, SPEED, ASM. (NOT SHOWN) |
| 10 | 1 | 58520A | SPACER, SLEEVE | 22 | 1 | MP504700 | COVER, MOTOR (NOT SHOWN) |
| 11 | 1 | 69195A | COUPLING, SHAFT | 23 | 1 | 41053A | CORDSET, IEC (NOT SHOWN) |
| 12 | 6 | 80141A | SCREW, #10 X 1” | 24 | 1 | MP488400 | BEARING, TOP (NOT SHOWN) |
| 13 | 3 | 902606 | BEARING, BALL 6002 | 25 | 1 | MP488500 | BEARING, BOTTOM (NOT SHOWN) |
| 14 | 1 | 902654 | BEARING, BALL 6204 | 26 | 1 | MP483600 | SWITCH, TOGGLE, SINGLE POLE (NOT SHOWN) |
