To purchase parts for the Epoch Rotary Machine (Main Assembly):

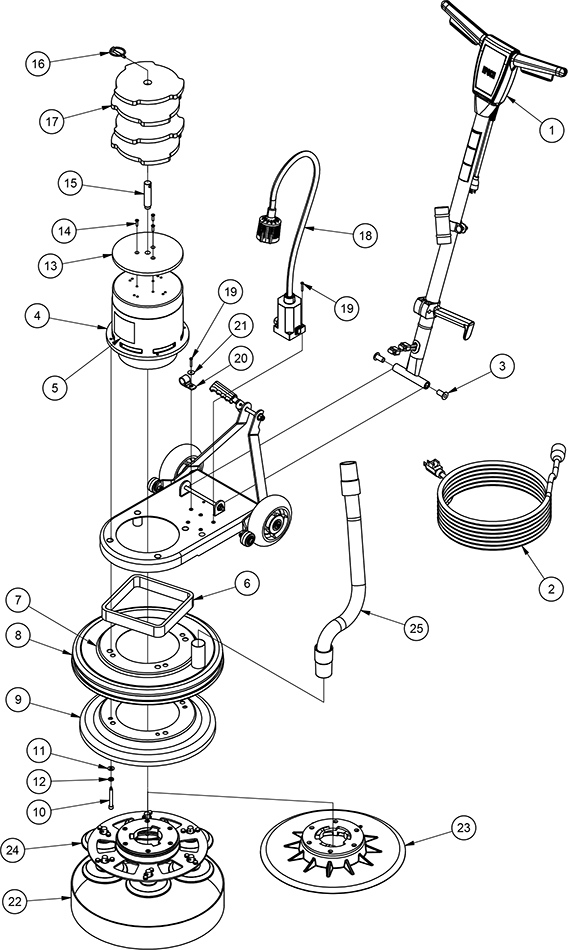

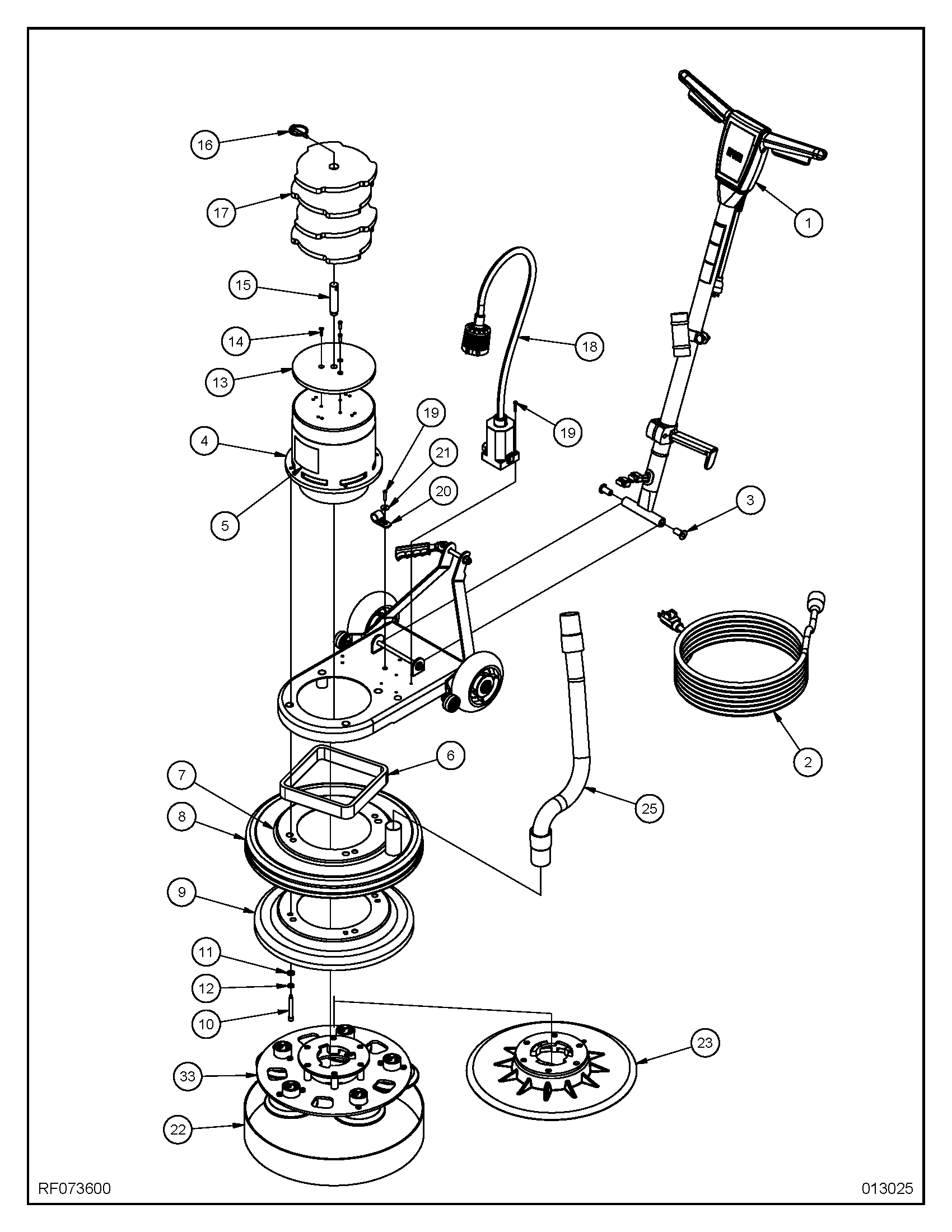

- Reference the part needed from the parts diagram and refer to the parts list below.
- Copy the Part Number and paste it into the search window above to see availability and pricing.
- Confirm your parts selection and "Add To Cart".
| ITEM | QTY | PART NO. | DESCRIPTION |
| 1A | 1 | AS034700 | HANDLE ASM., SANDER, EPOCH (120V) |
| 1B | 1 | AS030000 | HANDLE ASM., EPOCH, 230V, IEC (230V) |
| 2A | 1 | 40540A | CORDSET, 12-3 X 40FT 5-15P (120V) |
| 2B | 1 | MP513000 | CORD, POWER SUPPLY, CE, IEC, RED (230V) |
| 2C | 1 | MP514000 | CORD, POWER SUPPLY, AUSTRALIAN, IEC (AUSTRALIAN) |
| 3 | 2 | 50794A | BUSHING NYLON C2K |
| 4A | 1 | AS024000 | MOTOR, GEAR, 1.5HP, 115V, HI-AMP, 2SPEED (120V) |
| 4B | 1 | AS028300 | MOTOR, GEAR, 1.5HP, 230V, HI-AMP, 2SPEED (230V) |
| 5 | 1 | AS013600 | DECAL, AMERICAN SANDERS, 3" |
| 6 | 1 | 52368A | SEAL FOAM |
| 7 | 1 | 10241A | WLDMNT DUST SHIELD |
| 8 | 1 | 30381A | BUMPER, POLISHER, 16" |
| 9 | 1 | 61832A | SHIELD INNER RS 16DC |
| 10 | 4 | NB073800 | SCREW, 5/16-18 X 2 1/2", SHCS, W/ DOG PT |
| 11 | 4 | 980651 | WASHER 5/16 SAE FLAT |
| 12 | 4 | 980652 | WASHER, LOCK, 5/16 |
| 13 | 1 | AS025000 | PLATE, WEIGHT, BRACKET, 7.8" DIA. |
| 14 | 3 | NB073500 | SCREW, SOCKET, FLAT, 10-32 X 3/4, CS, SS |
| 15 | 1 | AS025100 | ROD, WEIGHT, BRACKET, THREADED |
| 16 | 1 | NB046300 | PIN, LYNCH, 1/4" X 1 3/4" |
| 17 | 4 | AS027200 | WEIGHT, 8" DIA, W/ RUBBER FEET |
| - | 12 | AS025200 | FEET, RUBBER, .81" OD, .12" H, BLACK (NOT SHOWN, 3 REPLACEMENT FEET PER WEIGHT ) |
| 18A | 1 | AS034600 | LIGHT, LED, 35 DEG. BEAM, ASM., B |
| 18B | 1 | AS034900 | LIGHT, LED, 35 DEG. BEAM, ASM., B, 230V |
| - | 1 | AS027600 | BULB, LIGHT, LED (NOT SHOWN) |
| - | 1 | AS027700 | TRANSFORMER, LIGHT, LED (NOT SHOWN-120V) |
| - | 1 | AS028600 | TRANSFORMER, LIGHT, LED, 230V (NOT SHOWN-230V) |
| - | 1 | AS027800 | SHADE, LIGHT, LED (NOT SHOWN) |
| - | 1 | AS027900 | TRANSFORMER HOUSING, LIGHT, LED (NOT SHOWN) |
| - | 1 | AS028000 | SOCKET WIRE ASM, LIGHT, LED (NOT SHOWN) |
| - | 1 | AS028100 | ROCKER SWITCH, LIGHT, LED (NOT SHOWN) |
| - | 1 | AS028200 | SWITCH COVER, LIGHT, LED (NOT SHOWN) |
| 19 | 5 | NB073900 | SCREW, 8-32 X 1", RH, PHILLIPS |
| 20 | 1 | NB8130 | CLAMP, 3/4" ID, RETAINER |
| 21 | 1 | 80291A | WASHER FLAT 10 TYPE B WIDE |
| 22 | 1 | 30725A | SKIRT, RS-16DC |
| 23 | 1 | 10242A | ASSY PAD DRIVER |
| 25 | 1 | 30408B | 1.5" X 30" CUFFS BE BLACK |
| 32 | 1 | MP540600 | DECAL, DANGER, HANDS & FEET |
| 33 | 1 | SA039700 | KIT, HYDRASAND 5, ASM. |
