To purchase parts for the Epoch HD & HD-20 Rotary Machine (Motor & Gearbox):

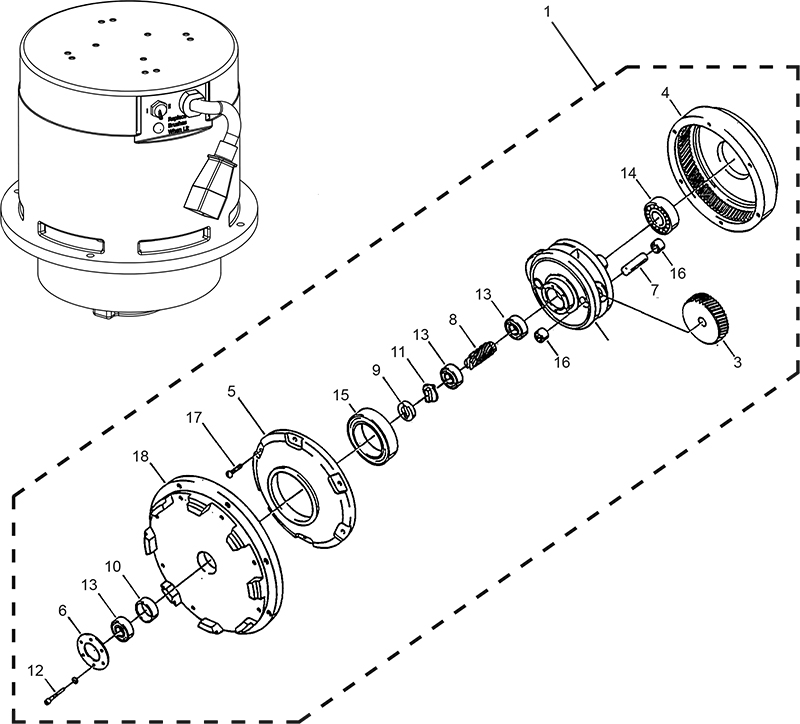

- Reference the part needed from the parts diagram and refer to the parts list below.
- Copy the Part Number and paste it into the search window above to see availability and pricing.
- Confirm your parts selection and "Add To Cart".
ITEM | QTY | PART NO. | DESCRIPTION | ITEM | QTY | PART NO. | DESCRIPTION |
1 | 1 | AS055700 | GEARBOX | 14 | 1 | 902654 | BEARING, BALL 6204 |
2 | 1 | 503802 | GREASE, 14oz TUBE (NOT SHOWN) | 15 | 1 | 902736 | BEARING, BALL 6010 |
3 | 3 | AS055800 | GEAR, PLANET | 16 | 6 | 902737 | BEARING, NEEDLE |
4 | 1 | AS055900 | GEAR, RING | 17 | 6 | 84808A | SCREW, #10 X 3/4tt |
5 | 1 | 54858A | COVER, GEARBOX | 18 | 1 | AS056100 | FLANGE, MOUNTING, GEARBOX |
6 | 1 | 56922A | RETAINER, BEARING | Replacement Motor Parts | |||
7 | 1 | 58312A | SHAFT, PLANET | 19 | 4 | AS056200 | BRUSH, CARBON, ASM. (NOT SHOWN) |
8 | 1 | AS056000 | GEAR, PINION | 20 | 1 | AS028400 | RECTIFIER, MOTOR (230V) (NOT SHOWN) |
9 | 1 | 58314A | RETAINER, SHAFT | 21 | 1 | AS056300 | CONTROL, SPEED, ASM. (NOT SHOWN) |
10 | 1 | 58520A | SPACER, SLEEVE | 22 | 1 | MP504700 | COVER, MOTOR (NOT SHOWN) |
11 | 1 | 53850A | COUPLING, SHAFT | 23 | 1 | 41053A | CORDSET, IEC (NOT SHOWN) |
12 | NB076700 | SCREW, M6 X 30MM, SHCS | 24 | 1 | MP488400 | BEARING, TOP (NOT SHOWN) | |
NB076800 | PIN, DOWEL, 1/4” X 1” | 25 | 1 | MP488500 | BEARING, BOTTOM (NOT SHOWN) | ||
13 | 3 | 902606 | BEARING, BALL 6002 | 26 | 1 | MP483600 | SWITCH, TOGGLE, SINGLE POLE (NOT SHOWN) |
