Epoch HD

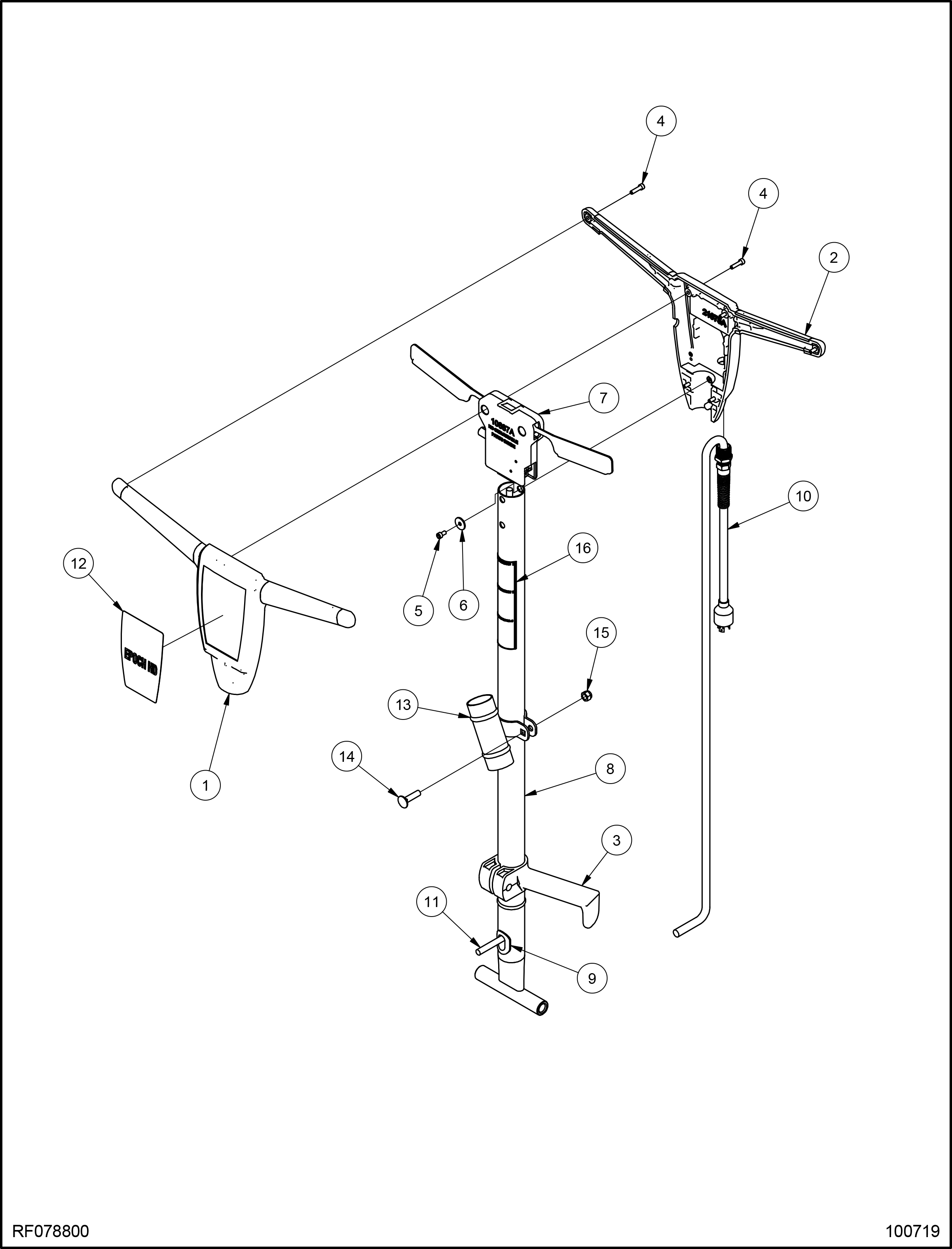

Handle Assembly
| ITEM | QTY | PART NUMBER | DESCRIPTION | ITEM | QTY | PART NUMBER | DESCRIPTION |

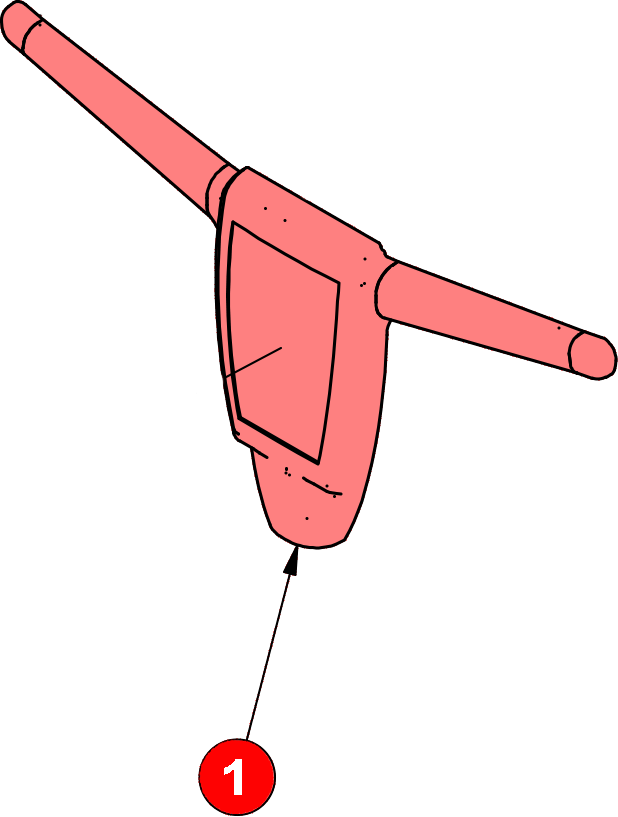

| 1 | 1 | 21074A | HANDLE FRONT CFP | 9 | 1 | 50796A | BUSHING CORD C2K |

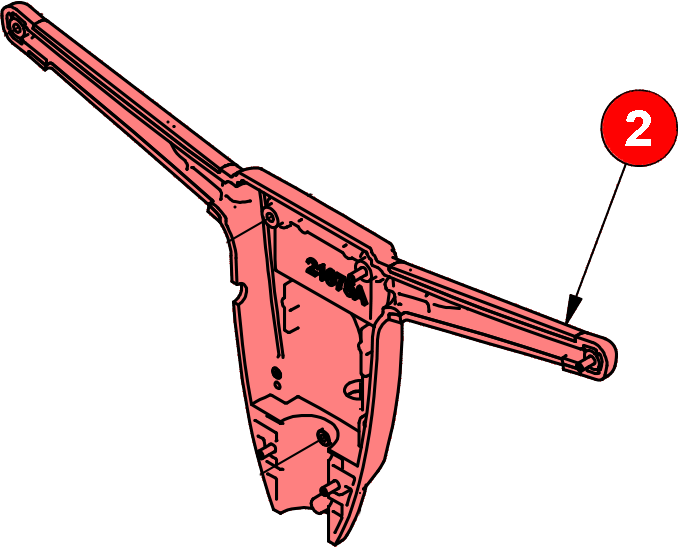

| 2 | 1 | 21075A | HANDLE BACK CFP | 10 | 1 | AS042000 | CORD, ADAPTER, 60", 12/3 |

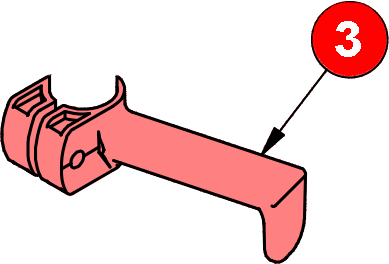

| 3 | 1 | 50781A | CLAMP HANDLE C2K | 11 | 1 | AS041900 | CORD, INTERCONNECT, 46", 18/4 |

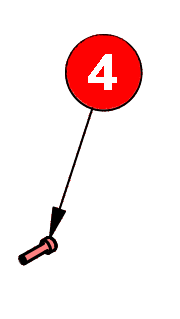

| 4 | 6 | 80284A | SCREW 10-32UNF X .75 HRCS | 12 | 1 | AS042600 | DECAL, HANDLE, EPOCH HD |
| 5 | 1 | 80290A | SCREW 10-32 X 3/8 HRCS | 13 | 1 | 10304A | ADAPTER, HOSE, SANDER, WELD. |
| 6 | 1 | 80291A | WASHER FLAT 10 TYPE B WIDE | 14 | 1 | 88643A | BOLT, CARRIAGE, 5/16-18 X 1 1/2 |

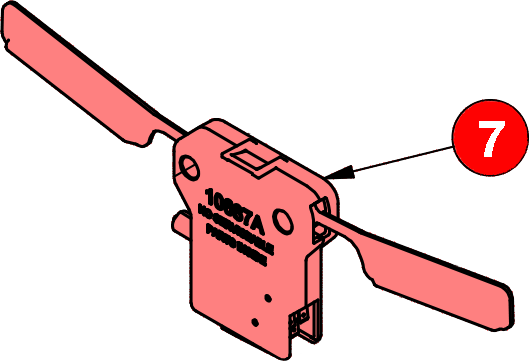

| 7 | 1 | AS034500 | MODULE INTERLOCK ASM. | 15 | 1 | 920110 | NUT, 5/16-18 HEX LOCK |

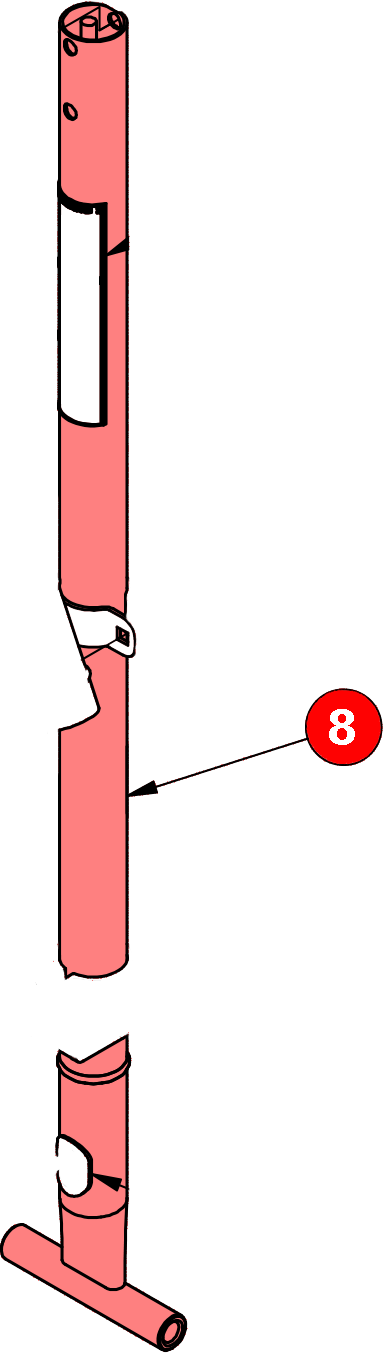

| 8 | 1 | AS029500 | TUBE, HANDLE, 1600 | 16 | 1 | 71347A | LABEL CCA WARNING |
