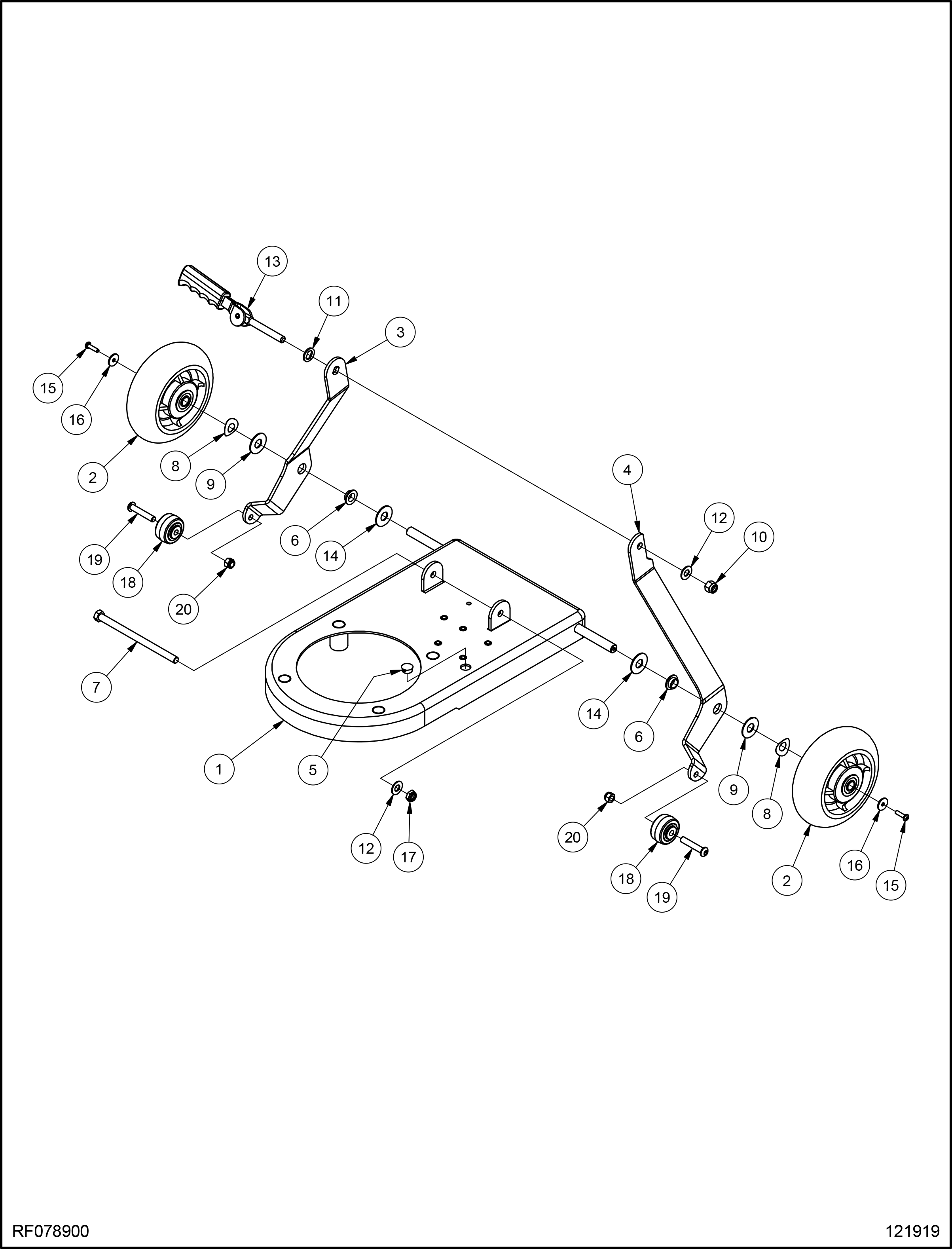

Epoch HD

Base Assembly

Note: Click on the item number that you need to confirm the part number, price, availability and to place your order. If you already know the part number, you can also enter it in the search box above.

part 20

part 20

part 19

part 19

part 18

part 18

part 17

part 16

part 16

part 15

part 15

part 14

part 14

part 13

part 12

part 12

part 11

part 10

part 9

part 9

part 8

part 8

part 7

part 6

part 6

part 5

part 4

part 3

part 2

part 2

part 1

ITEM	QTY	PART NUMBER	DESCRIPTION	ITEM	QTY	PART NUMBER	DESCRIPTION

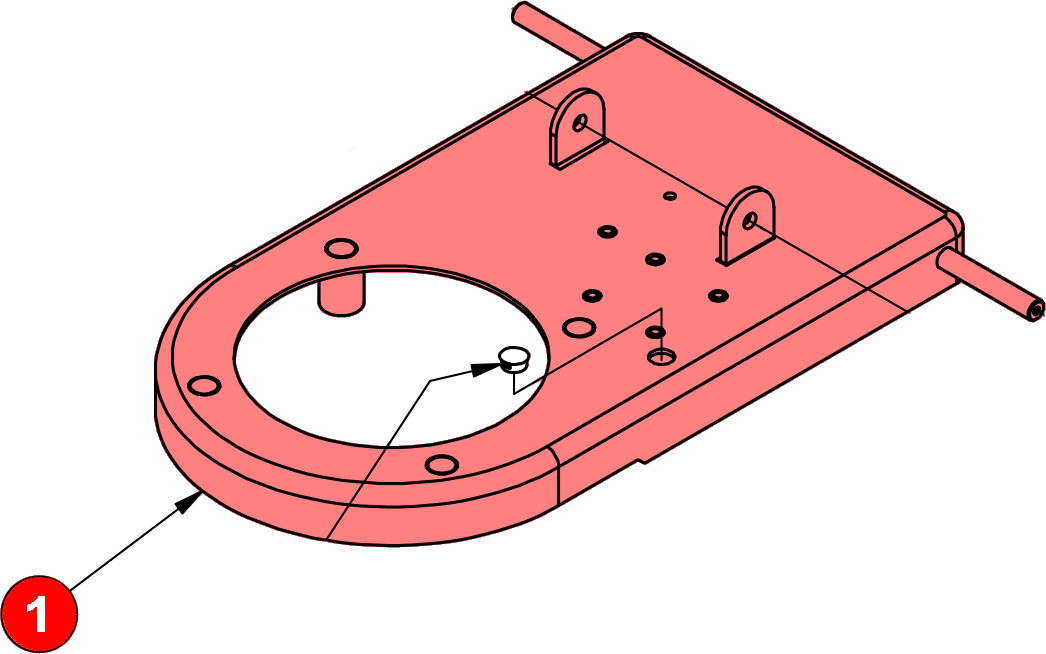

1	1	AS027100	FRAME, EPOCH, W/ INSERTS	11	1	AS087800	WASHER WEAR CAM

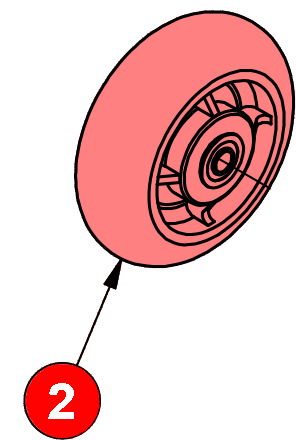

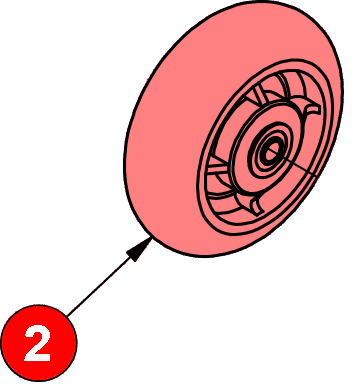

2	2	RV009600	WHEEL, PERFORMA, 6" GREY	12	2	980645	WASHER, 3/8" SAE, FLAT

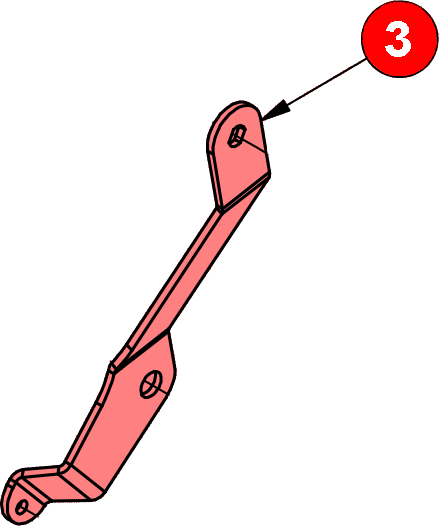

3	1	AS043802	ARM, LINK, RIGHT, EXTENDED,PLT	13	1	56109699	CAM ASSY WITH GRIP

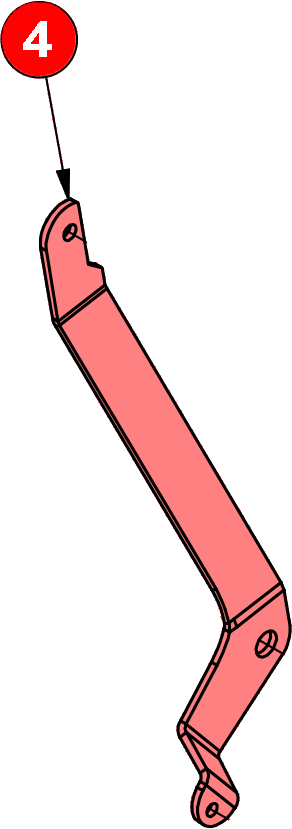

4	1	AS043902	ARM, LINK, LEFT, EXTENDED,PLT	14	2	87607A	WASHER FLT 1.25X .52 X .06 NYLON

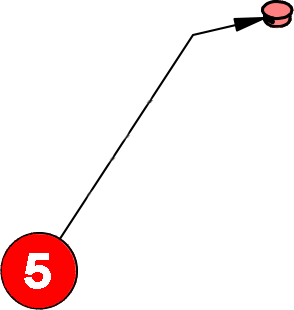

5	1	57120A	PLUG-BUTTON	15	2	85383A	SCREW 10-32 X 3/4 PAN HD
6	2	MP165400	BUSHING, FLANGED, BRONZE, 1/2 ID X 1/4 L	16	2	80291A	WASHER FLAT 10 TYPE B WIDE
7	1	80087A	SCREW 3/8-16 X 6	17	1	920248	NUT 3/8-16 ESNA LIGHT
8	2	80295A	WASHER BOWED .516ID X 1.06OD	18	2	MP246200	WHEEL, PERFORMA, 1 5/8 X 7/8
9	2	NB034600	WASHER, FLAT, 1/2", SS	19	2	NB3003	SCREW, BH, 5/16-18 X 1 3/4
10	1	920342	NUT LK 3/8 -16 REG	20	2	920110	NUT, 5/16-18 HEX LOCK
