To purchase parts for the Epoch Rotary Machine (Base Assembly):

Reference the part needed from the parts diagram and refer to the parts list below.
Copy the Part Number and paste it into the search window above to see availability and pricing.
Confirm your parts selection and "Add To Cart".

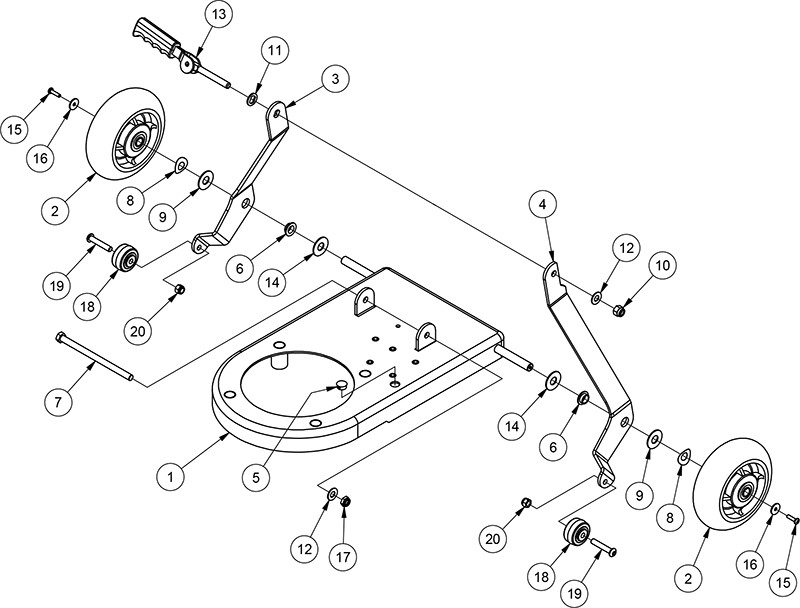

Epoch Base Assembly Diagram

ITEM	QTY	PART NUMBER	DESCRIPTION
1	1	AS027100	FRAME, EPOCH, W/ INSERTS
2	2	RV009600	WHEEL, PERFORMA, 6" GREY
3	1	AS043802	ARM, LINK, RIGHT, EXTENDED,PLT
4	1	AS043902	ARM, LINK, LEFT, EXTENDED,PLT
5	1	57120A	PLUG-BUTTON
6	2	MP165400	BUSHING, FLANGED, BRONZE, 1/2 ID X 1/4 L
7	1	80087A	SCREW 3/8-16 X 6
8	2	80295A	WASHER BOWED .516ID X 1.06OD
9	2	NB034600	WASHER, FLAT, 1/2", SS
10	1	920342	NUT LK 3/8 -16 REG
11	1	AS087800	WASHER WEAR CAM
12	2	980645	WASHER, 3/8" SAE, FLAT
13	1	56109699	CAM ASSY WITH GRIP
14	2	87607A	WASHER FLT 1.25X .52 X .06 NYLON
15	2	85383A	SCREW 10-32 X 3/4 PAN HD
16	2	80291A	WASHER FLAT 10 TYPE B WIDE
17	1	920248	NUT 3/8-16 ESNA LIGHT
18	2	MP246200	WHEEL, PERFORMA, 1 5/8 X 7/8
19	2	NB3003	SCREW, BH, 5/16-18 X 1 3/4
20	2	920110	NUT, 5/16-18 HEX LOCK
