To purchase parts for the OBS-18 (Motor Assembly):

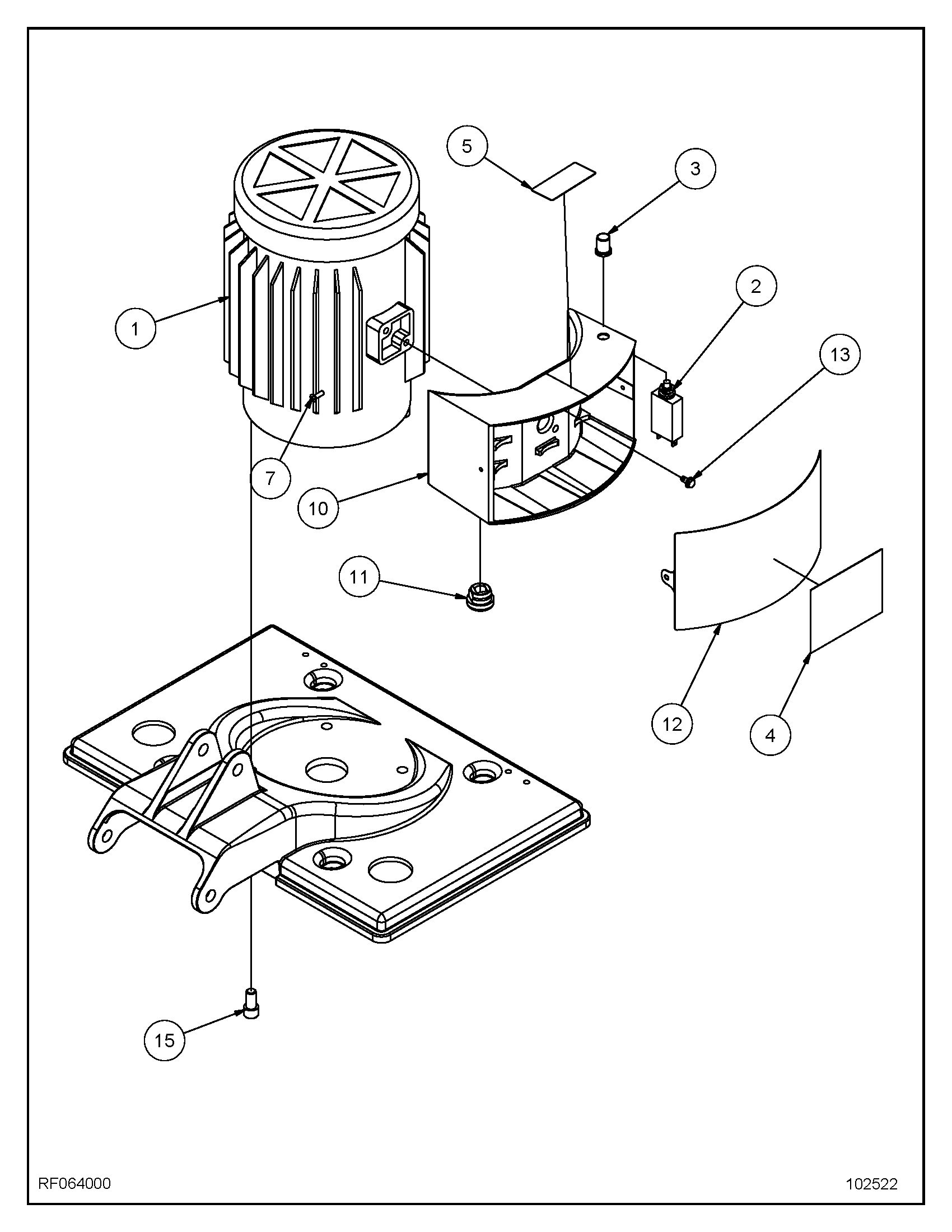

1. Reference the part needed from the parts diagram and refer to the parts list below.
2. Copy the Part Number and paste it into the search window above to see availability and pricing.
3. Confirm your parts selection and "Add To Cart".
| ITEM | QTY | PART NUMBER | DESCRIPTION |
| 1 | 1 | 56382831 | MOTOR 1HP 115V/60HZ OBS-18 |
| 2 | 1 | 56454538 | CIRCUIT BREAKER, 15A |
| 3 | 1 | 56459367 | BOOT, RESET BUTTON (NOT SHOWN) |
| 4 | 1 | 77195A | DECAL, UL WARNING |
| 5 | 1 | 77234A | LABEL, WARNING, HEAVY OBJECT |
| 6 | 1 | 170667 | CONNECTOR, TWIST, WIRE (NOT SHOWN) |
| 7 | 2 | 962727 | SCREW, 8-32 X 1/2 PN ST TP23 PH |
| 10 | 1 | 22906A | ENCLOSURE |
| 11 | 1 | 51523A | BUSHING, STRAIN RELIEF |
| 12 | 1 | 62667A | COVER, ENCLOSURE |
| 13 | 1 | 85833A | SCREW, MACHINE, 10-32 TYPE 23 |
| 14 | 1 | 47709A | TERMINAL, 1/4, 10-12 GA (NOT SHOWN) |
| 15 | 4 | 86112A | SCREW, 3/8-16 X 3/4 SOCKET HD |
| 16 | 1 | AS107400 | SWITCH, STATIONARY, MOTOR, OBS (NOT SHOWN) |
| 17 | 1 | AS107500 | SWITCH, CENTRIF., MOTOR, OBS (NOT SHOWN) |
| 18 | 1 | 41311A | CAPACITOR, RUN (NOT SHOWN) |
| 19 | 1 | 41312A | CAPACITOR, START (NOT SHOWN) |
| 20 | 1 | AS001800 | FAN, MOTOR (NOT SHOWN) |
