OBS-18

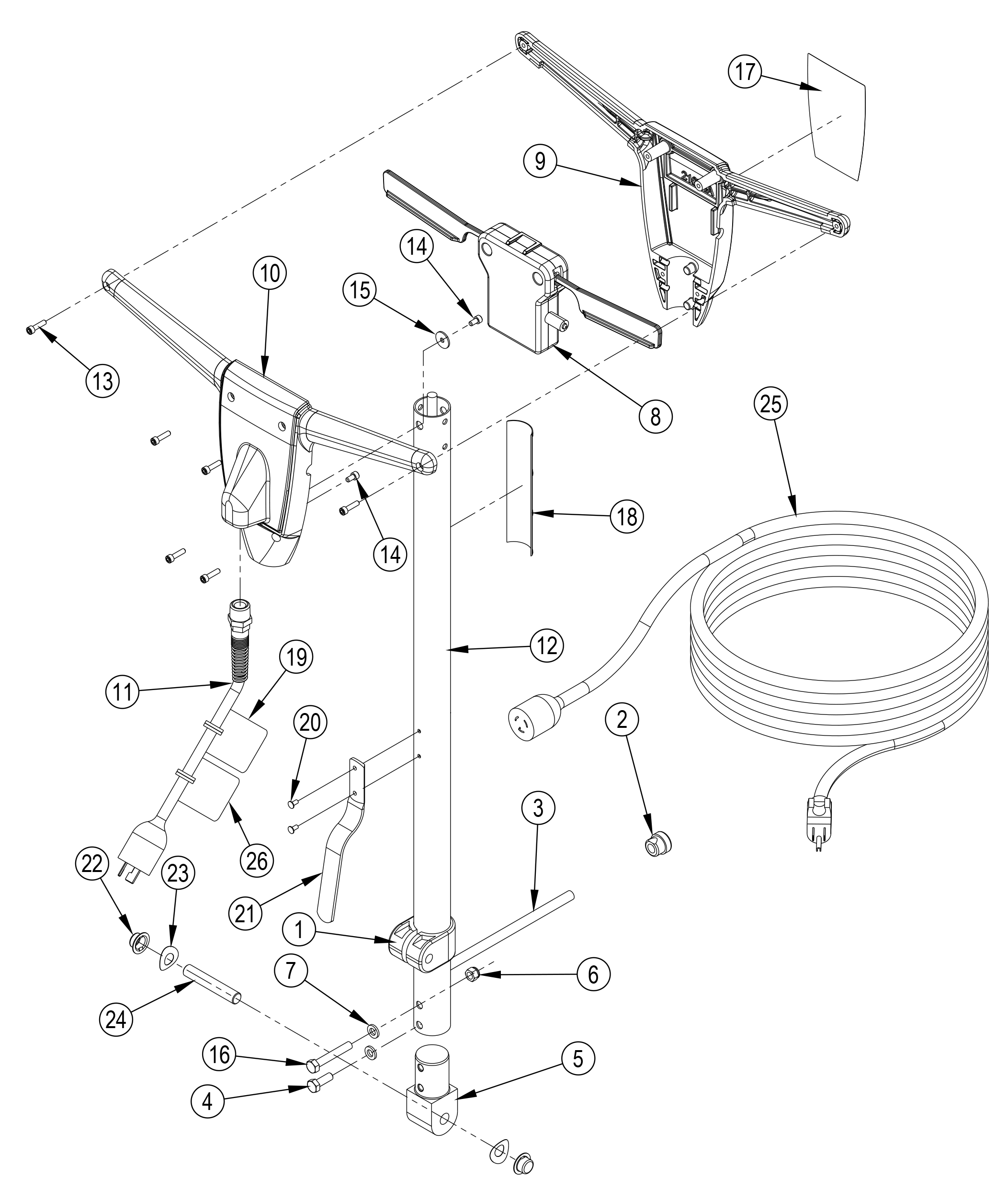

HDTR Handle Assembly

Note: Click on the item number that you need to confirm the part number, price, availability and to place your order. If you already know the part number, you can also enter it in the search box above.

part 26

part 25

part 24

part 23

part 22

part 21

part 20

part 19

part 18

part 17

part 16

part 15

part 14-1

part 14

part 13

part 12

part 11

part 10

part 9

part 8

part 7

part 6

part 5

part 4

part 3

part 2

part 1

Item	Part Number	Qty	Description		Item	Part Number	Qty	Description

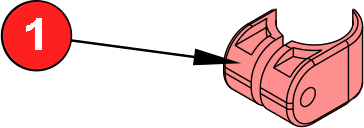

1	442001	1	CLAMP, TUBE, HANDLE		14	80290A	2	SCREW, #10 X 3/8”

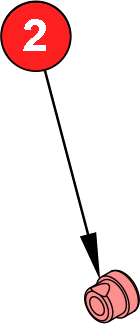

2	627561	1	RELIEF, STRAIN		15	80291A	1	WASHER, FLAT, #10

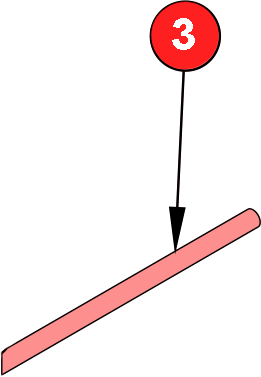

3	40522A	1	INTERCONNECT, CORD		16	85817A	1	BOLT, HEX, 5/16” X 2”
4	85812A	1	BOLT, HEX, 5/16” X 7/8”		17	71126A	1	LABLE, HANDLE

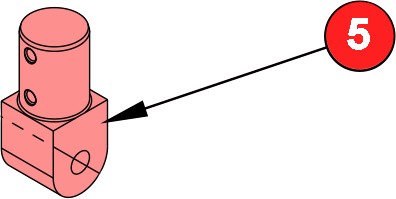

5	509240	1	TONGUE, TUBE, HANDLE		18	71347A	1	LABLE, WARNING
6	920110	1	NUT, LOCK, 5/16”		19	70175A	1	TAG, WARNING
7	980652	2	WASHER, LOCK, 5/16”		20	930005	2	RIVET, 5/32”

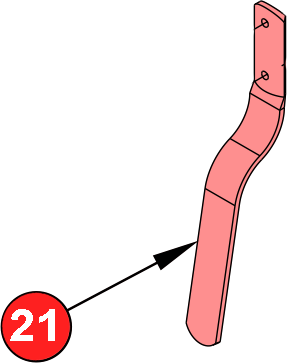

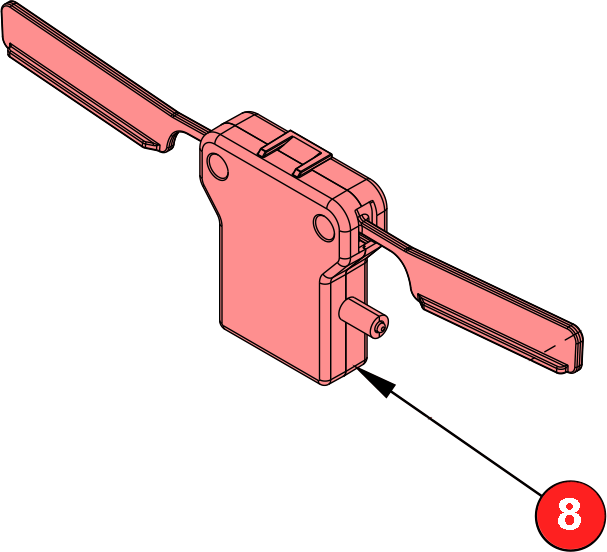

8	10687A	1	INTERLOCK, ASM		21	64325A	1	HOOK, CORD

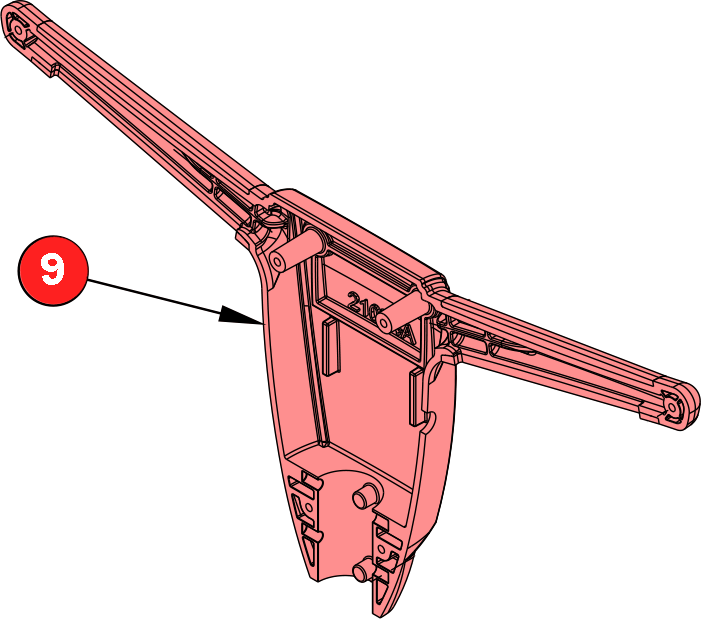

9	21074A	1	FRONT, HANDLE		22	920346	2	PALNUT, TYPE W

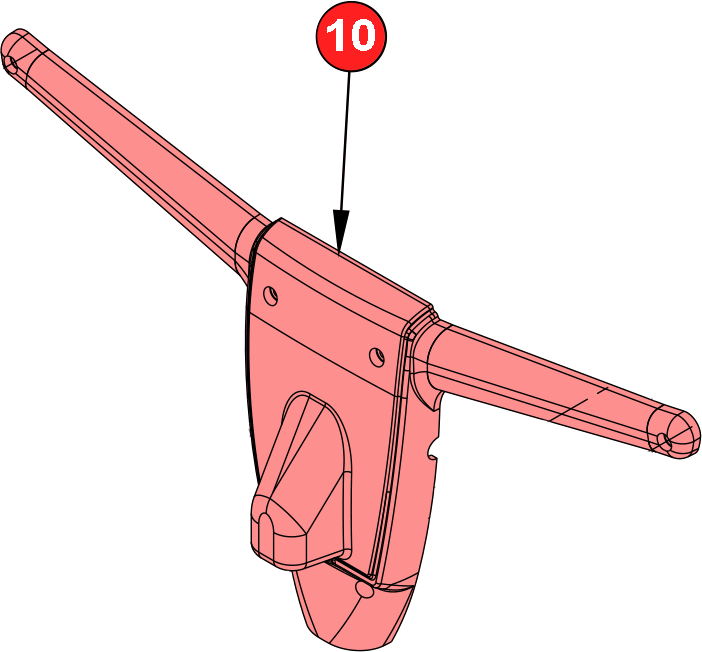

10	21075A	1	REAR, HANDLE		23	80295A	2	WASHER, BOWED

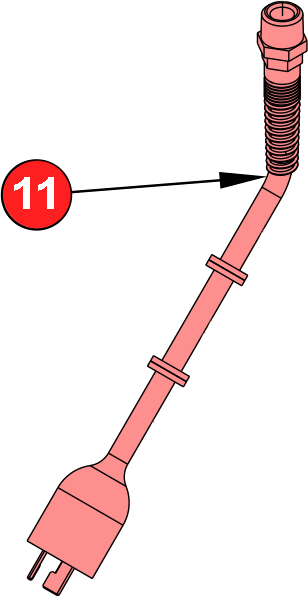

11	40931A	1	ADAPTER, CORD		24	67474A	1	SHAFT, PIVOT, HANDLE

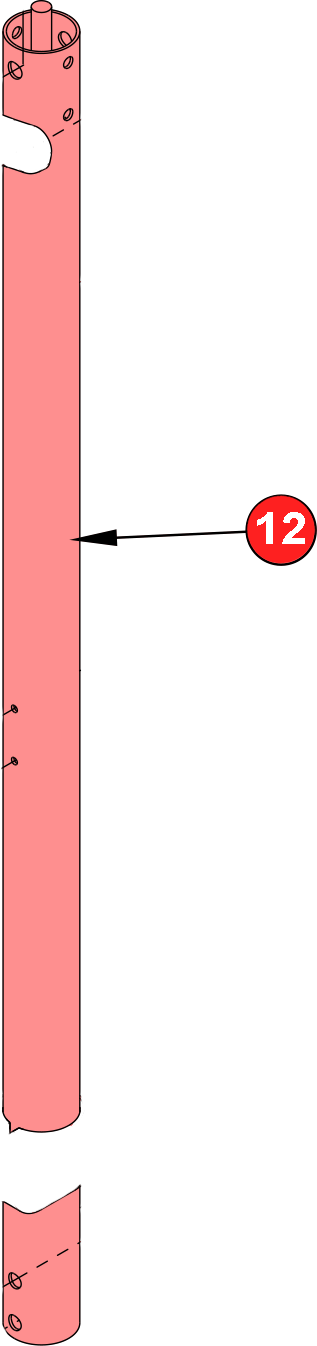

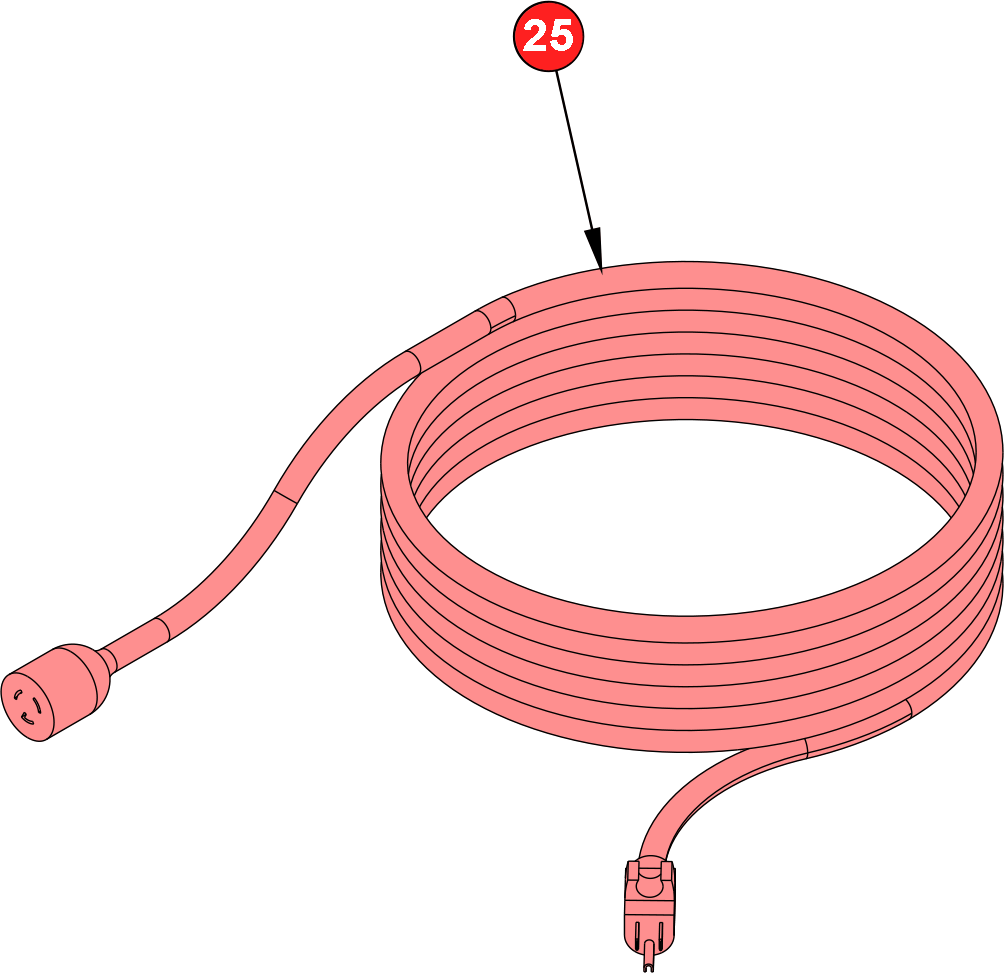

12	61825A	1	TUBE, HANDLE		25	40540A	1	CORDSET, 12/3 X 40FT
13	80284A	6	SCREW, #10 X 3/4”		26	70175A-FR	1	TAG, WARNING
