EZ-8

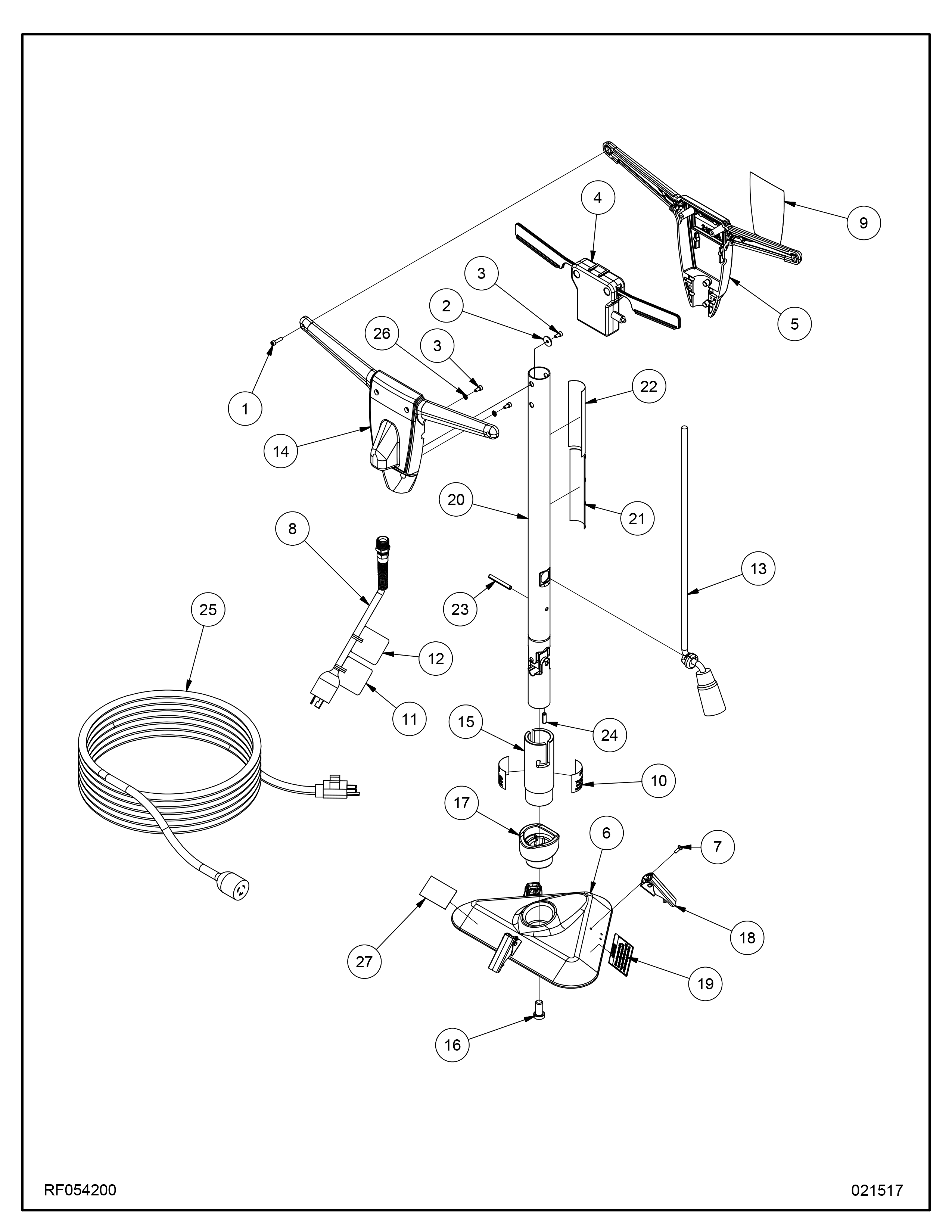

Handle Assembly
| Item | Part Number | Qty | Description | Item | Part Number | Qty | Description | |

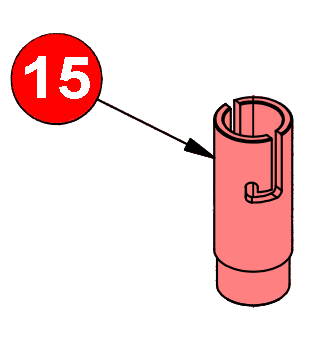

| 1 | 80284A | 6 | SCREW, 10-32 UNF X .75 | 15 | AS005700 | 1 | TUBE, HANDLE LOCK, EXTENDED | |

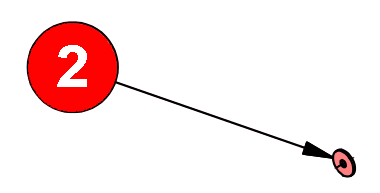

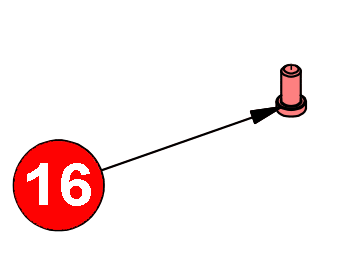

| 2 | 80291A | 1 | WASHER, FLAT, #10 | 16 | 80318A | 1 | SCREW 1/2-13 X 1 LOW HD SOCKET | |

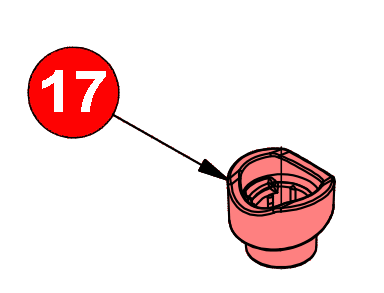

| 3 | 80290A | 3 | SCREW, 10-32 UNF X .375 | 17 | MP474600 | 1 | BUMPER, HANDLE | |

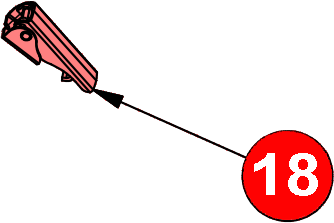

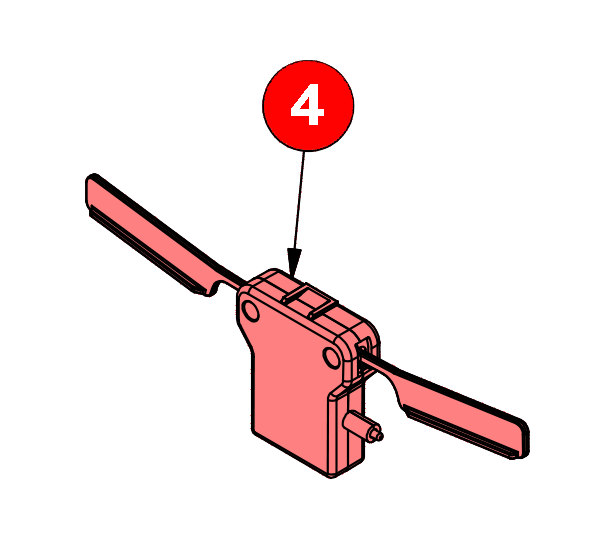

| 4 | 10687A | 1 | INTERLOCK ASM. | 18 | MP486000 | 3 | LATCH, DRAW, W/CONCEALED BASE | |

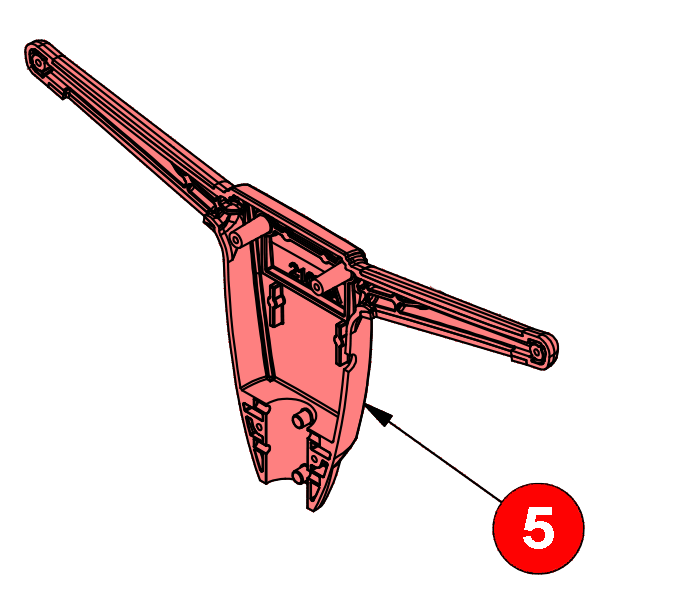

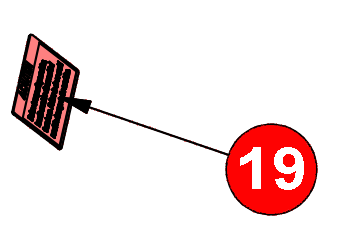

| 5 | 21074A | 1 | HANDLE, FRONT - CFP | 19 | 71368A | 1 | LABEL, CAUTION, EZ-SAND | |

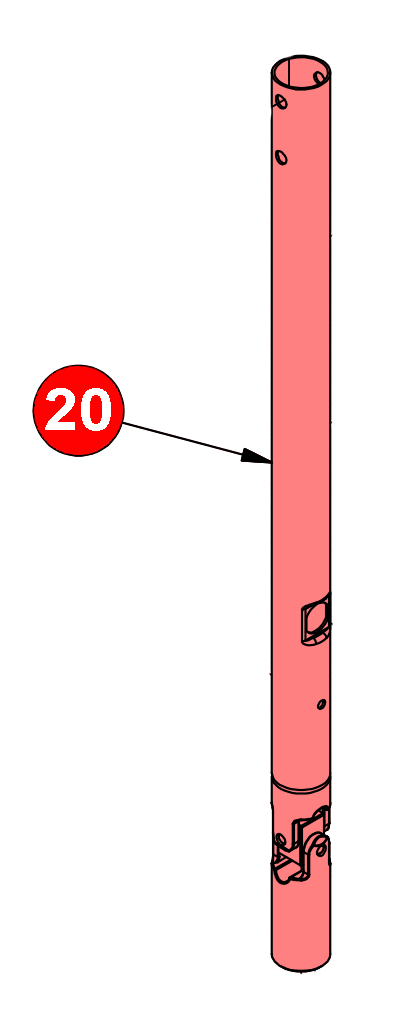

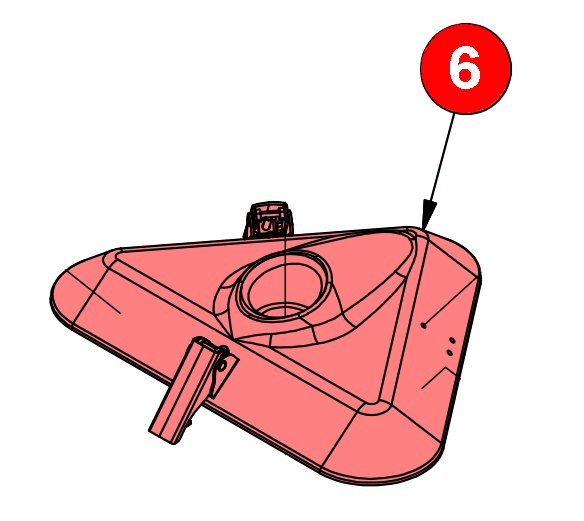

| 6 | 29895A | 1 | WEIGHT, IRON, EZ-SAND | 20 | MP481600 | 1 | HANDLE ASSEMBLY, EZ SAND, COMPLETE | |

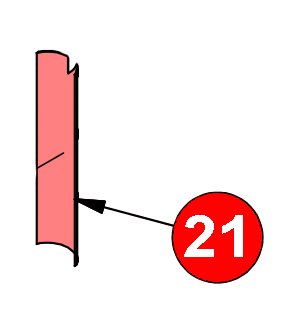

| 7 | 962027 | 9 | SCREW, 8-32 X 1/2, PAN HD | 21 | 71347A | 1 | LABEL, CCA WARNING | |

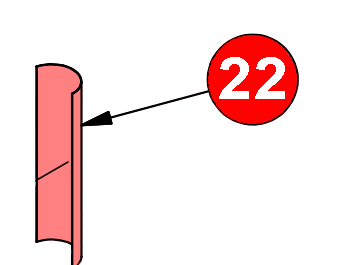

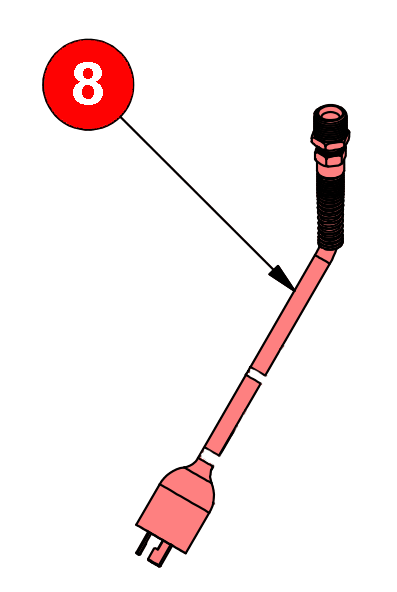

| 8 | 40931A | 1 | CORD ADAPTER | 22 | 71157A | 1 | LABEL, WARNING, EZ-SAND | |

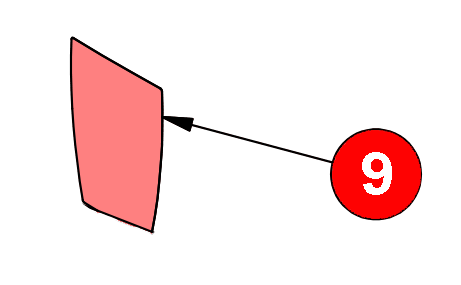

| 9 | AS011300 | 1 | DECAL, HANDLE, EZ-SAND | 23 | 56003903 | 1 | PIN, SPR .25 X 2.00, PLATED, ZINC | |

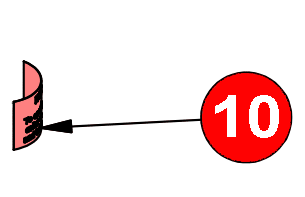

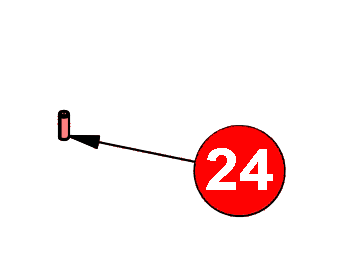

| 10 | 71380A | 2 | LABEL, CAUTION, EZ-SAND | 24 | 53692A | 1 | PIN ROLL 1/4 X 3/4 | |

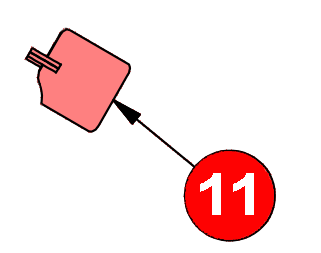

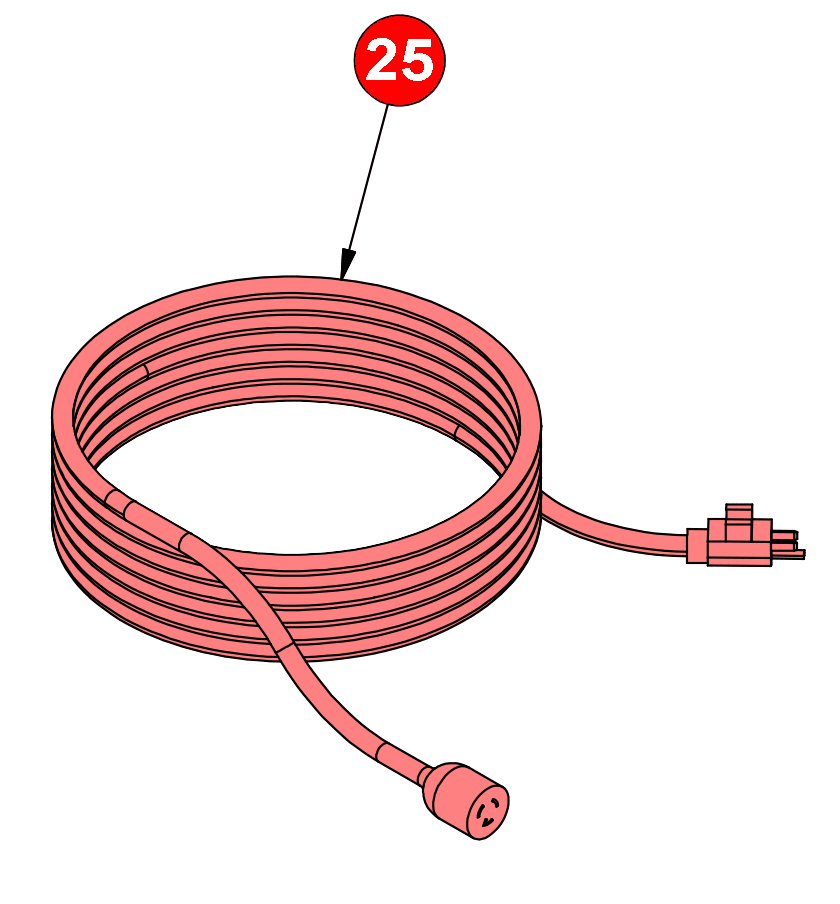

| 11 | 70175A | 1 | TAG, WARNING, ENG-SPN | 25 | 40540A | 1 | CORDSET, 12-3 X 40FT, 5-15P | |

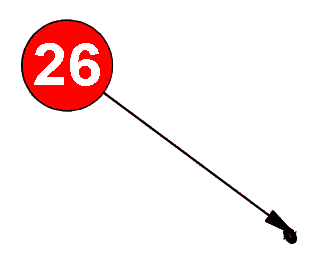

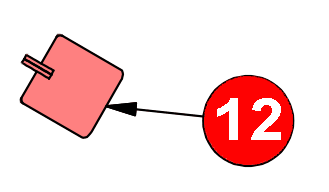

| 12 | 70175A-FR | 1 | TAG, WARNING, ENG-FRN | 26 | NB9445 | 2 | WASHER, STAR LOCK, #10 | |

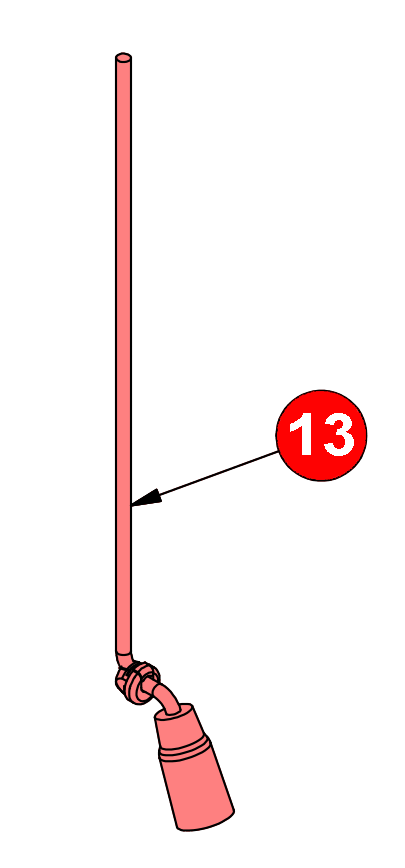

| 13 | MP472700 | 1 | CORD, INTERCONNECT, TWIST, RECEPT. | 27 | AS010900 | 1 | DECAL, NOTICE, “SANDPAPER ON DRIVERS” | |

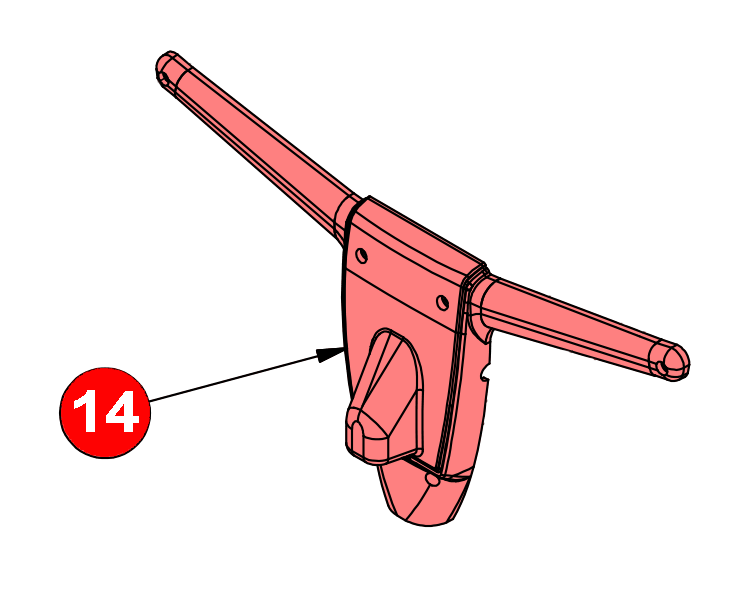

| 14 | 21075A | 1 | HANDLE, REAR - CFP |
