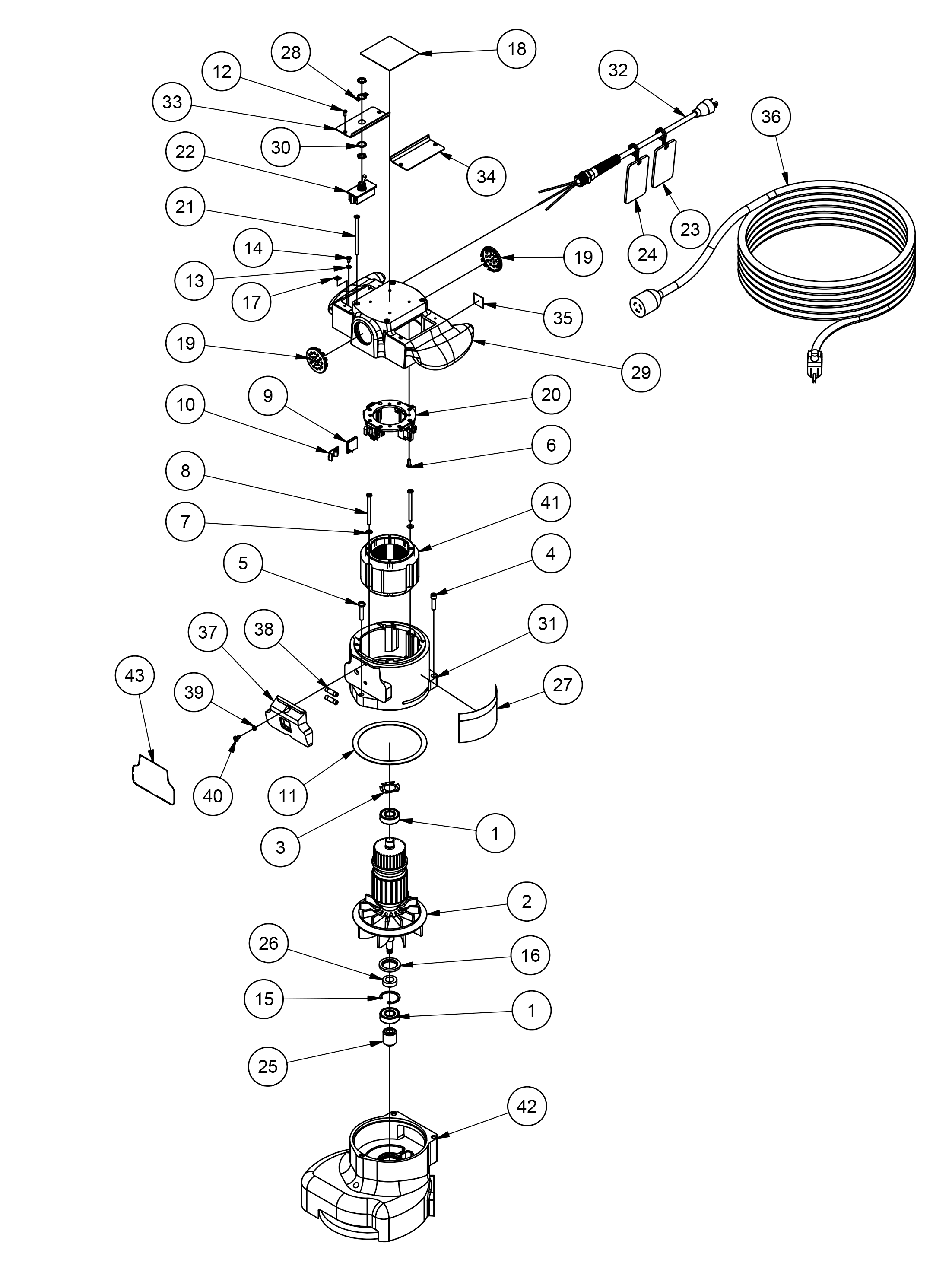

Super 7R Edger
Upper Assembly Models 07125A & 07013B
| ITEM | QTY | PART NUMBER | DESCRIPTION | ITEM | QTY | PART NUMBER | DESCRIPTION | |

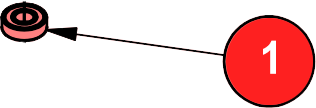

| 1 | 2 | 902567 | BEARING BALL 6202-2Z | 27 | 1 | 73285A | LABEL, WARNING (07125A) | |

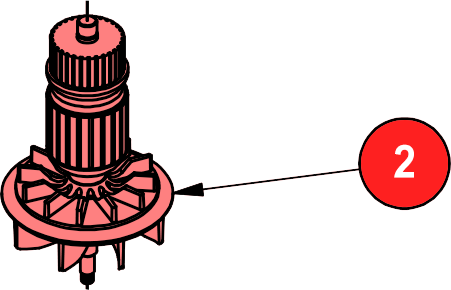

| 2 | 1 | 10101B | ARMATURE ASM WITH FAN S7A/R | 28 | 1 | 646302 | PLATE-SWITCH | |

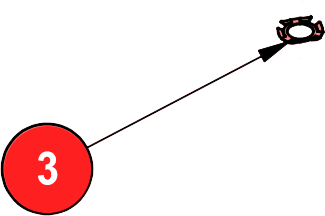

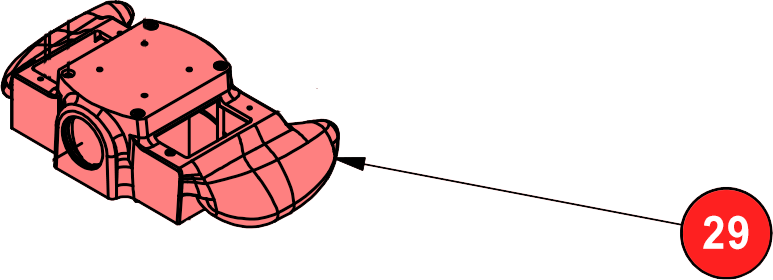

| 3 | 1 | 298306 | SPRING, LOAD, 56 | 29 | 1 | 302312 | COVER & HANDLE ASM. POLISHED (07125A) | |

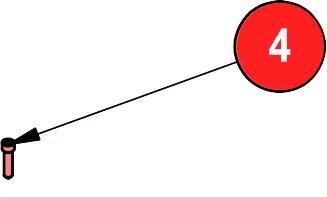

| 4 | 2 | 962454 | SCREW, 1/4 - 20 X 1, SC ST CAP | 1 | AS017700 | COVER, MOTOR, HTONE (07013B) | ||

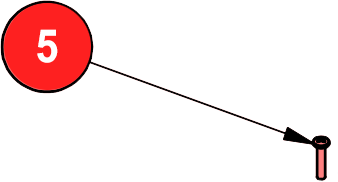

| 5 | 1 | 962988 | SCREW, 1/4-20 X 1-1/4, PN, ST, PH | 30 | 1 | 980662 | WASHER-SH 1224-00 LOCK | |

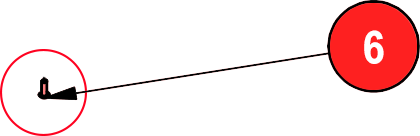

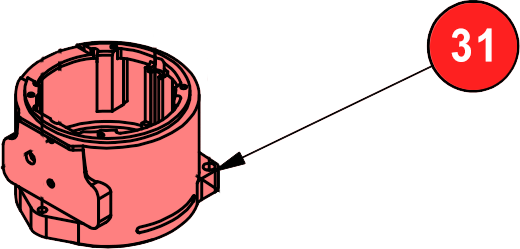

| 6 | 4 | 962727 | SCREW, 8-32 X 1/2 PN ST TP23 PH | 31 | 1 | AS005100 | HOUSING AND GUARD ASM. (07125A) | |

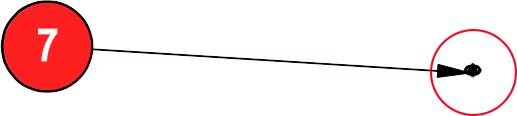

| 7 | 2 | 980643 | WASHER, 7/16 OD X .036 THK. | 1 | AS017600 | HOUSING, MOTOR (07013B) | ||

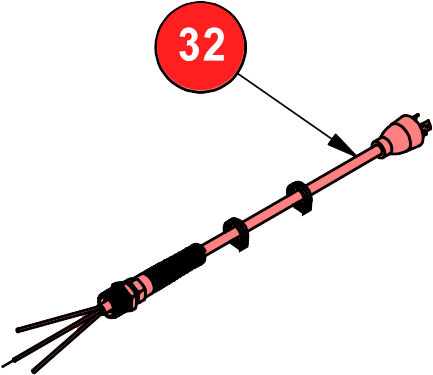

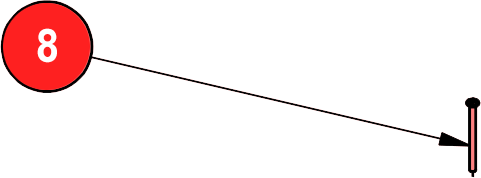

| 8 | 2 | 962211 | SCREW, 10-24 X 2.5, RD P ST | 32 | 1 | 41960A | CORD INTERCONNECTING SUPER7 | |

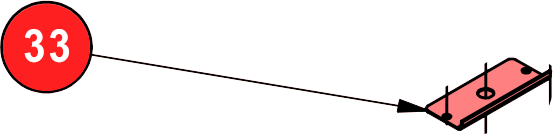

| 9 | 4 | 40818A | BRUSH, CARBON | 33 | 1 | 302310 | COVER MOTOR BRUSH R H (07125A) | |

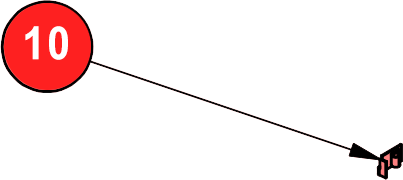

| 10 | 4 | 50932A | SPRING BRUSH HOLDER | 1 | AS020100 | COVER MOTOR BRUSH RH (07013B) | ||

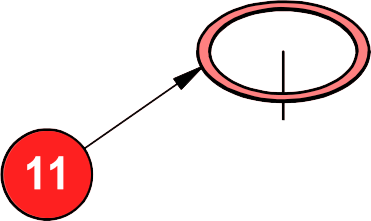

| 11 | 1 | 293403 | GASKET, EXHAUST FAN, BAFFLE | 34 | 1 | 302309 | COVER MOTOR BRUSH L H (07125A) | |

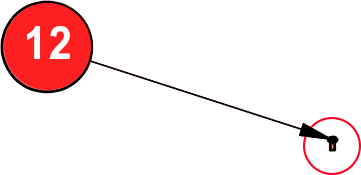

| 12 | 4 | 962545 | SCREW, 6-32 X 3/8, FLAT HD | 1 | AS020000 | COVER BRUSH LEFT S7V (07013B) | ||

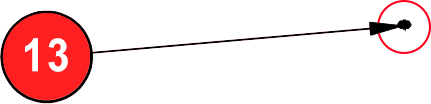

| 13 | 1 | 980621 | WASHER, LOCK, EXTERNAL TOOTH | 35 | 1 | AS006200 | DECAL, SUPER 7R, QR CODE (07125A) | |

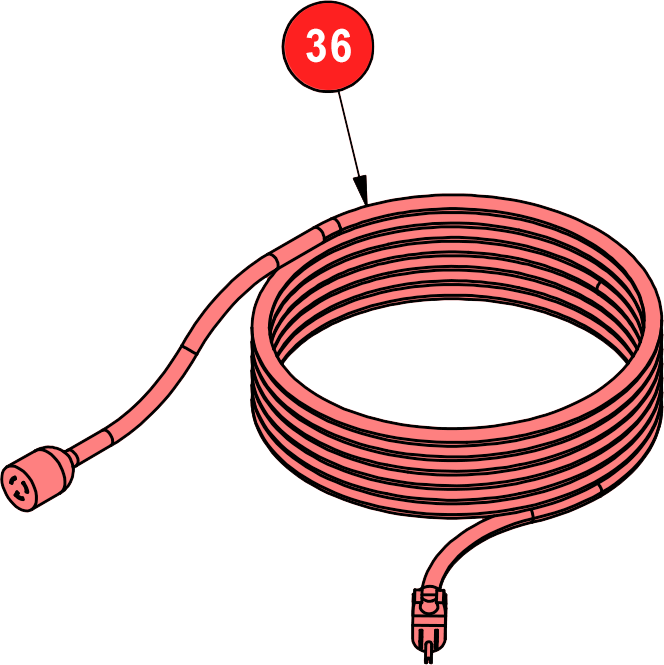

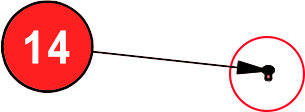

| 14 | 1 | 962550 | SCREW, 8-32 X 5/16 | 36 | 1 | 42234A | CORDSET 14-3X50' SO (07125A) | |
| 15 | 1 | 407302 | RING, RETAINING | 1 | 40540A | CORDSET 12-3 X 40 (07013B) | ||

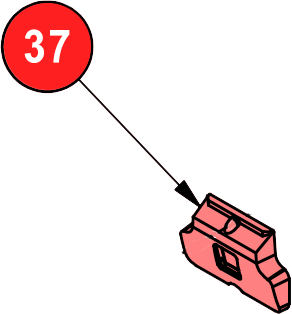

| 16 | 1 | 297604 | OIL SEAL 92 | 37 | 1 | AS121300 | HOUSING, LED LIGHT, ASM. (07125A) | |
| 17 | 1 | 77094A | LABEL, GROUND SYMBOL | 38 | 2 | NB084800 | NON-CRIMP, BUTT SPLICE 18-24GA (07125A) | |

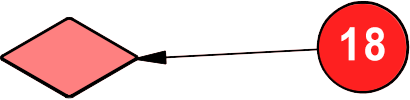

| 18 | 1 | AS014300 | NAMEPLATE, AMERICAN SANDERS, 3" | 39 | 1 | 980650 | WASHER, .19 X .34 X .04 LOCK (07125A) | |

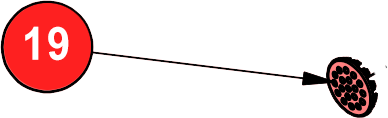

| 19 | 2 | 306802 | PLUG, VENT | 40 | 1 | 962826 | SCREW 10-24X 3/8 PN ST TP F PH (07125A) | |

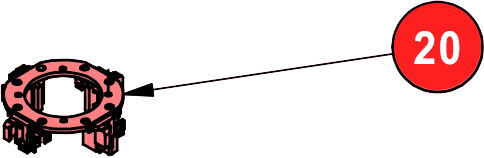

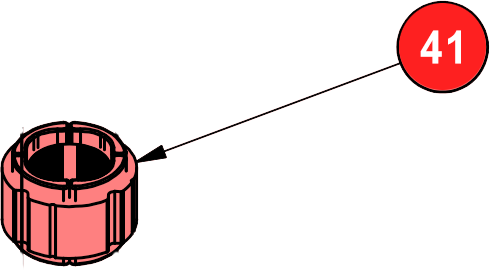

| 20 | 1 | 40130A | HOLDER ASM. BRUSH | 41 | 1 | 42820A | FIELD & COIL ASM 115V | |

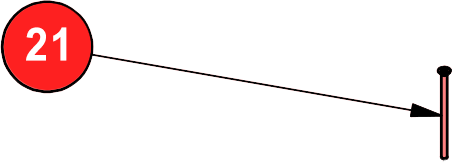

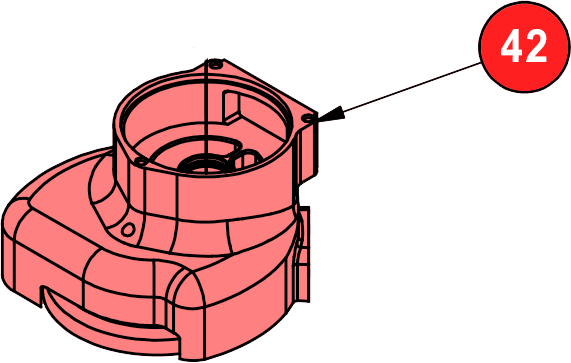

| 21 | 4 | 962404 | SCREW, 10-24 X 3-1/4, FH, ST, PH | 42 | 1 | 304204 | HOUSING, GEAR | |

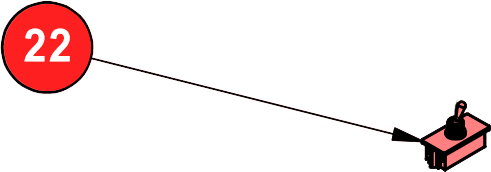

| 22 | 1 | 47394A | SWITCH DPST 16A/125V SUPER | 1 | AS017600 | HOUSING, GEAR, HTONE (07013B) | ||

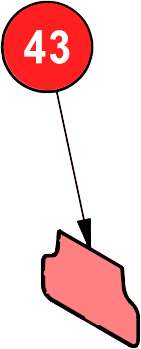

| 23 | 1 | 70175A | TAG WARNING ENG-SPN | 43 | 1 | AS014900 | NAMEPLATE, FRONT (07013B) | |
| 24 | 1 | 70175A-FR | TAG WARNING ENG-FRN | 1 | AS126800 | HARNESS , LED, 8-WATT (07125A) (NOT SHOWN) | ||

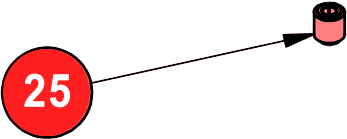

| 25 | 1 | 293514 | PINION, ARMETURE | 1 | AS023300 | DECAL, SERVICE PARTS (07013B) (NOT SHOWN) | ||

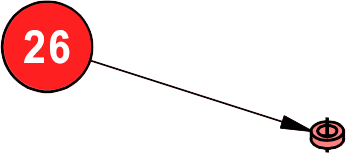

| 26 | 1 | 308202 | SPACER, BEARING |
