EZ-E Edger

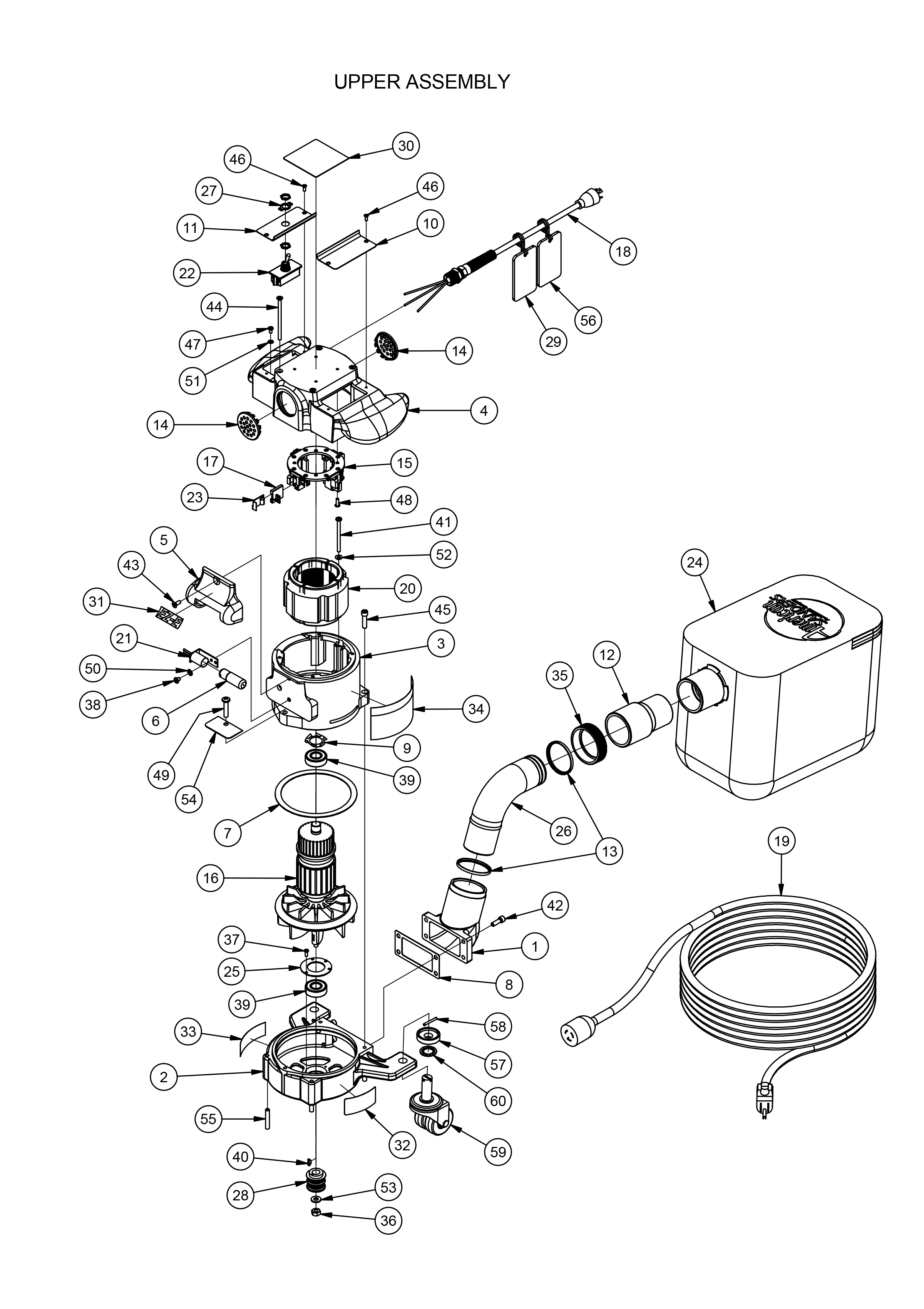

Upper Assembly
| ITEM | PART NUMBER | QTY | DESCRIPTION | ITEM | PART NUMBER | QTY | DESCRIPTION | |

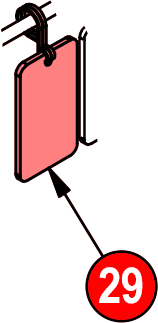

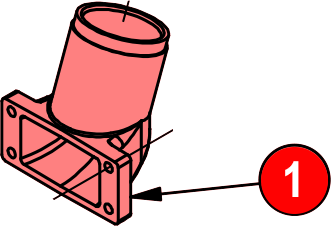

| 1 | AS018901 | 1 | EXHAUST, ADAPTOR, BLACK | 29 | 70175A | 1 | TAG WARNING ENG-SPN | |

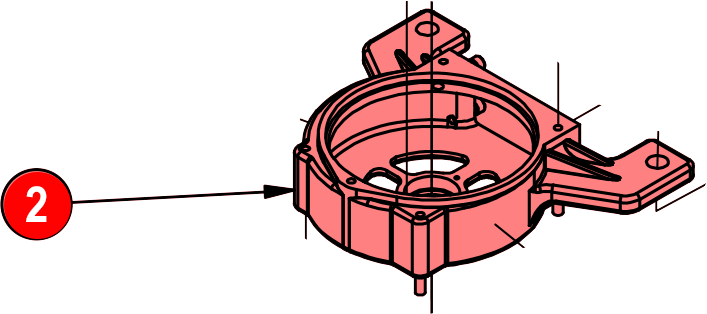

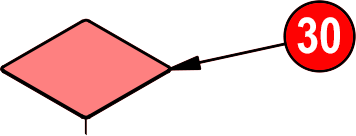

| 2 | AS030900 | 1 | HOUSING, FAN, EZ-E | 30 | AS014300 | 1 | NAMEPLATE, AMERICAN SANDERS, 3" | |

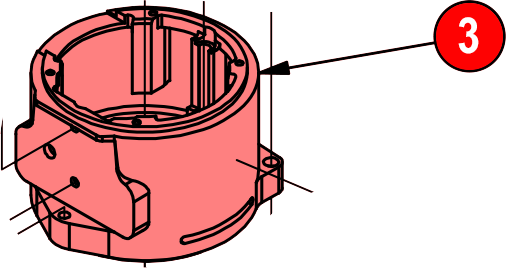

| 3 | AS017601 | 1 | HOUSING, MOTOR, BLACK | 31 | AS030600 | 1 | DECAL, EZ-E, 0.72 X 1.97 | |

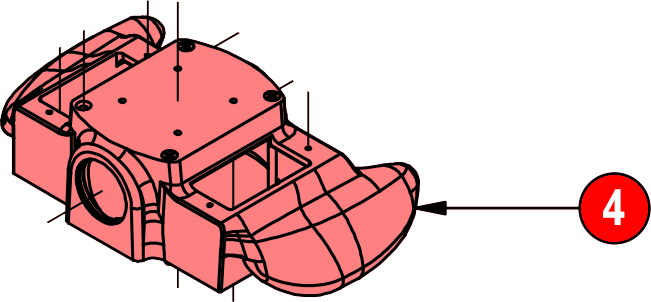

| 4 | AS017701 | 1 | COVER, MOTOR, BLACK | 32 | 56380216 | 1 | DECAL, POWER TOOL CAUTION | |
| 5 | AS031100 | 1 | GUARD, LAMP, BLACK | 33 | 56380639 | 1 | DECAL-PROP 65 | |
| 6A | AS010200 | 1 | LAMP, 120V, LED, DC, BAYONET (07222A, 07223A, 07222C, 07223C) | 34 | 73285A | 1 | LABEL, WARNING | |
| 6B | AS037500 | 1 | LAMP, 230V, LED, DC, BAYONET (07231A, 07232A) | 35 | 80276A | 1 | NUT, SLIPJOINT, 2 X 2 | |

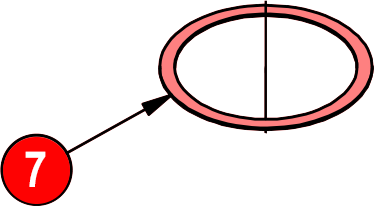

| 7 | 293403 | 1 | GASKET, EXHAUST FAN, BAFFLE | 36 | 81302A | 1 | NUT, JAM, HEX, 1/4-20, ZINC | |

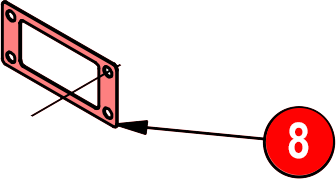

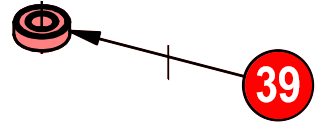

| 8 | 293406 | 1 | GASKET, EXHAUST, BRKT 95 | 37 | 85313C | 5 | SCREW 6-32 X 3/8 PAN HD | |
| 9 | 298306 | 1 | SPRING, LOAD, 56 | 38 | 85393A | 1 | SCREW, 10-24 X 1/4, PN SZ PH | |

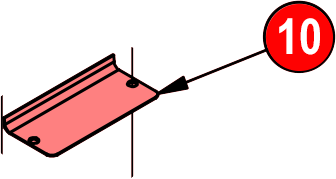

| 10 | AS032300 | 1 | COVER, BRUSH, LEFT, BLACK | 39 | 902567 | 2 | BEARING BALL DOUBLE SEALED | |

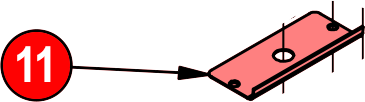

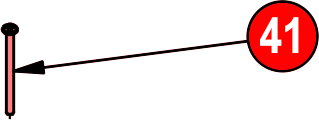

| 11 | AS032200 | 1 | COVER, BRUSH, RIGHT, BLACK | 40 | 915561 | 1 | KEY 1/8 X 1/2 WOODRUFF | |
| 12 | 30563A | 1 | 2" X 1.50" HOSE ADAPTOR | 41 | 962211 | 2 | SCREW, 10-24 X 2.5, RD P ST | |

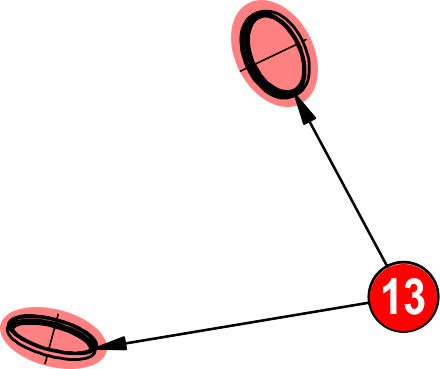

| 13 | 30613A | 2 | SEAL, PIPE, EDGERS | 42 | 962289 | 4 | SCREW, 1/4-20 X 3/4 SOCKET HD | |
| 14 | 306802 | 2 | PLUG, VENT | 43 | 962310 | 1 | SCREW, 10-24 X 1/2 | |

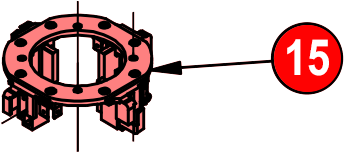

| 15 | 40130A | 1 | HOLDER ASM. BRUSH | 44 | 962404 | 4 | SCREW, 10-24 X 3-1/4, FH, ST, PH | |

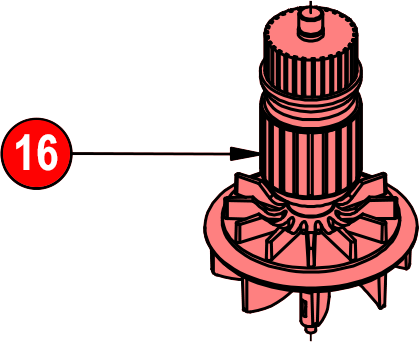

| 16A | 40321A | 1 | ARMATURE ASM, 120V (07222A, 07223A, 07222C, 07223C) | 45 | 962454 | 2 | SCREW, 1/4 - 20 X 1, SC ST CAP | |
| 16B | 40324A | 1 | ARMATURE ASM, 230V (07231A, 07232A) | 46 | 962545 | 4 | SCREW, 6-32 X 3/8, FLAT HD | |
| 17 | 40818A | 4 | BRUSH, CARBON | 47 | 962550 | 1 | SCREW, 8-32 X 5/16 | |

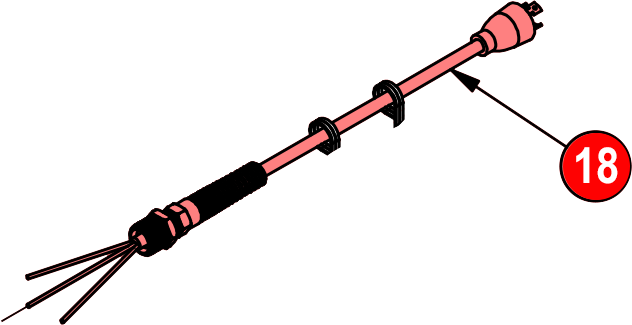

| 18A | 41960A | 1 | CORD INTERCONNECTING (07222A, 07223A, 07222C, 07223C) | 48 | 962727 | 7 | SCREW, 8-32 X 1/2 PN ST TP23 PH | |
| 18B | AS020700 | 1 | CORD, PIGTAIL, SANDER, 1.5MM (07231A, 07232A) | 49 | 962988 | 1 | SCREW, 1/4-20 X 1-1/4, PN, ST, PH | |

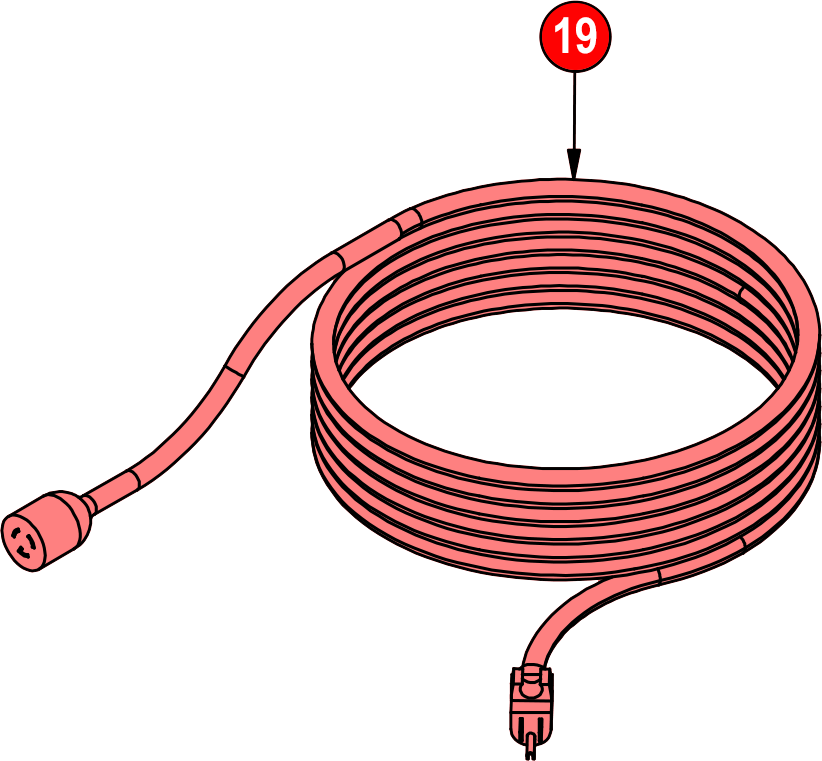

| 19A | 40540A | 1 | CORDSET, 12-3 X 40FT 5-15P (07222A, 07223A, 07222C, 07223C) | 50 | 980603 | 1 | WASHER, LK 10 EXT TOOTH | |
| 19B | MP514000 | 1 | CORD, POWER SUPPLY,AUSTRAL. (07231A, 07232A) | 51 | 980621 | 1 | WASHER, LOCK, EXT TOOTH | |

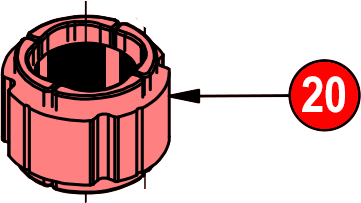

| 20A | 42820A | 1 | FIELD & COIL ASM 115V (07222A, 07223A, 07222C, 07223C) | 52 | 980643 | 2 | WASHER, 7/16 OD X .036 THK. | |
| 20B | 42819A | 1 | FIELD & COIL ASM 240V (07231A, 07232A) | 53 | 980646 | 1 | WASHER 1/4 SAE FLAT PLTD | |
| 21 | 46902A | 1 | SOCKET ASSEMBLY | 54 | AS032400 | 1 | REFLECTOR, LIGHT | |
| 22 | 47394A | 1 | SWITCH DPST 16A/125V SUPER | 55 | NB074000 | 4 | SCREW, SET, 1/4-20 X 1 1/2" | |

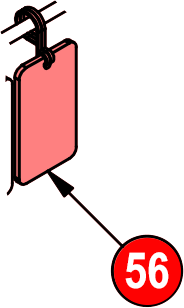

| 23 | 50932A | 4 | SPRING BRUSH HOLDER | 56 | 70175A-FR | 1 | TAG WARNING ENG-FRN | |

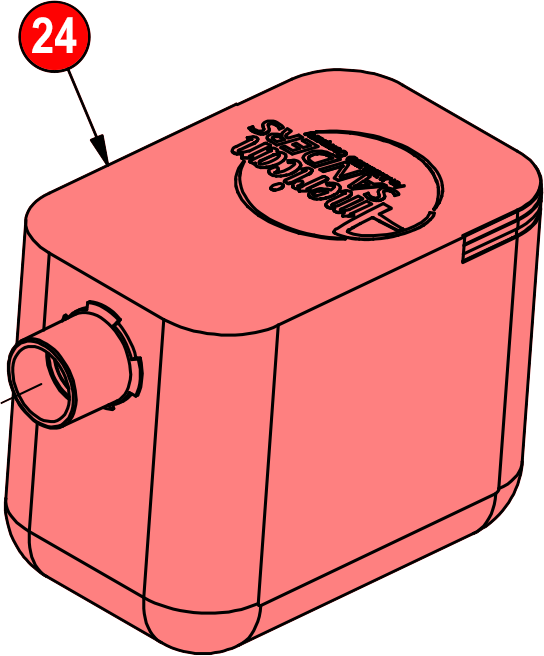

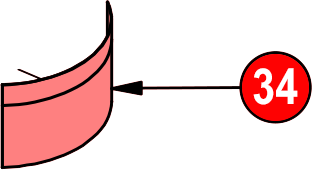

| 24 | 53544B | 1 | BAG, EDGER | 57 | AS035900 | 2 | NUT, JAM, M16, 1.5"OD, KNURL. | |
| 25 | 57396A | 2 | RETAINER, BEARING, 2"O.D. | 58 | NB074400 | 2 | PIN, ROLL, 1/8 X 1 1/8 | |
| 26 | 61564A | 1 | TUBE, EXHAUST | 59 | AS036000 | 2 | CASTER, 2", DUAL, 1/8" HOLE | |
| 27 | 646302 | 1 | PLATE-SWITCH | 60 | NB074600 | 2 | WASHER, STAR LK, 5/8 INT.TOOTH | |
| 28 | AS031400 | 1 | PULLEY, MOTOR, DRIVE, EZ-E | |||||
