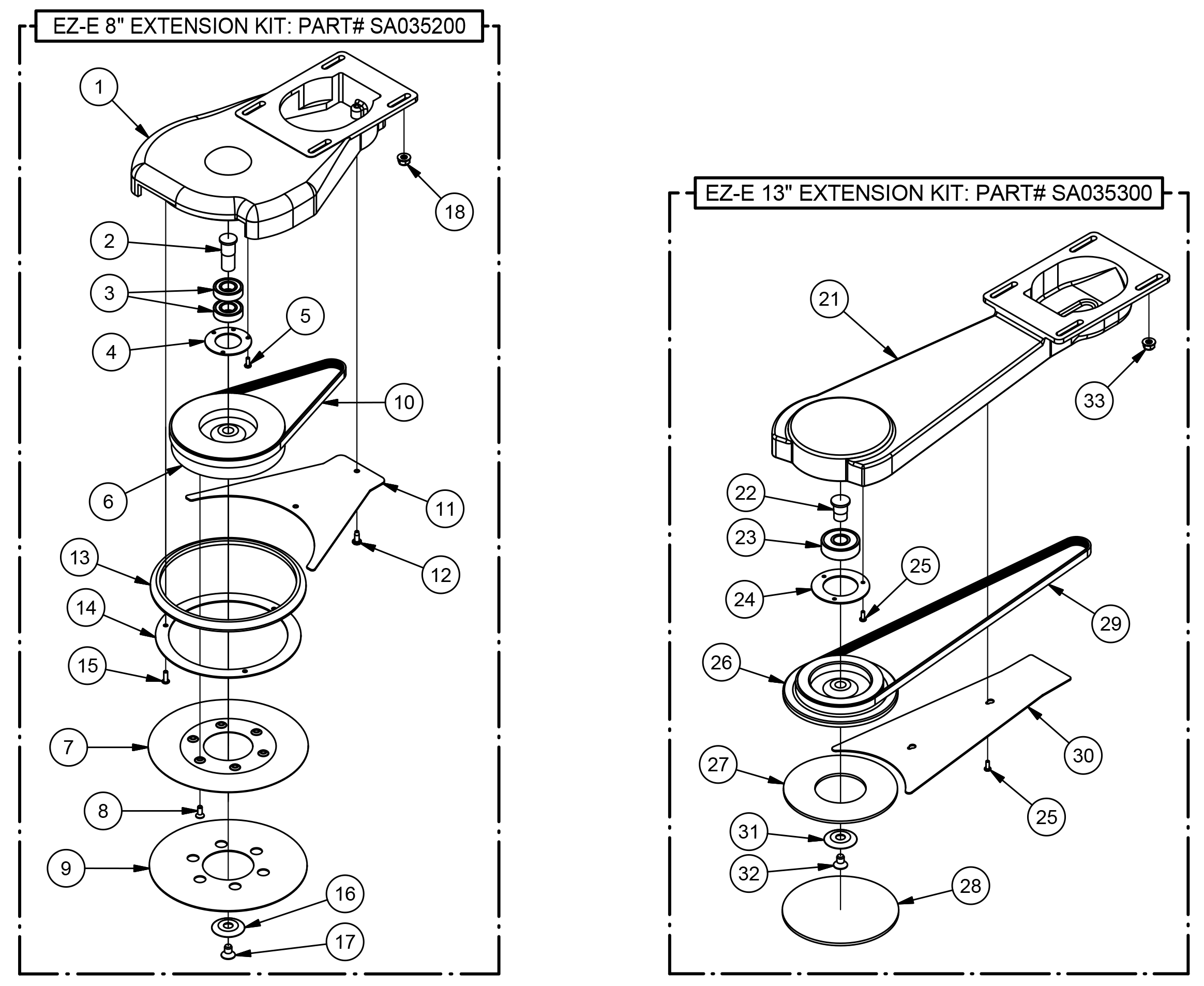

EZ-E Edger
Lower Assembly RF077200
| EZ-E 8" EXT KIT: Part # SA035200 | EZ-E 13" EXT KIT: Part # SA035300 | |||||||
| ITEM | QTY | Part Number | DESCRIPTION | ITEM | QTY | Part Number | DESCRIPTION | |

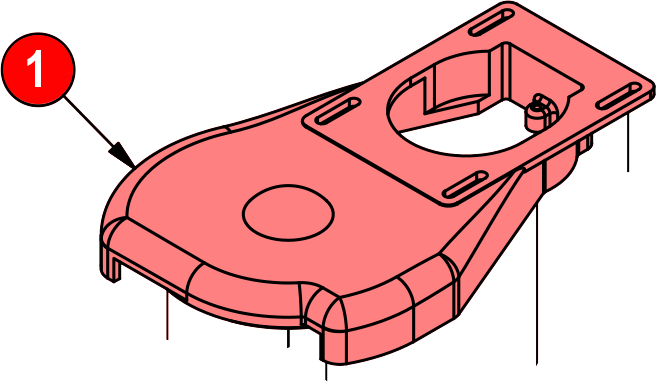

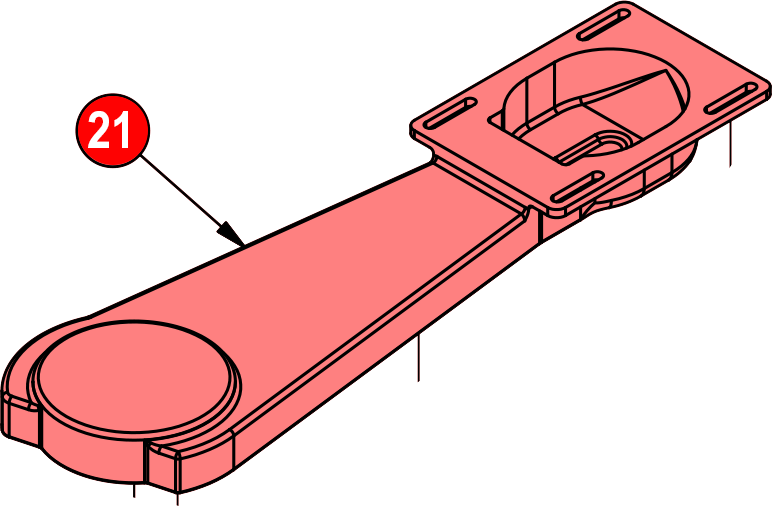

| 1 | 1 | AS030100 | EXTENSION, 8", EZ-E | 21 | 1 | AS030200 | EXTENSION, 13", EZ-E | |
| 2 | 1 | 67469A | SHAFT 7 PAD DRIVER SUPER 7E | 22 | 1 | 58321A | SHAFT PAD DRIVER SUPER 7E | |
| 3 | 2 | 56380282 | BEARING-BALL 6002 CUSTOM | 23 | 1 | 51111A | BEARING BALL | |
| 4 | 2 | 57396A | RETAINER, BEARING, 2"O.D. | 14 | 1 | 66964A | RETAINER, BEARING, 2.5"O.D. | |
| 5 | 3 | 85313C | SCREW 6-32 X 3/8 PAN HD | 25 | 5 | 85313C | SCREW 6-32 X 3/8 PAN HD | |

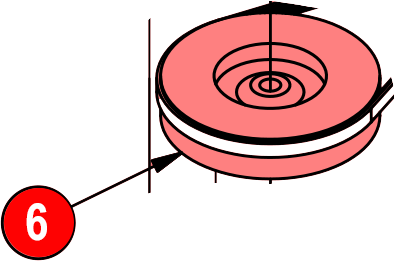

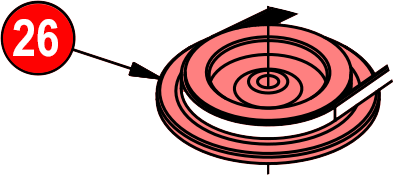

| 6 | 1 | AS031600 | PULLEY, 7" PAD, 8" EXT. | 26 | 1 | AS031500 | PULLEY, 5" PAD, 13" EXTENSION | |

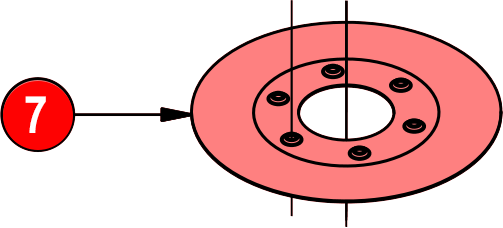

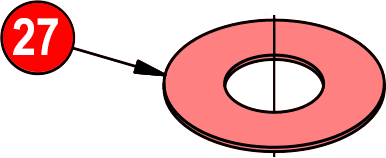

| 7 | 1 | 61851A | SANDING DISC | 27 | 1 | AS030500 | PAD 5" O.D. HOOK & LOOP | |

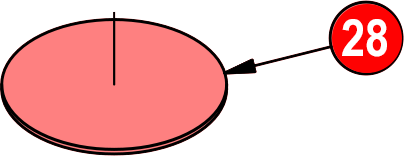

| 8 | 6 | 962348 | SCR 10-24X 1/2 SF ST CAP | 28 | 1 | AS003500 | PAD, FOAM, 5" | |

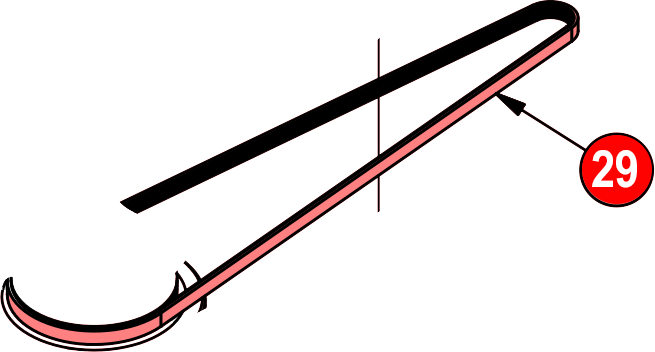

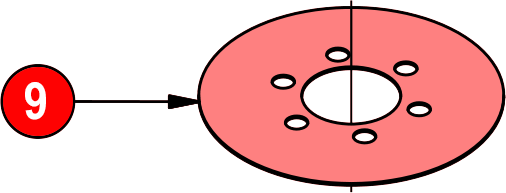

| 9 | 1 | 39864A | PAD HOOK & LOOP | 29 | 1 | AS032500 | BELT, 4V360 | |

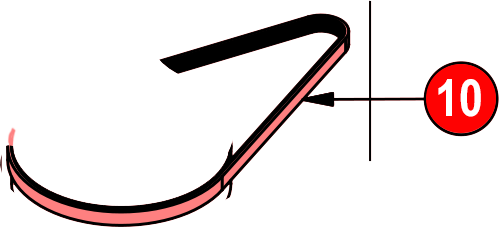

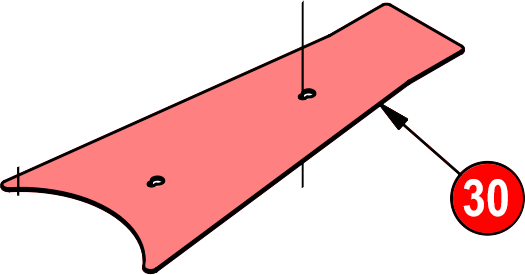

| 10 | 1 | AS032600 | BELT, 4V220 | 30 | 1 | AS031900 | GUARD, BELT, 13" EXT. | |

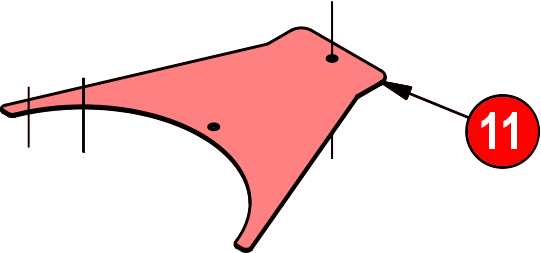

| 11 | 1 | AS032000 | GUARD, BELT, 8" EXT. | 31 | 1 | 66965A | RETAINER ABRASIVE SUPER 7E | |
| 12 | 2 | 85517A | SCREW #10-24 X 1/2 PHCR TYPE 23 | 32 | 1 | NB055600 | SCREW, SFCS, 5/16-18 X 5/8”,SS | |

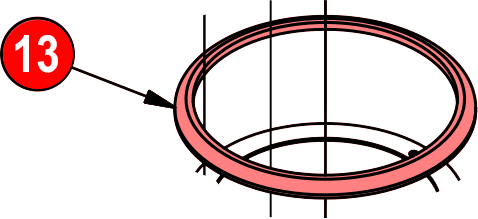

| 13 | 1 | 34109A | GUARD DISC SUPER 7E | 33 | 4 | AS030700 | NUT, FLANGE, 1/4-20, NYLOC | |

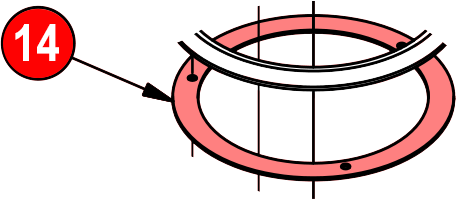

| 14 | 1 | 66973A | RETAINER, GUARD, 7" DISC | |||||
| 15 | 5 | 962727 | SCREW, 8-32 X 1/2 PN ST TP23 PH | |||||
| 16 | 1 | 66965A | RETAINER ABRASIVE SUPER 7E | |||||
| 17 | 1 | NB055600 | SCREW, SFCS, 5/16-18 X 5/8”,SS | |||||
| 18 | 4 | AS030700 | NUT, FLANGE, 1/4-20, NYLOC | |||||
