To purchase parts for the Compass Edger Handle Assembly Parts:

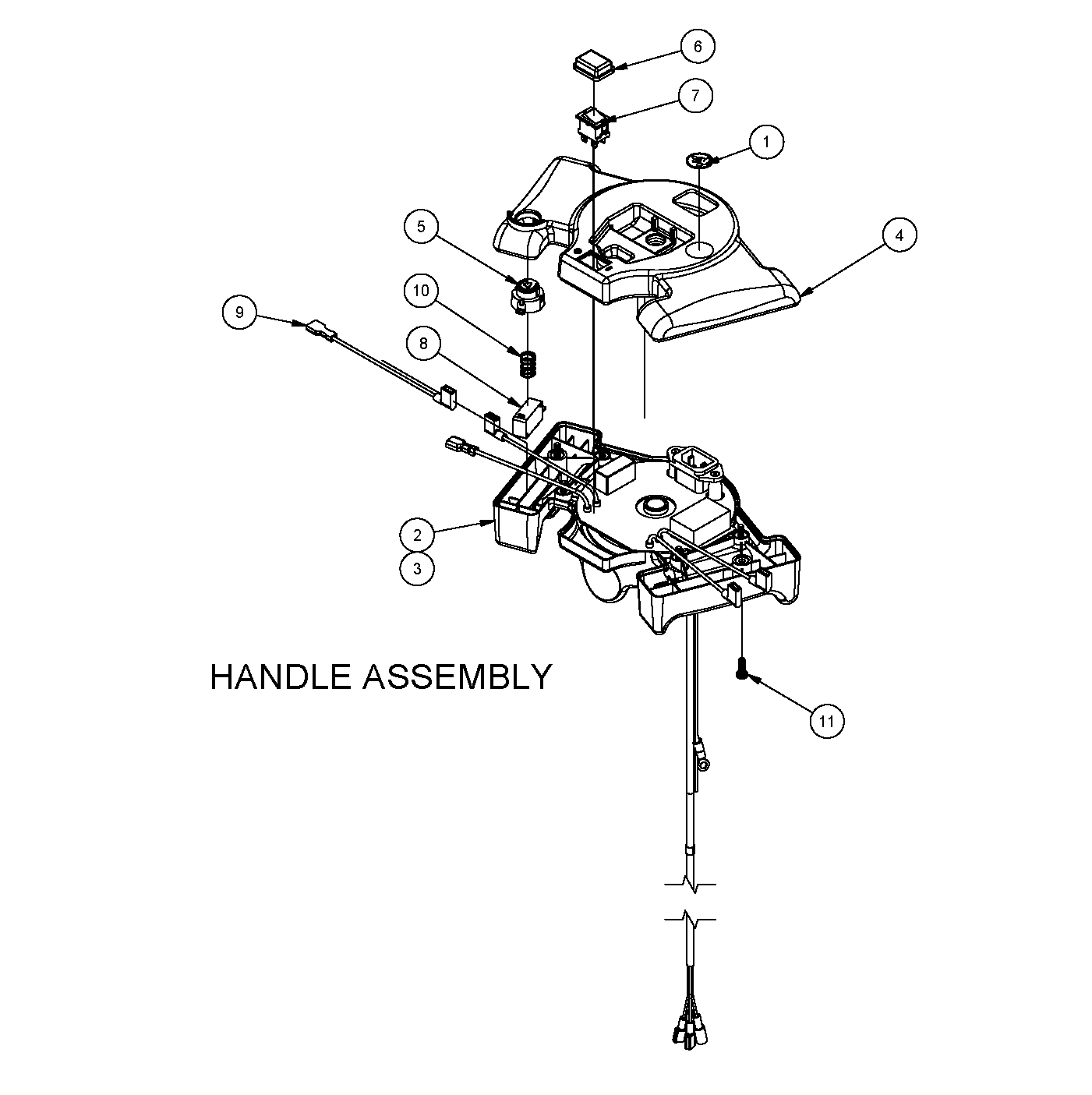

- Reference the part needed from the parts diagram and refer to the parts list below.
- Copy the Part Number and paste it into the search window above to see availability and pricing.
- Confirm your parts selection and "Add To Cart".
| ITEM | QTY | PART NUMBER | DESCRIPTION |
| 1 | 1 | AS006900 | DECAL, "CONSULT OPER. MANUAL" |
| 2 | 1 | AS038802 | ASSY, COMPASS LOWER HANDLE, 120V |
| 3 | 1 | AS038803 | ASSY, COMPASS LOWER HANDLE, 230V |
| 4 | 1 | AS087202 | ASSY. HANDLE, COMPASS, UPPER |
| 5 | 1 | AS087400 | BUTTON, COMPASS MOMENTARY SWITCH |
| 6 | 1 | AS088300 | COVER, SWITCH |
| 7 | 1 | AS090000 | SWITCH, ROCKER, DPST |
| 8 | 1 | AS090300 | SWITCH, MICRO, V7-1C27E9 |
| 9 | 1 | AS094400 | ASSY, JUMPER WIRE, COMPASS |
| 10 | 1 | AS110000 | SPRING, COMP. .63L, .42OD |
| 11 | 6 | NB082500 | SCREW, 8-32 X 1/2 PAN, TORX, T20 |
