To purchase parts for the Compass Edger Caster Assembly Parts:

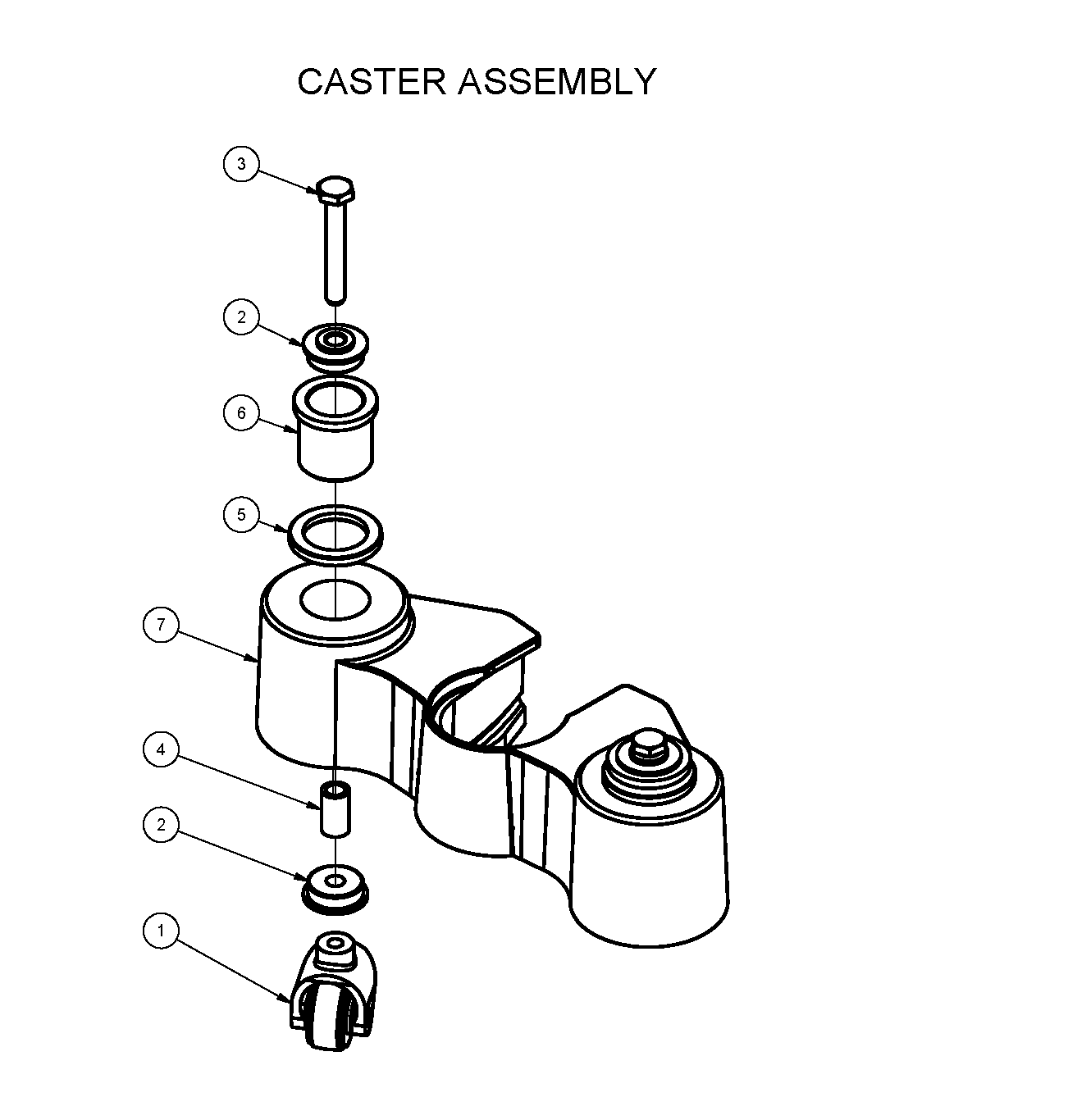

- Reference the part needed from the parts diagram and refer to the parts list below.
- Copy the Part Number and paste it into the search window above to see availability and pricing.
- Confirm your parts selection and "Add To Cart".
| ITEM | QTY | PART NUMBER | DESCRIPTION | |
| 1 | 2 | 10212A | WHEEL & YOKE ASM. | |
| 2 | 4 | 50740A | BEARING, BALL, 1/4 X 3/4, SHIELD | |
| 3 | 2 | 85702A | SCR 1/4-20 X 1 3/4 HX ST CAP | |
| 4 | 2 | 298215 | COLLAR, SPACING | |
| 5 | 2 | 920670 | NUT, LOCK, ADJUST | |
| 6 | 2 | 960130 | SCREW, SWIVEL, CASTER | |
| 7 | 1 | AS087500 | BRACKET, COMPASS CASTER |
