Compass Edger Parts

If you have the part number you need simply enter it in the Search window above to see price, availability, and to order. To find a part number, click on the applicable machine diagram below. If your machine is not listed here please contact American Sanders Customer Service.

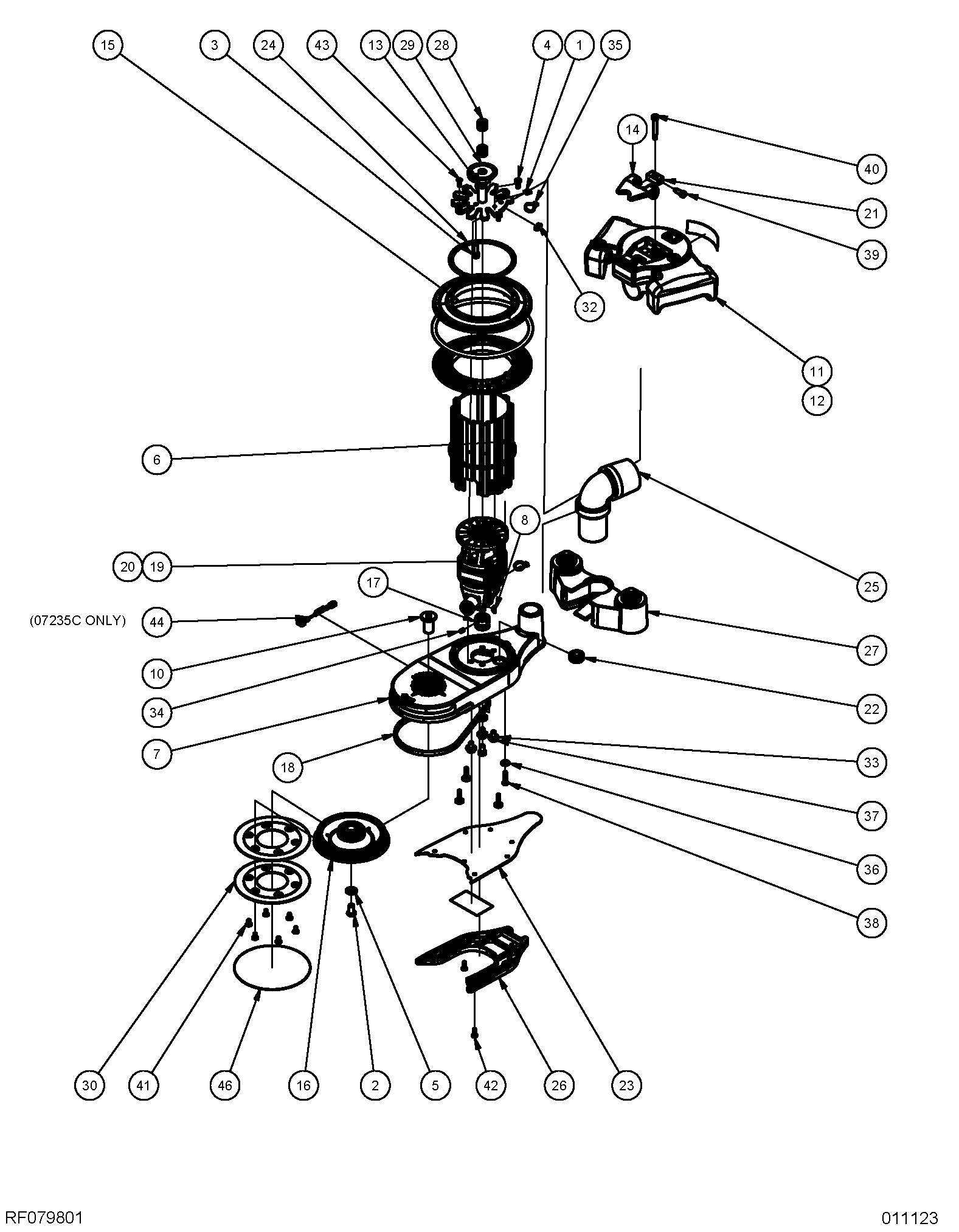

Base Assembly Parts (RF079801)

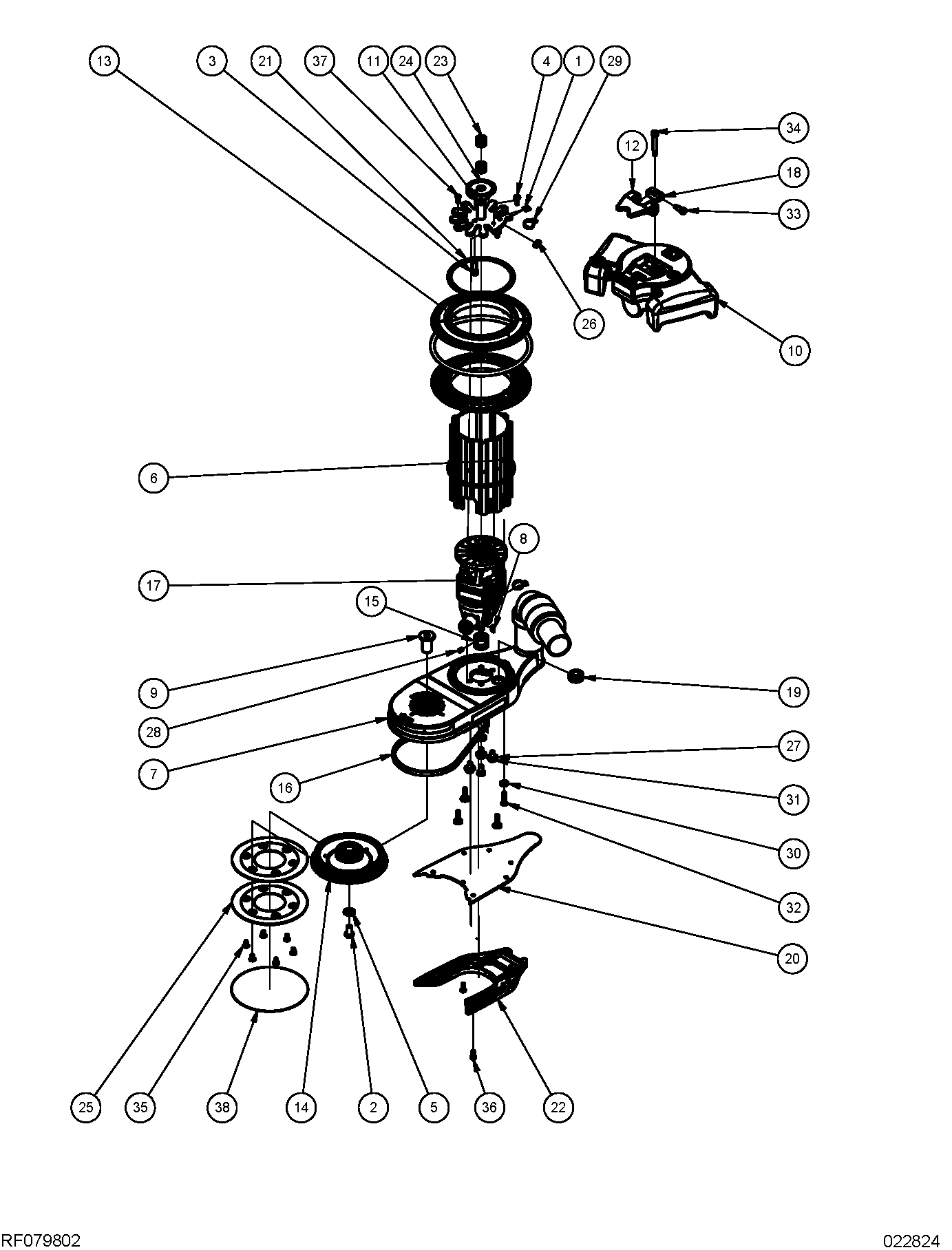

Base Assembly Parts (RF079802)


Handle Assembly Parts

Handle Assembly Parts


Pulley Assembly Parts

Pulley Assembly Parts

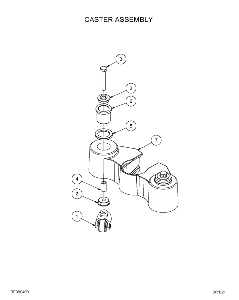

Caster Assembly Parts

Caster Assembly Parts

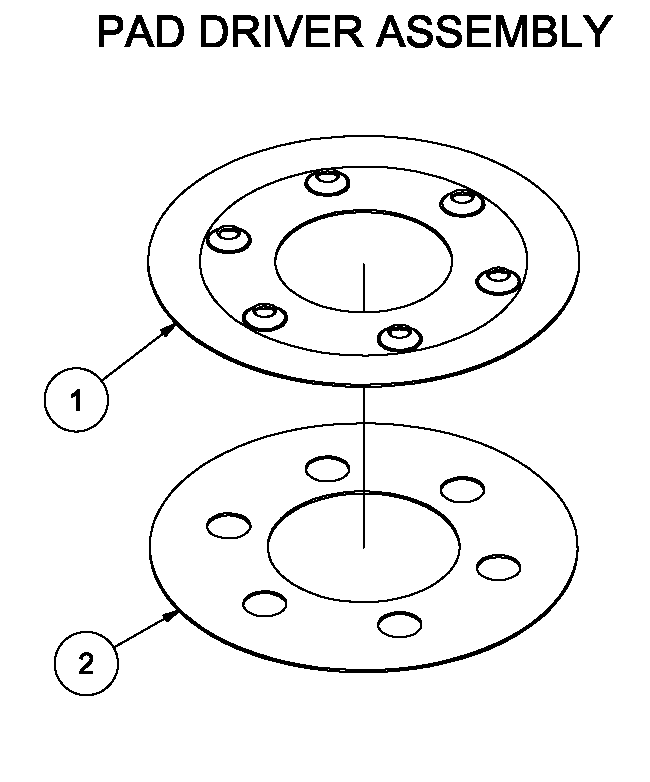

Pad Driver Assembly Parts

Brush Assembly Parts

Brush Assembly RF088100_121922



Decal Assembly Parts



Decal Assembly RF091200_122022

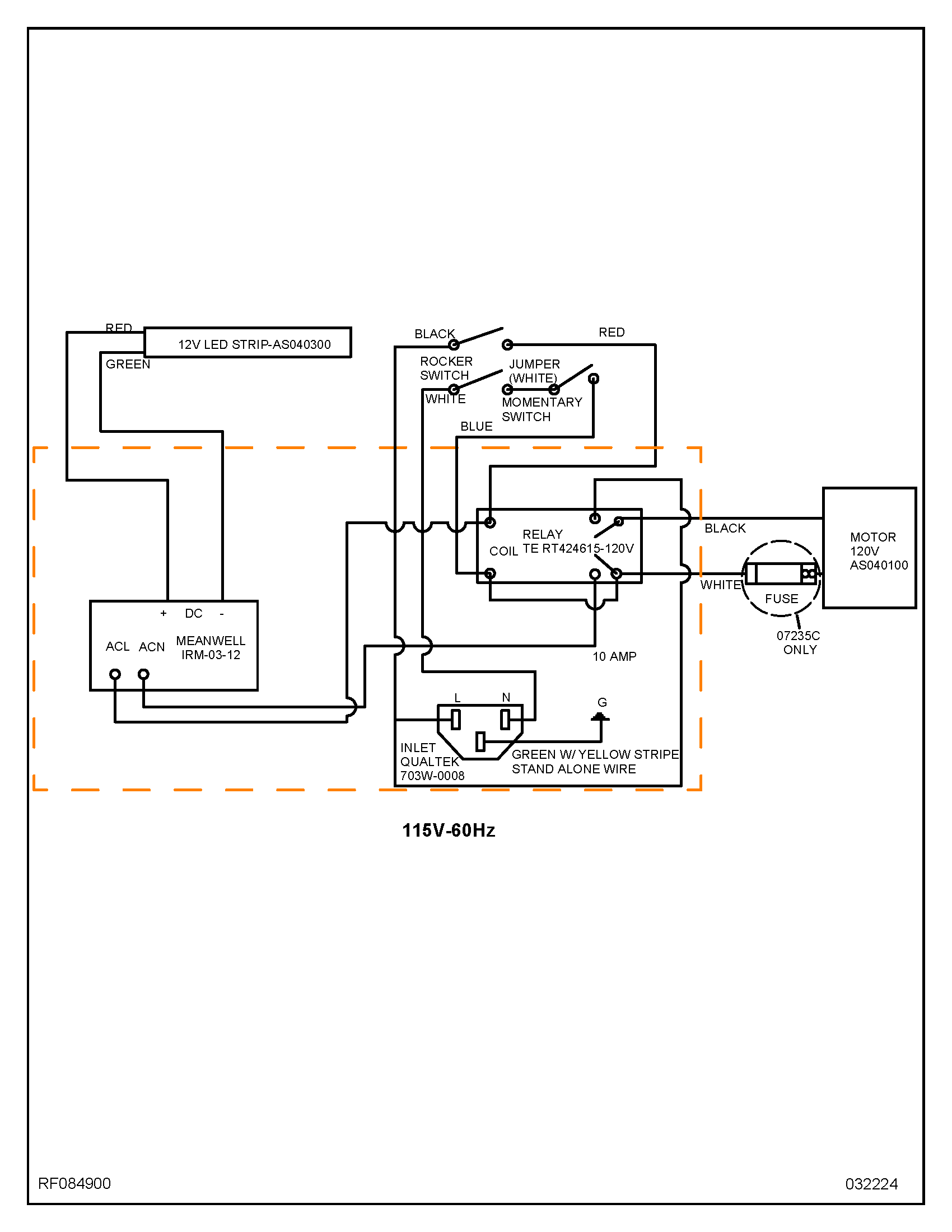

Compass Wiring Diagram 115V-60Hz

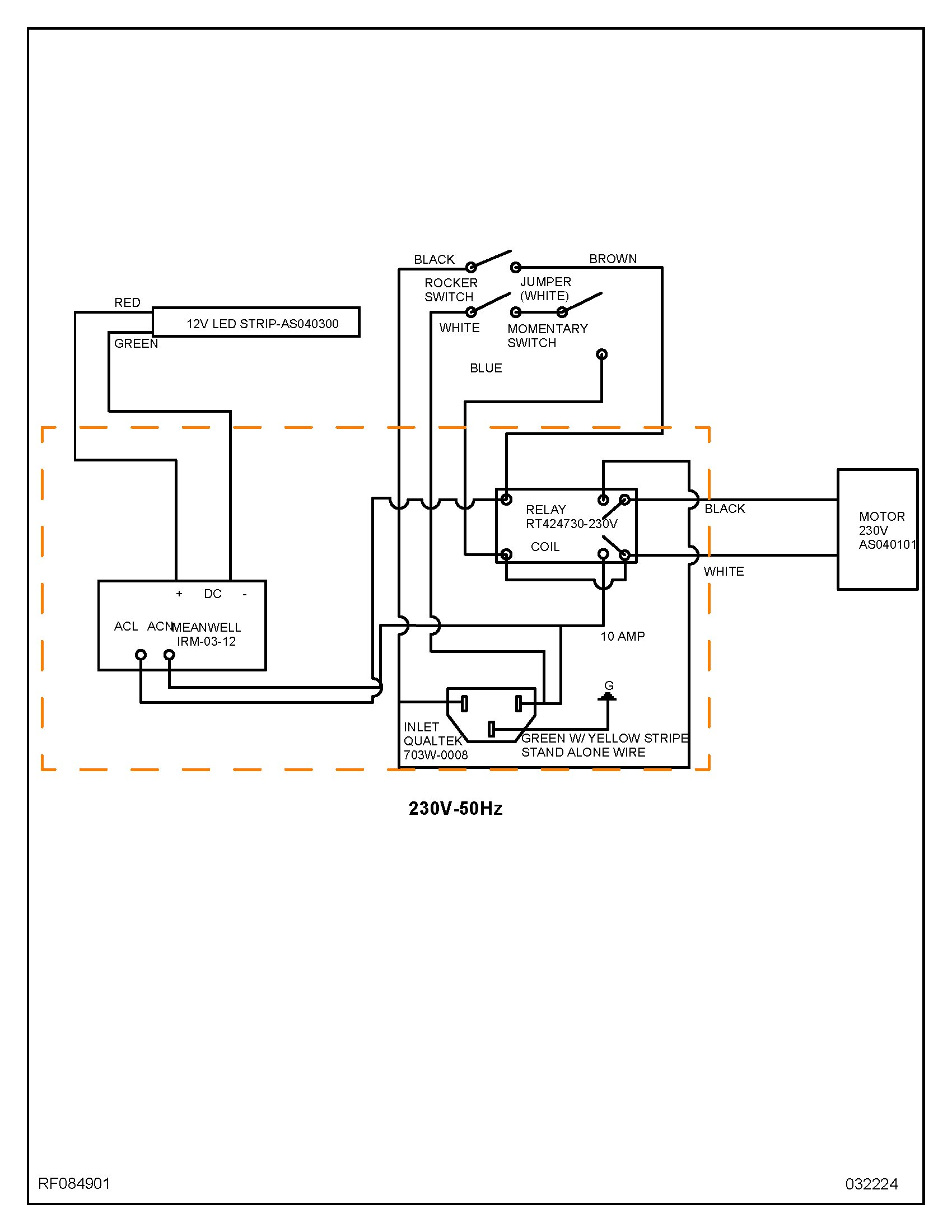

Compass Wiring Diagram 230V-50Hz
