CE7 Edger

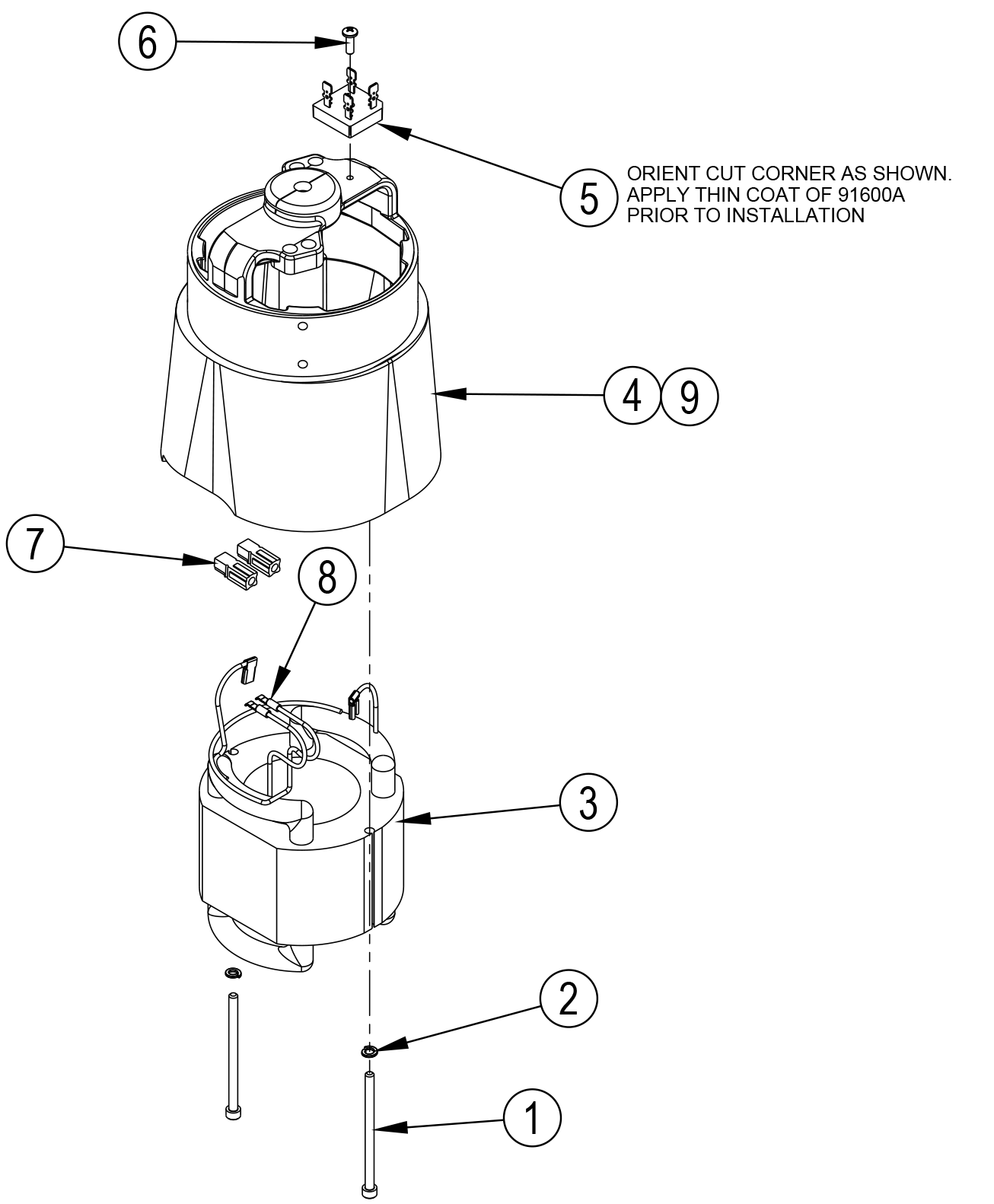

Motor Housing Assembly
Note: Click on the item number that you need to confirm the part number, price, availability and to place your order. If you already know the part number, you can also enter it in the search box above.
part 9
part 8
part 7
part 6
part 5
part 4
part 3
part 2
part 1
ItemPart NumberQtyDescription

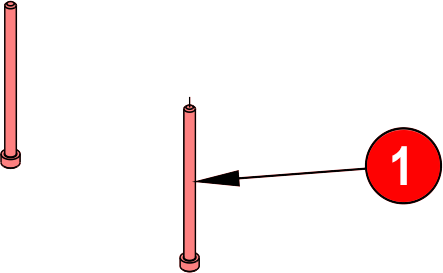

186117A2Screw, 10-24X3 SHMS

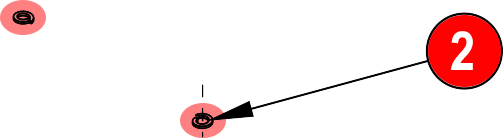

29806502Washer, #10 Lock

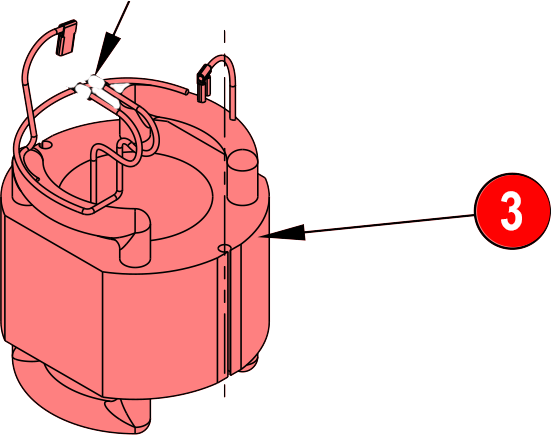

340718A1Field 115V
3B40719A1Field 230V (07220A)

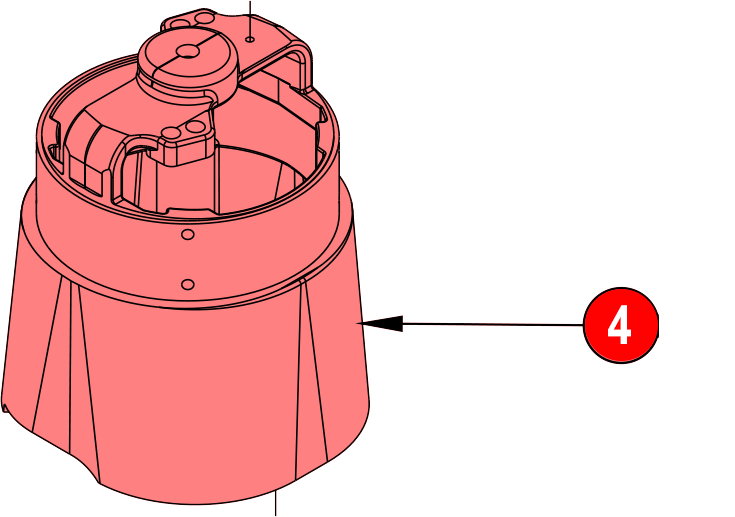

429911A1Motor Housing, Polished (07170A, 07176A)

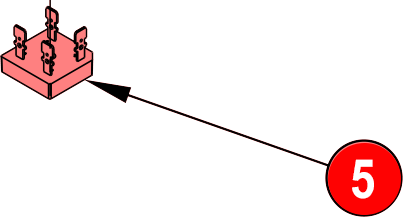

59122871Rectifier, Full Wave 50A 600V (07170A, 07176A)
69620271Screw, 8-32X1/2 PH (07170A, 07176A)

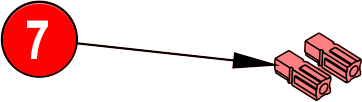

743401A2Housing, Connector
841809A2Contact, Housing Connector

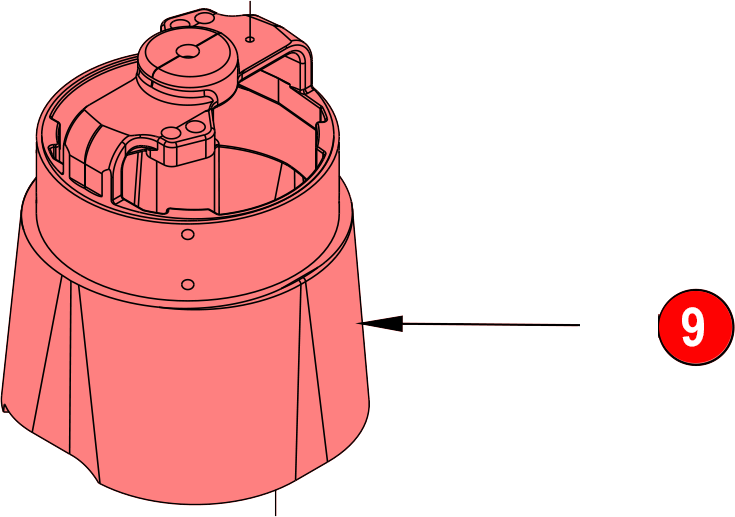

929914A1Motor Housing, Charcoal Grey (07175A, 07180A)
