CE7 Edger

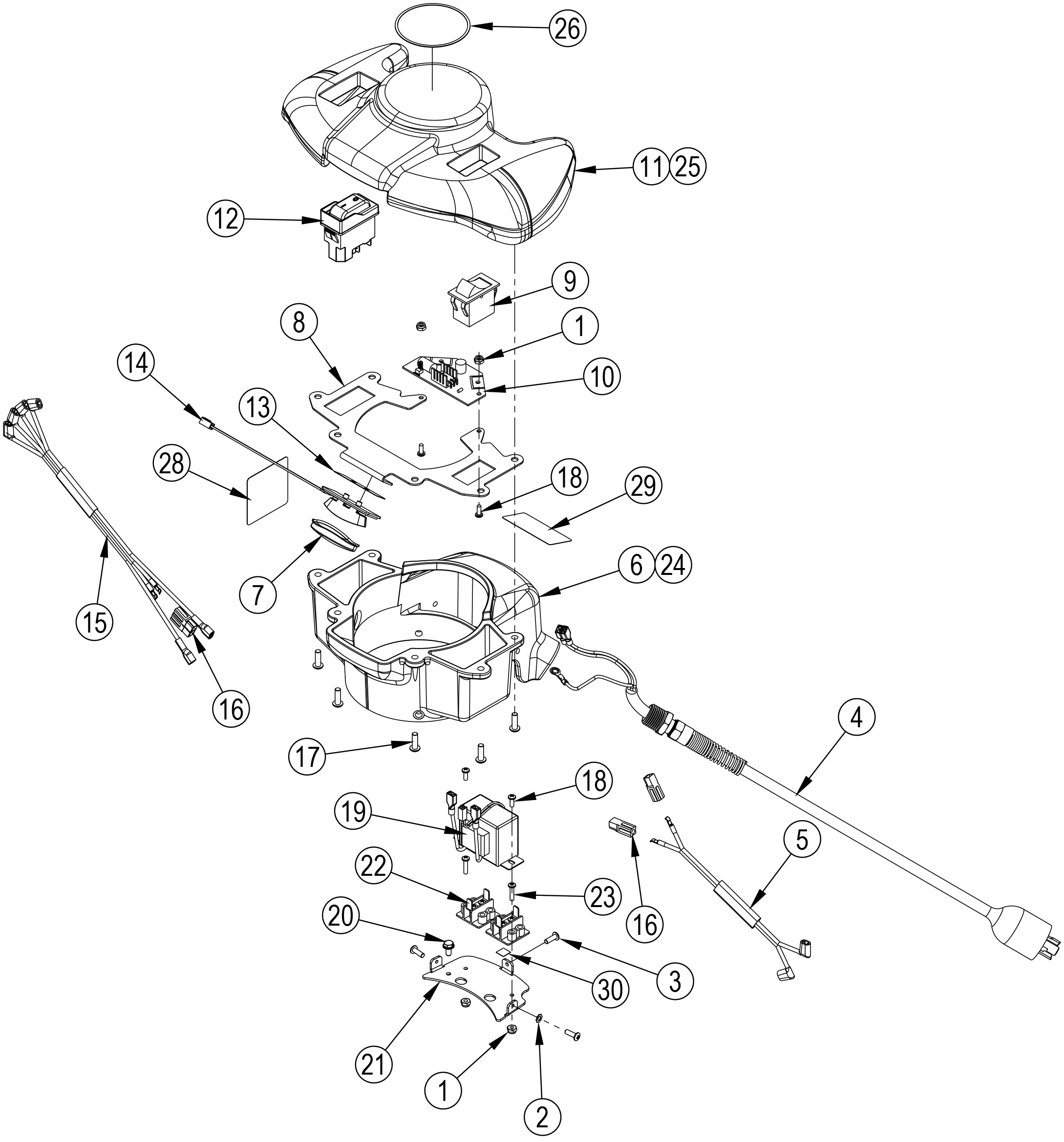

Handle Assembly

Note: Click on the item number that you need to confirm the part number, price, availability and to place your order. If you already know the part number, you can also enter it in the search box above.

part 30

part 29

part 28

part 26

part 25

part 24

part 23

part 22

part 21

part 20

part 19

part 18-1

part 18

part 17

part 16

part 16

part 15

part 14

part 13

part 12

part 11

part 10

part 9

part 8

part 7

part 6

part 5

part 4

part 3

part 2

part 1

part 1

Item	Part Number	Qty	Description	Item	Part Number	Qty	Description

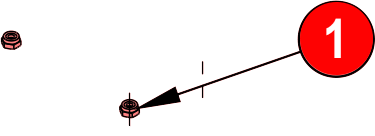

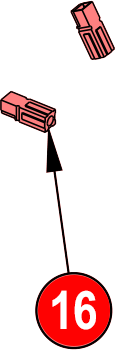

1	920056	4	Nut, 6-32 E.S.N.A. Nylock (qty of 2 on 07175A & 07180A)	16	43401A	4	Housing Connector (qty of 2 on 07175A & 07180A)
2	980621	1	Washer, Ext. Tooth Lock	17	80324A	6	Screw, M5-.8X16 Btn Hd

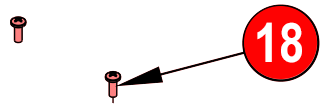

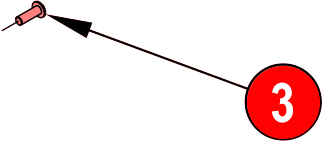

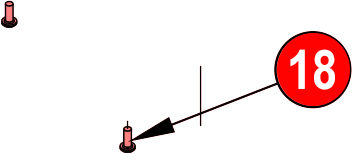

3	962727	3	Screw, 8-32X1/2	18	85313C	4	Screw, PHMS 6-32X3/8 (07170A, 07176A)

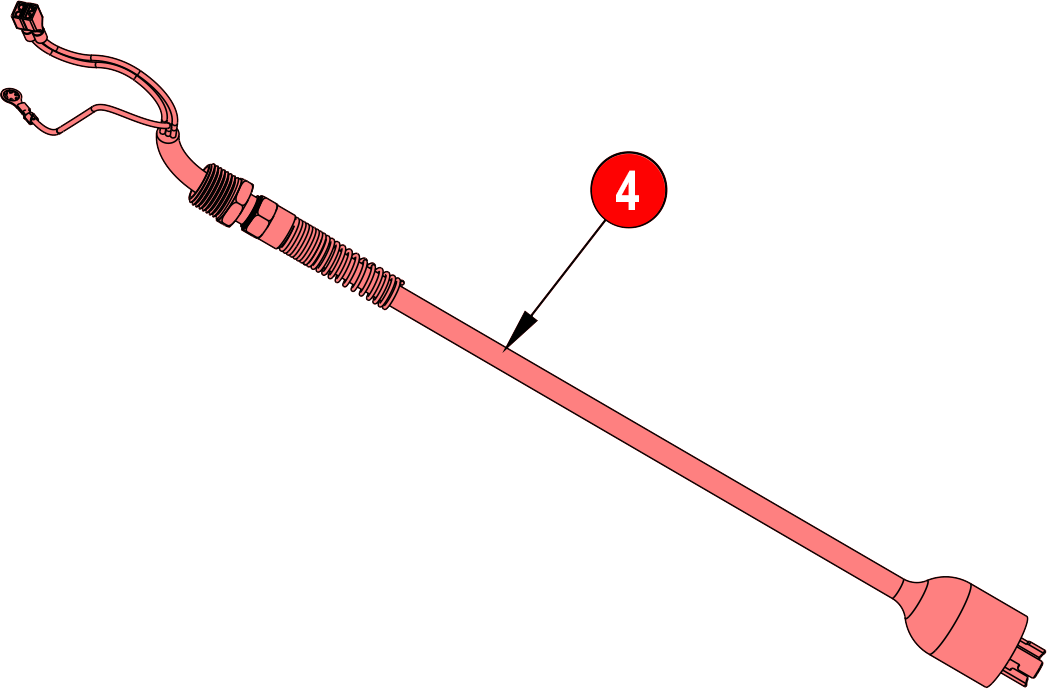

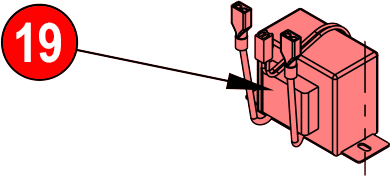

4	40943A	1	Cord, Adapter	19	40946A	1	Transformer Asm. 10:1 (07170A, 07176A)

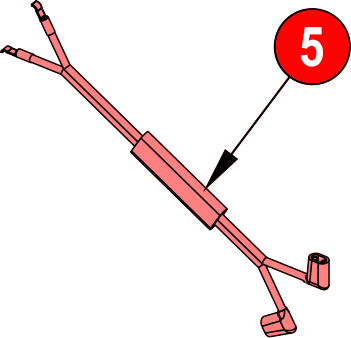

5	11344A	1	Speed Select, Wire Asm. (07170A, 07176A)	20	85833A	1	10-32X3/8 HW Type 23

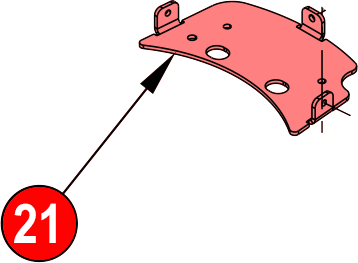

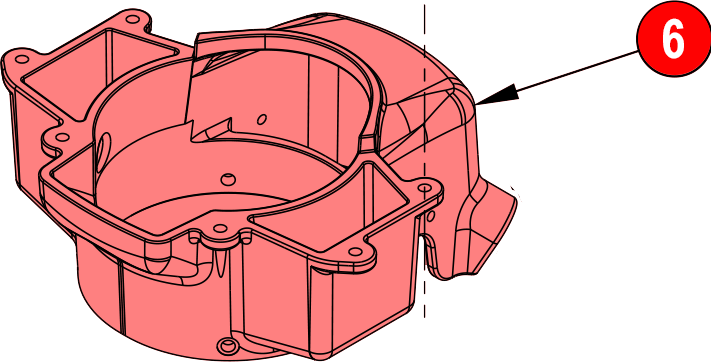

6	29912A	1	Handle, Lower Polished (07170A, 07176A)	21	61855A	1	Plate, Support

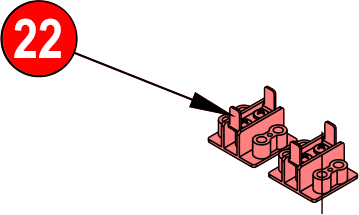

7	39871A	1	Lens, Transparent Polycarbonate	22	41079A	2	Terminal Junction 1/4”X2 Tabs (07175A, 07180A)

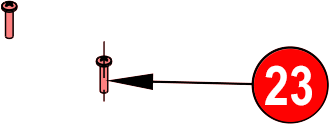

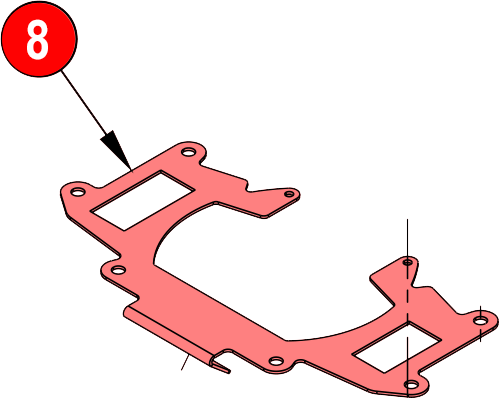

8	61856A	1	Plate, Switch	23	962738	2	Screw, 6-32X5/8” P.H. (07175A, 07180A)

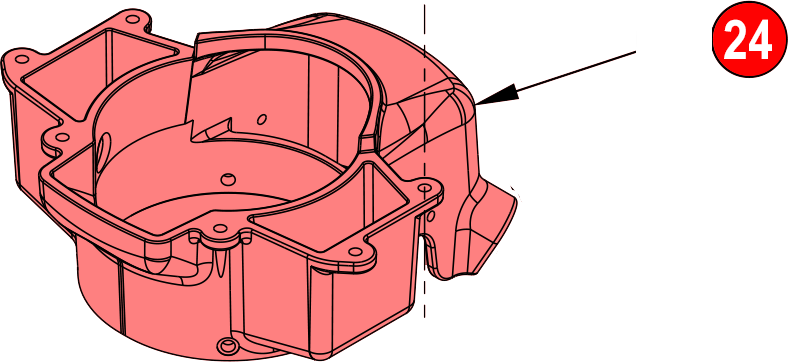

9	47365A	1	Switch, Rocker (07170A, 07176A)	24	29913A	1	Handle, Lower Charcoal, Grey (07175A, 07180A)

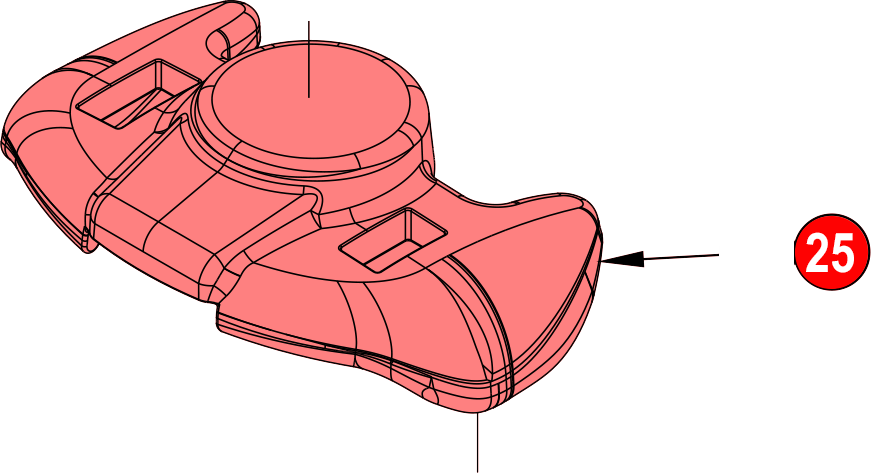

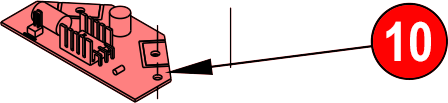

10	40947A	1	LED Power Regulator (07170A, 07176A)	25	39868A	1	Handle (07175A, 07180A)

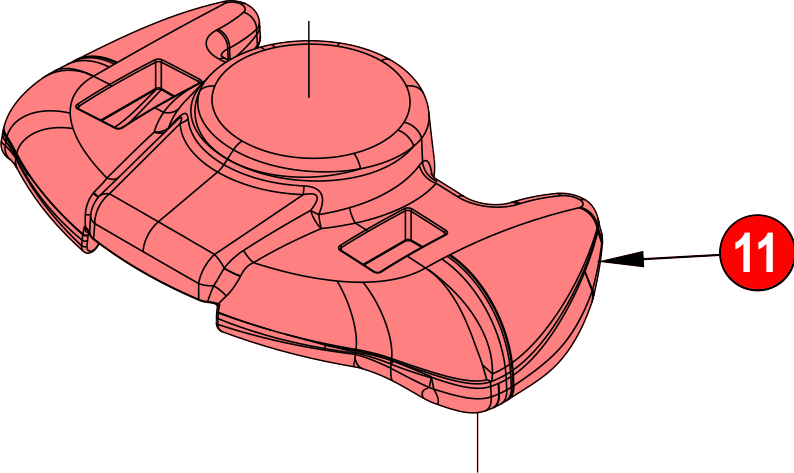

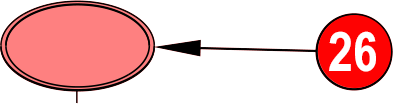

11	29915A	1	Handle, Polished (07170A, 07176A)	26	71468A	1	Label, CAS

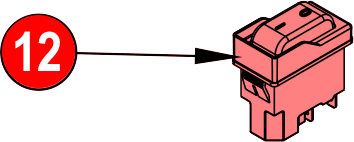

12	40948A	1	Switch, 16A, 115V 60 Hz Coil	28	71468A	1	Insulation 2.10 Sq. X .015

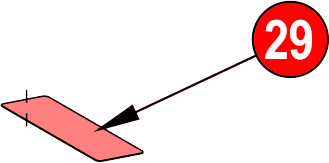

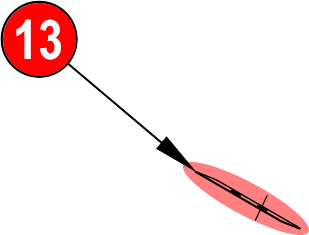

13	40265A	1	Tape, Thermally Conductive (07170A, 07176A)	29	56380216	1	Decal Power Tool Cautionary Marking

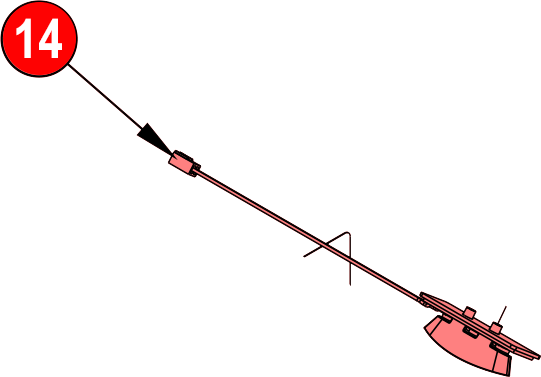

14	40945A	1	LED Board and Wiring Asm. (07170A, 07176A)	30	77094A	1	Label Ground Symbol

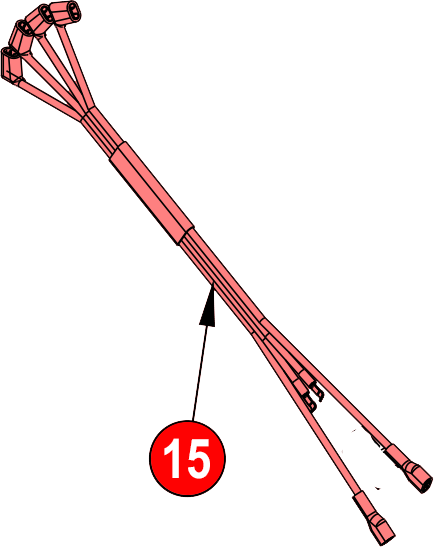

15	11343A	1	Control Switch Wire, Asm.
