B-2+ Edger

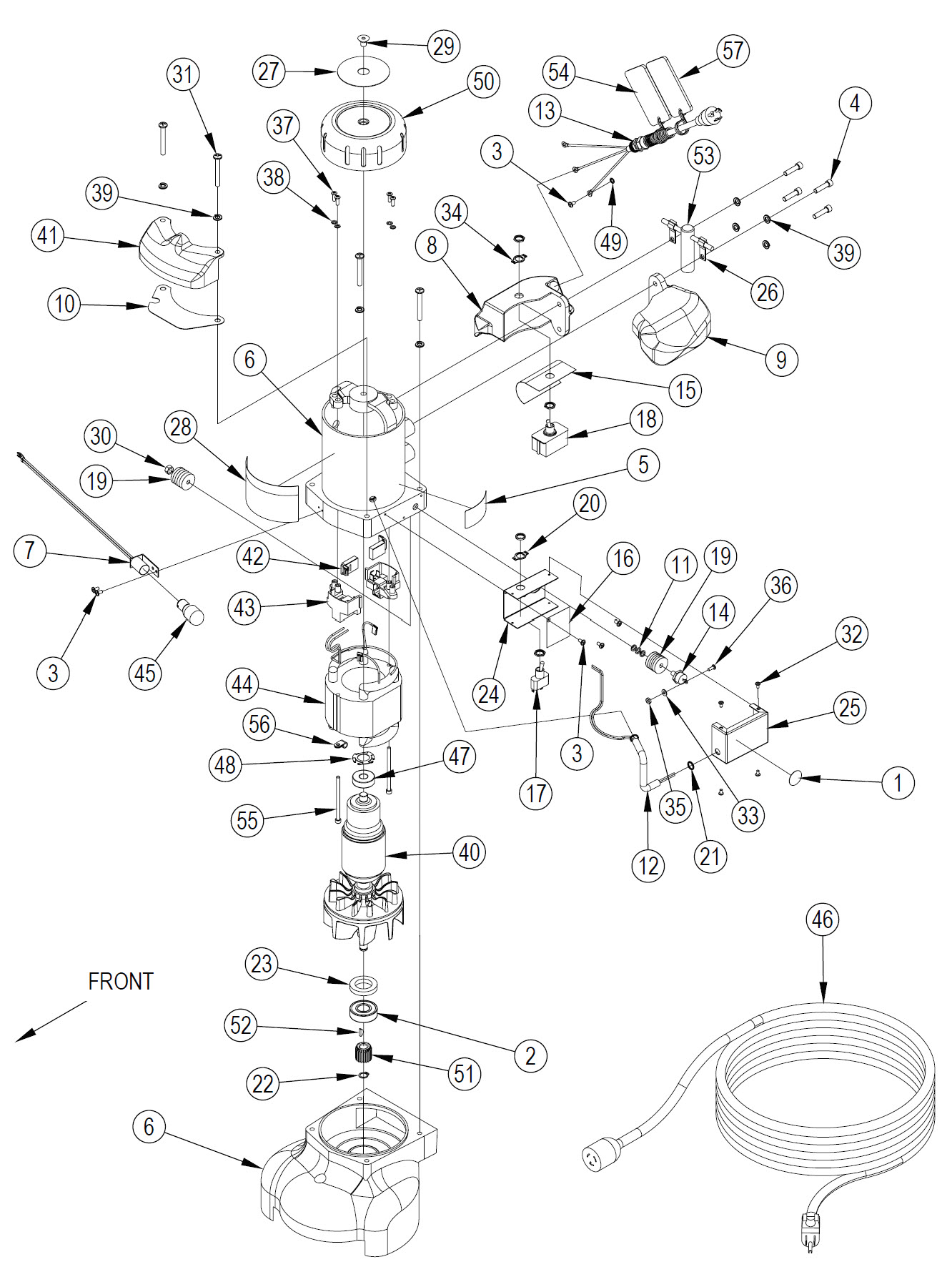

Upper Assembly
| Item | Part Number | Qty | Description | Item | Part Number | Qty | Description |
| 1 | 165106 | 1 | Label-City Of La Approval (07127A) | 31 | 85333A | 4 | Scr 1/4 -20x2 Pn St Mach |
| 2 | 902550 | 1 | Bearing Ball-6203 | 32 | 85411A | 4 | Screw 6-20x1/4 Pan Type Ab |
| 3 | 962065 | 6 | Screw 8-32 X 1/4 Pn St Ph | 33 | 87201A | 1 | Washer 6 Int Tooth Lock |
| 4 | 962454 | 4 | Scr 1/4- 20x1 Sc St Cap | 34 | 646302 | 1 | Plate-Switch |
| 5 | 56380216 | 1 | Decal Power Tool Cautionary Ma | 35 | 920112 | 1 | Nut, 6-32 Hex |

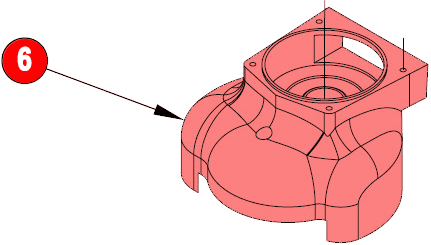

| 6 | 15708B | 1 | Housing Asm. Gear B-2 (07127A, 07128A) | 36 | 962330 | 1 | Screw, 6-32 X 3/8 Pan Hd. |
| 6 | 15720A | 1 | Housing Asmgear UK B-2 (07096A) | 37 | 962727 | 4 | Screw, 8-32 X 1/2 |
| 7 | 18403A | 1 | Socket Assy-Light (07127A, 07128A) | 38 | 980621 | 4 | Washer External Tooth Lock |
| 8 | 24302A | 1 | Handle-Right Hand | 39 | 980657 | 8 | Washer, Lock 1/4 |
| 9 | 24303A | 1 | Handle-Left Hand | 40 | 10111B | 1 | Armature and Fan Asm, 115V, B2, GS (07127A) |
| 10 | 38104A | 1 | Seal-Light (07127A, 07128A) | 40 | 10112B | 1 | Armature and Fan Asm, 230V, B2, GS (07128A, 07096A) |
| 11 | 41001A | 3 | Bushing-Insulating | 41 | 22113A | 1 | Cover, Light (07127A, 07128A) |

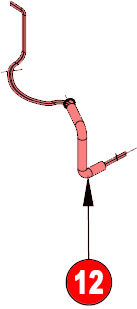

| 12 | 41918A | 1 | Cord-Interconnecting | 42 | 40583A | 2 | Brush, Carbon Terminated |
| 13 | 41919A | 1 | Cord Power 14-3 15 115v (07127A) | 43 | 40717A | 2 | Brush Holder |
| 13 | 41920A | 1 | Cord - Interconnecting - 230 V (07128A) | 44 | 40718B | 1 | Field, 115V, B2, GS (07127A) |
| 13 | AS024600 | 1 | Cord Pigtail, B2 Sander, Aust., ASM. (07096A) | 44 | 40719B | 1 | Field, 230V, B2, GS (07128A, 07096A) |
| 14 | 42400A | 1 | Diode-Silicon | 45 | AS010200 | 1 | Lamp, 120V, LED, DC, Bayonet, (07127A, 07205A) |
| 15 | 46710A | 1 | Shield-Insulating | 45 | 911116 | 1 | Bulb - 230V (07128A) |

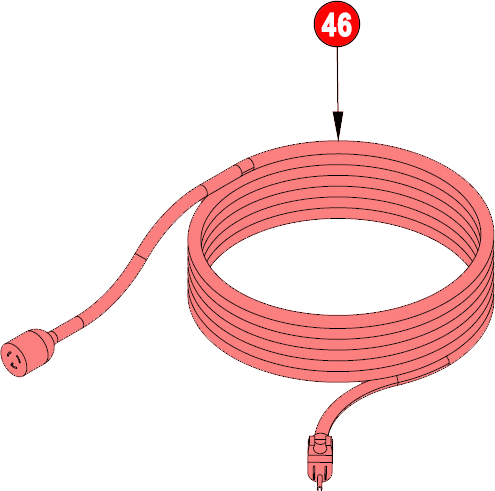

| 16 | 46711A | 1 | Shield-Insulator | 46 | 42234A | 1 | Cordset 14-3x50' So (07127A) |
| 17 | 47320A | 1 | Switchtoggle | 46 | 42182A | 1 | Cord Asm Power Supplysuper 7 (07128A) |
| 18 | 47322A | 1 | Switch Toggle On/Off 7 B-2 | 46 | AS020800 | 1 | Cord, Power Supply, Sander, 1.5mm, Aust. (07096A) |
| 19 | 48800A | 12 | Washerinsulatingb-2 Edger | 47 | 51126A | 1 | Bearing-Balldbl Seal 6201 |
| 20 | 50431A | 1 | Plateswitchhi-Lob-2 Edger | 48 | 58602A | 1 | Spring, Bearing |
| 21 | 54813A | 4 | Ring-Hog | 49 | 87200A | 1 | Washer 8 Int Tooth Lock |
| 22 | 57701A | 1 | Ring-Retaining | 50 | 62003A | 1 | Cap, Motor Housing |
| 23 | 58113A | 1 | Sealoil-0.984 X 1.575 X 0.276 | 51 | 63701A | 1 | Gear, Pinion |
| 24 | 60727B | 1 | Bracket Switch | 52 | 65302A | 1 | Key Woodruff Special#3 |
| 25 | 62614B | 1 | Cover Switch Bracket | 53 | 68705A | 1 | Wrench-T-Handle, 1/2,In |
| 26 | 64601A | 2 | Holder-Wrench | 54 | 70175A | 1 | Tag Warning |
| 27 | AS014400 | 1 | Platename B-2+ American Sanders | 55 | 86117A | 2 | Scr 10-24x3 Shms |
| 28 | 73285A | 1 | Label-Warning | 56 | 98464A | 1 | 1/4 Cable/Tubing Clamp |
| 29 | 80081A | 1 | Screw 5/16-24 X 1/2 | 57 | 70175A-FR | 1 | Tag Warning Eng-Frn |
| 30 | 81303A | 1 | Nut 1/4-28 | [ ] | 49301A | 1 | Wire-Processed14 Ga Black |
| [ ] | 49302A | 1 | Wire-Processed14 Ga Black | ||||
