EZ-8

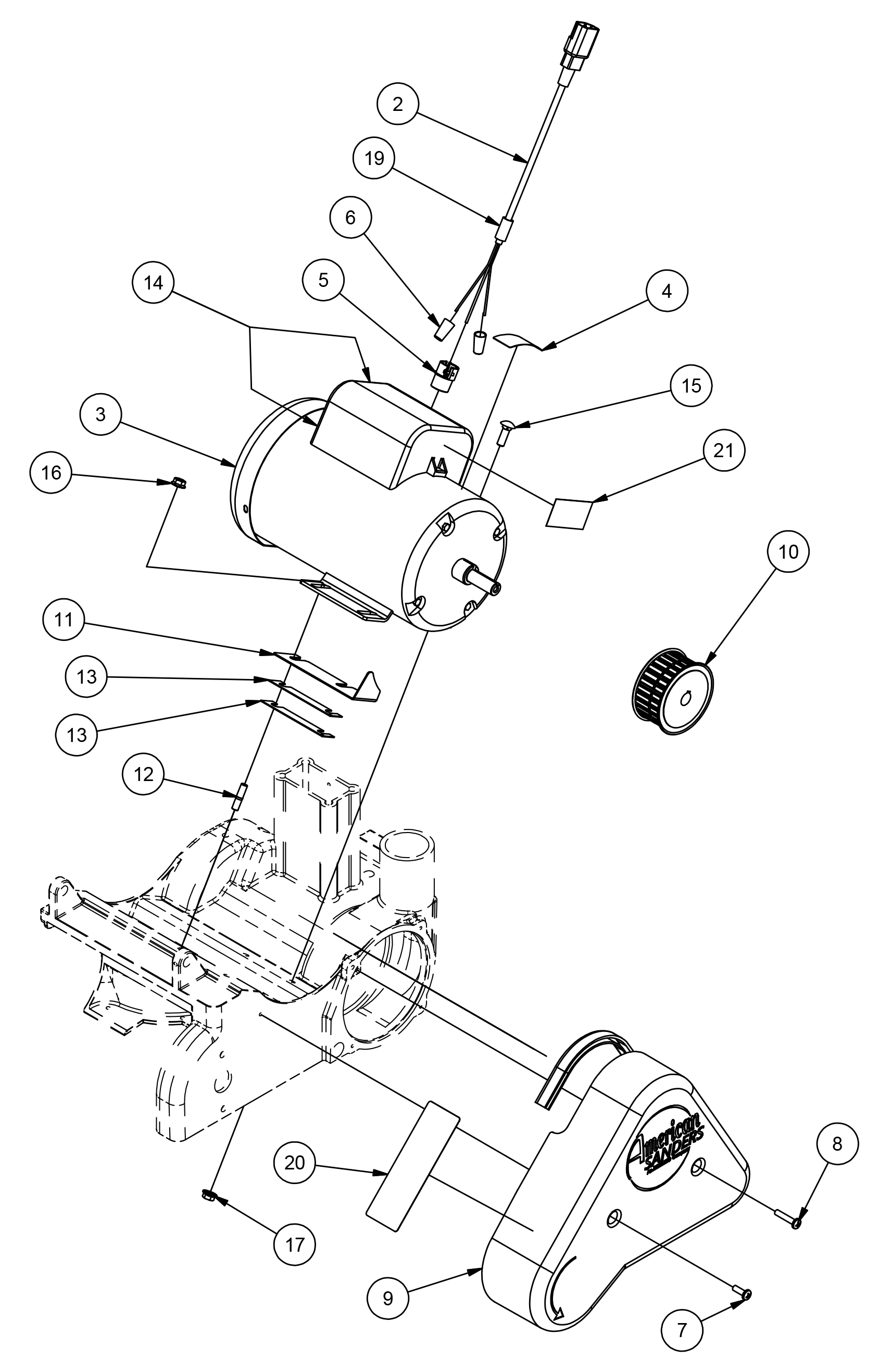

Motor Assembly

Note: Click on the item number that you need to confirm the part number, price, availability and to place your order. If you already know the part number, you can also enter it in the search box above.

part 21

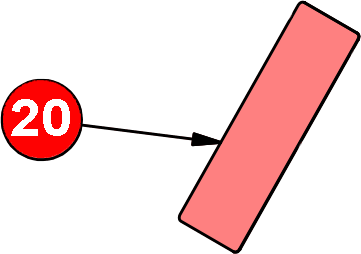

part 20

part 19

part 17

part 16

part 15

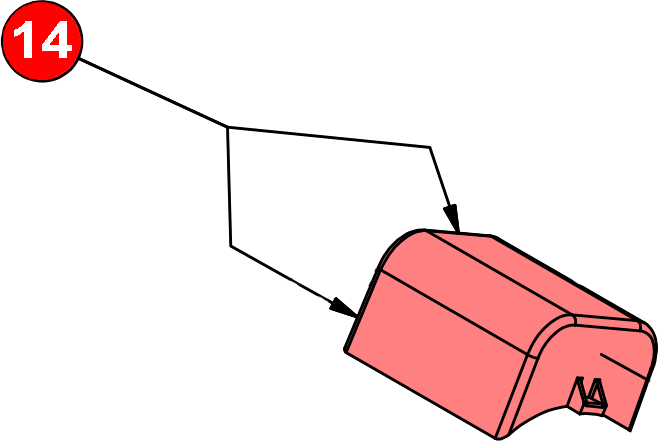

part 14

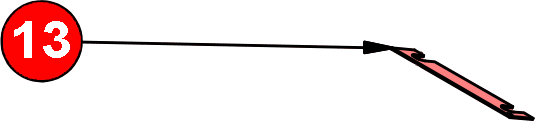

part 13

part 13

part 12

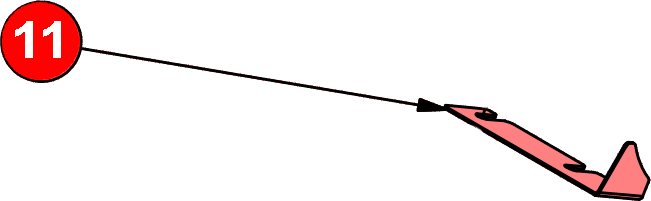

part 11

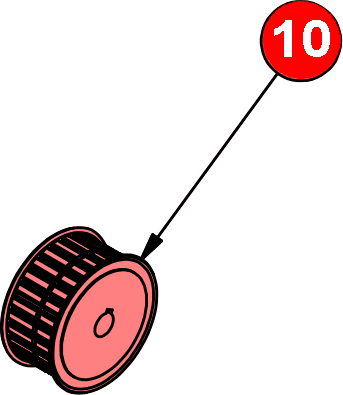

part 10

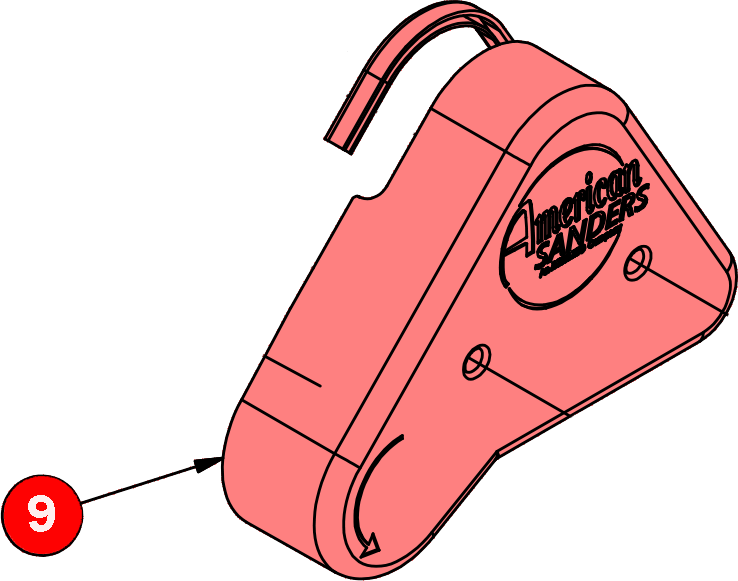

part 9

part 8

part 7

part 6

part 5

part 4

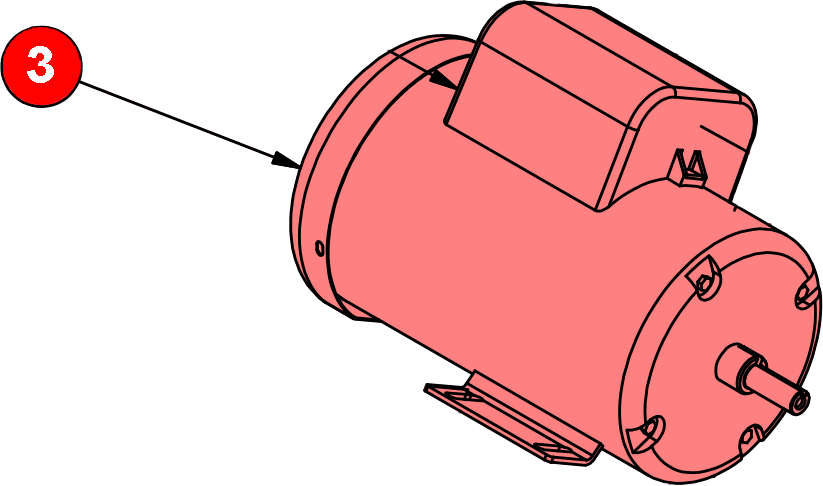

part 3

part 2

ITEM	PART NUMBER	QTY	DESCRIPTION		ITEM	PART NUMBER	QTY	DESCRIPTION

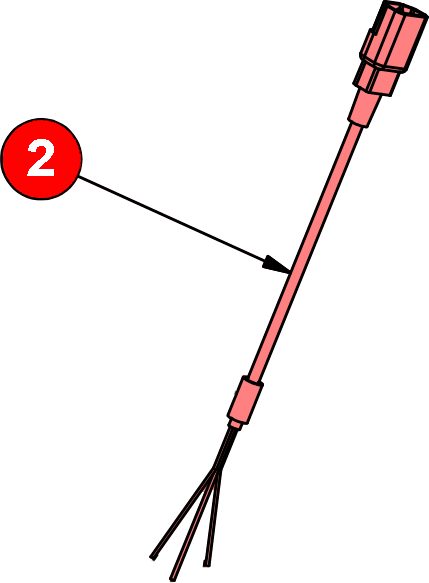

2	AS008400	1	CORD, MOTOR, EZ-8, AUSTRALIA (07060A)		8	962988	1	SCREW, 1/4-20 X 1-1/4, PN, ST, PH
	40542A	1	CORD, MOTOR W, L6-15P (07012A)		9	29918A	1	GUARD BELT FA-8 EZ-8
	41949A	1	CORD MOTOR EZ-8 (07058A, 07057A, 07084A, 07240A)		10	61089A	1	PULLEY, FAN/DRUM
3	44642A	1	MOTOR 1.5 HP 115V/60HZ EZ-8 (07012A, 07058A, 07057A)		11	61807A	1	SHIELD GUARD FA-8
[ ]	41306A	1	CAPACITOR RUN 115V EZ-8		12	68015A	2	STUD 5/16-18X5/16-24X1.25 LONG

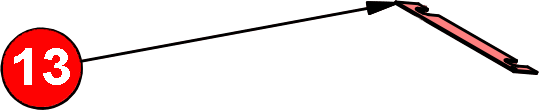

[ ]	41307A	1	CAPACITOR START 115V EZ-8		13	69031A	2	SHIM, MOTOR
[ ]	47391A	1	SWITCH THERMAL 115V EZ-8		14	70825A	2	LABEL, HDTR 2X5 (07012A)
	44648A	1	MOTOR 1.5 HP 240V/50HZ EZ-8 (07060A, 07084A, 07240A)		15	80027A	2	BOLT RD HD SQ NECK 5/16X1
[ ]	AS010600	1	CAPACITOR, RUN, 230V, EZ-8, 440		16	81208A	2	NUT, 5/16-24 HEX SERRATED FLANGE
[ ]	41309A	1	CAPACITOR START 240V EZ-8		17	81211A	2	NUT, 5/16-18 HEX SERRATED FLANGE
[ ]	47392A	1	SWITCH THERMAL 230V 240V EZ-8		18	97100A	1	TRIM VINYL BLACK

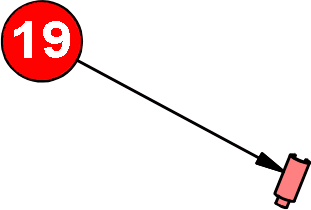

4	77234A	1	LABELWARNINGHEAVY OBJECT		19	NB072800	1"	HEAT SHRINK, 3/4", BLACK, THICK WALL (07060A, 07084A, 07240A)

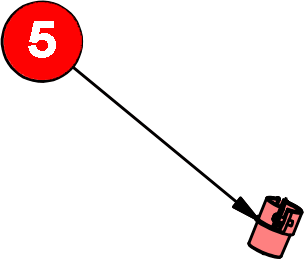

5	170637	1	CONDUIT CONNECTOR 3/8" 2-SCREW		20	71347A	1	LABEL CCA WARNING

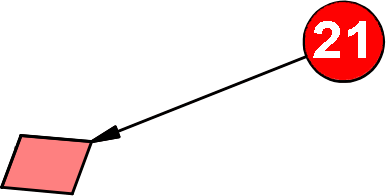

6	170667	2	CONNECTOR, WIRE NUT, 74B, YELLOW		21	MP476500	1	DECAL, FUSE, TIME DELAY (07012A, 07057A, 07058A)
7	962892	1	SCREW, 1/4-20 X 3/4 PN ST
