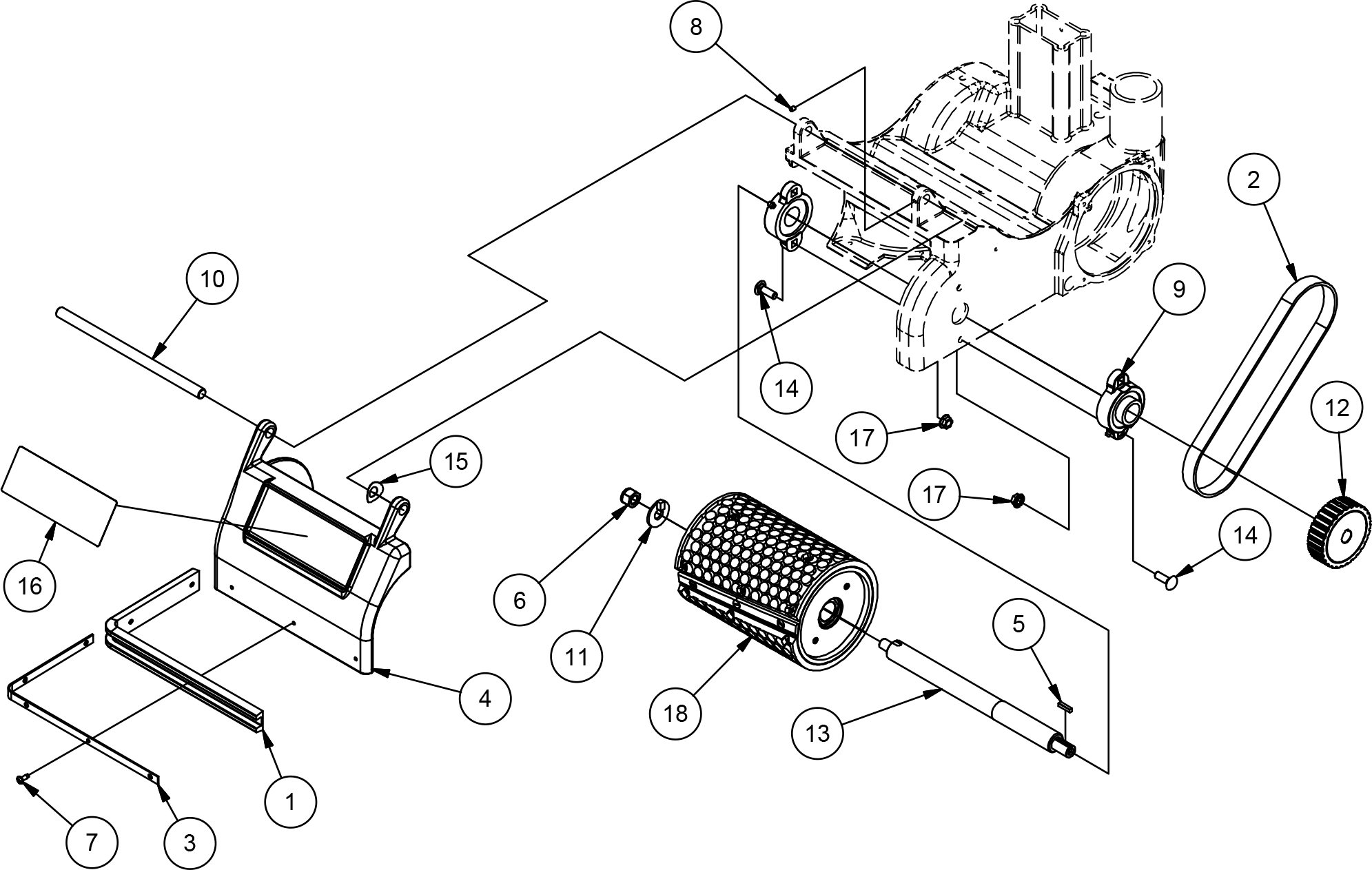

EZ-8 Clamp Drum Assembly

Note: Click on the item number that you need to confirm the part number, price, availability and to place your order. If you already know the part number, you can also enter it in the search box above.

part 18

part 17-1

part 17

part 16

part 15

part 14-1

part 14

part 13

part 12

part 11

part 10

part 9

part 8

part 7

part 6

part 5

part 4

part 3

part 2

part 1

ITEM	PART NUMBER	QTY	DESCRIPTION		ITEM	PART NUMBER	QTY	DESCRIPTION

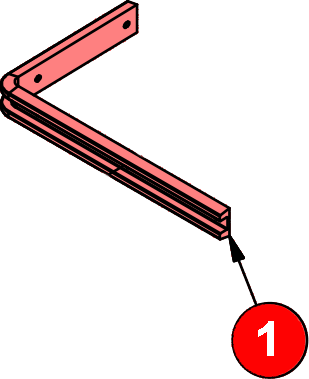

1	31223A	1	BUMPER, FRONT		10	64469A	1	HANDLE, LIFTING

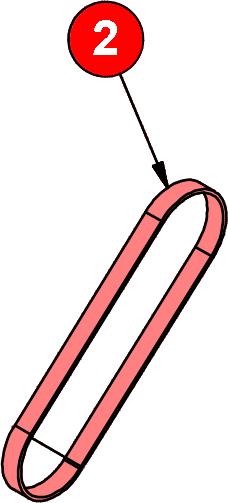

2	50916A	1	BELT, DRUM, EZ-8		11	65310A	1	KEY WASHER (EZ-8)

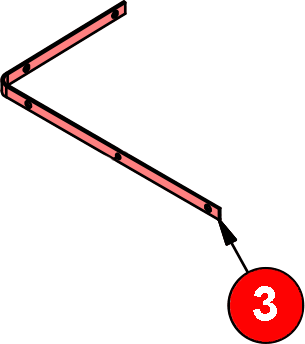

3	66948A	1	RETAINER, BUMPER, PLTD, EZ-8		12	66161A	1	PULLEY, DRUM, EZ-8

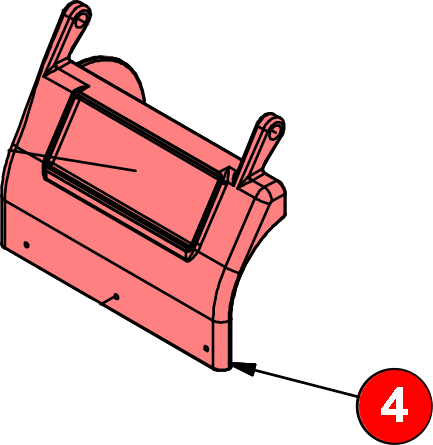

4	22123A	1	COVER, FRONT, (EZ-8)		13	67459A	1	SHAFT ARBOR CLAMP DRUM EZ-8
5	915082	1	KEY, 3/16 SQ. X 3/4"		14	80027A	4	BOLT RD HD SQ NECK 5/16X1
6	920365	1	NUT 1/2-13 NYLOCK		15	80295A	1	WASHER BOWED .516ID X 1.06OD
7	85517A	5	SCREW #10-24 X 1/2 PHCR TYPE 23		16	AS014600	1	NAMEPLATE, EZ-8
8	962170	1	SCREW 10-24X1/4 HRSS CUP PT		17	81211A	4	NUT, 5/16-18 HEX SERRATED FLANGE

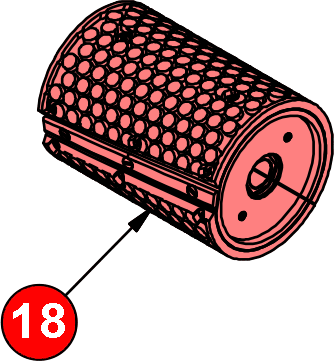

9	51178B	2	BEARING FLANGE 1" 2 HOLE		18	13507A	1	DRUM ASM CLAMP STYLE EZ-8
