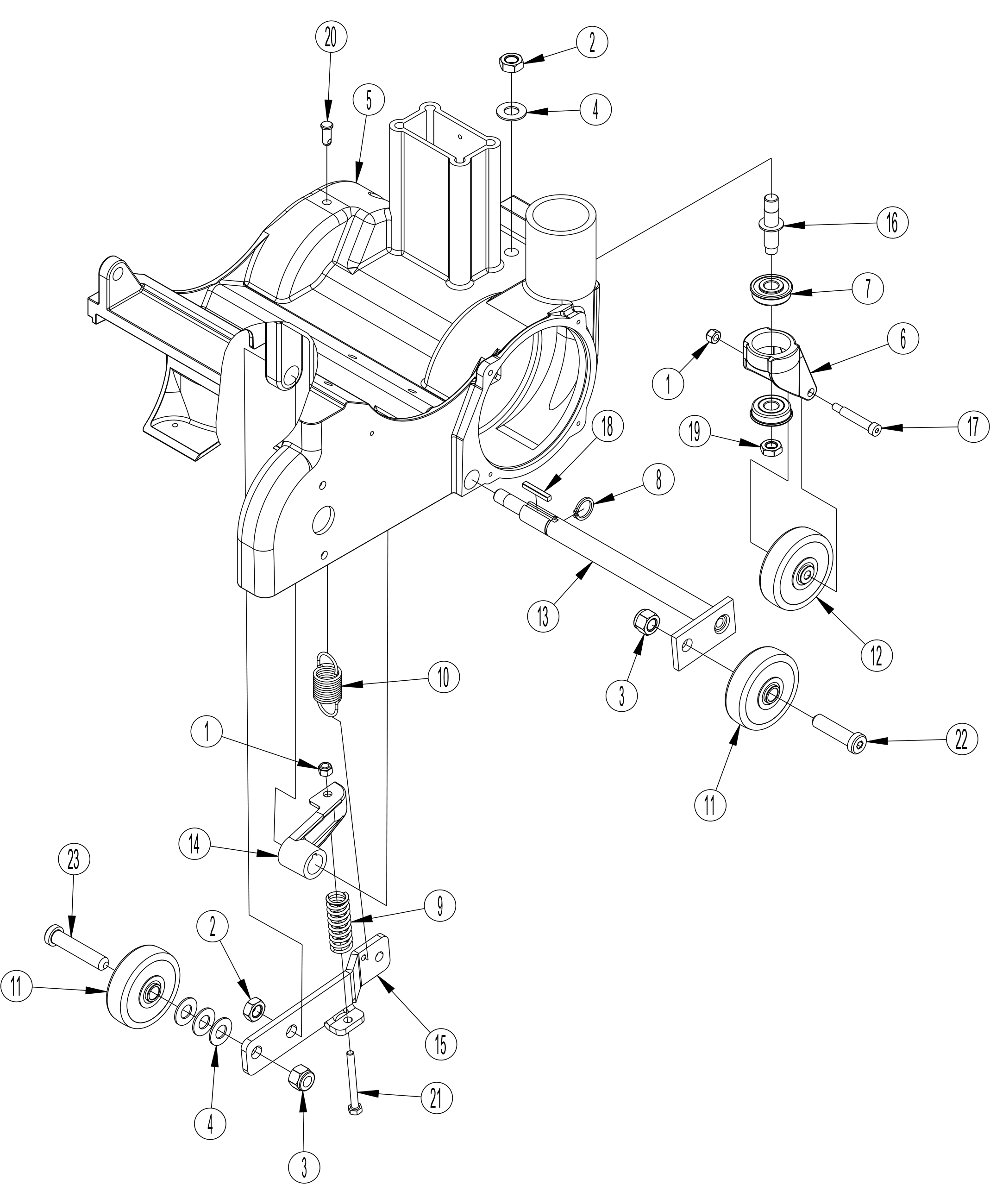

EZ-8

Base Assembly

Note: Click on the item number that you need to confirm the part number, price, availability and to place your order. If you already know the part number, you can also enter it in the search box above.

part 23

part 22

part 21

part 20

part 19

part 18

part 17

part 16

part 15

part 14

part 13

part 12

part 11-1

part 11

part 10

part 9

part 8

part 7

part 6

part 5

part 4-1

part 4

part 3-1

part 3

part 2-1

part 2

part 1-1

part 1

Item	Part Number	Qty	Description		Item	Part Number	Qty	Description

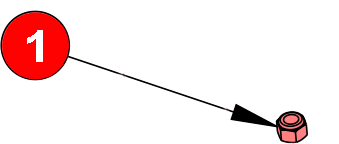

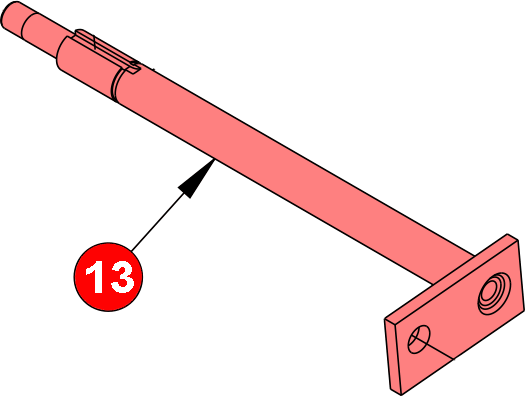

1	920284	2	Nut Stop Elastic 1/4-20 Heavy		13	60166A	1	Axle, Truck

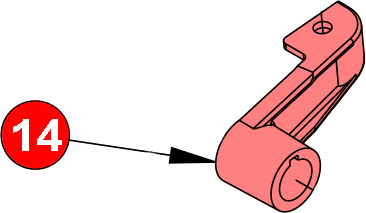

2	NB003100	2	Nut 1/2-13 Hex Jam		14	60434B	1	Arm, Truck Level

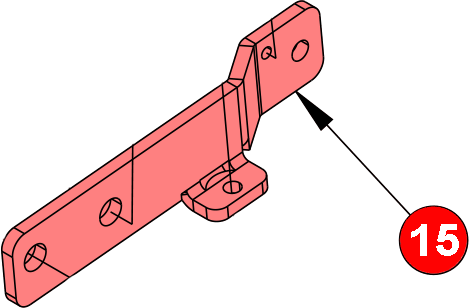

3	920365	2	Nut 1/2-13 Nylock		15	60435A	1	Arm, Truck Lift

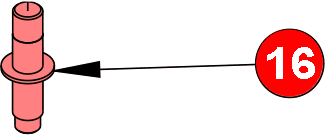

4	980648	4	Washer 17/32 X 1 1/16 Plain		16	67468A	1	Shaft Caster
5	25903A	1	Mainframe Ez-8		17	80012A	1	Bolt Shoulder 5/16 X 1 1/2

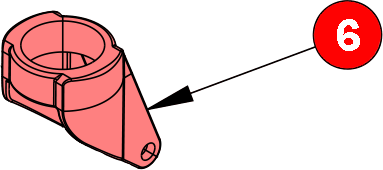

6	29405A	1	Yoke, Caster Ez-8		18	80501A	1	Key Mir Shaft-3/16sq X 1 1/41
7	51194B	2	Bearing, Flanged 1.375x.500x.312		19	81307A	1	Nut7/16-14Hex Jam Ez-8
8	57423A	1	Retaining Ring External Sh .75 Heavy		20	82504A	1	Pinclevis5/16 X 3/4
9	58698A	1	Spring Compression Truck Level Ez-8		21	85835A	1	Screw 1/4-20x2.50 Hhms

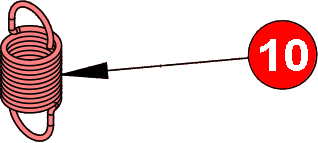

10	58699A	1	Spring Tension Drum Pressure Ez-8		22	86113A	1	Screw 1/2-13x2.00 Low Head Soc Cap

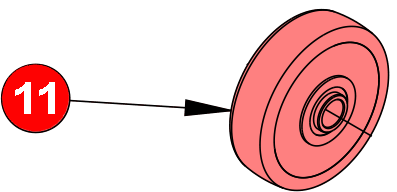

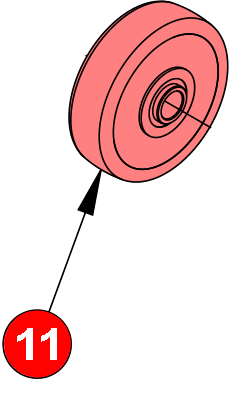

11	59945A	2	Wheel Truck		23	86114A	1	Screw 1/2-13x2.50 Low Head Soc Cap

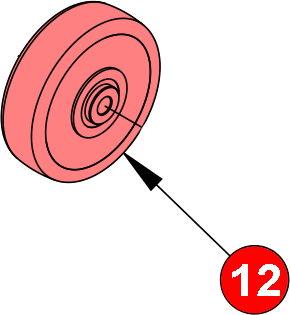

12	59960A	1	Wheel Caster
