To purchase parts for the American 8 (Base Assembly 1):

  1. Reference the part needed from the parts diagram and refer to the parts list below.
  2. Copy the Part Number and paste it into the search window above to see availability and pricing.
  3. Confirm your parts selection and "Add To Cart".

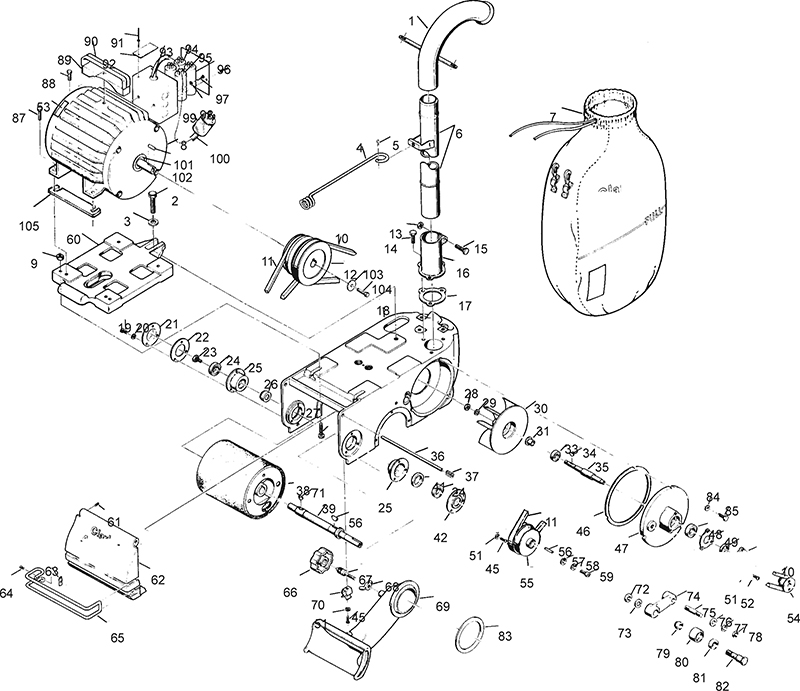

American 8 Base Assembly 1

ItemPart NumberQtyDescriptionItemPart NumberQtyDescriptionItemPart NumberQtyDescription
162800A1Pipe - Assembly3967425A1Shaft Drum7967813A1Spacer - Idler Bearing
285706A1Screw - 1/2 - 13 x 13/4 Hex St[ ]18601A1Shaft Assembly Drum(includes 56, 39, 71)8067701A1Sleeve- Idler
387006A1Washe-r 14/25 X 119/50 X 11/100 Flat4167313A1Spacer - Drum Bearing819025501Bearing
460401A1Arm-Cable4266918A1Retainer - Bearirg8267317A1Shaft-Idler
59250361Pin - Cotter459629834Screw- 1/4-20 x 5/8 Pn St Mach8334222A1Gasket - Pan Dust
666110A1Pipe Assembly4634225A1Gasket - Plate Support849806513Washer - 11/32 x 11/160 x 1/16
750954A1Dust - Bag4726503C1Plate Support - Fan8585811A3Screw- 3/8 -18 x 3/4
844639A1Motor 230/604851111A1Bearing Ball869621032Screw- 5/16-18 x 3/8
44640A1Motor 240/504962001A1Cap-Bearing879622164Screw- 3/8-16 x 1/4
99202602Nut- 3/8-16 x 5/16 Hex[ ]38109A1Seal Dust Pipe889628701Screw- 3/8-16 x 1
1050920A1Belt-V519806577Washer - 17/64 I x 31/64 0 x 1/188964460A1Handle Motor
1151024A1Belt-V529628233Screw - 1/4 - 20 x 1/2 Pn St Mach9032357A2Cover Handle
1266168A1Pulley- Motor5377234A1Label, Lifting Warning919300872Rivet
139202561Nut  5/16 - 18 Hex5466169A1Pulley - Fan Shaft9274044A1Plate Safety
1485820A3Screw- 3/8-16 x  5/8 Hex St Cap5566167A1Pullet Drum936975021Strain Relief
1585816A1Screw- 5/16-18 x 13/4 Hex St Flt5680501A2Key - 5/16 Sq. x 11/49441305A2Capacitor Start
1627801C1Support - Dust Pipe5768703A1Washer Drum Pulley9541304A1Capacitor Run
1734223A1Gasket - Pipe Support589806521Washer - 319/1000 x 293/500 x 39/5009647378A1Switch Start
1823405B1Frame - Main599622581Screw - 5/16-18 x 1" Soc Cap979628232Screw- 1/4-20 x 1/2
199620163Screw- 10-24 x 1/2 Pn St Mach60AS0193001Platform Motor989806142Washer
209806503Washer - 19/100 x 17/50 x 1/25 Lock619622621Screw - 8-32 x 1/4 St St Cup Pt9945604A1Plug Locking
2162608C1Cover - Housing Drum6222101A1Cover-Drum10041945A1Cord Motor
2254305A1Gasket6362404A1Clamp- Bumper Rear1019150981Key 1/4-52 x 11/2
2367316A1Screw- Drum Lock649623481Screw- 10-24x 1/2 Flat St Cap10257712A1Ring Retaining
2451110A2Bearing- Ball6531210A1Bumper - Drum Cover10387034A1Retainer Pulley
2564703A2Housing- Bearing Shaft6626900A1Ring - Lock-Pan-Dust1049622881Screw 3/8-16 x 1
2667811A1Spacer - Drum6767311A1Screw10567642A4Shim, Motor
2769032A2Screw - Motor Locating6881900A1Nut - 7/16 -14 Hex St
2881202A1Nut - 7/16-14H exL .H.6926100A1Pan - DustMotor Parts Not Illustrated
2987002A1Washer - 47/100 x 47/50 x 3/50 Flat St7061600A1Clip - Dust[ ]50563A1End Bell
3023301A1Fan7165301A1Key #606[ ]52768A1Front Cover
3161602A1Collar729202801Nut- 5/8 -18 x 3/8 Hex Jam[ ]53998A1Fan
339025671Bearing Ball7387102A1Washer - 31/50 x 19/100 x 4/25[ ]52769A1Fan Cover
3465302A1Key - 1/8 x 1/2 #3 Woodruff7420400B1Arm Idler[ ]51188A1Bearing Front
3567411A1Shaft-Fan7568000A1Stud - Idler[ ]9025471Bearing Rear
3667414A1Shaft- Drum Cover7687005A1Washer - 13/25 x 1 Flat[ ]40316A1Armature Assembly
3767911A1Spring7787101A1Washer - 1/2 Lock[] = Not Shown
3813501A1Drum-RM789201321Nut- 1/2-20 Hex Jam
