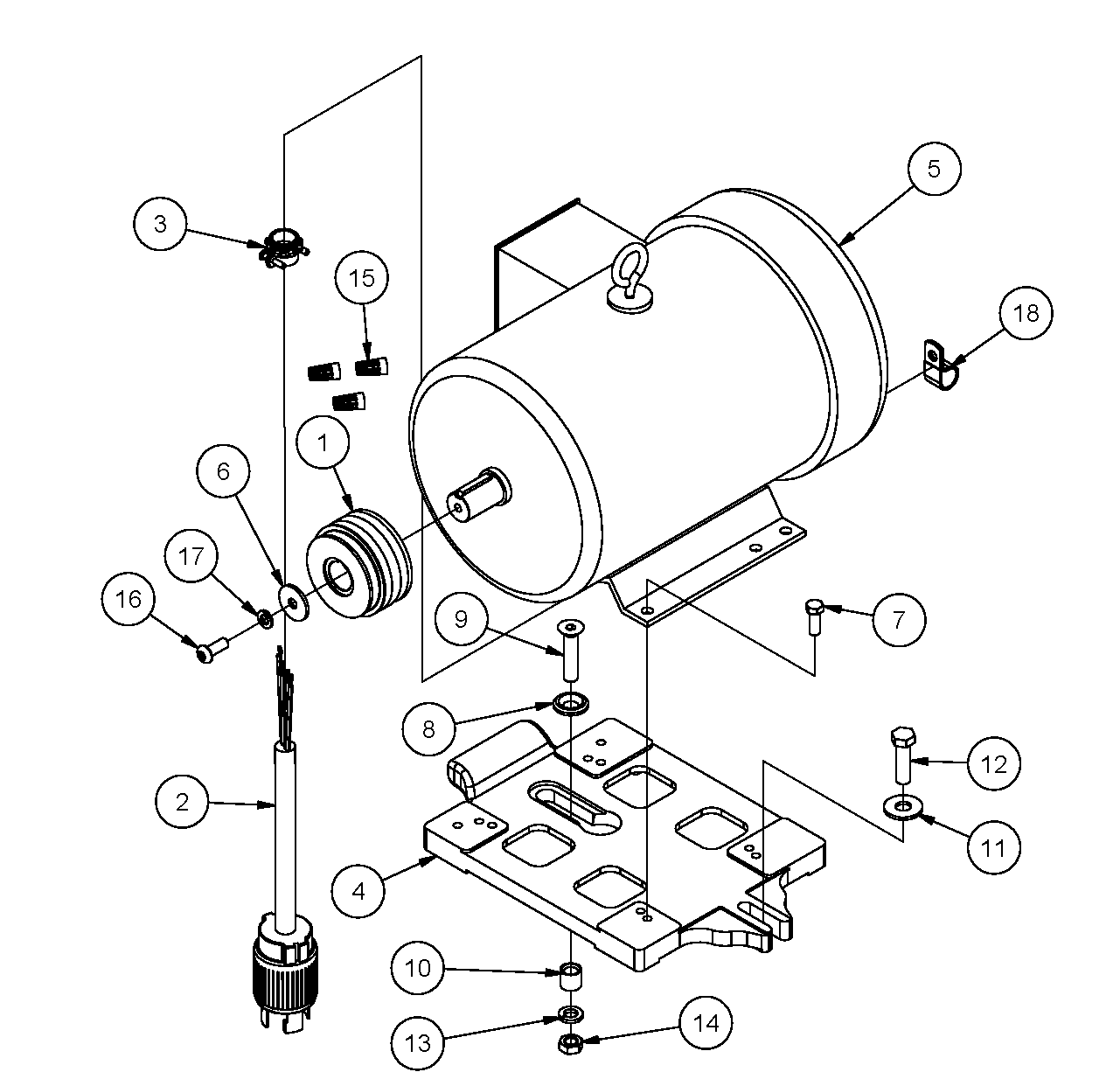

To purchase parts for the American 12 (3-Phase Motor Assembly):
- Reference the part needed from the parts diagram and refer to the parts list below.
- Copy the Part Number and paste it into the search window above to see availability and pricing.
- Confirm your parts selection and "Add To Cart".
| Item | Part Number | Description | Qty |
| 1 | 56381703 | MOTOR PULLEY AM-12 | 1 |
| 2 | AS111900 | CORD, MOTOR, 3P-4W | 1 |
| 3 | 56382827 | CABLE CONNECTOR 3/4 | 1 |
| 4 | AS019300 | PLATFORM, MOTOR, BLACK, AM-12 | 1 |
| 5 | AS122500 | 10HP, 3600 RPM, 213TZ, OPSB MOTOR | 1 |
| 6 | 87034A | RETAINER MOTOR PULLEY | 1 |
| 7 | 962288 | BOLT 3/8-16 X 1.00 HEX HD | 4 |
| 8 | 68704A | WASHER-SCREW-MOTOR | 1 |
| 9 | 84220A | SCREW 1/2-13 X 2 1/4 FLAT HD | 1 |
| 10 | 67820A | SPACER-SCREW-MOTOR | 1 |
| 11 | 87006A | WASHER .56 X 1.38 X 11 FLAT ST | 1 |
| 12 | 85706A | SCREW 1/2-13 X 1-3/4 HX ST CAP | 1 |
| 13 | 87101A | WASHER LOCK 1/2 NOM | 1 |
| 14 | 920196 | NUT 1/2-13 HEX JAM | 1 |
| 15 | 170674 | CONNECTOR WIRE NUT - RED | 3 |
| 16 | 962870 | SCR 3/8 -16X1 BT ST ALLEN | 1 |
| 17 | MX1075 | WASHER, LOCK, 3/8" | 1 |
| 18 | NB8130 | CLAMP, 3/4" ID, RETAINER | 1 |
| [ ] | AS021500 | GASKET, LID, CONDUIT BOX, 3PH | 1 |
| [ ] | AS021600 | BEARING, SHAFT END, 3PH | 1 |
| [ ] | AS021700 | BEARING, FAN END, 3PH | 1 |
| [ ] | AS021800 | FAN, MOTOR, 3PH | 1 |
| [ ] | AS021900 | CONDUIT BOX, 3PH | 1 |
| [ ] | AS022000 | LID, CONDUIT BOX, 3PH | 1 |
| [ ] | AS022100 | GASKET, CONDUIT BOX, 3PH | 1 |
| [ ] | AS022200 | COVER, FAN, MOTOR, 3PH | 1 |
| [ ] | RF068200 | NOT SHOWN | = |
