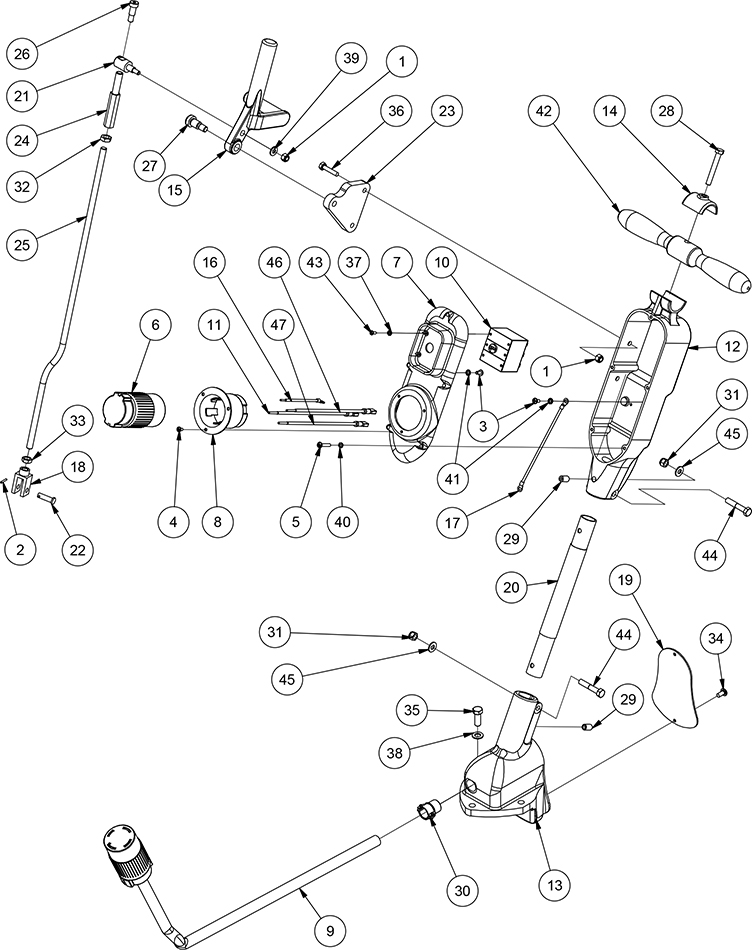

American 12 3-Phase Handle Assembly
| Item | Part Number | Qty | Description | Item | Part Number | Qty | Description | |
| 1 | 920284 | 3 | Nut Stop Elastic 1/4-20 Heavy | 24 | 67129A | 1 | Adjustercontrol Rod Belt S | |
| 2 | 925036 | 1 | Pin-3/32x3/4 Cotter | 25 | 67144A | 1 | Rod Control Am-12 | |
| 3 | 962015 | 2 | Screw 10-24 X 3/8 Pn St Ph | 26 | 80021A | 1 | Bolt Shoulder 3/8 X 5/8 | |
| 4 | 962065 | 3 | Screw 8-32 X 1/4 Pn St Ph | 27 | NB071200 | 1 | Screw, Shoulder | |
| 5 | 962794 | 5 | Screw 10-24 X 1 Pn St Ph | 28 | 85818A | 1 | Screw 5/16-18 X 2 1/2 Hx Hd | |
| 6 | 56381401 | 1 | Connector Nema L 15-30r (model 07001A) | 29 | 86200A | 2 | Scr 3/8-16x 5/8 St St Dogpt | |
| 6a | 42201A | 1 | Cord- Power (Model 07108A, 07204A, 70108C) | 30 | 170367 | 1 | Conduit Connector 3/8x1/2 Npt 2 Scr | |
| 6b | AS046800 | 1 | Cord, Power, 100', 230V (model 07109A) | 31 | 920110 | 2 | Nut, 5/16-18 Hex Lock | |
| 7 | 22127C | 1 | Cover, Switch Box-Black | 32 | 920148 | 1 | Nut, 3/8-16 Hex Jam | |
| 8 | 43501A | 1 | Inlet- 20A, 250V | 33 | 920260 | 1 | Nut, 3/8-16 Hex | |
| 9 | 41917A | 1 | Cord-Interconnecting | 34 | 962016 | 2 | Screw, 10-24 X 1/2" Rd | |
| 10 | 41411A | 1 | Circuit Breaker 30 Amp | 35 | 962288 | 3 | Bolt, 3/8-16 X 1.00 Hex Hd | |
| 11 | 49023A | 1 | Wire Assembly Black | 36 | 962481 | 2 | Screw, 1/4-20 X 1/1/4 H.H. C. S. | |
| 12 | 20704C | 1 | Box-Switch | 37 | 980607 | 4 | Washer, #6 Lock External Tooth | |
| 13 | 21102C | 1 | Bracket-Handle | 38 | 980638 | 3 | Washer, 3/8 Lock | |
| 14 | 21904C | 1 | Clamp Steering Handle - Black | 39 | 980646 | 1 | Washer 1/4 Sae Flat Pltd | |
| 15 | 25602A | 1 | Lever Control Am-8/12 | 40 | 980650 | 5 | Washer, #10 Lock | |
| 16 | 48900A | 1 | Wire Assy | 41 | 980699 | 2 | Washer Sh #1210-00 | |
| 17 | 48901A | 1 | Wire Assembly | 42 | 64405A | 1 | Handle, Steering | |
| 18 | 53917B | 1 | Clevis Control Rod | 43 | 85313C | 4 | Screw Phms 6-32x3/8 Cross Recessed | |
| 19 | 62609A | 1 | Cover-Brkt Hdl | 44 | 85816A | 2 | Screw, 5/16-18 X 1.75 Hex Hd | |
| 20 | 66114C | 1 | Handle Pipe - Black | 45 | 980651 | 2 | Washer, 5/16 Flat | |
| 21 | 66151A | 1 | Pivotcontrol Rod8 Belt Sand | [] | 56380639 | 1 | Decal-Prop 65 | |
| 22 | 66503A | 1 | Pin | [] | Not Shown | |||
| 23 | 66694A | 1 | Platecontrol Leverpntd8 Be |
