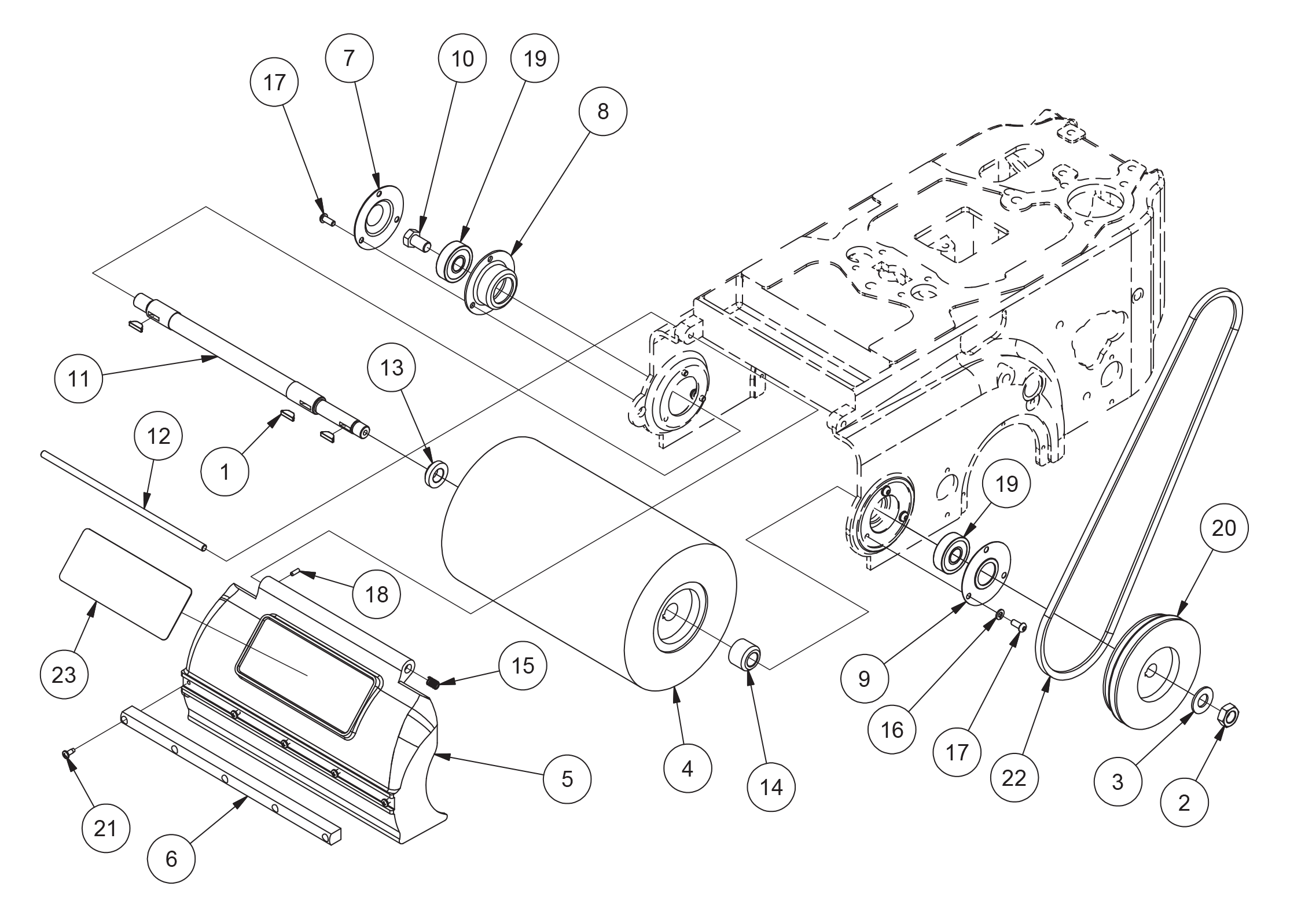

American 12

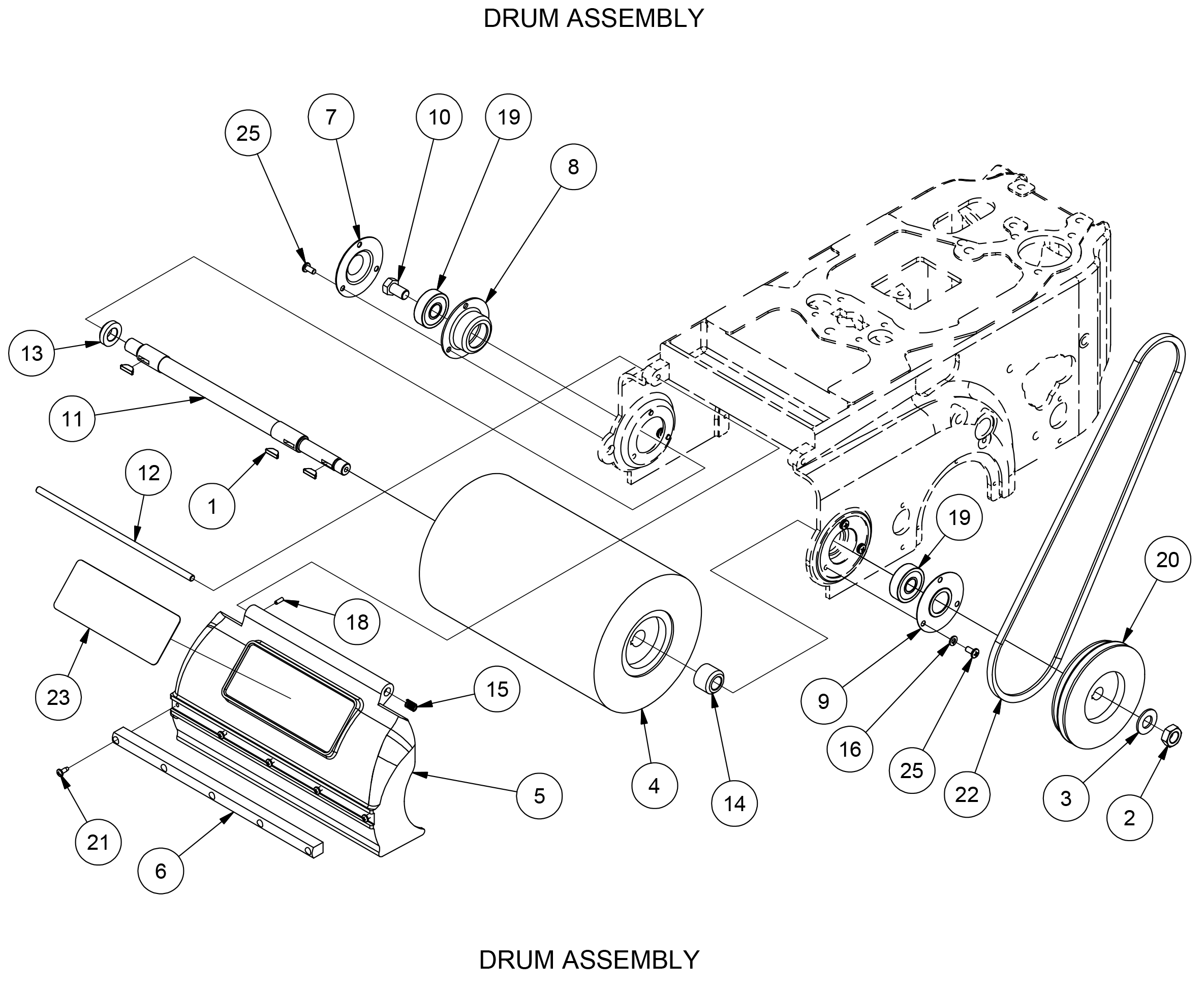

Drum Assembly

Note: Click on the item number that you need to confirm the part number, price, availability and to place your order. If you already know the part number, you can also enter it in the search box above.

part 23

part 22

part 21

part 20

part 19

part 19

part 18

part 17

part 17

part 16

part 15

part 14

part 13

part 12

part 11

part 10

part 9

part 8

part 7

part 6

part 5

part 4

part 3

part 2

part 2

ITEM	PART NUMBER	QTY	DESCRIPTION		ITEM	PART NUMBER	QTY	DESCRIPTION
1	55400A	3	KEY 3/16 X 3/4 DIA. HYPRO		13	67818A	1	SPACER, SHAFT DRUM

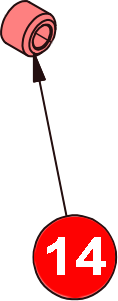

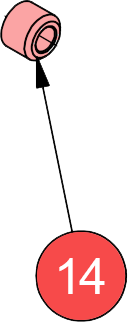

2	920280	1	NUT-5/8-18X3/8 HEX JAM		14	67819A	1	SPACER-SHAFT DRUM
3	980644	1	WASHER, FELT, 5/8 SAE		15	67911A	1	SPRING

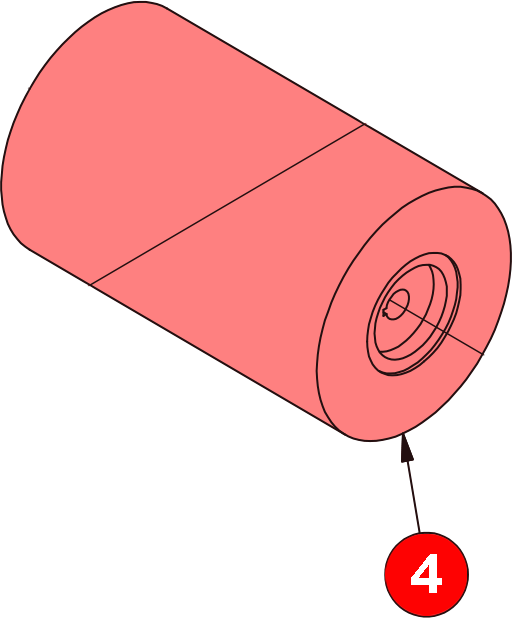

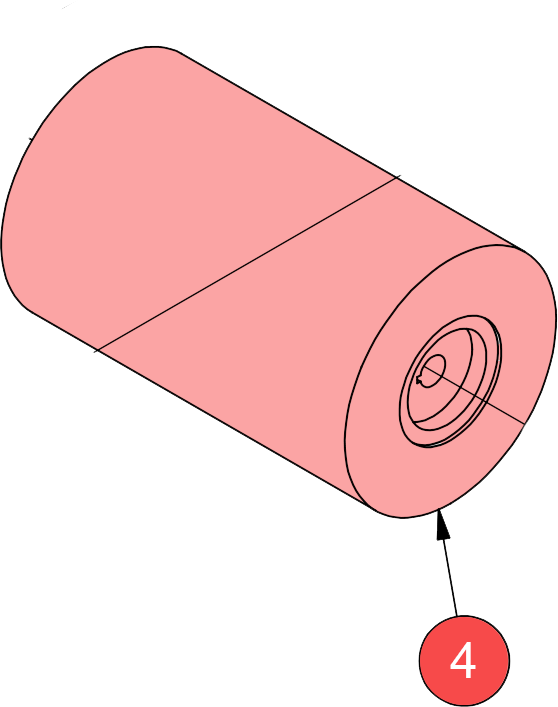

4	13500A	1	DRUM ASSEMBLY AMERICAN 12		18	962262	1	SCREW, SET 8-32 X 1/2"

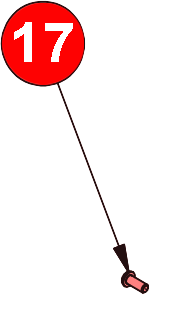

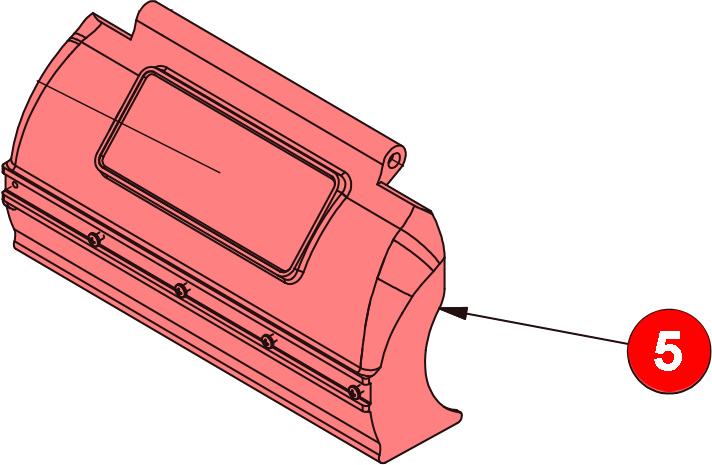

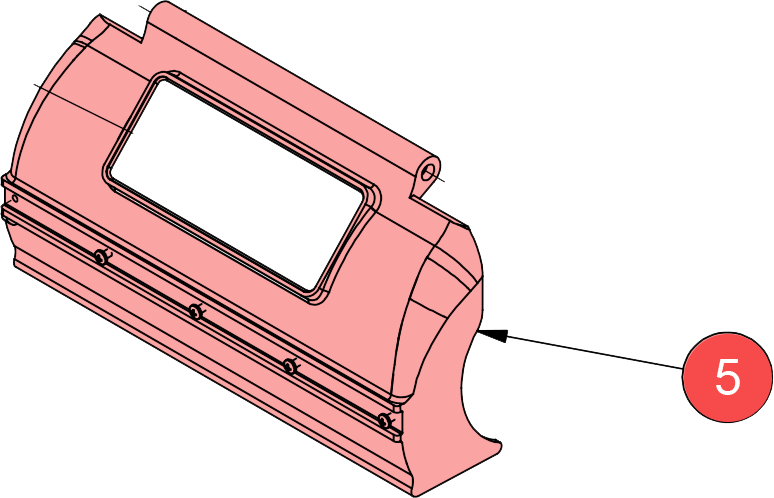

5	22111A	1	COVER DRUM AMERICAN 12		17	962983	6	SCR 1/4-20 X 5/8 PN ST MACH

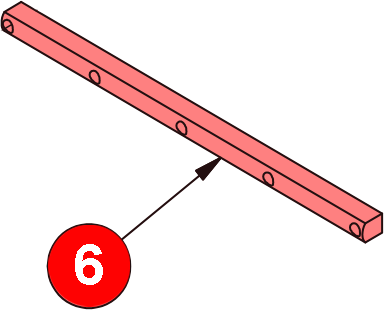

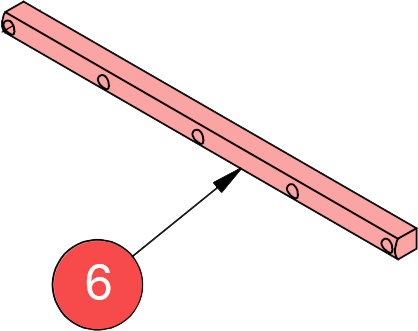

6	31211A	1	BUMPER ASSEMBLY		16	980657	6	WASHER, LOCK 1/4"

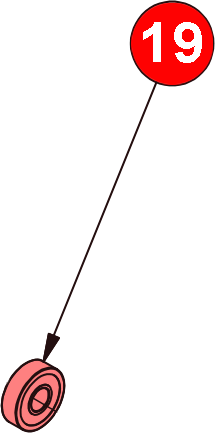

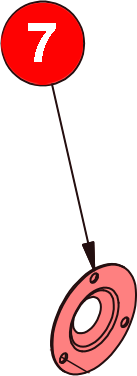

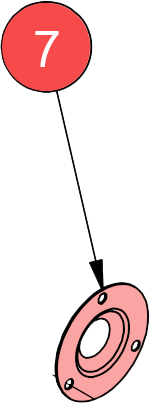

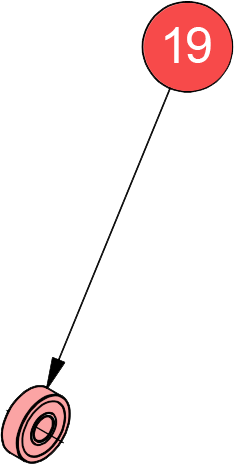

7	62608C	1	COVER DRUM SHAFT		19	51110A	2	BEARING-BALL

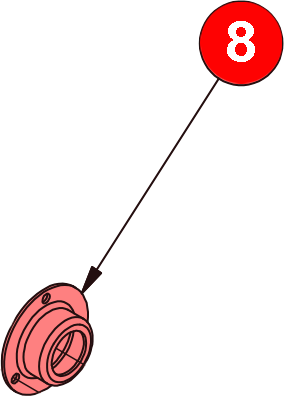

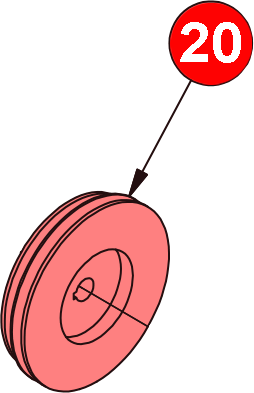

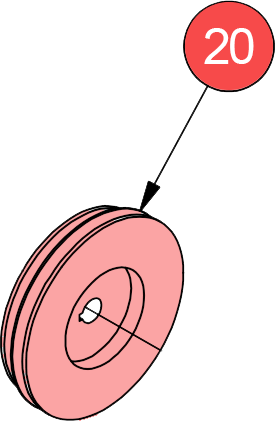

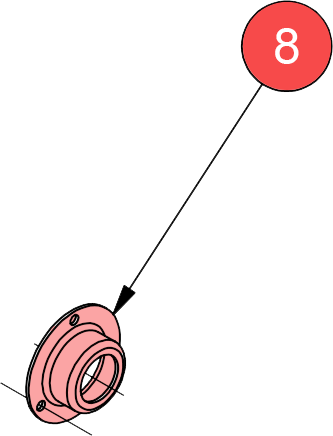

8	64703A	1	HOUSING, BEARING SHAFT		20	66165A	1	PULLEY DRUM AMERICAN 12

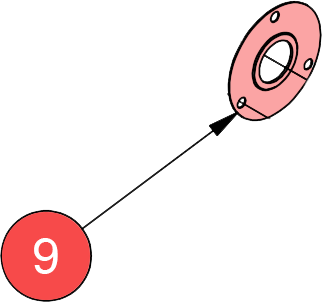

9	66918A	1	RETAINER, FELT, WASHER, PNTDAM 8		21	85517A	5	SCREW #10-24 X 1/2 PHCR TYPE 23

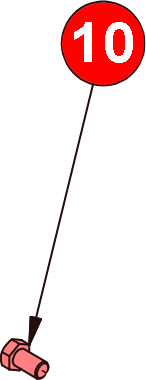

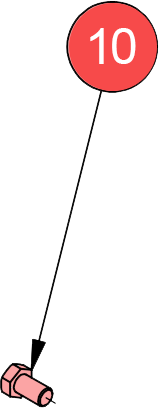

10	67314A	1	SCR		22	51021A	1	BELT, DRUM, 3VX425 (07108A, 07108C, 07109A, 07204A & 07120A)

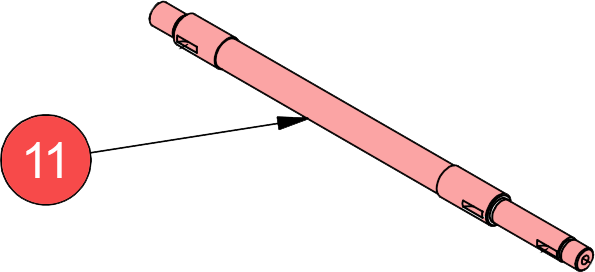

11	67415A	1	SHAFT, DRUM			AS018500	1	BELT, 3V, 44.5" (07001A, 07108B)

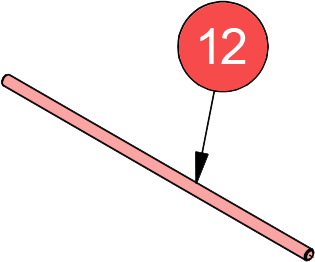

12	67417A	1	SHAFT, COVER, DRUM		23	AS014200	1	NAMEPLATE, AMERICAN 12
