A12

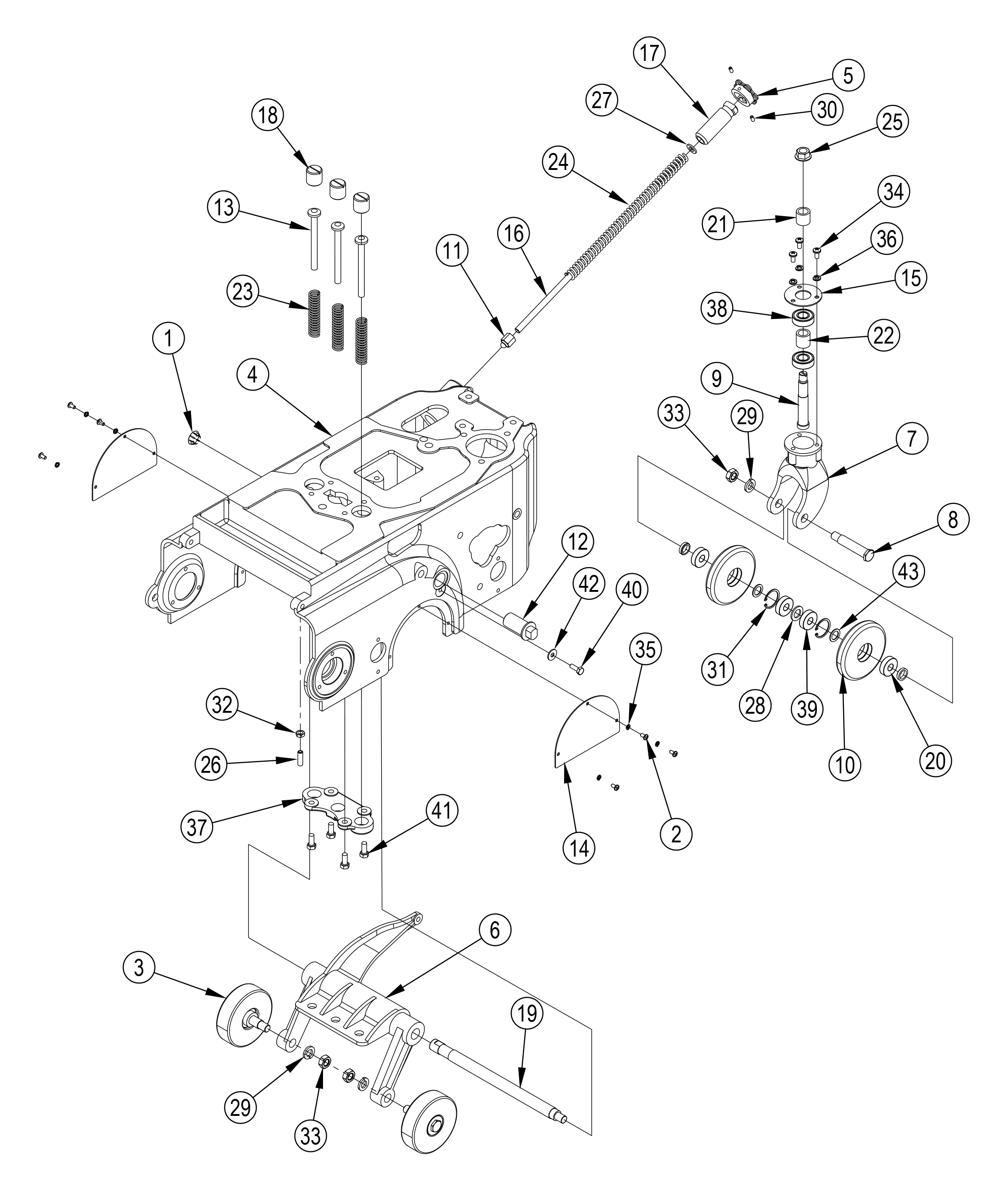

Base Assembly
| Item | Part Number | Qty | Description | Item | Part Number | Qty | Description | |
| 1 | 501345 | 1 | Plug, Button 25/32 FM | 23 | 67906A | 3 | Spring, American 8 & 12 | |

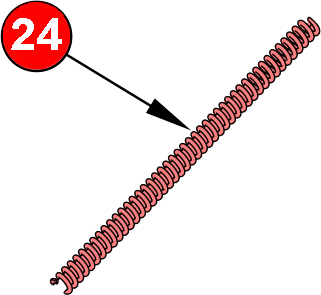

| 2 | 962015 | 6 | Screw, 10-24 x 3/8 PN ST PH | 24 | 67907A | 1 | Spring, Drum Pressure, American 8 & 12 | |

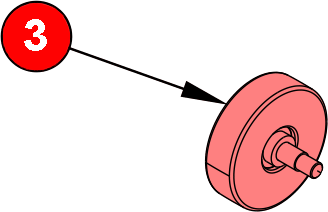

| 3 | 10243A | 2 | Wheel Asm, Urethane | 25 | 81209A | 1 | Nut, Large Flange, 1/2-13 | |

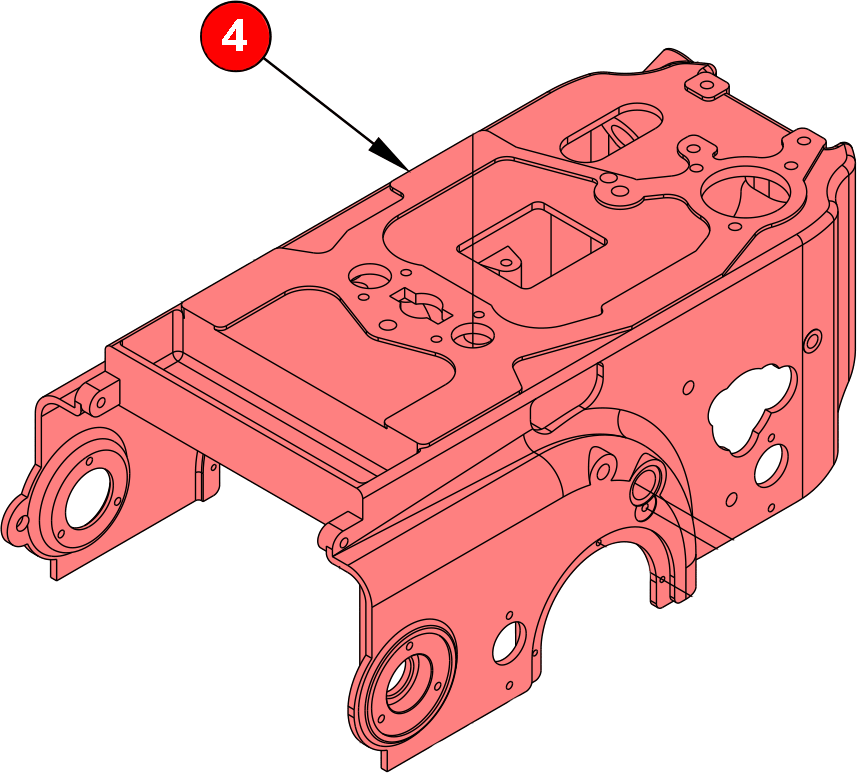

| 4 | 23406A | 1 | Frame | 26 | 86201A | 1 | Screw, 5/16-18 x 1 ST ST CUP PT | |
| 5 | 25200C | 1 | Knob Hand - Black | 27 | 87000A | 1 | Washer, .39x.75x.09 FLAT ST | |

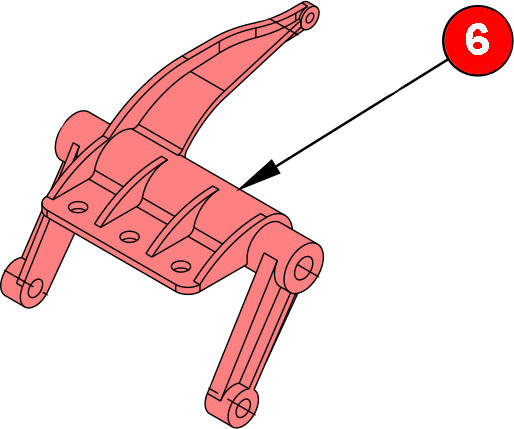

| 6 | 25600A | 1 | Lever - Reach | 28 | 87003A | 1 | Washer, .59x1.00x.09 FLAT ST | |

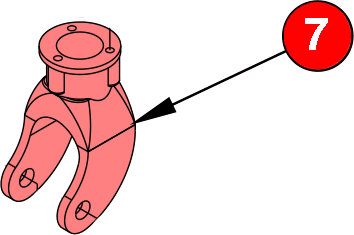

| 7 | 29403C | 1 | Yoke Wheel - Black | 29 | 87101A | 3 | Washer, Lock, 1/2 NOM | |

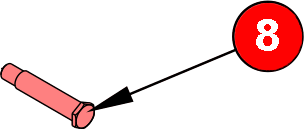

| 8 | 60101A | 1 | Axle | 30 | 88502A | 2 | Set Screw, 10-24 x3/8, CONE POI | |
| 9 | 60715B | 1 | Bolt, Pivot, American 8 & 12 | 31 | 747304 | 2 | Retaining Ring, Arm BRG 37 | |

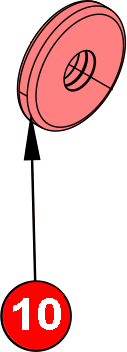

| 10 | 61333A | 2 | Caster Wheel 4 | 32 | 920160 | 1 | Nut, 5/16-18 HEX JAM | |
| 11 | 62000A | 1 | Nut, End | 33 | 920196 | 3 | Nut, 1/2-13 HEX JAM | |
| 12 | 62801A | 1 | Eccentric Control Shaft | 34 | 962823 | 3 | Screw, 1/4-20 x1/2 PN ST PH | |
| 13 | 66123A | 3 | Plunger | 35 | 980650 | 6 | Washer, Lock, .19x.34x.04 | |

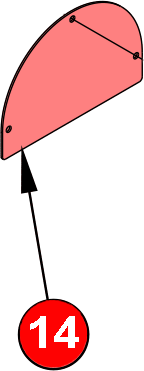

| 14 | 66628C | 2 | Cover, Truck Wheel | 36 | 980657 | 3 | Washer, Lock, 1/4 STD | |

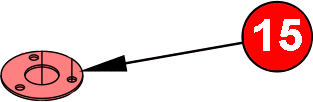

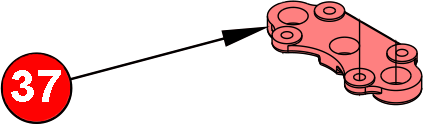

| 15 | 66913A | 1 | Retainer Bearing | 37 | 26502A | 1 | Plate, Plunger Spring | |
| 16 | 67109A | 1 | Rod - Pilot | 38 | 51112A | 2 | Bearing, 6202 | |
| 17 | 67309A | 1 | Screw, Drum Pressure Adj. | 39 | 51226A | 4 | Ball Bearing, 6002 | |
| 18 | 67315A | 3 | Screw, Adj., Spring, 1.00L | 40 | 85806A | 1 | Screw, 1/4-20 x3/4 HX SZ CAP | |

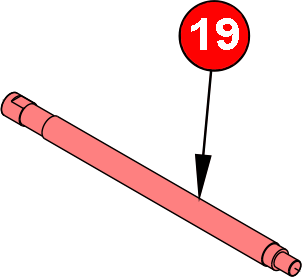

| 19 | 67416A | 1 | Shaft, Lever | 41 | 85811A | 4 | Bolt, 5/16-18 x3/4 HX HD | |
| 20 | 67810A | 2 | Spacer | 42 | 87007A | 1 | Washer, Control Shaft Eccentric | |
| 21 | 67814A | 1 | Spacer | 43 | 61355A | 2 | Spacer, Caster Wheel, American 8 & 12 | |
| 22 | 67821A | 1 | Spacer, Drum Sander |
