FloorCrafter

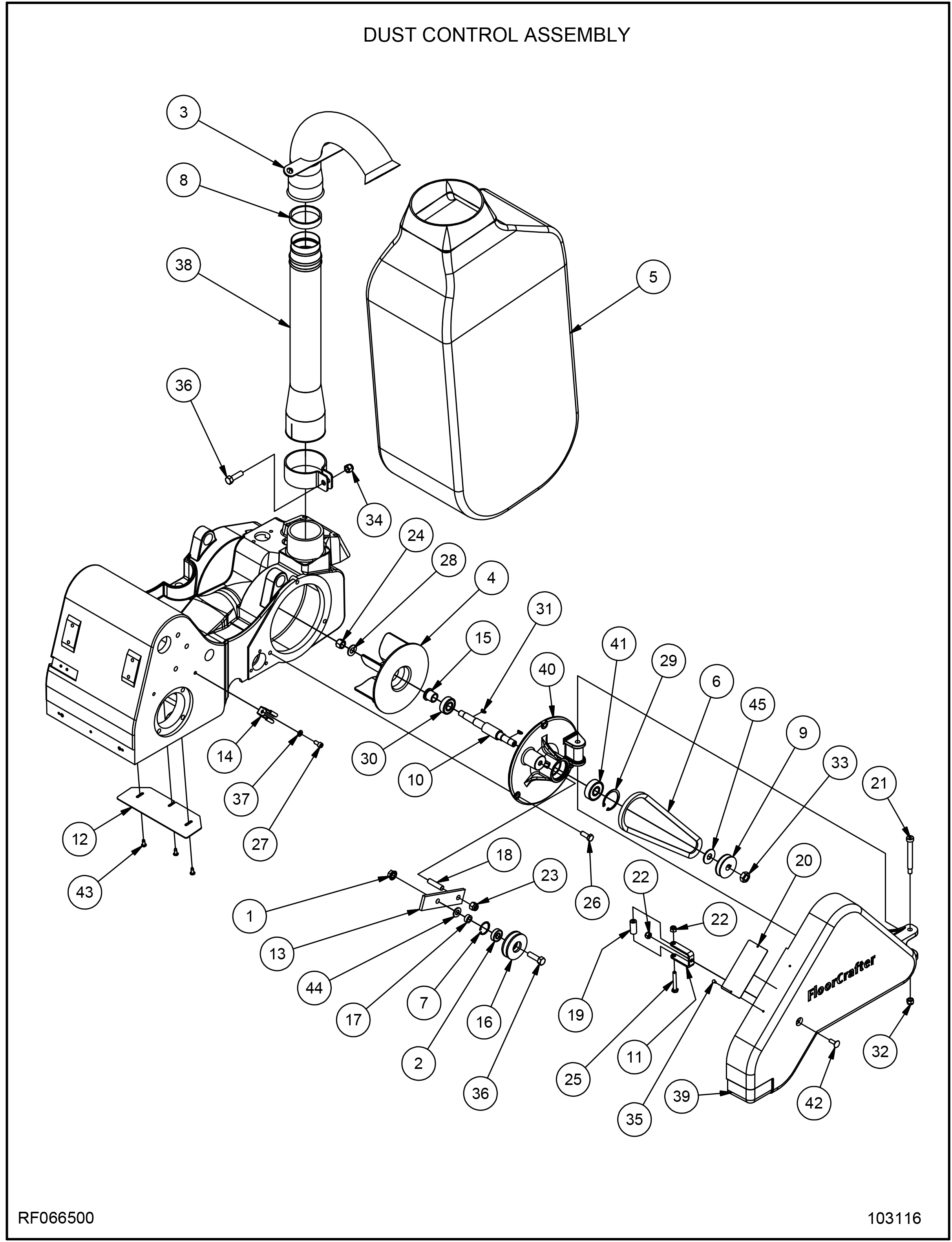

Dust Control Assembly
| Item | Part Number | Qty | Description | Item | Part Number | Qty | Description | |

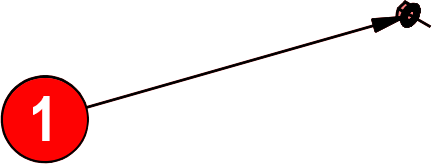

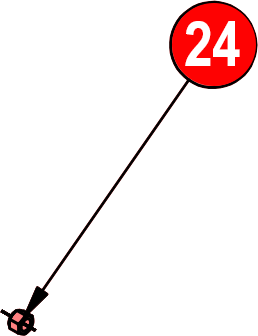

| 1 | 171101 | 1 | Nut Lk-Flange 3/8-16 Pltd | 24 | 81202A | 1 | Nut 7/16-14 Hx St Lh | |

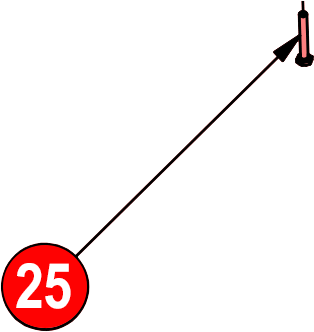

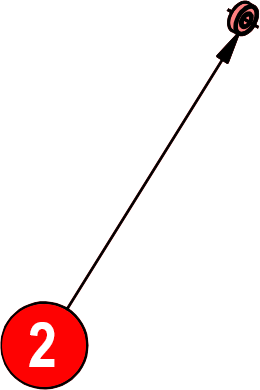

| 2 | 02619 | 1 | Bearing 580/590 Tb16 | 25 | 85702A | 1 | Scr 1/4 -20x1&3/4 Hx St Cap | |

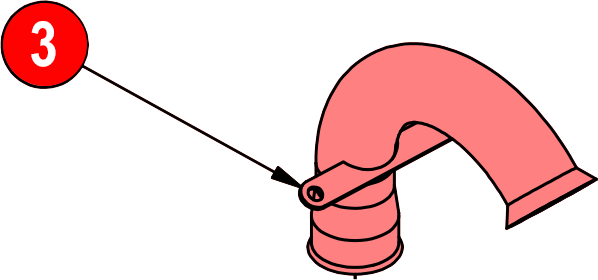

| 3A | 10142A | 1 | Assy Duct Tube Elbow | 26 | 85812A | 3 | Screw5/16-18 X 7/8 Hex Hd Gr5 | |
| 3B | 53718A | 1 | Vacuum Hose 2" Adapter (Optional) | 27 | 86111A | 1 | Screw1/4-20 X 1/2socket Head | |

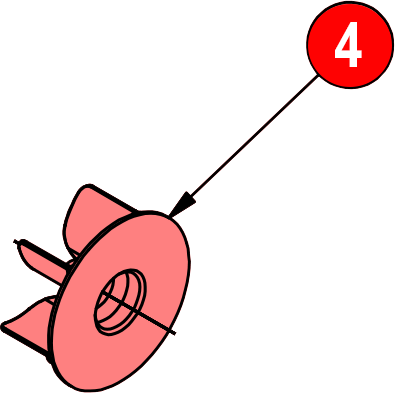

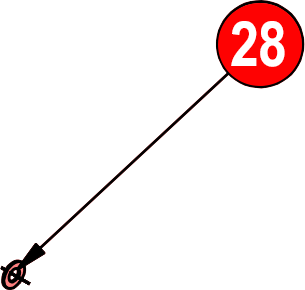

| 4 | 23301A | 1 | Fan | 28 | 87002A | 1 | Washerflat | |

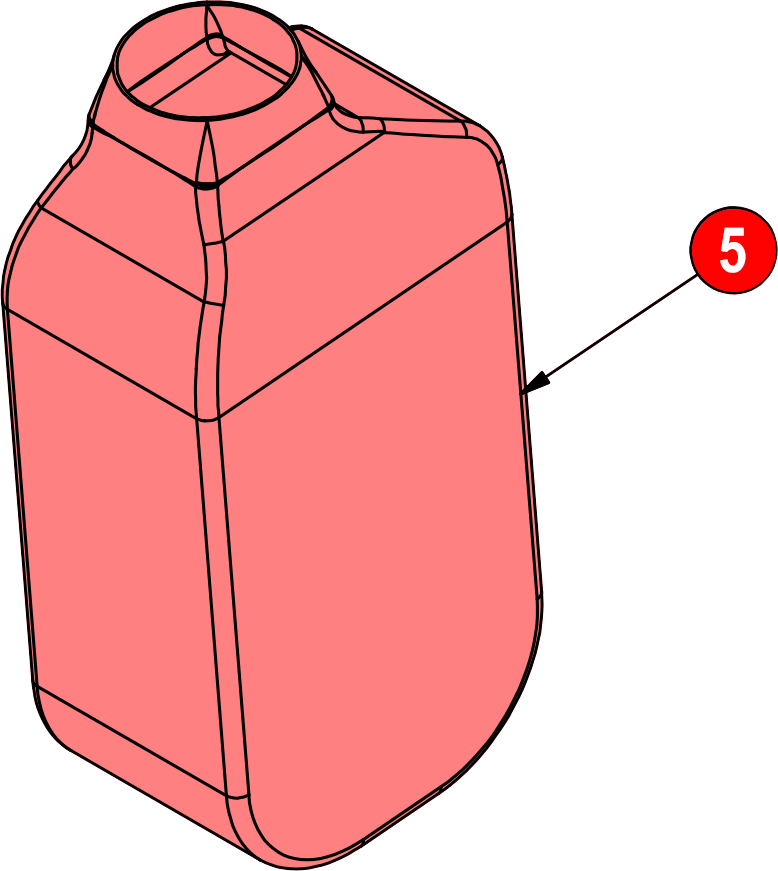

| 5 | 50954A | 1 | Bag Assy-Dust | 29 | 877304 | 1 | Ring Retaining Internal | |

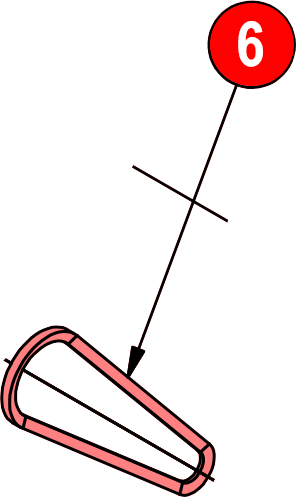

| 6 | 51039A | 1 | Belt Fan | 30 | 902567 | 1 | Bearing Balldouble Sealed | |

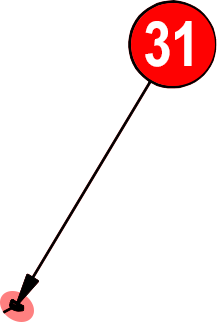

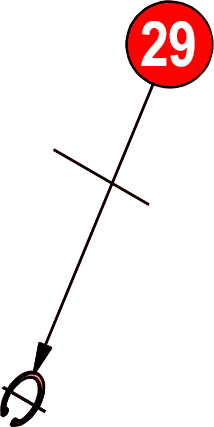

| 7 | 57801A | 1 | Ring-Snap 26x1.2 | 31 | 915561 | 2 | Key 1/8x1/2 Woodruff | |

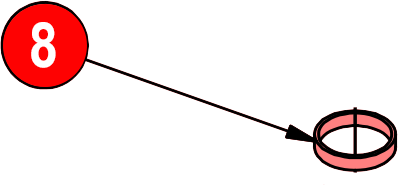

| 8 | 60342A | 1 | Seal Felt | 32 | 920110 | 1 | Nut, 5/16-18 Hex Lock | |

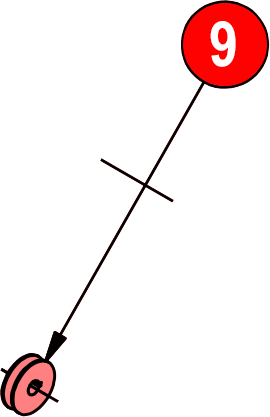

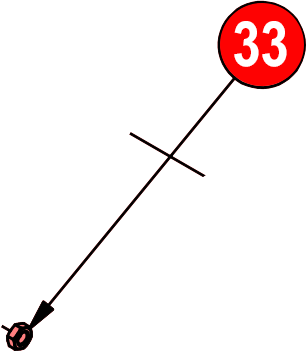

| 9 | 60366A | 1 | Pulley Fan | 33 | 920196 | 1 | Nut 1/2-13 Hex Jam | |

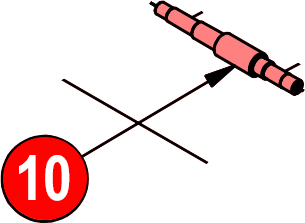

| 10 | 60370A | 1 | Shaft Fan | 34 | 920342 | 1 | Nut Esna 3/8-16 | |

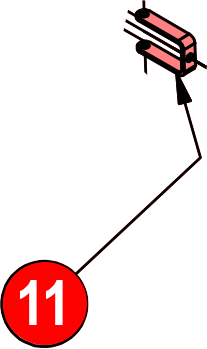

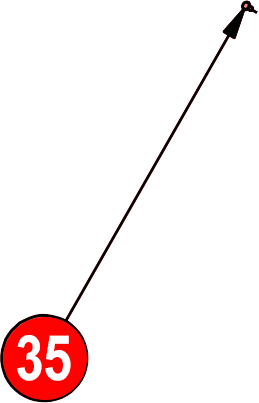

| 11 | 60384A | 1 | Bracket Latch | 35 | 930093 | 2 | Rivet, Pop, 1/8 X 1/4-5/16 Pop Steel | |

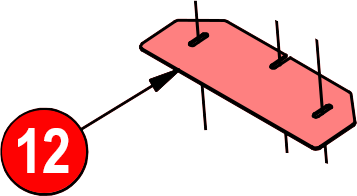

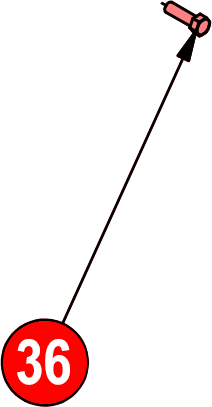

| 12 | 60397A | 1 | Cover Dust Throat | 36 | 962216 | 2 | Screw, 3/8-16 X 1 1/4 Hex. | |

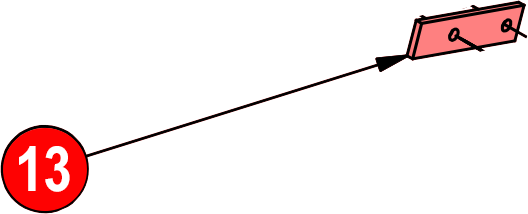

| 13 | 60414A | 1 | Armidlerpntd8 Belt Sander | 37 | 980657 | 1 | Washer, Lock 1/4 | |

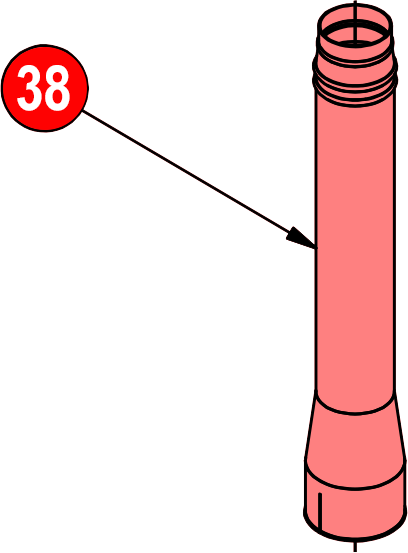

| 14 | 61600A | 1 | Clip-Dust | 38 | 10144A | 1 | Assembly Dust Tube | |
| 15 | 61602A | 1 | Collar | 39 | 20023A | 1 | Guard, Belt Assy (07014A, 07202A, 56380917) | |
| 16 | 66170A | 1 | Pulley Idler -3l Classic 8 | 20023B | 1 | Guard, Belt Assy, Blk (07014B) | ||

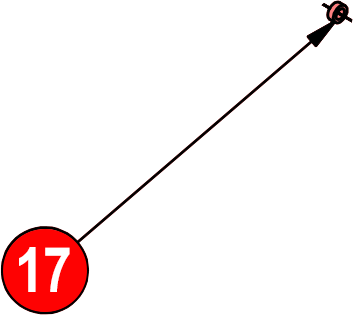

| 17 | 67875A | 1 | Spacer Classic 8 | 40 | 20026A | 1 | Cover, Fan (07014A, 07202A, 56380917) | |

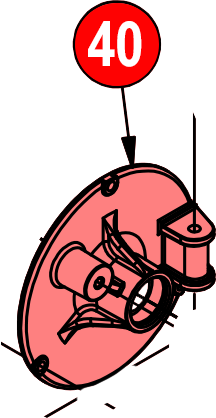

| 18 | 68010A | 1 | Studidler Arm8 Belt Sander | 20026B | 1 | Guard, Fan, Blk (07014B) | ||

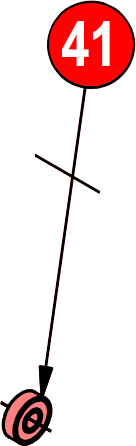

| 19 | 68393A | 1 | Tubelatchpntd8 Belt Sander | 41 | 51111A | 1 | Bearingball | |
| 20 | 74045A | 1 | Platedangermoving Partsclas | 42 | 80131A | 1 | Carriage Bolt | |
| 21 | 80017A | 1 | Bolt Shoulder 3/8 X 2 3/4 | 43 | 85517A | 3 | Screw #10-24 X 1/2 PHCR TYPE 23 | |

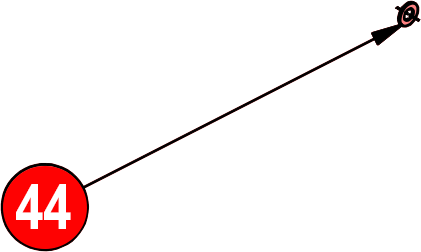

| 22 | 81102A | 2 | Nut Stop Elastic 1/4-20 Hex | 44 | MX1080 | 1 | Washer, Flat, 3/8 | |

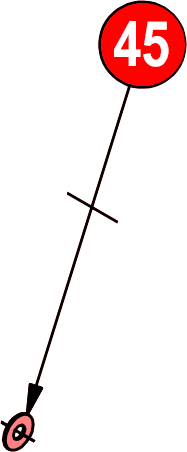

| 23 | 81108A | 1 | Nuthex Elastic Lock3/8-24 | 45 | NB9269 | 1 | Washer, Flat, 7/16 |
