FloorCrafter

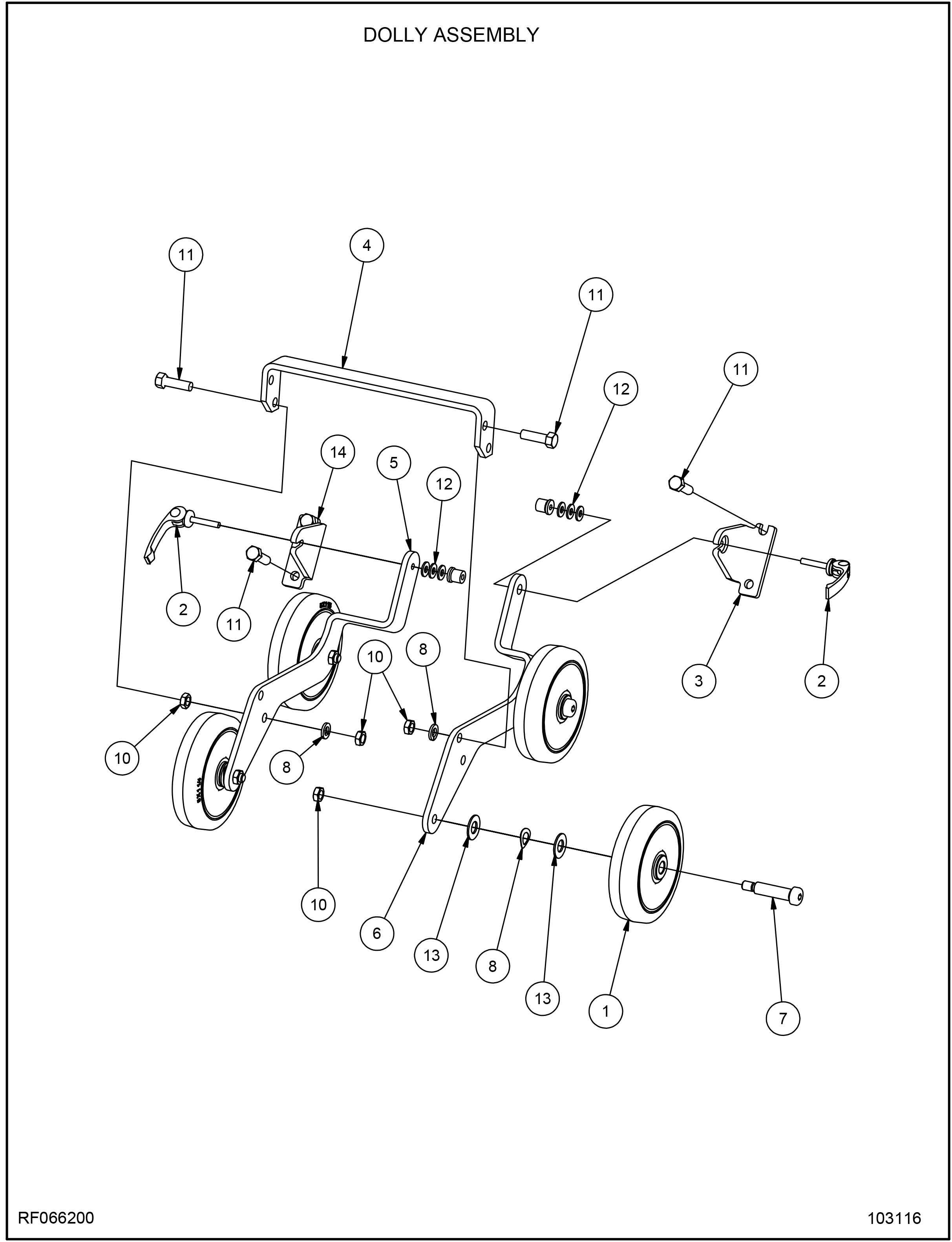

RF066200 Dolly Assembly
| Item | Part Number | Qty | Description | Item | Part Number | Qty | Description | |

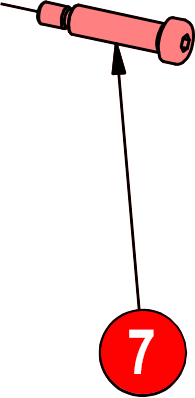

| 610392A | 1 | Dolly Assembly Floorcrafter | 7 | 80047A | 4 | Boltshoulder 1/2dia X 1-3/4 | ||

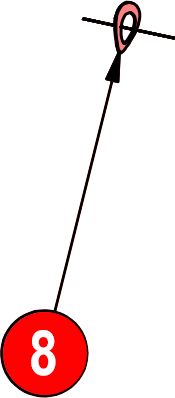

| (all items except 3 & 14) | 8 | 87627A | 4 | Washer.875 O.D. Bowed | ||||

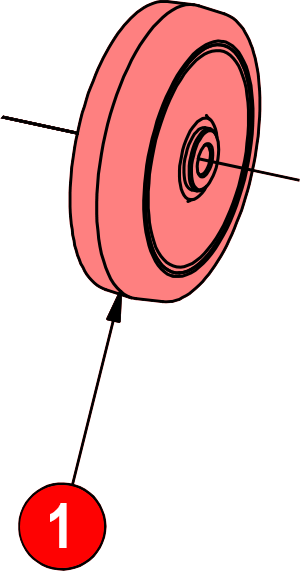

| 1 | 39857A | 4 | Wheel 5 X 1.50 X .500 | 9 | 70883 | 4 | Washer, Lock 3/8” | |

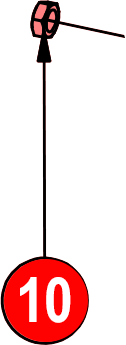

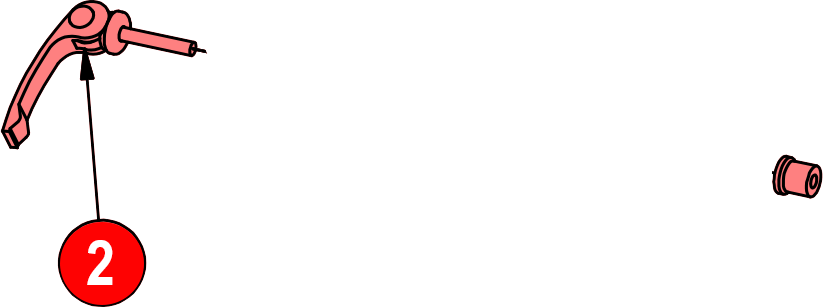

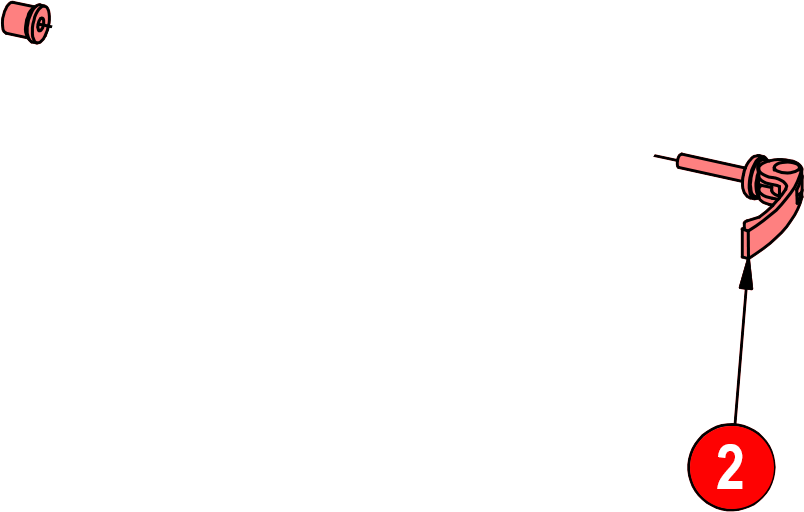

| 2 | 51372A | 2 | Skewer, Quick Release | 10 | 920260 | 10 | Nut, 3/8-16 Hex | |

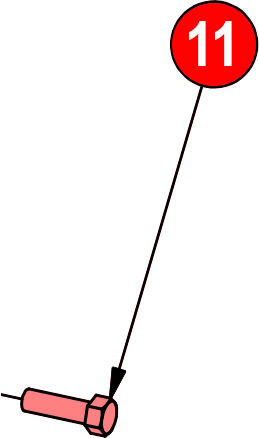

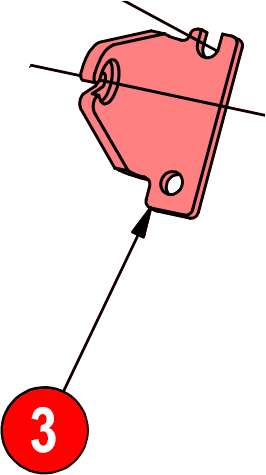

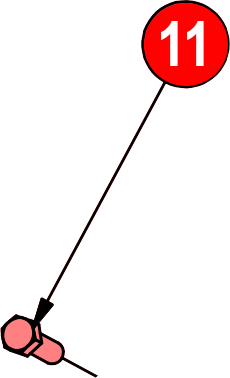

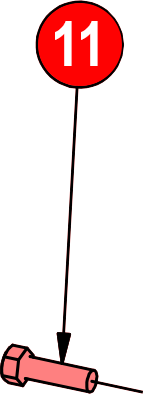

| 3 | 60346A | 1 | Bracket Right Mounting | 11 | 962216 | 8 | Screw, 3/8-16 X 1 1/4 Hex. | |

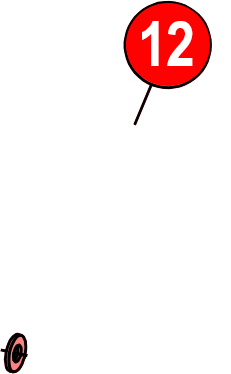

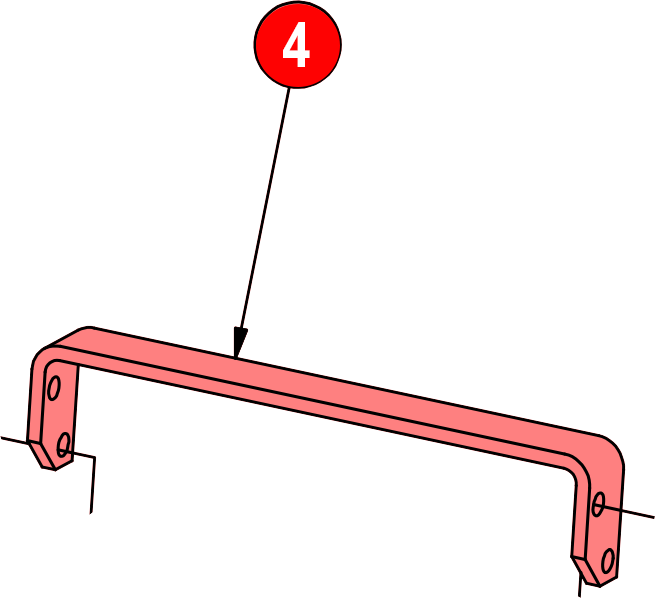

| 4 | 60347A | 1 | Brace Dolly | 12 | 980646 | 6 | Washer 1/4 Sae Flat Pltd | |

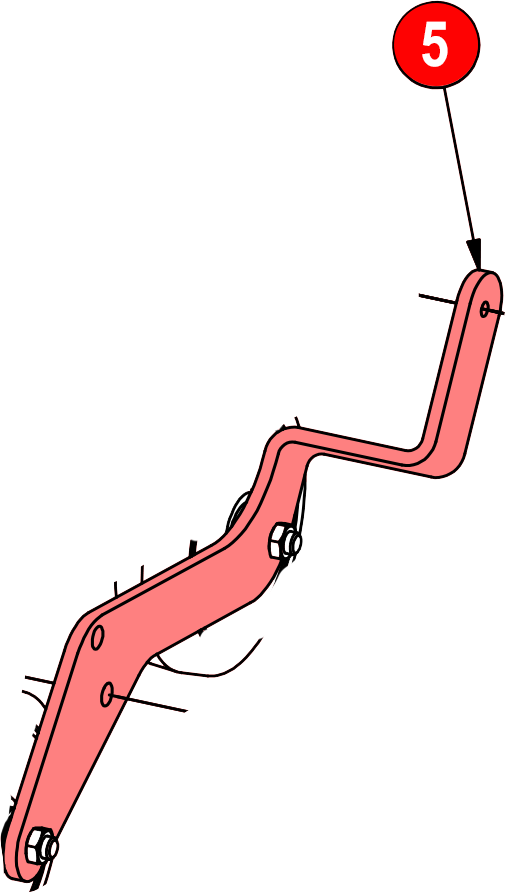

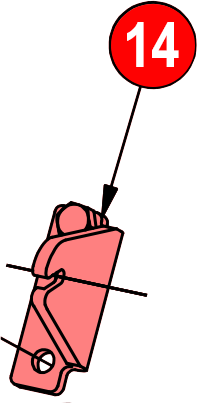

| 5 | 60348A | 1 | Bracket Right | 14 | 60345A | 1 | Bracket, Dolly Left | |

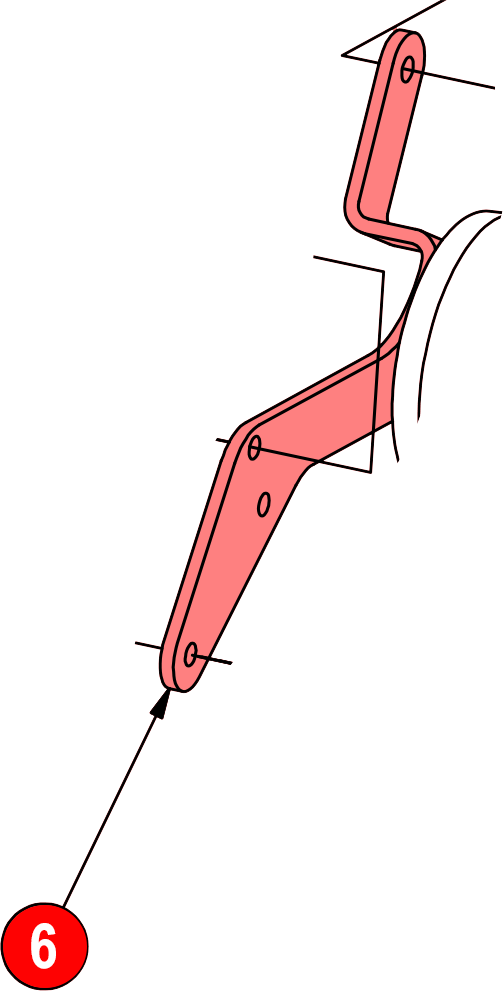

| 6 | 60349A | 1 | Bracket Left |
