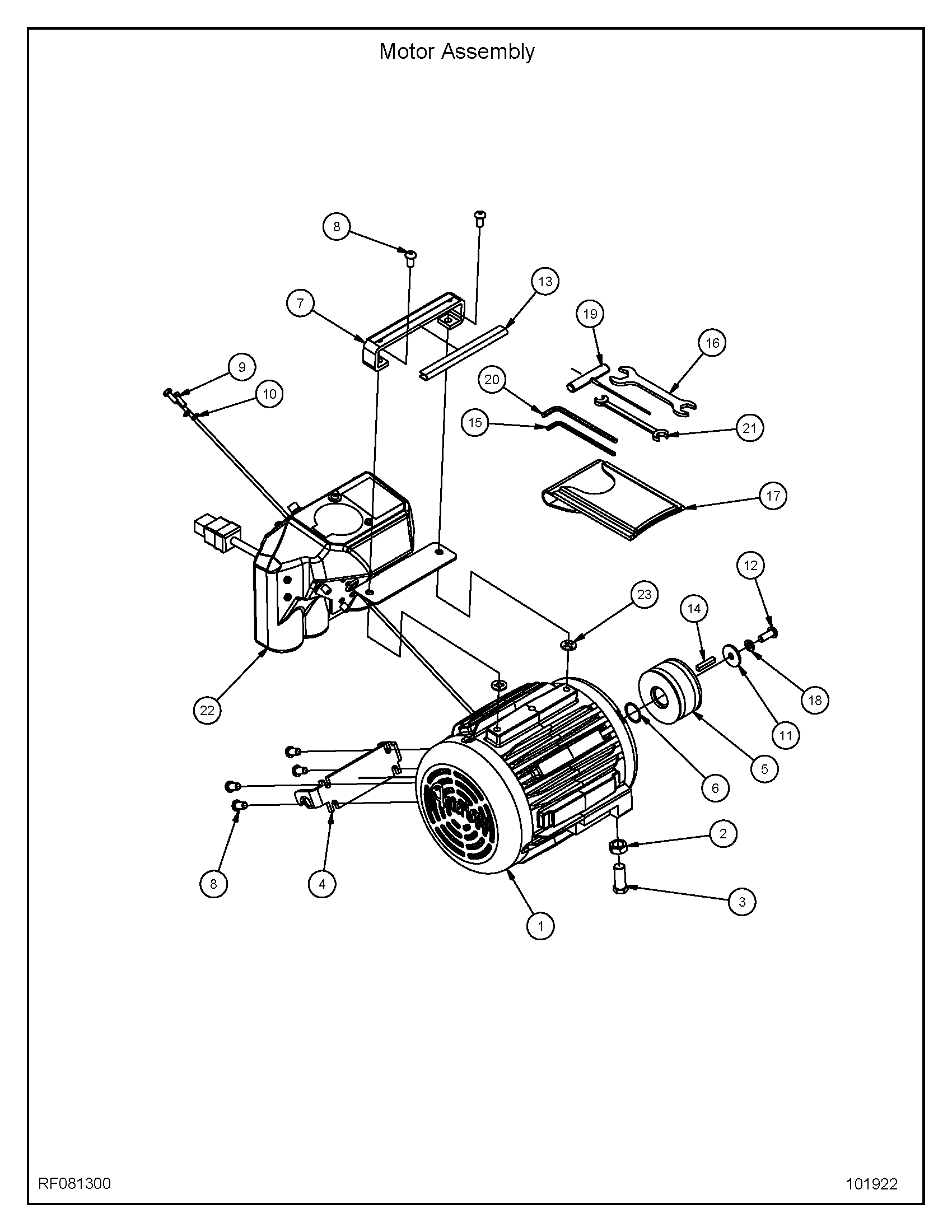

FloorCrafter CE Motor Assembly

Reference the part needed from the parts diagram and refer to the parts list below.
Copy the Part Number and paste it into the search window above to see availability and pricing.
Confirm your parts selection and "Add To Cart".

ITEM	QTY	PART NUMBER	DESCRIPTION
1	1	AS087100	MOTOR, FLOORCRAFTER, CE
2	1	80138A	NUT, JAM, 5/8-11
3	1	51222A	SCREW, BELT TENSIONING
4	1	10173A	ASSY MOTOR MOUNT
5	1	60365A	SHEAVE, MOTOR
6	1	57712A	RING RETAINING MOTOR SHAFT 8
7	1	60350A	HANDLE MOTOR
8	6	962565	SCREW, 3/8-16, BT ST NC3
9	2	85806A	SCREW 1/4-20 X 3/4 HX SZ CAP
10	2	980657	WASHER, LOCK 1/4"
11	1	87034A	RETAINER MOTOR PULLEY CLASSIC 8
12	1	962870	SCR 3/8 -16X1 BT ST ALLEN
13	.38 m	97100A	TRIM, VINYL, BLACK
14	1	60394A	KEY
15	1	AS036600	WRENCH, ALLEN, 3/16"
16	1	60498A	WRENCH 15/16 X 3/4 OPEN
17	1	51347A	POUCH TOOL
18	1	MX1075	WASHER, LOCK, 3/8"
19	1	51273A	KEY HEX 3/32
20	1	51274A	KEY HEX 7/32
21	1	59810A	WRENCH- PAPER CLAMP 9/16 X 7/16
22	1	AS067600	BOX, CAPACITOR, ASSEMBLY, CE
23	2	NB077300	WASHER, RETAINED, NYLON, 3/8 ID
