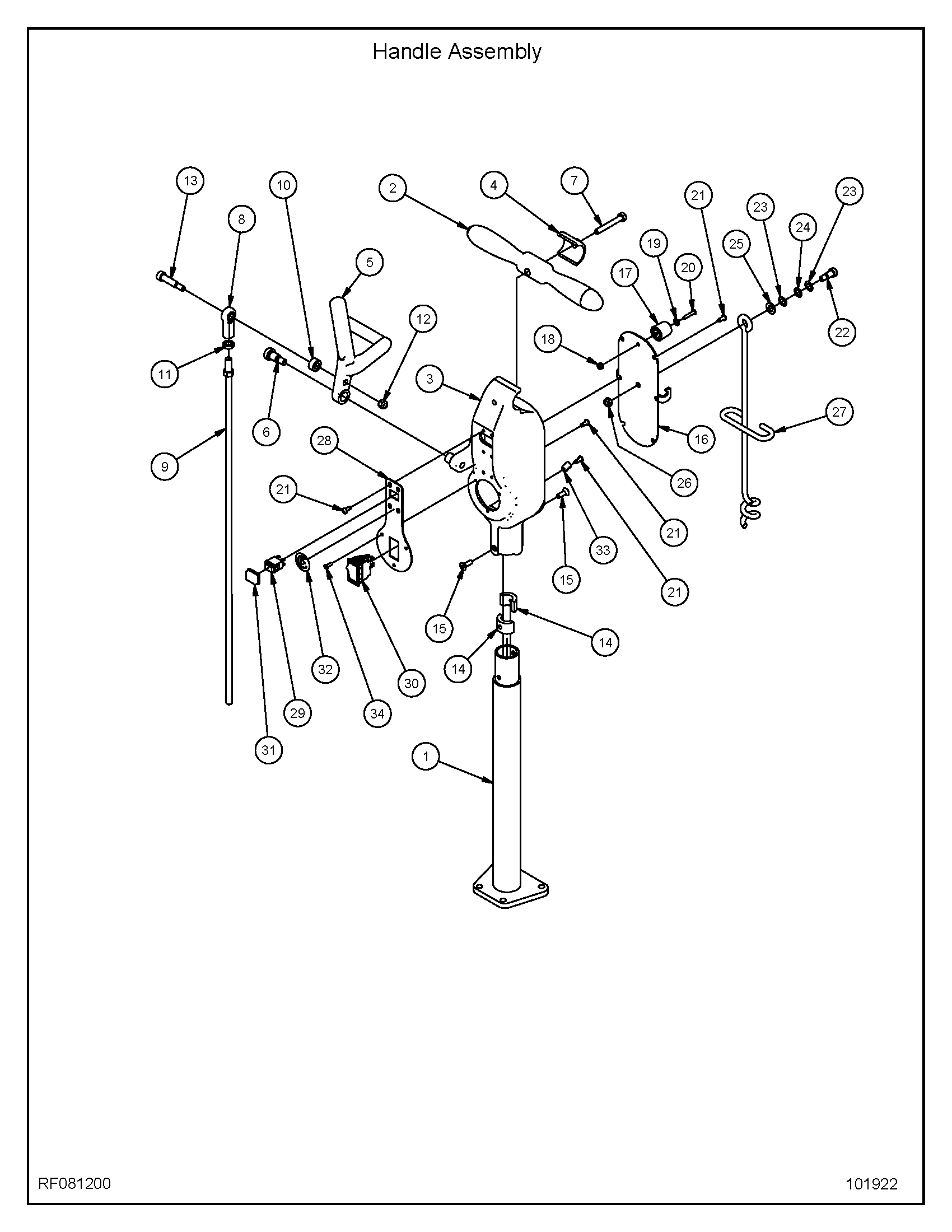

FloorCrafter CE Handle Assembly

Reference the part needed from the parts diagram and refer to the parts list below.
Copy the Part Number and paste it into the search window above to see availability and pricing.
Confirm your parts selection and "Add To Cart".

ITEM	QTY	PART NUMBER	DESCRIPTION	ITEM	QTY	PART NUMBER	DESCRIPTION
1	1	10145A	MOUNT HANDLE CONTROL	19	1	980982	WASHER 10 SAE FLAT PLTD
2	1	64405A	HANDLE-STEERING	20	1	85613A	SCREW 8-32X7/8 PAN HD
3	1	20016A	SWITCHBOX SANDER	21	12	85517A	SCREW #10-24 X 1/2 PHCR TYPE 23
4	1	21904C	CLAMP STEERING HANDLE-BLACK	22	1	80026A	BOLT SHOULDER 3/8 X 1/2
5	1	25601A	LEVER CONTROL CLASSIC 8	23	2	980022	WASHER WAVE, .38ID X .656OD X .11H
6	1	NB071200	SCREW, SHOULDER, 1/2" X 5/8" X 3/8-16	24	1	87619A	WASHER FLT .63X.38X.03 NYLON
7	1	85818A	SCREW 5/16-18 X 2-1/2 HX HD	25	1	87618A	WASHER FLT .75X .39 .62 NYLON
8	1	53537A	ROD END 3/8-24 R.H. FEMALE	26	1	81112A	NUT 5/16-18 THIN ESNA S.S.
9	1	60387A	ROD CONTROL	27	1	AS067300	ARM CORD, CE
10	1	898203	SPACER ROD END HK-8	28	1	AS067400	PLATE, SWICH, FLOORCRAFTER, CE
11	1	920204	NUT 3/8-24 HEX JAM	29	1	AS088200	SWITCH, PUSH, DPST, 12A 250V
12	1	920110	NUT, 5/16-18 HEX LOCK	30	1	MP488800	SWITCH, ROCKER, DPST, 20A
13	1	80035B	BOLT SHOULDER 3/8 X 1-1/4	31	1	AS088300	COVER, SWITCH
14	2	60374A	CLAMP RETAINER	32	1	AS088400	DECAL, START
15	2	80132A	SCREW 1/4-20X3/4 FH SOCKET HD	33	2	NB080300	CLAMP, CABLE, 3/16
16	1	10155A	ASSY CORDHOLDER	34	3	962727	SCREW, 8-32 X 1/2 PN ST TP23 PH
17	1	51220A	BUMPER PLASTIC NON-MARKING	35	1	AS088700	HARNESS, HANDLE, 5 COND., CE (NOT SHOWN)
18	1	81109A	NUT HEX ELASTIC LOCK SS 8-32	36	1	AS089300	WIRE, JUMPER, SWITCH (NOT SHOWN)
