To purchase parts for the FloorCrafter CE Dolly Assembly Parts:

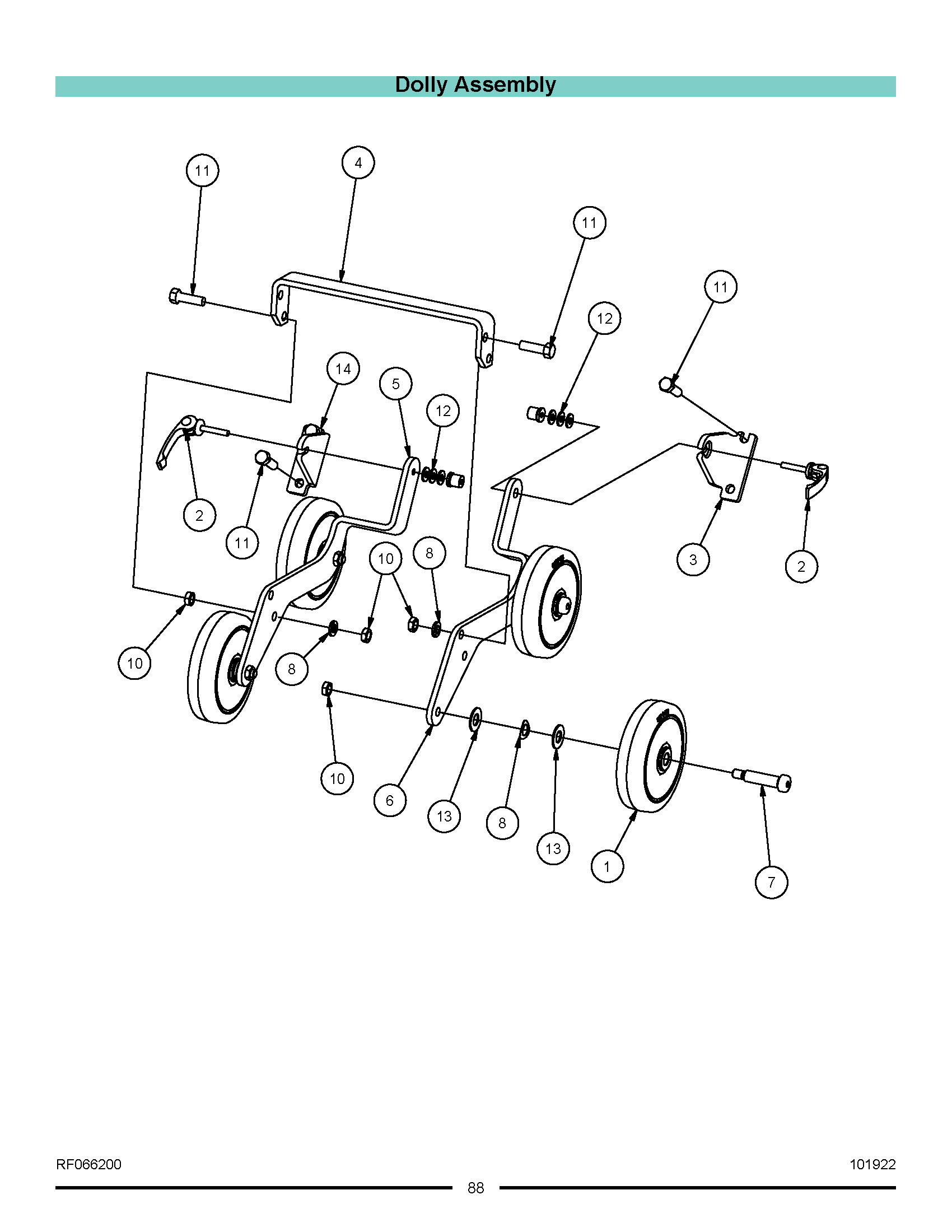

- Reference the part needed from the parts diagram and refer to the parts list below.
- Copy the Part Number and paste it into the search window above to see availability and pricing.
- Confirm your parts selection and "Add To Cart".
| ITEM | QTY | PART NUMBER | DESCRIPTION |
| 1 | 10392A | DOLLY ASM. FLOORCRAFTER (ALL ITEMS EXCEPT 3 & 14) | |
| 1 | 4 | 39857A | WHEEL 5 POLISHER |
| 2 | 2 | 51372A | SKEWER QUICK RELEASE |
| 3 | 1 | 60346A | BRACKET LEFT MOUNTING |
| 4 | 1 | 60347A | BRACE DOLLY |
| 5 | 1 | 60348A | BRACKET RIGHT |
| 6 | 1 | 60349A | BRACKET LEFT |
| 7 | 4 | 80047A | BOLT SHOULDER 1/3 DIA X 1-3/4 |
| 8 | 4 | 87627A | WASHER .875 O.D. BOWED |
| 8 | 4 | 170883 | WASHER LK 3/8 REGPLTD |
| 10 | 10 | 920260 | NUT 3/8-16 HEX |
| 11 | 8 | 962216 | SCREW 3/8-16 X 1 1/4 HEX |
| 12 | 6 | 980646 | WASHER 1/4 SAE FLAT PLTD |
| 13 | 8 | 980648 | WASH-17/32 ID X 1&1/16 OD PLN |
| 14 | 1 | 60345A | BRACKET RIGHT MOUNTING |
